Tryptic Peptide Mapping Analysis: A Core Tool for Biopharmaceutical Characterization

Principle and Characteristics of Trypsin Digestion

Trypsin, the most commonly used proteolytic enzyme in peptide mapping, exhibits highly specific cleavage properties, enabling precise localization of protein cleavage sites. This serine protease preferentially recognizes the carboxyl termini of arginine (Arg) and lysine (Lys) residues, cleaving peptide bonds after these basic amino acids to generate peptides (typically 6-25 amino acids in length) suitable for mass spectrometry analysis. Digestion efficiency is influenced by multiple factors: optimal activity occurs at pH 7.5-8.5; disulfide bonds require reduction and alkylation pretreatment; detergent concentrations above 0.1% significantly inhibit enzyme activity. Modern mass spectrometry-compatible trypsin (e.g., sequencing-grade trypsin) is treated with TPCK to remove chymotrypsin contamination, ensuring >95% specificity in cleavage. Notably, trypsin exhibits "missed cleavage" (skipping certain cleavage sites with ~5-15% probability), which can paradoxically improve sequence coverage—in monoclonal antibody analysis, standard tryptic digestion achieves 65-75% sequence coverage, while incorporating missed cleavage peptides increases this to 85-95%. Temperature control is also critical: 4-6 hours of incubation at 37°C ensures complete digestion, while accelerated digestion at 50°C may induce artificial modifications like asparagine deamidation. Recent engineered trypsin variants (e.g., rTrypsin) incorporate stability mutations via genetic engineering, maintaining activity under extreme pH and temperature conditions, significantly expanding their applicability.

Methodological Optimization of Sample Preparation

High-quality peptide mapping begins with standardized sample preparation, where each step directly impacts reproducibility. Protein denaturation typically employs 6M guanidine hydrochloride or 8M urea, combined with 50mM dithiothreitol (DTT) for 30 minutes at 56°C, followed by alkylation with iodoacetamide (IAA) or chloroacetamide at 2-2.5 times the reductant concentration (usually 100-125mM). Buffer exchange, a frequently overlooked step, requires transferring the sample to trypsin-compatible buffers (e.g., 50mM ammonium bicarbonate, pH 8.0) via desalting columns or dialysis to avoid denaturant-induced enzyme inhibition. The enzyme-to-substrate ratio (E:S) must be precisely controlled: 1:20-1:50 (w/w) is suitable for most cases, while low-abundance samples may require 1:10 for higher digestion efficiency. Innovative methods like pressure cycling technology (PCT) use high pressure (20,000 psi) to complete digestion in 90 seconds, compared to hours for conventional methods, and can handle insoluble protein aggregates. For glycoproteins like monoclonal antibodies, peptide-N-glycosidase F (PNGase F) can be added post-reduction/alkylation, with digestion in D2O buffer simultaneously labeling deamidation sites for glycosylation analysis. Recently developed on-membrane digestion immobilizes samples on PVDF membranes for direct digestion, particularly effective for trace samples (<1μg), with recovery rates exceeding 80%. All preparation steps should be performed under inert atmospheres (e.g., nitrogen) to prevent artificial modifications like methionine oxidation.

Development of Liquid Chromatography Separation Conditions

Efficient peptide separation is fundamental to successful peptide mapping, with modern ultra-high-performance liquid chromatography (UHPLC) significantly enhancing resolution and sensitivity. For column selection, 1.7μm C18 columns (2.1×150mm) are the gold standard, with 300Å pore sizes balancing retention of small and large peptides. Mobile phases typically consist of 0.1% formic acid in water (A) and 0.1% formic acid in acetonitrile (B), with gradients starting at low organic content (3-5% B) and gradually increasing to 35-40% B (over 60 minutes). Column temperatures of 50°C improve peak shape. For complex samples, two-dimensional liquid chromatography (2D-LC) combines strong cation exchange (SCX) with reversed-phase (RP) separation, increasing peak capacity over 10-fold, ideal for host cell protein (HCP) residual analysis. Microflow LC (μLC) systems with 75μm inner diameter columns and 300nL/min flow rates achieve attomole-level sensitivity, suitable for precious clinical samples. Retention time prediction algorithms like Artificial Neural Networks (ANN) accurately predict elution times (<2% error) based on peptide sequences, aiding peak identification. To enhance reproducibility, iRT standard peptide mixtures (e.g., Biognosissi’s 11-peptide set) enable inter-laboratory retention time normalization. Novel surface technologies like charged surface hybrid (CSH) columns reduce silanol effects, improving recovery of basic peptides (e.g., those from monoclonal antibody CDR regions with multiple arginines) by 30-50%.

Mass Spectrometry Detection and Data Analysis

High-resolution mass spectrometry is the cornerstone of peptide mapping, with instrument selection and parameter optimization directly impacting data quality. Orbitrap-based systems, offering ultra-high resolution (>60,000 FWHM) and ppm-level mass accuracy, are the preferred platform. Data-dependent acquisition (DDA) typically employs a TOP20 method: full scans (m/z 300-1800) at 120,000 resolution, followed by HCD fragmentation (25-35% normalized collision energy) of the top 20 precursor ions. For disulfide bond analysis, gentler fragmentation techniques like electron transfer dissociation (ETD) or electron capture dissociation (ECD) preserve disulfide linkages. Data-independent acquisition (DIA) methods like SWATH record fragment data for all peptides, ideal for detecting low-abundance modified peptides in complex samples. For mass calibration, lock mass (e.g., siloxane m/z 445.120025) enables real-time correction to maintain <3ppm deviation. Data analysis workflows include raw file conversion (Proteowizard), database searching (MaxQuant, PEAKS), and result validation (Scaffold). For biologics, custom databases incorporating all potential modifications (e.g., deamidation, oxidation, glycoforms) are essential, with search parameters set to 1% FDR thresholds. Sequence coverage evaluation should consider both amino acid (>90% optimal) and peptide count coverage (typically 30-50 peptides/mAb). Cutting-edge AI algorithms like DeepMass predict peptide MS behavior, improving identification rates for unknown peptides by 40%.

Applications in Biopharmaceutical Characterization

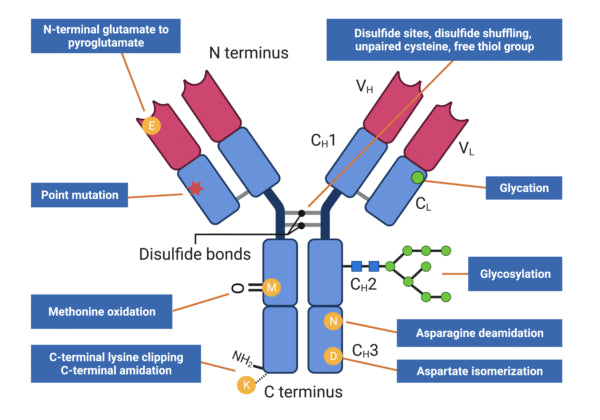

Tryptic peptide mapping is indispensable throughout the biopharmaceutical lifecycle, from development to quality control, meeting diverse regulatory requirements. For primary structure confirmation, peptide maps identify >95% of amino acid sequences, including N/C-terminal heterogeneity, signal peptide processing, and monoclonal antibody CDR integrity. In post-translational modification (PTM) analysis, peptide mapping quantifies common modifications: asparagine deamidation (often at NG motifs, increasing 0.5-2%/month in accelerated stability studies), methionine oxidation (prone at Fc region Met252 and Met428, correlating with efficacy), and C-terminal lysine clipping (30-70% truncation common). Disulfide bond analysis requires non-reduced digestion with MS detection to confirm correct pairing of 12-16 native disulfides (e.g., IgG1 inter-chain H-H and H-L bonds). In biosimilar comparability studies, peptide maps detect single-amino-acid substitutions (e.g., LHS→FHS variants in trastuzumab biosimilars), requiring >98% similarity scores for approval. For process-related impurity analysis, peptide maps identify host cell protein (HCP) residuals (e.g., CHO proteins <100ppm), proteolytic fragments (e.g., C-terminal lysine variants), and media components (e.g., insulin fragments). Emerging applications extend to novel therapies: peptide maps confirm conjugation sites and drug-to-antibody ratios (DAR) for ADCs; verify correct chain pairing for bispecific antibodies; and assess capsid protein integrity in gene therapy vectors. Regulatory agencies (FDA, EMA) mandate peptide mapping as a release test, requiring method validation for specificity, precision (RSD <5%), linearity, and robustness.

Method Validation and Standardization Advances

Comprehensive method validation is essential to ensure peptide mapping reliability and reproducibility for regulatory submissions. Specificity validation must distinguish target proteins from analogs (e.g., mAbs with different glycoforms), typically via characteristic peptides (e.g., unique CDR sequences) identified by retention times and MS fingerprints. Sensitivity testing determines limits of detection (LOD) and quantification (LOQ), with LOQ ≤1μg/mL (signal-to-noise >10) for most therapeutic proteins. Linearity should span 50-150% of target concentrations, with correlation coefficients (R²) >0.99. Precision evaluation includes repeatability (intra-day RSD <3%) and intermediate precision (inter-operator/day RSD <5%). Robustness testing assesses impacts of minor parameter variations (pH ±0.5, temperature ±5°C, enzyme amount ±20%), requiring <15% change in critical quality attributes (e.g., major PTM levels). System suitability criteria typically specify: retention time drift <2%, peak area RSD <5%, and mass deviation <10ppm. To harmonize inter-laboratory results, international standards like NISTmAb (RM8671) provide reference spectral libraries, reducing cross-platform variability to <8%. Emerging AI-driven auto-analysis systems (e.g., BiopharmaFinder) reduce processing time from hours to minutes with >95% accuracy. Method transfers employ equivalence testing (e.g., 90% confidence intervals) to demonstrate recipient lab performance. With tightening regulations, modern peptide mapping is transitioning to fully computerized system validation (CSV), ensuring data integrity and traceability.
