Tumor-Associated Macrophages (TAMs) Co-Culture Protocols: Unveiling Tumor Microenvironment Interactions with ANT BIO PTE. LTD.'s Research Tools

1. Concept

The tumor microenvironment (TME) represents a complex and heterogeneous milieu encompassing tumor cells, stromal cells (including macrophages, T cells, and fibroblasts), and soluble cytokines. Among the key immune components within the TME, tumor-associated macrophages (TAMs) emerge as pivotal regulators of cancer progression. Macrophages exhibit functional plasticity, primarily existing in two polarized subtypes: classically activated M1 macrophages and alternatively activated M2 macrophages. M1 macrophages exert anti-tumor effects by promoting immune responses, while M2 macrophages facilitate tumorigenesis, malignant progression, and immune suppression. Notably, TAMs undergo a dynamic phenotypic shift during tumor development—predominantly M1-polarized in early stages and transitioning to an M2-dominant state in advanced stages—with increased M2 TAM infiltration correlating with poor clinical prognosis. Co-culture systems, which simulate in vivo cellular interactions by cultivating two or more cell types in a single environment, serve as indispensable tools for investigating the cross-talk between TAMs and tumor cells, elucidating underlying mechanisms, and identifying potential therapeutic targets.

2. Research Frontiers

Recent research on TAMs (2023) has focused on cutting-edge topics and molecular targets, as highlighted by high-impact studies (Figure 2). Key areas of investigation include macrophage polarization dynamics, single-cell sequencing-based characterization of TAM heterogeneity, and the roles of critical molecules such as OTUB1, NBR1, STAT1, CD47, CD163, and colony-stimulating factor 1 receptor (CSF1R). Emerging frontiers also encompass the development of TAM-targeted therapies, including strategies to inhibit TAM recruitment, deplete intratumoral TAMs, or re-educate M2 TAMs towards an anti-tumor M1 phenotype. Additionally, advances in co-culture technologies (e.g., 3D co-culture, microfluidic-based systems) are enhancing the mimicry of in vivo TME, enabling more physiologically relevant studies of TAM-tumor cell interactions. These frontiers are driving the development of innovative anti-cancer therapies that modulate the TME to restore anti-tumor immunity.

3. Research Significance

Investigating TAMs and their interactions with tumor cells holds profound significance for both basic cancer research and clinical translation. From a basic science perspective, understanding TAM polarization mechanisms and TAM-tumor cross-talk unravels the complex regulatory networks governing tumor progression, immune suppression, and metastasis. Clinically, TAMs represent promising therapeutic targets—strategies targeting TAMs have shown potential to enhance the efficacy of conventional chemotherapy, radiotherapy, and immunotherapy (e.g., immune checkpoint inhibitors). Co-culture systems, as simplified yet biologically relevant models, enable the screening of candidate compounds that modulate TAM phenotype or function, accelerate the validation of therapeutic targets, and reduce the reliance on animal models. Furthermore, insights from TAM research may lead to the development of prognostic biomarkers (e.g., M2 TAM infiltration levels) to guide clinical decision-making, ultimately improving patient outcomes.

4. Relevant Mechanisms, Research Methods, and Product Applications

4.1 Core Mechanisms of TAM-Tumor Cell Interactions

The interplay between TAMs and tumor cells is mediated by a complex network of cytokines, chemokines, and signaling pathways:

• Tumor cell-driven TAM recruitment: Tumor cells secrete chemokines (e.g., CCL2, CSF1) that recruit circulating monocytes to the TME, which then differentiate into TAMs.
• TAM polarization: Tumor-derived factors (e.g., IL-4, IL-10, TGF-β) induce monocytes/macrophages to polarize towards the pro-tumor M2 phenotype, suppressing anti-tumor immunity and promoting angiogenesis, extracellular matrix remodeling, and tumor cell invasion.
• Reciprocal stimulation: M2 TAMs secrete cytokines (e.g., VEGF, EGF, IL-6) that further enhance tumor cell proliferation, migration, and drug resistance, creating a feed-forward loop that accelerates tumor progression.

4.2 Standard Co-Culture Methods

Two widely used co-culture approaches for studying TAM-tumor cell interactions are detailed below, with step-by-step protocols and critical considerations:

4.2.1 Conditioned Medium Co-Culture Assay

This indirect co-culture method uses soluble factors secreted by tumor cells to modulate macrophage phenotype, avoiding direct cell-cell contact.

Reagents Provided by ANT BIO PTE. LTD.:

• RPMI-1640 Basic Medium (abs9484): Contains L-glutamine, no HEPES; optimized for immune cell and tumor cell culture.
• Fetal Bovine Serum (FBS, abs972, Premium Grade; abs974, Standard Grade): Provides essential nutrients and growth factors for cell viability.
• Penicillin-Streptomycin Solution (abs9244): Prevents bacterial contamination (1% final concentration).
• Phorbol 12-Myristate 13-Acetate (PMA, abs9107): Induces differentiation of THP-1 monocytes into M0 macrophages.

Protocol (THP-1 Cells + Lung Cancer Cells):

1. Prepare RPMI-1640 Complete Medium by adding 10% FBS (abs972/abs974) and 1% Penicillin-Streptomycin Solution (abs9244) to RPMI-1640 Basic Medium (abs9484).
2. Harvest THP-1 cells in logarithmic growth phase (80-90% confluence), digest, and resuspend in complete medium at a density of 5×10⁵ cells/mL.
3. Add PMA (abs9107) to a final concentration of 100 ng/mL, mix thoroughly, and seed into 6-well plates. Incubate at 37°C with 5% CO₂ for 24 hours (adjust PMA concentration and incubation time based on cell status).
4. After 24 hours, aspirate the supernatant, wash cells 3 times with PBS, and add fresh complete medium to allow recovery for 24 hours.
5. For tumor cell-conditioned medium preparation: Wash confluent lung cancer cells 3 times with PBS, add RPMI-1640 Basic Medium (abs9484) containing 1% Penicillin-Streptomycin (no FBS), and incubate for 24 hours. Collect the supernatant, centrifuge at 3000 rpm for 20 minutes at 4°C, add 10% FBS to the clarified supernatant, and mix well. Store at 4°C for up to 1 week or -80°C for 6 months.
6. Aspirate the recovery medium from THP-1-derived M0 macrophages, wash 3 times with PBS, add the prepared tumor cell-conditioned medium (can set concentration gradients), and supplement with complete medium to a final volume of 2 mL per well. Co-culture for 24 hours.

4.2.2 Transwell Insert Co-Culture Assay

This indirect co-culture method uses a permeable membrane to separate two cell types while allowing the exchange of soluble factors, mimicking paracrine interactions in the TME. It is also applicable for chemotaxis, cell migration, invasion, and drug transport assays.

Reagents Provided by ANT BIO PTE. LTD.:

• Core reagents: Same as conditioned medium co-culture (RPMI-1640, FBS, Penicillin-Streptomycin, PMA).

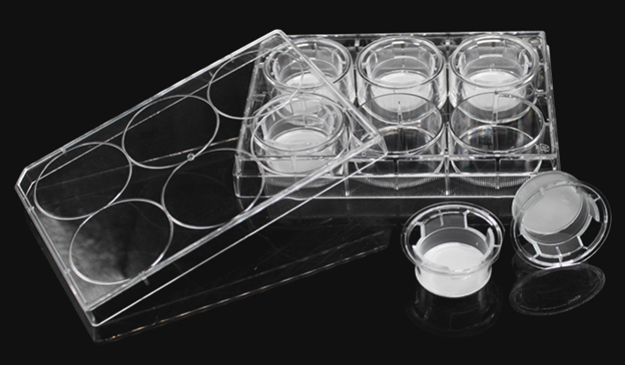

• Transwell Inserts (abs7270): 24 mm size, 0.4 μm pore size (PET membrane, transparent for microscopic observation); pore sizes <3 μm prevent cell migration, making them ideal for co-culture.

Protocol (THP-1-Derived M0 Macrophages + Cancer Cells):

1. Prepare RPMI-1640 Complete Medium as described above.
2. Differentiate THP-1 cells into M0 macrophages using PMA (abs9107) as per steps 2-4 of the conditioned medium protocol. Culture until cells reach 80% confluence.
3. Place Transwell Inserts (abs7270) into 6-well plates. Seed cancer cells in the upper chamber and M0 macrophages in the lower chamber, ensuring uniform distribution. Adjust cell ratios based on cancer cell type.
4. Incubate at 37°C with 5% CO₂ for 48 hours. Observe macrophage morphological changes during co-culture (e.g., M2-like polarization characterized by enlarged, irregular shapes).

4.3 Product Advantages and Applications

ANT BIO PTE. LTD. provides a comprehensive portfolio of high-quality reagents tailored for TAM-tumor co-culture research:

• Cell culture media and supplements: RPMI-1640 Basic Medium (abs9484) is optimized for the growth and differentiation of immune cells (e.g., THP-1) and tumor cells, ensuring consistent cell viability. Premium Grade FBS (abs972) offers high nutritional value and low endotoxin levels, minimizing experimental variability.
• Differentiation inducer: PMA (abs9107) efficiently induces THP-1 monocyte differentiation into M0 macrophages, providing a stable starting population for polarization studies.
• Co-culture tools: Transwell Inserts (abs7270) with transparent PET membranes facilitate real-time microscopic observation of cell morphology and interactions, while the 0.4 μm pore size ensures selective exchange of soluble factors without cell migration.
• Contamination control: Penicillin-Streptomycin Solution (abs9244) provides broad-spectrum antibacterial protection, safeguarding long-term co-culture experiments.
