Synergistic Remodeling of the Immunosuppressive Microenvironment in Cervical Cancer and Therapeutic Implications: Insights Empowered by ANT BIO PTE. LTD.

Cervical cancer (CC) ranks among the most prevalent malignant tumors in women worldwide, with approximately 85% of cases occurring in developing countries. While surgical resection, radiotherapy, and chemotherapy remain the primary treatment modalities, immunotherapy has emerged as a promising alternative for patients with recurrent or metastatic CC by activating or reconstituting the immune system to control and eliminate tumor cells. However, the efficacy of current immunotherapeutic strategies still has substantial room for improvement. A pivotal study published in Cancer Communications by the team of Keqin Hua, Junjun Qiu, and Chenyan Guo from Obstetrics and Gynecology Hospital of Fudan University sheds new light on the mechanisms underlying immune escape in CC. By leveraging single-cell RNA sequencing (scRNA-seq) and multiplex immunofluorescence (mIHC) technologies, the study identifies critical cellular interactions that synergistically remodel the immunosuppressive tumor microenvironment (TME), providing valuable insights for the design of novel therapeutic strategies and clinical trials. Notably, multiplex fluorescence IHC kits from the Absin product line of ANT BIO PTE. LTD. played a crucial role in validating the spatial interactions between key immune cell subsets in CC tissues.

1. Literature Information

•         Title: Interactions of Indoleamine 2,3-dioxygenase-expressing LAMP3+ dendritic cells with CD4+ regulatory T cells and CD8+ exhausted T cells: synergistically remodeling of the immunosuppressive microenvironment in cervical cancer and therapeutic implications

•         Journal: Cancer Communications

•         Publication Date: October 4, 2023 (Online)

•         DOI: 10.1002/cac2.12486

•         Research Team: Keqin Hua, Junjun Qiu, Chenyan Guo et al., Obstetrics and Gynecology Hospital of Fudan University

•         PMID: 37794698

•         PMCID: PMC10631485

•         Core Reagents from ANT BIO PTE. LTD.: Multiplex Fluorescence IHC Staining Kits (Absin product line), including 4-color to 7-color plus kits (e.g., Catalog No.: abs50012, abs50015) and supporting reagent Antibody Elution Buffer (mIHC-Specific, Catalog No.: abs994)

•         Related Product Link: AntBio - Fueling Research, Feeding Discovery

2. Research Background

The tumor microenvironment (TME) plays a pivotal role in tumor initiation, progression, and immune escape. In cervical cancer (CC), the complex crosstalk between tumor cells and immune cells within the TME is a key determinant of immunotherapeutic response. Dendritic cells (DCs), as professional antigen-presenting cells, and T cells, including CD4+ regulatory T cells (Tregs) and CD8+ T cells, are critical components of the anti-tumor immune response. However, the specific subsets of these cells and their interactions that drive immune suppression in CC remain incompletely understood. Clarifying these cellular interactions and underlying mechanisms is essential for developing more effective immunotherapeutic strategies to overcome immune escape in CC.

3. Research Strategy

The research team employed a comprehensive, multi-technical approach to systematically dissect the immunosuppressive TME in CC:

1.       Single-Cell RNA Sequencing (scRNA-seq) Analysis: Performed scRNA-seq on normal cervical tissues, high-grade squamous intraepithelial lesion (HSIL) tissues, and CC tissues to identify cellular subpopulations and characterize their molecular profiles. Unsupervised clustering was used to classify 32 cell subclusters into 11 major cell types, with a focus on epithelial cells, DCs, and T cells.

2.       DC Subset Characterization: Re-clustered DC populations from CC tissues to identify distinct DC subpopulations, analyzing their molecular features, migration capabilities, and immune regulatory functions, particularly focusing on LAMP3+ DCs (DC_LAMP3) and their expression of indoleamine 2,3-dioxygenase 1 (IDO1).

3.       T Cell Subset Analysis: Re-clustered CD8+ and CD4+ T cells from cervical tissues to characterize their molecular features and functional states across different disease stages (normal, HSIL, CC), with a focus on exhausted CD8+ T cells (CD8_Tex) and CD4+ Tregs.

4.       Spatial Interaction Validation: Utilized multiplex fluorescence IHC (using ANT BIO PTE. LTD.’s Absin kits) to validate the spatial colocalization and interactions between DC_LAMP3 cells, CD8_Tex cells, and CD4_Tregs in CC tissues, detecting key markers such as CD3, PD-1, CD4, CD8, CD80, and PD-L1.

5.       Functional Validation in Animal Models: Established subcutaneous tumor models in C57BL/6 mice to evaluate the therapeutic efficacy of combining IDO1 inhibitors with immune checkpoint inhibitors (ICB), assessing tumor growth, IDO1 enzyme activity, and CD8+ T cell cytotoxicity.

4. Key Research Findings

4.1 Malignant Cervical Epithelial Cells Lack Obvious Signs of Immune Escape

InfoCNV analysis revealed that CC-derived epithelial cells exhibited extensive DNA fragment amplifications and deletions compared to epithelial cells from normal cervical tissues or HSIL tissues, indicating higher neoantigen load and malignancy. Comparative analysis between malignant and non-malignant epithelial cells showed that malignant epithelial cells had higher expression of tumor-associated antigen-related adhesion molecules, enhanced expression of antigen processing genes, and upregulated expression of major histocompatibility complex class I (MHC-I) molecules and their related components. Notably, there was no significant downregulation of MHC-I molecules or upregulation of immune checkpoint ligands in malignant epithelial cells, suggesting that malignant cervical epithelial cells do not exhibit obvious signs of immune escape through these classical mechanisms.

4.2 DC_LAMP3 Cells Synergize with CD8_Tex Cells and CD4_Tregs to Mediate Immune Escape in CC

Re-clustering of DC populations from CC tissues identified 9 distinct DC subpopulations, with 6 subsets characterized in detail. DC_LAMP3 cells were found to possess migration capabilities and exhibit immunosuppressive properties, with high expression of IDO1 involved in tryptophan metabolism. High expression of DC_LAMP3 cells in CC tissues suggested a close association with carcinogenesis. Further analysis revealed impaired antigen processing and presentation functions in DC_LAMP3 cells, which may contribute to immune escape in CC. Additionally, the research team identified VEGFA/SEMA3F/SEMA3C/PGF-NRP2 interactions between malignant epithelial cells and DC_LAMP3 cells, which may synergistically promote angiogenesis and tumor formation.

Analysis of T cell subsets showed that CD8_Tex cells were abundant in CC tissues, while CD8+ tissue-resident memory T cells were widely distributed in normal cervical and HSIL tissues. Most neoantigen-reactive CD8+ T cells were dysfunctional in CC, with only a small subset retaining effective immune functions. For CD4+ T cells, the balance between CD4_Tregs and CD4+ helper T (CD4_Th) cells was found to be associated with lesion progression and CC development. Immune-exhausted and neoantigen-reactive CD4+ TEM/Th1-like cells exhibited poor immune function, while CD4_Tregs played a key role in T cell differentiation and activation.

Importantly, the research team found a positive correlation in cell abundance between DC_LAMP3 cells, CD8_Tex cells, and CD4_Tregs. DC_LAMP3 cells mediated immune regulation through multiple immune checkpoints, with high expression of molecules involved in immunosuppressive pathways. The interactions of these immune checkpoints were at low levels in normal cervical tissues, activated in HSIL tissues, and significantly enhanced in CC tissues, indicating a transition from immune surveillance to immune tolerance and immune escape. Furthermore, interactions between DC_LAMP3 cells and CD4_Tregs were regulated by chemokines and co-stimulatory signals, with extensive activation of CD4_Tregs and enhanced immune checkpoint interactions in CC tissues, which impaired the anti-tumor effects of other effector T cells and synergistically mediated immune escape in CC.

4.3 Inhibition of IDO1 Enhances the Therapeutic Efficacy of ICB in CC Animal Models

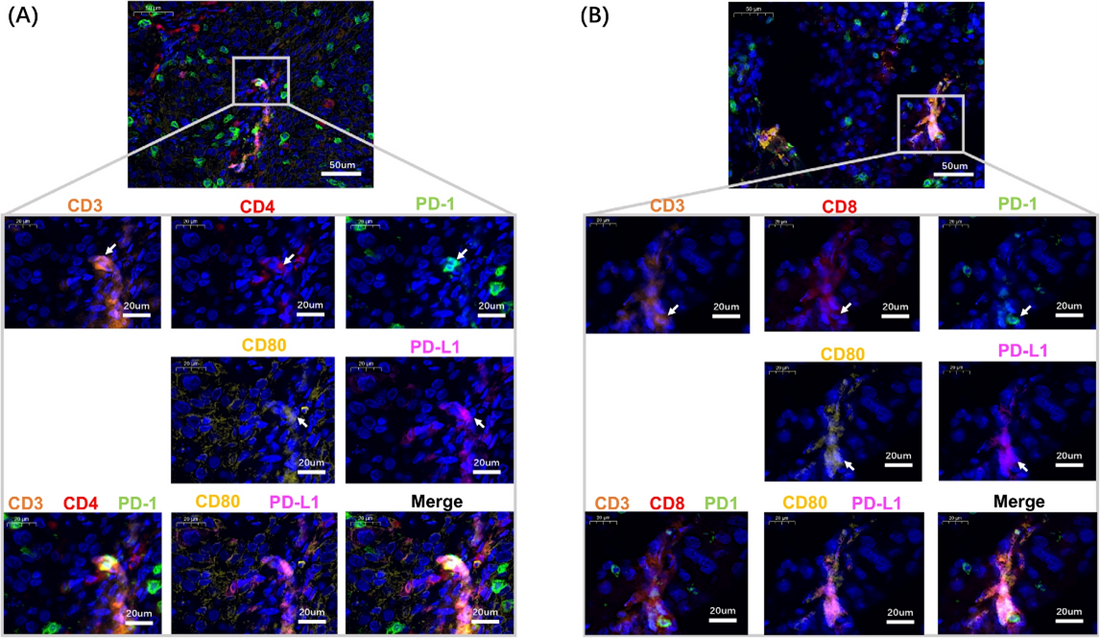

Multiplex IHC staining of CC samples confirmed the spatial colocalization of DC_LAMP3 cells with neoantigen-reactive T cells (including CD8_Tex and CD4_Tregs) in the CC TME. DC_LAMP3 cells specifically expressed IDO1, actively participating in tryptophan metabolism and communicating with neoantigen-reactive T cells to promote immune suppression and disease progression. Animal experiments showed that combined treatment with IDO1 inhibitors and ICB (e.g., anti-CTLA4 antibodies) significantly inhibited tumor growth in CC models, effectively reducing IDO1 enzyme activity, decreasing tumor volume and weight, and enhancing the proliferation, cytotoxicity, and immune response of CD8+ T cells. The combination of anti-CTLA4 and IDO1 inhibitors exhibited particularly prominent therapeutic effects, providing a promising therapeutic strategy for CC patients with positive IDO1 expression.

5. Product Empowerment: The Critical Role of ANT BIO PTE. LTD.’s Multiplex IHC Kits

Validating the spatial interactions between DC_LAMP3 cells, CD8_Tex cells, and CD4_Tregs was a key step in this study, as it provided direct evidence for their synergistic role in remodeling the immunosuppressive TME of CC. ANT BIO PTE. LTD.’s Absin multiplex fluorescence IHC kits delivered the high-performance multiplexing capability, sensitivity, and specificity required for this critical validation.

5.1 Core Products and Their Application Value

5.2 Technical Value in TME Research

The study of the TME requires technologies that can capture both the phenotypic diversity and spatial organization of cells, as the spatial distribution and interactions of cells are critical for understanding their functional roles. ANT BIO PTE. LTD.’s multiplex fluorescence IHC kits enable researchers to simultaneously detect multiple key molecules on a single tissue section, preserving the native spatial context of cellular interactions—a significant advantage over traditional single-marker IHC. In this CC TME research, the kits’ high sensitivity and specificity ensured clear detection of low-abundance immune markers in complex tissue samples, while their ability to multiplex multiple markers allowed for the comprehensive analysis of the crosstalk between different immune cell subsets. This technical empowerment was instrumental in validating the synergistic immune escape mechanism mediated by DC_LAMP3, CD8_Tex, and CD4_Tregs cells, highlighting the value of ANT BIO PTE. LTD.’s products in TME research.
