TUNEL Assay: The Gold Standard Technique for Apoptosis Detection

Fundamental Principles and Experimental Design

The TUNEL (Terminal deoxynucleotidyl transferase dUTP Nick End Labeling) technique is one of the most specific methods for detecting apoptosis. Its core principle involves using terminal deoxynucleotidyl transferase (TdT) to label DNA breaks with fluorescent or enzyme-linked dUTP. During apoptosis, endogenous endonucleases are activated and cleave DNA between nucleosomes, generating abundant 3'-OH termini that serve as substrates for TdT-mediated labeling. Compared to traditional DNA break detection methods, TUNEL offers exceptional specificity—necrotic cells produce only random DNA breaks (~1 nick per 100 kb), while apoptotic cells exhibit regular breaks every 200 bp (nucleosomal units), resulting in a 50-100-fold difference in signal intensity.



Experimental design must account for multiple factors:

·          Sample type: Frozen sections require avoidance of repeated freeze-thaw cycles; paraffin sections need optimized dewaxing conditions.

·          Fixation: 4% paraformaldehyde for 20 minutes is optimal; prolonged fixation causes antigen masking.

·          Permeabilization: 0.1% Triton X-100 for 8 minutes balances membrane permeability and cell morphology preservation.

Notably, apoptosis kinetics vary significantly by cell type: lymphocytes complete apoptosis rapidly (3-6 hours), while neurons may take over 24 hours, directly influencing sampling timepoints. Controls are critical:

·          Positive control: DNase I treatment

·          Negative control: Omission of TdT enzyme
These controls help eliminate false positives/negatives.



Key Optimization Points in Experimental Workflow

A standardized TUNEL protocol involves seven critical steps, each requiring precise optimization:

1.        Sample preparation: Tissue sections should be 4–6 μm thick to balance signal intensity and morphology. Thicker sections reduce labeling efficiency in deeper cells.

2.        Proteinase K digestion (20 μg/mL, 15–25°C for 15 min): Crucial for paraffin sections. Over-digestion disrupts morphology; under-digestion reduces labeling.

3.        Equilibration buffer (pH 7.4–7.8, Tris-HCl/BSA): Deviations reduce TdT activity by >50%.

4.        Labeling reaction: Optimal dUTP:TdT molar ratio = 5:1; incubation at 37°C for 30–60 min. Prolonged reactions increase background.

5.        Probes:

o FITC-dUTP (Ex/Em = 494/518 nm) for fluorescence microscopy.

o Digoxigenin-dUTP with anti-digoxigenin-HRP for brightfield microscopy.

6.        Special samples: Blood smears/suspension cells benefit from Cytospin preparation, improving efficiency 3–5×.

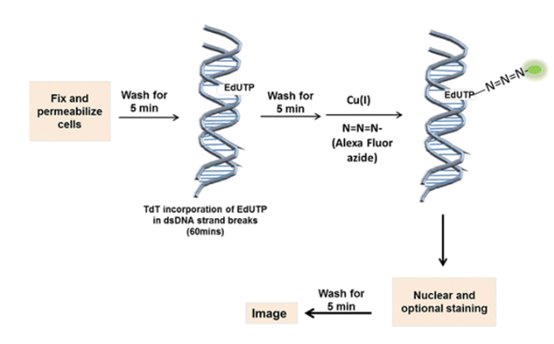

7.        Innovations: Click chemistry-coupled TUNEL (EdU + azide-alkyne cycloaddition) enhances sensitivity 10× with lower background.



Data Analysis and Quantification Methods

TUNEL-positive cells are identified by integrating morphology and labeling intensity:

·          Apoptotic hallmarks: Nuclear condensation (30–50% size reduction), chromatin margination, membrane blebbing, and strong labeling (5–10× background fluorescence).

Quantification approaches:

·          Fluorescence microscopy: 5–10 random fields (≥200 cells) for % positivity.

·          Confocal microscopy: Z-stack imaging improves 3D assessment in tissues.

·          Flow cytometry: Ideal for suspension cells; enables simultaneous analysis of TUNEL, cell cycle (PI), and surface markers (Annexin V-FITC).

·          Image analysis: Software (e.g., ImageJ TUNEL Tool) automates threshold-based positive area detection, boosting throughput 20×.

Pitfalls: False positives may arise from:

·          DNA replication forks in proliferating cells.

·          Random breaks in late-stage necrosis.

·          DNA damage during autophagy.
Solutions: Combine with other apoptosis markers:

·          Caspase-3 activity (DEVD-AMC).

·          Mitochondrial membrane potential (JC-1).

·          Phosphatidylserine exposure (Annexin V).

Clinical correlations:

·          High-grade gliomas: Apoptotic index (AI) = 5–15%.

·          Chemosensitive breast cancer: AI increases 3–5× post-neoadjuvant therapy.



Applications in Disease Research

TUNEL is widely used to investigate pathogenesis and therapeutic responses:

1.        Neurodegeneration:

o Alzheimer’s disease: Cortical TUNEL+ neurons are 8–10× more abundant vs. controls (correlates with tau phosphorylation, r = 0.62).

2.        Cardiac injury:

o Ischemia-reperfusion: Apoptosis peaks at 6 h (25% in border zones); inhibition reduces infarct size by 40–60%.

3.        Cancer:

o Cisplatin-sensitive ovarian cancer: AI reaches 30–50% at 24 h vs. 5–10% in resistant cells.

4.        Autoimmunity:

o SLE: TUNEL+ lymphocytes are 3× higher than healthy controls (correlates with SLEDAI, p < 0.01).

5.        Infections:

o HIV: TUNEL+CD4+ cells comprise 15–25% in lymph nodes (normal < 1%).

6.        Transplantation:

o Kidney biopsies: AI > 10% predicts 5× higher acute rejection risk (3–5 days earlier than histology).

Note: Clearance rates vary by tissue:

·          Liver apoptotic cells are phagocytosed in 2–4 h.

·          Atherosclerotic plaque apoptotic cells persist for days.



Limitations and Solutions

Challenges:

1.        False positives: Necrosis or over-digestion.

o Solution: Morphological validation (apoptotic bodies vs. swollen necrosis) + DNase I titration.

2.        False negatives: Early apoptosis (mitochondrial phase only) or certain cell types (e.g., neurons).

o Solution: Combine with caspase-3 assays (+30–50% detection).

3.        Sample storage:

o Paraffin blocks >5 years old show 2–3× background due to DNA degradation.

o Frozen sections: Store at −80°C; avoid freeze-thaw cycles.

4.        Inter-kit variability: Sensitivity varies up to 5× between vendors.

o Solution: Use consistent reagents within studies.

Innovations:

·          Multiplexing: TUNEL + Ki-67 distinguishes apoptosis/proliferation.

·          Super-resolution microscopy (STORM/PALM): 20 nm precision for single-break detection.

·          Microfluidics: Integrates TUNEL with mechanophenotyping at single-cell level.

·          Standardization: ISAC guidelines reduce inter-lab variability from >30% to <15%.



Future Directions and Novel Applications

1.        Live-cell imaging:

o CRISPR-based reporters (e.g., Cas9-FokI-EGFP) enable 72 h dynamic tracking at single-cell resolution.

2.        Multi-omics:

o scRNA-seq + TUNEL identifies pre-apoptotic signatures (e.g., BIM, BCL-2).

3.        Nanotechnology:

o Quantum dot-dUTP probes offer 10× brighter, photostable signals.

4.        AI integration:

o U-Net algorithms achieve >95% accuracy in automated detection (100× faster than manual analysis).

5.        Clinical translation:

o Intraoperative TUNEL (portable confocal microscopy) reduces residual tumor cells by 30–40% in neurosurgery trials.

Emerging fields:

·          Plant-pathogen interactions: Detecting pathogen-induced cell death.

·          Ecotoxicology: Monitoring pollutant effects on aquatic organisms.

·          Food science: Assessing thermal processing-induced DNA damage.
