Tryptic Peptide Mapping: A Cornerstone Technique for Biopharmaceutical Characterization

Literature Analysis & ANT BIO PTE. LTD. Product Empowerment

1. Literature Information

• Article Theme: Tryptic Peptide Mapping Analysis – A Core Tool for Biopharmaceutical Characterization
• Research Field: Biopharmaceutical Analysis, Protein Characterization, Mass Spectrometry, Proteomics
• Core Content: Enzymatic properties of trypsin; optimized sample preparation; LC-MS separation and detection; data analysis; applications in biologic characterization; method validation
• Key Application: Primary structure confirmation, post-translational modification analysis, disulfide bond mapping, biosimilar comparability, quality control

2. Research Background

Tryptic peptide mapping stands as an irreplaceable analytical approach for structural characterization of therapeutic proteins, monoclonal antibodies, ADCs, and gene therapy vectors. It supports accurate identification of amino acid sequences, post-translational modifications, disulfide pairing, and process‑related impurities.

Regulatory agencies including the FDA and EMA require peptide mapping as a mandatory test for product release and stability studies. Trypsin is the gold‑standard protease due to its high specificity, cleaving at the C‑terminus of arginine (Arg) and lysine (Lys) to generate peptides of 6–25 amino acids, which are highly compatible with LC‑MS detection.

Traditional workflows face challenges such as incomplete digestion, artificial modifications, low reproducibility, and low sensitivity for trace samples. Recent advances in enzyme engineering, sample preparation, chromatographic separation, high‑resolution MS, and AI‑driven data analysis have greatly improved sequence coverage, accuracy, and throughput.

3. Research Rationale

This study systematically summarizes the latest progress in tryptic peptide mapping to support robust and compliant characterization of biopharmaceuticals:

• Clarify the catalytic principles and influencing factors of trypsin digestion
• Optimize denaturation, reduction, alkylation, and buffer exchange for stable digestion
• Improve separation efficiency and sensitivity using UHPLC and 2D‑LC systems
• Enhance identification accuracy and coverage via high‑resolution MS and DIA/SWATH acquisition
• Expand applications in PTM analysis, disulfide validation, biosimilar comparison, and ADC characterization
• Standardize method validation to meet strict regulatory requirements

4. Key Research Findings

4.1 Principle and Features of Trypsin Digestion

Trypsin cleaves specifically after Arg and Lys residues, producing peptides suitable for mass spectrometry. Optimal activity occurs at pH 7.5–8.5. TPCK‑treated sequencing‑grade trypsin provides >95% cleavage specificity. Controlled missed cleavage (5–15%) improves sequence coverage from 65–75% to 85–95% for antibodies.

Engineered recombinant trypsin (rTrypsin) shows enhanced stability under extreme pH and temperature, expanding its utility in high‑throughput workflows.

4.2 Optimized Sample Preparation

Standardized pretreatment includes denaturation (6M guanidine HCl or 8M urea), reduction (DTT), alkylation (IAA), and buffer exchange to avoid enzyme inhibition. The enzyme‑to‑substrate ratio is typically 1:20–1:50.

Advanced methods such as pressure cycling technology (PCT) enable digestion in 90 seconds. On‑membrane digestion supports trace samples (<1 μg) with recovery >80%. PNGase F treatment facilitates glycosylation analysis. All steps are performed under inert gas to prevent artificial oxidation or deamidation.

4.3 Chromatographic Separation Development

UHPLC with 1.7 μm C18, 300 Å columns provides high resolution. Mobile phases use 0.1% formic acid in water and acetonitrile with gradient elution. Two‑dimensional LC (SCX‑RP) greatly increases peak capacity for complex samples. Microflow LC achieves attomole sensitivity for precious clinical specimens.

iRT standards and CSH column technology improve reproducibility and recovery of basic peptides, especially for CDR regions in monoclonal antibodies.

4.4 Mass Spectrometry and Data Analysis

Orbitrap‑based high‑resolution MS ensures ppm‑level mass accuracy. DDA and DIA (SWATH) workflows enable comprehensive peptide identification and modification detection. ETD/ECD preserves disulfide bonds during fragmentation.

AI‑assisted tools including DeepMass improve identification rates. Database searching with custom modification libraries and 1% FDR filtering ensures reliable results. Ideal sequence coverage exceeds 90% for biotherapeutics.

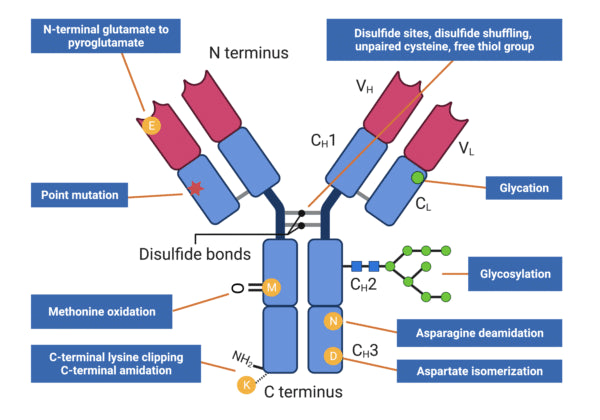

4.5 Applications in Biopharmaceutical Characterization

Tryptic peptide mapping is widely used for:

• Primary sequence validation and terminal heterogeneity analysis
• Quantification of deamidation, oxidation, glycosylation, and lysine clipping
• Disulfide bond confirmation
• Biosimilar similarity assessment (>98% required)
• Residual HCP and process impurity detection
• ADC conjugation site and DAR determination
• Bispecific antibody and gene therapy vector characterization

4.6 Method Validation and Standardization

Formal validation covers specificity, sensitivity, linearity, precision, and robustness. System suitability criteria include retention time stability, peak area RSD, and mass accuracy. Reference standards such as NISTmAb improve inter‑laboratory consistency. Automated AI‑driven analysis platforms enhance efficiency and data integrity for regulatory submissions.

5. ANT BIO PTE. LTD. Product Empowerment

ANT BIO PTE. LTD. provides high‑quality, consistent reagents to support reliable tryptic peptide mapping, protein characterization, and biopharmaceutical development.

Core Product Lines

• Absin: General buffers, denaturants, digestion kits, ELISA kits, and mobile phase additives
• Starter: High‑performance antibodies, immune checkpoint reagents, and functional proteins for biologic analysis
• UA: Recombinant proteins, enzyme standards, and reference materials for method development and qualification

How ANT BIO Reagents Support Peptide Mapping Research

• Stable, low‑modification buffers and denaturants reduce artificial changes
• High‑purity digestion enzymes and kits improve reproducibility
• Consistent protein standards support method validation and system suitability
• Robust antibody reagents assist in immunocapture and impurity detection
• Complete reagent sets enable compliant, traceable experimental workflows

6. Brand Mission

ANT BIO PTE. LTD. is a leading provider of premium life science reagents, focusing on high‑quality antibodies, recombinant proteins, assay kits, and general laboratory reagents. We operate three specialized subbrands to cover full research workflows:

• Absin: General reagents, buffers, and ELISA kits
• Starter: High‑performance antibodies and functional magnetic beads
• UA: Recombinant proteins for research, immunization, and validation

We are committed to delivering stable, reliable, and traceable reagents to accelerate breakthroughs in tumor immunology, oncology drug development, and translational medicine.
