PD-1: The Immune Checkpoint Gatekeeper Shaping Cancer Therapy and Immune Homeostasis

Concept

Programmed Cell Death Protein 1 (PD-1, CD279), a member of the immunoglobulin superfamily and a key inhibitory immune checkpoint receptor encoded by the PDCD1 gene, is a type I transmembrane protein critical for regulating immune homeostasis and immune tolerance. Characterized by an extracellular immunoglobulin variable (IgV) domain, a hydrophobic transmembrane region, and an intracellular tail containing immunoreceptor tyrosine-based inhibitory (ITIM) and switch (ITSM) motifs, PD-1 is predominantly expressed on the surface of activated immune cells—including T cells, B cells, natural killer (NK) cells, and myeloid cells—with expression levels scaling with immune activation. PD-1 exerts its regulatory effects through binding to its two cognate ligands, PD-L1 (CD274/B7-H1) and PD-L2 (CD273/B7-DC), which are expressed on antigen-presenting cells (APCs), non-hematopoietic cells, and malignant tumor cells. The PD-1/PD-L1/PD-L2 signaling axis negatively modulates T-cell receptor (TCR) and B-cell receptor (BCR) signaling, suppressing excessive immune activation to maintain peripheral self-tolerance and prevent autoimmune disease. In the tumor microenvironment (TME), malignant cells hijack this axis by overexpressing PD-L1/PD-L2, inducing PD-1-mediated T-cell exhaustion and evading anti-tumor immune surveillance—making PD-1 a transformative therapeutic target for cancer immunotherapy and a critical focus of research in infectious and autoimmune diseases.

Research Frontiers

PD-1 research remains a dynamic and rapidly evolving frontier at the intersection of immunology, oncology, and translational medicine, with cutting-edge investigations focused on unraveling the complex biology of the PD-1 axis and advancing novel therapeutic strategies to address unmet clinical needs. Key research frontiers include:

1. Epigenetic and metabolic regulation of PD-1-mediated T-cell exhaustion: Dissecting the epigenetic mechanisms (DNA methylation, histone modification) that stabilize PD-1 expression and the exhausted T-cell phenotype, as well as PD-1-driven metabolic reprogramming (glycolysis, oxidative phosphorylation) in immune cells, to identify novel targets for reversing exhaustion.
2. Heterogeneity of PD-1 expression in the tumor microenvironment: Utilizing single-cell RNA sequencing and spatial transcriptomics to map PD-1 expression across distinct immune cell subsets and tumor niches, and defining the functional differences between terminally exhausted and progenitor exhausted PD-1+ T cells to guide precision checkpoint blockade.
3. Novel PD-1-targeted therapeutic modalities: Engineering next-generation PD-1 modulators, including bispecific antibodies (e.g., PD-1 x tumor antigen), conditionally activated PD-1 inhibitors, small-molecule PD-1/PD-L1 binders, and PD-1-targeted CAR-T cells, to enhance anti-tumor efficacy and reduce off-target immune-related adverse events (irAEs).
4. Reversing primary and acquired resistance to PD-1 blockade: Investigating combinatorial strategies—including PD-1 inhibition with chemotherapy, radiotherapy, targeted therapy, epigenetic modulators, or other immune checkpoint blockers (TIM-3, LAG-3, TIGIT)—to overcome resistance mechanisms such as low tumor mutational burden (TMB), insufficient T-cell infiltration, and alternative immune evasion pathways.
5. PD-1 signaling in non-immunological cells: Exploring the functional consequences of PD-1 expression on tumor cells, stromal cells, and endothelial cells (so-called "reverse signaling"), and its role in promoting tumor proliferation, metastasis, and angiogenesis to uncover new therapeutic vulnerabilities.
6. PD-1 modulation for infectious and autoimmune diseases: Developing PD-1 agonists for the treatment of autoimmune disorders (e.g., systemic lupus erythematosus, rheumatoid arthritis) to restore immune tolerance, and optimizing PD-1 blockade for chronic viral infections (HIV, HBV, HCV) and intracellular pathogens (Mycobacterium tuberculosis) to reinvigorate pathogen-specific T-cell responses.
7. Predictive and prognostic PD-1/PD-L1 biomarkers: Refining biomarker development by integrating PD-L1 expression levels, TMB, tumor-infiltrating lymphocyte (TIL) profiles, and soluble PD-1/PD-L1 levels, and developing dynamic monitoring tools to track treatment response and predict irAEs in real time.

Research Significance

PD-1 is one of the most impactful biological targets discovered in modern immunology, with far-reaching research and translational significance across oncology, infectious disease, and autoimmunity, reshaping the landscape of modern medicine:

1. Revolutionizing cancer treatment with immune checkpoint blockade: PD-1 inhibitors have ushered in a new era of precision cancer immunotherapy, delivering durable, long-term responses (the "immunotherapy tail effect") in patients with advanced, treatment-refractory malignancies—including melanoma, non-small cell lung cancer (NSCLC), and microsatellite instability-high (MSI-H) solid tumors—where conventional therapies offer limited benefit.
2. Defining the molecular basis of immune tolerance and autoimmunity: PD-1 research has elucidated critical mechanisms underlying peripheral immune tolerance, providing a framework for understanding the pathogenesis of autoimmune diseases. GWAS studies linking PDCD1 polymorphisms to autoimmune disorders (SLE, RA, type 1 diabetes) and preclinical models of PD-1 deficiency-induced autoimmunity have validated PD-1 as a therapeutic target for restoring immune balance in these conditions.
3. Unraveling the biology of T-cell exhaustion in chronic disease: PD-1 is a defining marker of T-cell exhaustion, a state of functional hyporesponsiveness induced by persistent antigen stimulation in chronic viral infections and cancer. Research into PD-1-mediated exhaustion has uncovered fundamental principles of immune cell plasticity and resilience, with implications for treating a broad range of chronic inflammatory and infectious diseases.
4. Driving innovation in immunotherapeutic drug development: The success of PD-1 blockade has spurred the development of a diverse pipeline of immune checkpoint modulators and combinatorial immunotherapies, revolutionizing drug discovery and development and establishing immunotherapy as a core pillar of cancer treatment alongside chemotherapy, radiotherapy, and targeted therapy.
5. Enabling precision medicine through biomarker discovery: PD-1 research has accelerated the development of predictive biomarkers for immunotherapy response, paving the way for personalized cancer treatment that selects patients most likely to benefit from checkpoint blockade—minimizing ineffective treatment and reducing healthcare costs.
6. Bridging basic immunology and translational clinical research: PD-1 serves as a paradigm for translating fundamental discoveries in immunology into life-saving clinical therapies, highlighting the value of interdisciplinary research between basic scientists, translational researchers, and clinicians in advancing medical progress.

Mechanisms & Research Methods

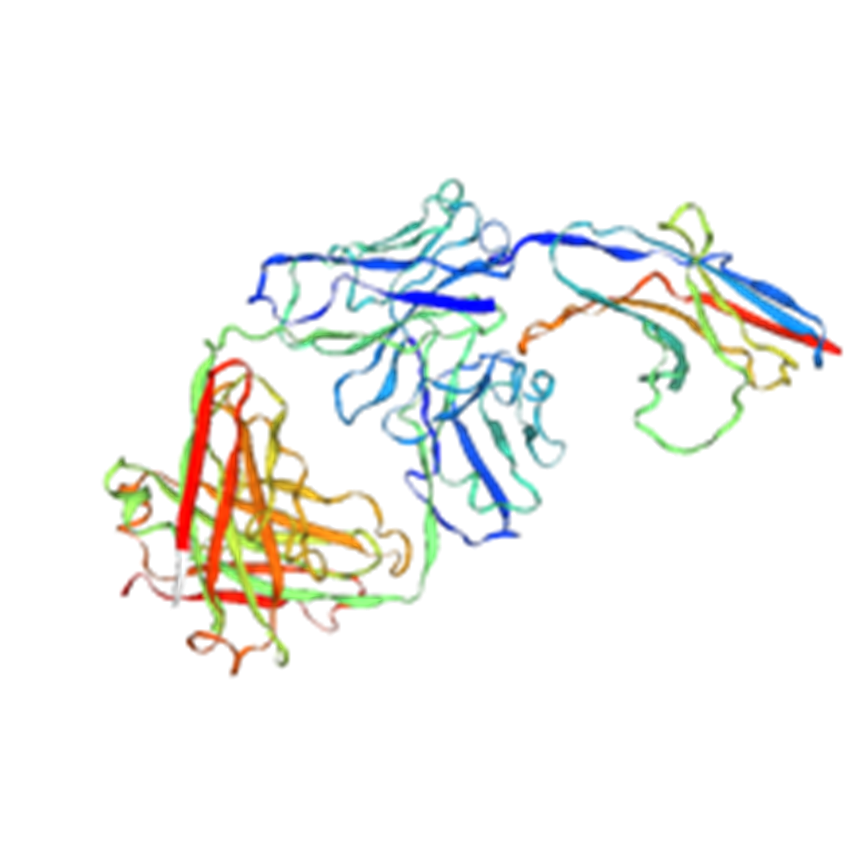

1. Molecular Structure and Physiological Function of PD-1

PD-1 is a 55-60 kDa type I transmembrane glycoprotein with a highly conserved structure that underpins its role as a master regulator of immune signaling:

• Extracellular domain: The N-terminal IgV domain contains the critical binding interface for PD-L1 and PD-L2, with key amino acid residues mediating high-affinity ligand binding (Kd ≈ 1-10 μM for PD-L1). Glycosylation of this domain modulates ligand binding affinity and receptor stability on the cell surface.
• Transmembrane domain: A hydrophobic single-pass transmembrane region tethers PD-1 to the immune cell membrane and mediates its spatial organization within lipid rafts, a key step for downstream signal transduction.
• Intracellular domain: The C-terminal cytoplasmic tail harbors two conserved tyrosine-based motifs—ITIM (Y248) and ITSM (Y288)—which are the functional core of PD-1-mediated immune suppression. The ITSM motif is the primary mediator of inhibitory signaling, while the ITIM plays a secondary role in modulating signal strength.

Under physiological conditions, PD-1 is induced on immune cells following activation via TCR/BCR or cytokine signaling, acting as a negative feedback regulator to limit excessive immune activation. By engaging PD-L1/PD-L2 on APCs or parenchymal cells, PD-1 suppresses hyperactive T/B cell responses, preventing autoimmune damage to healthy tissues and maintaining immune homeostasis. This tightly regulated pathway is essential for normal immune function, as demonstrated by PD-1-deficient mice, which spontaneously develop severe autoimmune diseases (e.g., lupus-like glomerulonephritis, autoimmune myocarditis).

2. Molecular Mechanisms of PD-1-Mediated Immune Suppression

PD-1 exerts its inhibitory effects through a complex cascade of intracellular signal transduction events that disrupt proximal and distal TCR/BCR signaling, ultimately suppressing immune cell activation, proliferation, and effector function:

1. Ligand binding and motif phosphorylation: Upon PD-1 engagement with PD-L1/PD-L2, the intracellular ITSM motif is phosphorylated by Src family kinases (SFKs), creating a docking site for Src homology 2 (SH2) domain-containing phosphatases SHP-1 and SHP-2.
2. Phosphatase recruitment and signal dephosphorylation: SHP-1 and SHP-2 are recruited to the phosphorylated ITSM motif and dephosphorylate key proximal TCR signaling molecules—including CD3ζ, ZAP70, and LAT—as well as downstream signaling intermediates such as PI3K and PKCθ.
3. Inhibition of canonical signaling cascades: Dephosphorylation of these targets blocks the activation of two major pro-survival and proliferative signaling pathways: the PI3K-AKT-mTOR pathway (critical for cell cycle progression and metabolism) and the RAS-MEK-ERK pathway (essential for cytokine secretion and effector function).
4. T-cell cycle arrest and metabolic reprogramming: PD-1 signaling induces G1 phase cell cycle arrest, preventing T-cell proliferation, and represses glucose transporter 1 (GLUT1) expression, leading to impaired glycolysis—an essential metabolic process for activated T cells. This metabolic reprogramming further exacerbates T-cell hyporesponsiveness.
5. Transcriptional repression of effector genes: PD-1 signaling upregulates transcription factors such as BATF, which interferes with AP-1-dependent gene transcription, suppressing the expression of key effector cytokines (IFN-γ, IL-2, TNF-α) and cytolytic molecules (perforin, granzyme B).

In the context of chronic antigen stimulation (e.g., chronic viral infection, cancer), persistent PD-1 signaling drives the development of T-cell exhaustion—a distinct state of immune cell dysfunction characterized by loss of effector function, impaired memory cell formation, and co-expression of multiple inhibitory receptors (PD-1, TIM-3, LAG-3). Exhausted T cells exhibit stable epigenetic remodeling that locks in the dysfunctional phenotype, making them resistant to conventional immune activation—though PD-1 blockade can partially reverse this exhaustion, restoring anti-tumor and anti-pathogen immune responses.

3. The PD-1/PD-L1 Axis in Tumor Immune Evasion

Malignant tumor cells exploit the PD-1/PD-L1 axis as a primary immune evasion strategy, hijacking the physiological immune tolerance pathway to suppress anti-tumor T-cell responses and promote unregulated growth and metastasis:

• PD-L1 overexpression in tumors: The majority of solid and hematologic malignancies upregulate PD-L1 expression on tumor cells and stromal cells in the TME, driven by two primary mechanisms: (1) IFN-γ secreted by tumor-infiltrating immune cells activates the JAK-STAT-IRF1 signaling axis, a major inducer of PD-L1 transcription; (2) oncogenic signaling pathways (MYC amplification, PTEN deletion, EGFR/ALK mutations) directly upregulate PD-L1 expression independent of immune signaling.
• PD-1+ TILs and poor clinical prognosis: Tumor-infiltrating lymphocytes (TILs) in PD-L1+ tumors exhibit high PD-1 expression, and the presence of PD-1+ TILs correlates with poor prognosis in multiple cancers, including melanoma, NSCLC, and Hodgkin lymphoma. Single-cell sequencing studies confirm that tumor-specific T cells express the highest levels of PD-1, indicating selective suppression of the most relevant anti-tumor immune cells.
• PD-1 reverse signaling in tumor cells: A growing body of evidence reveals that some tumor cells aberrantly express PD-1 themselves, and PD-L1/PD-L2 binding to tumor cell PD-1 induces "reverse signaling" that promotes tumor cell proliferation, migration, and angiogenesis—adding an additional layer of complexity to the PD-1 axis in cancer.

This tumor-driven suppression of the anti-tumor immune response is the molecular basis for PD-1 checkpoint blockade therapy, which uses monoclonal antibodies to block PD-1/PD-L1 binding, disinhibit exhausted T cells, and restore anti-tumor immune function.

4. PD-1 Blockade Therapy: Clinical Success and Applications

The 2014 FDA approval of the first PD-1 inhibitor (nivolumab) marked a paradigm shift in oncology, and PD-1 blockade has since become a standard of care for a wide range of advanced malignancies, with remarkable clinical outcomes:

• Monotherapy efficacy: FDA-approved PD-1 inhibitors (nivolumab, pembrolizumab, cemiplimab) deliver objective response rates (ORRs) of up to 40% in melanoma and >50% in MSI-H/dMMR solid tumors, with approximately 20% of patients achieving long-term, durable responses (≥5 years) — a feat unachievable with conventional chemotherapy.
• Combinatorial therapy: Combining PD-1 inhibition with CTLA-4 blockade (e.g., ipilimumab) enhances anti-tumor efficacy (ORR >50% in melanoma) by targeting two distinct immune checkpoint pathways, though this is associated with a higher risk of irAEs (e.g., colitis, thyroiditis, hypophysitis). Combinations with chemotherapy, radiotherapy, and targeted therapy are also being widely investigated, with promising results in NSCLC, breast cancer, and renal cell carcinoma.
• Broad tumor applicability: PD-1 inhibitors are now approved for the treatment of more than 20 cancer types, including melanoma, NSCLC, head and neck squamous cell carcinoma, urothelial carcinoma, and Hodgkin lymphoma, with ongoing clinical trials expanding their use to rare and hard-to-treat malignancies.

Beyond oncology, PD-1 modulation is being explored for the treatment of chronic infectious diseases and autoimmune disorders:

• Infectious diseases: PD-1 blockade is being tested in clinical trials for chronic viral infections (HIV, HBV, HCV) and intracellular bacterial infections (Mycobacterium tuberculosis), with preclinical and early clinical data showing enhanced pathogen-specific T-cell responses—though careful balancing is required to avoid excessive inflammation and tissue damage.
• Autoimmune diseases: PD-1 agonists are being developed to restore immune tolerance in autoimmune disorders such as SLE, RA, and experimental autoimmune encephalomyelitis (EAE), with preclinical models demonstrating reduced autoreactive T-cell activity and disease severity.

5. PD-1 in Non-Oncologic Immune Disorders

PD-1’s role as a master regulator of immune tolerance extends far beyond cancer, with critical functions in the pathogenesis and potential treatment of infectious and autoimmune diseases:

• Chronic infectious diseases: Persistent antigen stimulation in chronic viral (HIV, HBV, HCV) and bacterial (Mycobacterium tuberculosis) infections induces robust PD-1 expression on pathogen-specific T cells, leading to exhaustion and viral/bacterial persistence. PD-1-deficient mice clear chronic lymphocytic choriomeningitis virus (LCMV) infections efficiently, validating PD-1 as a target for reinvigorating exhausted immune cells. Notably, PD-1 also plays a protective role in acute infections (e.g., influenza), where moderate PD-1 expression limits immunopathological damage to healthy tissues.
• Autoimmune diseases: PDCD1 gene polymorphisms are associated with an increased risk of developing autoimmune diseases including SLE, RA, and type 1 diabetes. PD-1-deficient mice spontaneously develop autoantibodies and organ-specific autoimmunity, and PD-1 agonists alleviate disease severity in preclinical models of EAE and collagen-induced arthritis. Mechanistically, PD-1 suppresses the activation and expansion of autoreactive T cells and enhances the suppressive function of regulatory T cells (Tregs), a key subset for maintaining immune tolerance. The irAEs observed with PD-1 inhibitors in cancer patients (which mimic spontaneous autoimmune diseases) further validate PD-1’s physiological role in preventing autoimmunity.

Product Empowerment: ANT BIO’s High-Quality PD-1 Antibodies (Starter Sub-brand)

As a global leader in antibody development and life science research solutions, ANT BIO PTE. LTD.—via its Starter sub-brand (the flagship antibody specialist with cutting-edge antibody engineering capabilities)—offers a comprehensive portfolio of high-specificity, validated PD-1 (CD279) antibodies for cutting-edge immunology, oncology, and translational research. Our PD-1 antibody panel includes unconjugated and fluorochrome-conjugated variants targeting human and mouse PD-1, with optimized clones (S-R570, S-798-5, S-R496) exhibiting exceptional binding affinity, specificity, and functional performance. Produced via rigorous antibody development and quality control processes, these PD-1 antibodies are validated for a wide range of applications—including flow cytometry, immunofluorescence, and in vivo research—serving as critical research tools for dissecting PD-1 biology, validating PD-1/PD-L1 signaling, and developing PD-1-targeted therapeutics. ANT BIO’s PD-1 antibodies empower researchers and biopharmaceutical companies to accelerate PD-1-related research in cancer immunotherapy, infectious disease, and autoimmunity, providing reliable, reproducible results for basic and translational studies.

Core Advantages of ANT BIO’s PD-1 Antibodies

Key Application Scenarios for ANT BIO’s PD-1 Antibodies

ANT BIO’s PD-1 antibodies are versatile, validated research tools for all aspects of PD-1 biology and translational research, supporting basic immunology studies, drug development, and preclinical testing across oncology, infectious disease, and autoimmunity:

Brand Mission

At ANT BIO PTE. LTD., our core mission is to empower life science research and biopharmaceutical development by providing high-quality, innovative, and reliable biological reagents, research tools, and comprehensive solutions. As a leading global provider of antibodies, recombinant proteins, and life science reagents, we have built three specialized sub-brands that cover the full spectrum of research and drug development needs, creating a seamless one-stop procurement experience for researchers, biotech companies, and pharmaceutical institutions worldwide:

• Absin: Specializes in general life science reagents and kits, including flow cytometry buffers, cell culture media, immunofluorescence kits, and molecular biology reagents — supporting the experimental workflows for PD-1 research, immunology studies, and cancer immunotherapy development.
• Starter: Our flagship antibody specialist sub-brand, offering a comprehensive portfolio of high-specificity immune checkpoint antibodies (including PD-1, PD-L1, CTLA-4), custom antibody development services, and in vivo-grade antibodies — our core expertise in producing validated antibodies for immunology and oncology research.
• UA: Dedicated to recombinant proteins and custom protein services, including PD-1/PD-L1 recombinant proteins, immune checkpoint fusion proteins, and custom protein expression/purification — complementing our PD-1 antibodies for binding assays, functional studies, and therapeutic development.

We are committed to investing in the development of high-quality research tools for emerging immunology and oncology targets such as PD-1, providing rigorous QC validation, professional technical support, and customized solutions to help researchers overcome experimental challenges and accelerate the translation of basic science discoveries into life-saving clinical therapies. For ANT BIO, innovation is the core driving force, quality is the unshakable foundation, and customer-centricity is the eternal service concept — we strive to be your trusted partner in every step of your immunology, oncology, and translational research journey.

Related Product List: ANT BIO’s PD-1 (CD279) Antibodies (Starter Sub-brand)

All products are high-specificity PD-1 (CD279) antibodies with rigorous QC validation for binding specificity, activity, and purity, available in human/mouse species, unconjugated/fluorochrome-conjugated formats, and in vivo-grade variants for diverse research applications.

For detailed product specifications, bulk pricing, custom PD-1 antibody conjugation services, or additional clones/species formats, please visit the ANT BIO official website or contact our sales team for a personalized quote and technical consultation.
