Multi - color Flow Cytometry Mini Panel for NK Cell Functional Subsets

10 Jun 2025 by AntBio
Multi - color Flow Cytometry Mini Panel for NK Cell Functional Subsets

Multi - color Flow Cytometry Mini Panel for NK Cell Functional Subsets

NK cells are lymphocytes crucial for innate immunity. They can lyse virus - infected, tumor, and abnormal cells without prior antigen stimulation. Constituting 5% - 15% of peripheral blood lymphocytes, NK cells are vital for immune surveillance.
Human

Mouse
Functionally, NK cells can be categorized into two subsets:
  1. Cytotoxic: Induce target - cell apoptosis via perforin and granzyme release.
  2. Immunomodulatory: Activate other immune cells by secreting cytokines like IFN - γ and TNF - α.

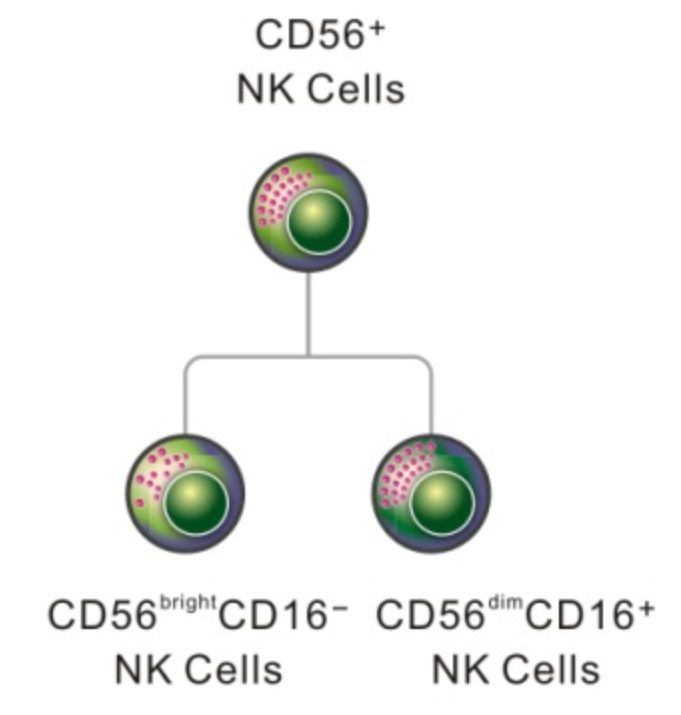

In humans:
  • CD56dimCD16bri NK cells: High cytotoxic activity.
  • CD56briCD16dim NK cells: High cytokine - secreting activity.

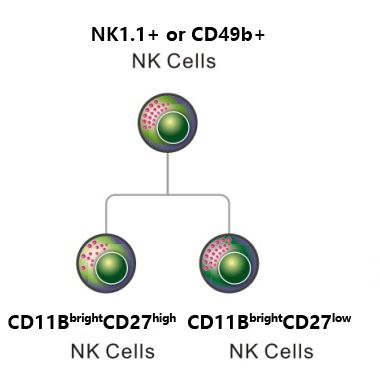

In mice:
  • CD11briCD27low NK cells: High cytotoxic activity.
  • CD11briCD27high NK cells: High cytokine - secreting activity.
When designing NK - cell detection panels, CD3 should be included to exclude T - cell interference, as NK and some T cells (e.g., NKT cells) share key NK - cell markers.

Human Panel Recommendations

Marker Fluorochrome Max EX/EM (nm) Corresponding Laser Filter Product Number Format (1 T represents one test)
CD3 Alexa Fluor® 647 653/669 Red Laser 660/20 S0B0155 20/50/100/500 T available
CD56 PE 496, 566/576 Blue or Yellow - Green Laser 575/26 abs182503 25/100 T available
CD16 Alexa Fluor® 488 494/517 Blue Laser 530/30 S0B1632 20/50/100/500 T available

Mouse Panel Recommendations


Marker Fluorochrome Max EX/EM (nm) Corresponding Laser Filter Product Number Format (1 T represents one test)
CD3 FITC 494/518 Blue Laser 530/30 S0B1783 20/100/500 T available
CD49b (strains A, AKR, BALB/C, CBA/J, C3H, C57BR, C58, DBA/1, DBA/2, NOD, SJL, 129) APC 651/660 Red Laser 660/20 560628 50 μg
NK1.1 (strains C57BL, FVB/N, NZB) APC 651/660 Red Laser 660/20 S0B5197 20/50/100/500 T available
CD11b PerCP - Cy5.5 482/676 Blue Laser 695/40 S0B5160 20/50/100/500 T available
CD27 PE 496, 566/576 Blue or Yellow - Green Laser 575/26 558754 561785 100 μg 25 μg

Detailed Explanation of Each Antibody Marker's Function:



CD antigen

Cellular expression

Molecular weight (kDa)

Functions

CD3

Thymocytes, T cells

γ:25–28, δ:20, ε:20

Associated with the T-cell antigen receptor (TCR). Required for cellsurface expression of and signal transduction by the TCR

CD56

NK cells

135–220

Isoform of neural cell-adhesion molecule (NCAM), adhesion molecule

CD16

Neutrophils, NK cells, macrophages

50–80

Component of low affinity Fc receptor, FcγRIII, mediates phagocytosis and antibody-dependent cell-mediated cytotoxicity

CD49b

B cells, monocytes, platelets, megakaryocytes, neuronal, epithelial and endothelial cells, osteoclasts

160

α2 integrin, associates with CD29, binds collagen, laminin

NK1.1

NK cells, T cells

44

Regulates NK cytotoxicity

CD27

Medullary thymocytes, T cells, NK cells, some B cells

55

Binds CD70; can function as a co-stimulator for T and B cells

CD11b

Myeloid and NK cells

170

αM subunit of integrin CR3 (associated with CD18): binds CD54, complement component iC3b, and extracellular matrix proteins
