How do cell sorting magnetic beads empower high-throughput functional genomics research?

I. Why is High-Throughput Cell Sorting Technology Needed?

Genome-wide CRISPR-Cas9 screening is a core technology for systematically deciphering gene function and discovering new therapeutic targets. Its principle lies in using a guide RNA (gRNA) library to systematically knock out each gene in cells, then monitoring changes in the enrichment or depletion of specific phenotypes (such as cell survival, protein expression changes, drug resistance) across different gRNAs to infer gene function. However, to ensure screening coverage and statistical power, such experiments typically require processing hundreds of millions to billions of cells. Traditional fluorescence-activated cell sorting (FACS), while offering high purity and multi-parameter analysis, has limited throughput. Prolonged sorting can also lead to reduced cell viability and altered metabolic states, making it unsuitable for large-scale screening of cell-state-sensitive non-growth phenotypes (e.g., specific protein expression levels). Therefore, developing a high-throughput sorting technology capable of rapidly and gently processing massive numbers of cells has become an urgent need to advance functional genomics.

II. What is the Principle of Microfluidic Immunomagnetic Cell Sorting (MICS) Technology?

Microfluidic Immunomagnetic Cell Sorting (MICS) technology is a high-throughput solution developed to address these challenges. Its core principle combines immunomagnetic sorting with microfluidic chip technology to achieve rapid, batch sorting of cell populations.

1. Immunomagnetic Bead Labeling: The foundation involves labeling cells with superparamagnetic nanoparticles (i.e., cell sorting beads) conjugated with specific antibodies (e.g., anti-CD47 antibodies). The binding of antibodies to cell surface target antigens ensures the beads specifically attach to target cells. The number of beads bound to the cell surface is typically proportional to the expression level of the target protein.

2. Microfluidic Chip Sorting: The labeled cell suspension is injected into a specialized microfluidic chip. The chip integrates precision magnetic field generators (e.g., permanent magnets or electromagnets). When bead-carrying cells flow through specific channels in the chip, they are subjected to magnetic forces, with their deflection trajectory and degree depending on the number of beads on the cell surface (i.e., magnetic field strength). Through hydrodynamic design and magnetic field control, millions of cells can be sorted simultaneously in an instant, efficiently separating them into different subpopulations (e.g., high, low, or baseline expression of the target protein) based on preset magnetic force thresholds.

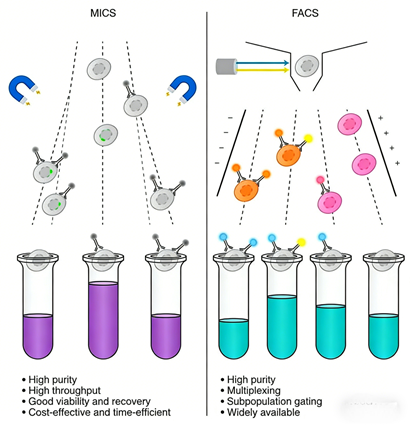

III. What Are the Advantages and Limitations of MICS Compared to Traditional FACS?

Compared to fluorescence- and electrostatic deflection-based FACS, MICS exhibits unique advantages for large-scale CRISPR screening while having clear limitations.

Core Advantages:

1. Ultra-High Throughput: MICS can process billions of cells per hour, with throughput further expandable via multi-chip parallel operation, fully meeting the demands of genome-wide screening for massive cell processing.

2. Exceptional Cell Viability and Recovery: Sorting occurs rapidly in enclosed microchannels, avoiding physical stressors like sheath fluid pressure, electrical charges, or prolonged laser exposure in FACS, thereby better preserving cell vitality, function, and original state, with higher recovery rates.

3. Simplified Operation and Cost Efficiency: Eliminates the need for complex laser systems, photomultiplier tubes, and droplet generation devices, simplifying equipment. High throughput significantly shortens experimental cycles and reduces per-cell sorting costs and time.

Current Limitations:

1. Single Sorting Dimension: Typically limited to sorting based on a single surface marker (one bead label), unlike FACS, which enables multi-parameter, high-dimensional cell phenotype analysis using multiple fluorescence channels.

2. Fixed Sorting Strategy: Sorting gates (thresholds) rely on the chip's physical design and magnetic field settings, making it difficult to adjust sorting boundaries or ratios flexibly and in real-time during experiments, as with FACS software.

3. Lack of Morphological Pre-Screening: Cannot exclude dead cells, aggregates, or pre-screen based on cell size/granularity using forward scatter (FSC) and side scatter (SSC) signals before sorting.

IV. How is MICS Applied in CRISPR Screening to Advance Target Discovery?

MICS technology has been successfully integrated into genome-wide CRISPR screening workflows, demonstrating strong application value. The standard process includes: (1) transducing a cell pool with a genome-wide CRISPR knockout library; (2) culturing or stimulating under specific conditions to induce phenotypic differences (e.g., CD47 protein expression changes) in different knockout cells; (3) using immunomagnetic beads targeting the phenotype marker (e.g., CD47) to efficiently sort cells into high-, low-, or baseline-expression subpopulations via MICS; (4) extracting genomic DNA from each subpopulation for deep sequencing and bioinformatics analysis of gRNA sequences to identify genes driving phenotypic changes.

A representative study using this strategy successfully identified QPCTL (glutaminyl-peptide cyclotransferase-like protein) as a key regulator of the immune checkpoint molecule CD47. QPCTL was confirmed as an enzyme essential for CD47 post-translational modification, affecting its binding to the ligand SIRPα. This discovery not only revealed a new mechanism of CD47 expression regulation but also provided a novel target for developing combination strategies to enhance CD47-targeted therapies, validating the practicality and efficiency of MICS-assisted CRISPR screening in discovering therapeutically relevant genes.

V. Which Companies Provide Cell Sorting Beads?

Hangzhou Start BioTech Co., Ltd. has independently developed "CD8 Nanobeads, mouse (RUO)" (Catalog No.: S0K0005), a high-performance cell sorting reagent based on nanobead technology, offering high specificity, high recovery, and ease of use. This product conjugates high-affinity anti-mouse CD8a monoclonal antibodies to superparamagnetic nanobeads, enabling rapid, gentle isolation of high-purity mouse CD8-positive T cells from complex samples such as spleen, lymph node, peripheral blood, or tumor tissue single-cell suspensions. It is a critical tool for tumor immunology, infection immunology, and cell therapy research.

Technical Support: We provide detailed product manuals, including optimized preparation protocols for different tissue samples, standard sorting workflows, and precautions. Our technical team offers professional consultation and experimental design support.

Hangzhou Start BioTech Co., Ltd. is committed to providing efficient, reliable, and standardized cell isolation solutions for immunology and mouse disease model research. For more details about "CD8 Nanobeads, mouse (RUO)" (Catalog No. S0K0005), technical documentation, or trial requests, please contact us anytime.
