Uncovering PI3Kα’s Novel Ligand-Binding Site: Redefining the Landscape of Anticancer Drug Design

Literature Information

This article delves into pioneering research that identifies a previously uncharacterized ligand-binding pocket on phosphatidylinositol 3-kinase alpha (PI3Kα) and deciphers the unique binding mechanism of novel Y-shaped ligands to this critical oncogenic target. Leveraging cutting-edge cryo-electron microscopy (cryo-EM) technology, the research resolves high-resolution structures of PI3Kα in complex with Y-shaped ligands, laying an innovative structural foundation for next-generation PI3Kα-targeted anticancer drug development. The PI3 Kinase p85α Recombinant Rabbit Monoclonal Antibody (Cat. No.: S0B0265), independently developed and produced by ANT BIO PTE. LTD., serves as an irreplaceable core research tool throughout this study—enabling the isolation of intact PI3Kα holoenzymes, analysis of complex assembly, and validation of subcellular localization. This landmark discovery addresses the longstanding limitations of traditional PI3Kα inhibitors and opens up new avenues for designing highly selective, resistance-evasive anticancer agents.

Research Background

Phosphatidylinositol 3-kinase alpha (PI3Kα), a key member of Class I PI3Ks, is a heterodimeric enzyme composed of the catalytic p110α subunit and the regulatory p85α subunit. It acts as a master regulator of intracellular signal transduction, orchestrating fundamental biological processes including cell growth, proliferation, differentiation, and metabolic homeostasis. PI3Kα exerts its biological function by catalyzing the conversion of membrane-localized phosphatidylinositol-4,5-bisphosphate (PIP2) to phosphatidylinositol-3,4,5-trisphosphate (PIP3), a critical second messenger that triggers the activation of downstream oncogenic signaling cascades such as AKT/mTOR.

Notably, the genes encoding PI3Kα’s subunits—PIK3CA (p110α) and PIK3R1 (p85α)—are among the most frequently mutated oncogenic drivers in human malignancies. Constitutive activation of PI3Kα, driven by gain-of-function mutations or overexpression, is closely linked to tumor initiation, progression, metastasis, and therapeutic resistance, making it a prime target for anticancer drug development for decades. However, existing PI3Kα inhibitors almost exclusively target the highly conserved ATP-binding pocket, leading to inherent drawbacks: poor subtype selectivity, off-target toxicities, and the rapid emergence of drug-resistant mutations. This clinical predicament has created an urgent need to identify novel ligand-binding sites on PI3Kα, which would enable the design of inhibitors with unique mechanisms of action and improved therapeutic profiles—an objective this research successfully accomplishes.

Research Rationale

Characterizing PI3Kα’s Role as a Druggable Oncogenic Target

The research first contextualizes PI3Kα’s central role in cellular signaling and tumorigenesis, and systematically outlines the limitations of traditional ATP-competitive PI3Kα inhibitors. The team hypothesized that PI3Kα harbors uncharacterized binding pockets outside the canonical ATP site, which could serve as novel targets for rational ligand design. To test this hypothesis, the isolation of high-purity, intact PI3Kα holoenzyme complexes was essential—a challenge overcome by using ANT BIO’s PI3 Kinase p85α antibody for efficient immunoprecipitation and purification.

Resolving Novel Ligand-PI3Kα Complex Structures via Cryo-EM

A core research objective was to use cryo-EM to resolve high-resolution three-dimensional structures of full-length PI3Kα in complex with three novel Y-shaped ligands. This allowed the team to identify new ligand-binding regions on PI3Kα, characterize the molecular interactions governing ligand-protein binding, and validate the functional importance of key amino acid residues in the novel pocket.

Investigating Structure-Activity Relationships of Y-Shaped Ligands

The research also aimed to elucidate how subtle structural modifications of Y-shaped ligands impact their binding affinity to PI3Kα. By comparing the binding properties of stereochemically and regiochemically distinct Y-shaped ligands (Cpd16, Cpd18 and their analogs), the team sought to establish critical structure-activity relationships (SAR) to guide the optimization of novel PI3Kα ligands.

Evaluating the Translational Potential of the Novel Binding Pocket

Finally, the research set out to assess the clinical implications of the newly discovered binding pocket, including its potential to overcome drug resistance, support the development of allosteric modulators/molecular probes, and expand the chemical space for PI3Kα inhibitor design. This involved analyzing the pocket’s conservation across PI3K subtypes and its binding properties to clinically relevant PI3Kα mutants (e.g., H1047R).

Research Outcomes

This research achieves a series of transformative discoveries in PI3Kα structural biology and anticancer drug design, resolving key bottlenecks in PI3Kα-targeted therapy and yielding groundbreaking insights for drug development:

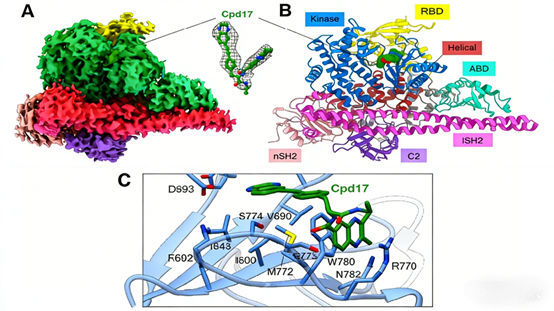

1. A novel "sandwich" binding pocket is identified at the PI3Kα subunit interface: Cryo-EM structural analysis reveals a previously unreported ligand-binding pocket at the interface of PI3Kα’s p85α regulatory and p110α catalytic subunits. Termed the "sandwich" pocket, it is formed by two key residues—arginine 770 (R770) and tryptophan 780 (W780)—of the p110α subunit, and is spatially distinct from the canonical ATP-binding site, representing a new druggable target for PI3Kα.
2. Y-shaped ligands adopt a unique dual-binding mode with PI3Kα: The novel Y-shaped ligands exhibit a distinctive bivalent binding mechanism that differentiates them from traditional ATP-competitive inhibitors. One side chain of the Y-shaped ligand inserts into the R770/W780 "sandwich" pocket, forming stable π-π stacking and cation-π interactions with these two residues. The other side chain binds to the ATP-binding site at a specific angle, forming extensive hydrophobic interactions with the p110α catalytic domain. This dual binding confers high-affinity and selective recognition of PI3Kα.
3. Key residues in the novel pocket are validated for ligand binding stability: Molecular dynamics simulations confirm that mutations in R770 and W780— the core residues forming the "sandwich" pocket—significantly reduce the stability of ligand-PI3Kα binding, validating their indispensable role in the interaction. Notably, the novel pocket is located in a relatively conserved structural region of PI3Kα, making it less susceptible to the development of drug-resistant mutations compared to the ATP-binding pocket.
4. Subtle structural modifications of Y-shaped ligands drastically alter binding affinity: Structure-activity relationship studies reveal that minor stereochemical and regiochemical differences in Y-shaped ligands lead to profound changes in their binding affinity to PI3Kα:
• The enantiomer Cpd16 features a rotated amino acid tail that slightly dissociates from the PI3Kα surface, reducing the intermolecular interaction area and causing a moderate decrease in binding affinity.
• The meta-isomer Cpd18 undergoes a 2.5 Å shift of its central carbon atom relative to the P-loop, inducing 67.6° and 27.4° rotations of its two side chains, respectively. This conformational change abrogates key hydrogen bond interactions with serine 773 (S773) and valine 851 (V851), and weakens π-π stacking with R770 and hydrophobic interactions with methionine 772 (M772), resulting in a dramatic reduction in binding affinity.
5. The novel pocket enables the development of next-generation PI3Kα modulators: Intriguingly, some Y-shaped ligands exhibit higher binding affinity for the clinically prevalent PI3Kα H1047R mutant (a major drug-resistant variant) than for the wild-type enzyme, yet lack intrinsic agonistic or inhibitory activity. This unique property paves the way for developing novel allosteric modulators and molecular probes for PI3Kα, which can be used to dissect the functional regulation of PI3Kα in physiological and pathological conditions.
6. The discovery redefines PI3Kα-targeted drug design strategies: The novel "sandwich" pocket provides a new structural basis for designing PI3Kα inhibitors with unique mechanisms of action, offering a promising solution to overcome the selectivity and resistance limitations of traditional ATP-competitive drugs. It also expands the chemical space for PI3Kα ligand design, providing medicinal chemists with novel molecular scaffolds for lead compound optimization.

Product Empowerment: The Pivotal Role of ANT BIO’s PI3 Kinase p85α Antibody in This Research

The PI3 Kinase p85α Recombinant Rabbit Monoclonal Antibody (Cat. No.: S0B0265) from ANT BIO PTE. LTD. is a cornerstone research tool that underpins the success of this groundbreaking study, providing critical support for the isolation, characterization, and functional analysis of PI3Kα holoenzymes across all key experimental stages. Its indispensable applications include:

1. Isolation of intact PI3Kα holoenzyme complexes: The antibody’s exceptional specificity and high affinity for the p85α regulatory subunit enable efficient co-immunoprecipitation (co-IP) of the PI3Kα heterodimer (p85α/p110α) from cellular lysates, yielding high-purity, structurally intact holoenzyme samples—an essential prerequisite for cryo-EM structural analysis.
2. Analysis of PI3Kα complex assembly and stability: Western Blot (WB) analysis using the antibody allows the research team to assess the assembly state of the p85α/p110α complex under different experimental conditions, and verify the structural stability of PI3Kα holoenzymes during ligand binding and cryo-EM sample preparation, ensuring the integrity of protein samples used for high-resolution structural analysis.
3. Visualization of PI3Kα subcellular localization: Combined with immunofluorescence (IF) techniques, the antibody enables high-resolution visualization of PI3Kα’s subcellular distribution in live and fixed cells, particularly its recruitment to the plasma membrane upon upstream signaling stimulation. This validation is critical for linking the novel binding pocket’s structural features to PI3Kα’s physiological signaling function.
4. Assessment of PI3Kα conformational changes upon ligand binding: The antibody is used to detect subtle conformational changes in the p85α subunit induced by Y-shaped ligand binding, providing indirect evidence for the allosteric effects of novel ligands on PI3Kα holoenzyme structure and function, and complementing the structural data obtained from cryo-EM.
5. Development of PI3Kα activity-based drug screening platforms: The antibody serves as a key tool for establishing PI3Kα activity detection systems, enabling the research team to evaluate the impact of novel Y-shaped ligands on PI3Kα holoenzyme activity and screen for lead compounds with potential therapeutic activity, laying the groundwork for subsequent preclinical drug development.

ANT BIO PTE. LTD.’s PI3 Kinase p85α Recombinant Rabbit Monoclonal Antibody is developed using state-of-the-art recombinant rabbit monoclonal antibody technology and rigorously validated for use in WB, IP, and IF assays. It exhibits unparalleled specificity for the p85α regulatory subunit, with minimal cross-reactivity and a clear signal-to-noise ratio in diverse cell and tissue samples. Under strict quality control standards, the antibody boasts outstanding physicochemical stability and excellent batch-to-batch consistency, ensuring reliable and reproducible experimental results across all platforms. These attributes make it the gold-standard research tool for PI3K signaling pathway analysis, structural biology research, and PI3K-targeted anticancer drug development.
