Polymerase Chain Reaction (PCR) technology is a cornerstone of molecular biology research, enabling the rapid and specific amplification of target DNA fragments. Since its invention, it has revolutionized fields such as medicine, agriculture, and plant pathology, evolving from a qualitative analytical method to a quantitative tool and expanding its capability to amplify DNA fragments from a few kilobases to dozens of kilobases. This article systematically reviews the development history, principle, common types, and experimental procedures of PCR technology, while introducing high-performance PCR reagents from ANT BIO PTE. LTD. that support reliable experimental results.

1. The Evolution of PCR Technology

Research on nucleic acids has a history of over 100 years. As early as the 1970s, scientists began exploring gene isolation technologies. In 1971, Khorana et al. first proposed the concept of in vitro nucleic acid amplification: denaturing DNA to separate strands, hybridizing with specific primers, and extending with DNA polymerase; repeating this process would allow gene cloning [1]. However, this idea remained unvalidated due to immature technologies at the time.

A breakthrough came in 1985 when Mullis et al. successfully amplified a single-copy mammalian gene in vitro using Escherichia coli DNA polymerase. The inventor, Kary Banks Mullis, later won the Nobel Prize in Chemistry for this achievement. In 1988, Saiki et al. introduced thermostable DNA polymerase (Taq polymerase) into PCR technology, significantly improving the specificity and efficiency of amplification reactions, simplifying operational procedures, and ultimately realizing the automation of DNA amplification. This rapid advancement drove the widespread application and popularization of PCR [2].

2. Principle of PCR Technology

PCR (Polymerase Chain Reaction) refers to the process of in vitro replicating daughter DNA strands complementary to the parent template DNA under the catalysis of DNA polymerase, using parent DNA as the template and specific primers as the starting points for extension. The basic components of the reaction include template DNA, primers, 4 types of deoxynucleotides (dNTPs), DNA polymerase, and a suitable buffer.

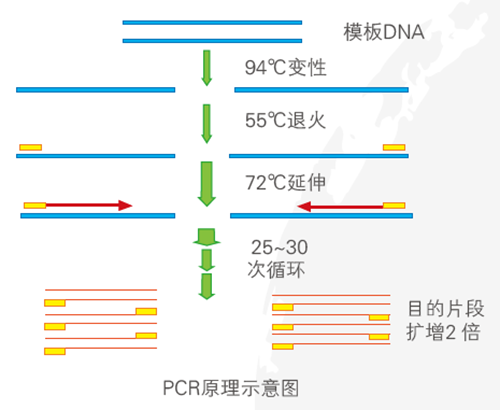

The basic principle of PCR is similar to the natural DNA replication process, with its specificity relying on oligonucleotide primers complementary to the two ends of the target sequence. PCR mainly consists of the following three stages:

1.       Denaturation of Template DNA: The template DNA is heated at 94°C for a certain period to dissociate the double-stranded DNA into single strands, enabling it to bind to primers and prepare for the next cycle.

2.       Annealing (Renaturation) of Template DNA and Primers: After the template DNA is denatured into single strands by heating, the temperature is lowered to approximately 55°C, allowing the primers to pair and bind with the complementary sequences of the template DNA single strands.

3.       Extension of Primers: Under the action of Taq DNA polymerase at around 72°C, the DNA template-primer complex synthesizes a new strand using dNTPs as reaction raw materials, the target sequence as the template, and following the principles of base complementary pairing and semi-conservative replication. The newly synthesized daughter strands then repeat the three cycles of denaturation—annealing—extension to generate more new strands. Each cycle takes 2-4 minutes, and the target gene to be amplified can be amplified hundreds of times within 2-3 hours.

3. Common Types of PCR

To date, more than a dozen types of PCR technologies have been developed. Below are introductions to several commonly used types:

3.1 Conventional PCR

Conventional PCR is the most widely used type in laboratories, with the technical principle described above. As a fundamental molecular biology experiment, conventional PCR can be used for basic research such as gene isolation, cloning, and nucleic acid sequence analysis, as well as qualitative determination of nucleic acid content. It is also applied in disease diagnosis and any detection applications related to DNA and RNA.

The following is a routine experimental procedure for conventional PCR using a typical experiment as an example:

3.1.1 Required Reagents, Consumables, and Equipment

Template DNA, primers, Taq DNA polymerase (5U/μL), Buffer containing 15mmol/L Mg²⁺, ddH₂O, PCR instrument, pipettes, PCR plates, tips.

3.1.2 Experimental Procedures

1.       Preparation of PCR Reaction System: Add the following solutions to the PCR plate in sequence: 2μL of template DNA; 1μL of upstream primer; 1μL of downstream primer; 1.5μL of dNTPs; 0.5μL of Taq polymerase; ddH₂O to bring the total volume to 20μL.

2.       Setting PCR Reaction Program: 94°C for 3min; 94°C for 45s; 55°C for 45s; 72°C for 45s; 72°C for 5min; 4°C for 1h.

3.       Load the sample and start the reaction program.

4.       Perform agarose gel electrophoresis on the amplified products.

ANT BIO PTE. LTD. offers PCR reaction solutions containing Taq DNA polymerase, dNTPs, MgCl₂, and reaction buffer. These products feature rapid and simple operation, high sensitivity, strong specificity, and good stability, which can minimize human errors. Only DNA templates and primers need to be added during use. The recommended products are shown in the following table:

3.2 Hot Start PCR

Hot Start PCR refers to a type of PCR where the Taq DNA polymerase is only active when the sample temperature exceeds at least 70°C, which can improve the specificity of the reaction. Taq DNA polymerase usually retains strong activity at temperatures much lower than its optimal temperature. During the initial heating process of the PCR reaction, before the sample temperature rises to 70°C, primers may form non-specific binding with some single-stranded templates at lower temperatures and extend under the action of Taq DNA polymerase. This results in the amplification of non-target sequences, affecting the specificity of the reaction.

Hot start can reduce the amplification of non-target sequences and improve reaction specificity. It is particularly effective when primer design is restricted by the location of genetic elements, such as site-directed mutagenesis, expression cloning, or the construction and manipulation of genetic elements for DNA engineering. The recommended Hot Start PCR-related reagents from ANT BIO PTE. LTD. are shown in the following table:

3.3 High-Fidelity PCR

High-fidelity PCR mainly relies on high-fidelity enzymes. Conventional Taq enzyme has 5'→3' DNA polymerase activity and 5'→3' exonuclease activity but lacks 3'→5' exonuclease activity, thus lacking proofreading function for certain single-nucleotide mismatches during synthesis. In contrast, high-fidelity enzymes possess extremely strong proofreading capabilities, with a fidelity 50 times higher than that of conventional Taq enzyme and much higher than other similar enzymes. Therefore, high-fidelity PCR is particularly suitable for experiments such as plasmid construction. The recommended high-fidelity PCR-related reagents from ANT BIO PTE. LTD. are shown in the following table:

3.4 Long Fragment Amplification

Taq DNA polymerase typically fails when amplifying PCR products longer than 4kb. The reasons include non-specific primer annealing, secondary structures in the DNA template, and suboptimal cycling conditions—all of which have a greater impact on the amplification of longer PCR products than shorter ones. In long-range PCR, preventing DNA loss is particularly important because a single DNA damage in the template is sufficient to stall the PCR enzyme. DNA damage during PCR cycling can be minimized by specific buffer substances that stabilize the reaction pH. Commercial PCR kits are specifically designed to overcome the challenges of long-range PCR.

The recommended long fragment amplification-related reagents from ANT BIO PTE. LTD. are shown in the following table:
