How to use flow cytometry and CTLA-4 antibodies to evaluate the impact of genetic variations on CTLA-4 function?

1. What are the biological functions of CTLA-4 and the clinical challenges of its insufficiency syndrome?

Cytotoxic T-lymphocyte-associated protein 4 (CTLA-4, CD152) is a key immune checkpoint molecule expressed on regulatory T cells (Treg) and activated T cells, serving as a negative regulator that plays a central role in maintaining peripheral immune tolerance. Its primary function involves competitively binding to the B7 ligands (CD80/CD86) on antigen-presenting cells (APCs) with the co-stimulatory molecule CD28, and through a unique "transendocytosis" mechanism, internalizing B7 molecules into T cells, thereby limiting the availability of co-stimulatory signals and preventing excessive immune activation.

Germline heterozygous mutations in the human CTLA4 gene can lead to an autosomal dominant immune dysregulation disorder known as CTLA-4 insufficiency syndrome. Patients exhibit various autoimmune features, including lymphoproliferative infiltration, autoimmune cytopenia, abnormal immunoglobulin levels, and increased susceptibility to tumors. However, clinical diagnosis faces two major challenges: first, the heterogeneity of clinical manifestations is significant; second, genetic variants identified through sequencing (particularly variants of uncertain significance, VUS) do not necessarily equate to functional defects. Therefore, developing methods to directly and objectively assess CTLA-4 protein function is crucial for diagnosis, understanding disease mechanisms, and guiding management.

2. What are the limitations of traditional methods for evaluating the functional impact of CTLA-4 gene variants?

Currently, functional validation of CTLA-4 VUS typically involves multiple approaches:

1. Protein expression analysis: Flow cytometry using CTLA-4 antibodies to detect surface and intracellular CTLA-4 expression levels. The limitation is that many missense mutations do not affect protein stability or trafficking, and expression levels may appear normal, making expression analysis alone insufficient to distinguish pathogenic from benign variants.

2. Treg suppression function analysis: Assessing the ability of patient-derived Treg cells to suppress effector T cell proliferation in vitro. This method's reliability is often limited by the reduced number of functional Treg cells in patients, making it difficult to obtain sufficient cells for testing.

3. Transendocytosis function assay: This is a more direct method reflecting CTLA-4's core biological function. The principle involves co-culturing patient T cells (primarily Treg) with engineered cells (e.g., CHO cells) expressing fluorescently labeled CD80/CD86, and using flow cytometry to detect the ability of T cells to internalize the labeled ligands. Internalization efficiency directly reflects CTLA-4-mediated "transendocytosis" activity. However, traditional reporter systems (e.g., CD80-GFP) suffer from weak fluorescence signals, susceptibility to quenching, and batch-to-batch variability, which may impair the resolution of subtle functional differences, particularly in distinguishing pathogenic variants from wild-type or benign variants.

3. What are the technological breakthroughs of the flow cytometry-based transendocytosis assay using a novel reporter system?

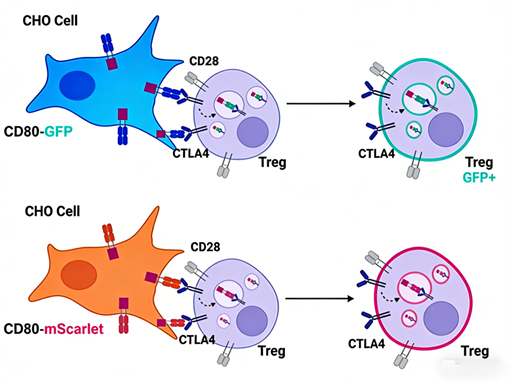

To overcome the limitations of traditional methods, recent studies have reported an optimized flow cytometry assay. The core improvement involves using CHO cell lines expressing high-brightness, high-photostability red fluorescent protein mScarlet-labeled CD80 (CD80-mScarlet) as artificial antigen-presenting cells.

Compared to traditional GFP-labeled systems, the CD80-mScarlet system offers significant advantages:

- Higher signal-to-noise ratio and sensitivity: The mScarlet protein's fluorescence is stronger and more stable, making the internalized CD80 signal in T cells easier to detect and quantify by flow cytometry, reducing background interference.

- Improved data reproducibility: Results obtained with this system exhibit smaller coefficients of variation and higher consistency across experimental batches, enhancing reliability and comparability.

- Excellent freeze-thaw tolerance: Experiments show that results are unaffected by the freeze-thaw process of patient peripheral blood mononuclear cells, enabling centralized storage and batch testing of clinical samples, greatly improving practical feasibility.

4. How do CTLA-4 antibodies play a key role in flow cytometry-based functional assays?

In the optimized transendocytosis assay workflow, besides the novel reporter cell line, high-specificity CTLA-4 antibodies are indispensable core reagents for precisely defining the target cell population:

1. Accurate gating of target cell populations: In complex co-culture systems, it is necessary to specifically identify T cell subsets with CTLA-4 function from all cells. Using multicolor flow cytometry with surface marker antibodies (e.g., anti-CD4, CD45RO) and intracellular marker antibodies (e.g., anti-FOXP3), CD4+ memory (CD45RO+) regulatory T cells (FOXP3+) can be precisely gated, as these cells are the primary executors of CTLA-4 function.

2. Simultaneous analysis of CTLA-4 expression levels: While expression levels alone cannot definitively determine function, combining functional assays with CTLA-4 protein expression analysis (using CTLA-4 antibodies for surface or intracellular staining) provides more comprehensive information. For example, a variant may cause normal protein expression but complete loss of function, or reduced expression with partial loss of function, aiding in understanding the mutation mechanism.

3. Data interpretation and functional correlation: Finally, by analyzing the proportion and mean fluorescence intensity of CD80-mScarlet-positive cells in the precisely gated Treg population, the efficiency of CTLA-4-mediated transendocytosis can be quantified. Comparing functional data from samples carrying specific VUS with healthy controls or known pathogenic/benign variants enables experimental assessment of the variant's functional impact.

5. How does functional testing provide direct evidence for the clinical interpretation of CTLA-4 variants?

Using the optimized method, studies can more reliably reveal the specific functional effects of different CTLA-4 variants. For example:

- Function-preserving variants: Some variants (e.g., R70Q mentioned in the text) may selectively impair CD86 internalization while maintaining relatively intact CD80 internalization, explaining their potential for atypical or milder phenotypes.

- Function-impaired variants: Other variants (e.g., R70W) significantly reduce CD80 transendocytosis capacity, aligning with severe clinical phenotypes.

- Clarifying controversial variants: For variants previously difficult to classify due to limited assay sensitivity (e.g., G109E), the high-sensitivity new system may provide clearer functional data, aiding in reevaluating their pathogenic potential.

6. Which manufacturers provide CTLA-4 antibodies?

Hangzhou Start Biotech Co., Ltd. has independently developed the "Invivo anti-mouse CTLA-4 (CD152) monoclonal antibody (Invivo anti-mouse CTLA-4 (CD152) mAb)" (Catalog No.: S0B1101), a key immune checkpoint research tool designed for in vivo functional studies in mice, with confirmed blocking activity and high safety. This product is prepared using high-purity processes and can specifically recognize and functionally block mouse CTLA-4 molecules. It is suitable for studying the negative regulatory role of CTLA-4 signaling in T cell activation in animal models, serving as a core reagent for in vivo mechanistic exploration in tumor immunotherapy, autoimmune diseases, and transplantation immunology.

Professional technical support: We provide detailed product usage guidelines, including recommended in vivo dosing, frequency, administration routes (e.g., intraperitoneal injection), and pre-experimental protocols. Our technical team offers expert in vivo experimental design support to assist in interpreting complex immune phenotype data.

Hangzhou Start Biotech Co., Ltd. is committed to providing high-quality, functionally defined in vivo research-grade antibody tools for global immunology research. For more information about the "Invivo anti-mouse CTLA-4 (CD152) monoclonal antibody" (Catalog No. S0B1101), in vivo functional validation data, or specific experimental protocols, please feel free to contact us.
