Cell Sorting Magnetic Beads: Catalyzing High-Throughput Functional Genomics Research

Concept

Cell sorting magnetic beads are superparamagnetic nanoparticle-based affinity reagents, covalently conjugated with highly specific monoclonal antibodies targeting cell surface antigens. As the core tool for Microfluidic Immunomagnetic Cell Sorting (MICS) technology, these beads integrate the specificity of immunological recognition with the high-throughput performance of microfluidic systems, enabling rapid, gentle, and large-scale separation of specific cell subpopulations from complex cell mixtures. Unlike traditional cell sorting methods, cell sorting magnetic beads minimize cellular stress, preserve native cell viability and biological function, and process billions of cells per hour—addressing the critical technical bottlenecks of low throughput and compromised cell state in genome-wide CRISPR-Cas9 screening. As a flagship product line of ANT BIO PTE. LTD.’s Starter sub-brand (specializing in antibodies and affinity purification tools), cell sorting magnetic beads have become an indispensable innovation for advancing high-throughput functional genomics research, systematic gene function decipherment, and novel therapeutic target discovery.

Research Frontiers

Cell sorting magnetic beads and the MICS technology they enable are at the cutting edge of modern functional genomics, immunology, and translational medical research, with their application scope expanding rapidly to tackle the most challenging scientific questions in life science. The key research frontiers leveraging these high-performance tools include:

1. Genome-wide CRISPR-Cas9 screening for therapeutic target discovery: High-throughput sorting of phenotype-specific cell populations from CRISPR-edited cell pools to identify key genes regulating disease-related traits (e.g., immune checkpoint expression, drug resistance, cell proliferation and apoptosis).
2. High-throughput immune cell subpopulation isolation: Rapid enrichment of pure immune cell subsets (CD8+ T cells, CD4+ T cells, CD3+ T cells, CD14+ monocytes) from complex biological samples (peripheral blood, tumor tissue, lymph nodes) for large-scale immunophenotyping and immune function research.
3. Single-cell omics research sample preparation: Gentle and high-purity cell sorting to preserve the native molecular state of cells, providing high-quality single-cell suspensions for high-throughput single-cell RNA sequencing (scRNA-seq), single-cell ATAC-seq, and multi-omics integration analysis.
4. Adoptive cell therapy development and optimization: Large-scale, high-purity isolation of engineered immune cells (CAR-T, CAR-NK, tumor-infiltrating lymphocytes) to accelerate preclinical research and clinical translation of cell therapy products.
5. Disease model validation and high-throughput drug screening: Rapid analysis of cell phenotypic changes in tumor, infection, and autoimmune disease models upon drug treatment, enabling large-scale in vitro drug screening and mechanism of action research.
6. Developmental biology and stem cell research: High-throughput sorting of stem cell subpopulations at different differentiation stages to decipher the molecular mechanisms of cell fate determination and developmental regulation.

Research Significance

Cell sorting magnetic beads and MICS technology represent a transformative technological advance in cell separation, addressing the inherent limitations of traditional fluorescence-activated cell sorting (FACS) and driving groundbreaking progress in high-throughput functional genomics and translational research. Their core research significance is reflected in six key dimensions:

1. Unlocking the full potential of genome-wide CRISPR screening: By processing billions of cells per hour, cell sorting magnetic beads meet the massive cell processing demands of genome-wide CRISPR-Cas9 screening, ensuring comprehensive screening coverage and robust statistical power, and enabling the discovery of rare but biologically critical gene-phenotype associations.
2. Preserving the native state and function of cells: The gentle immunomagnetic labeling and microfluidic sorting mechanism avoid physical and chemical stressors (sheath fluid pressure, laser exposure, electrical charges) associated with FACS, effectively preserving cell viability, metabolic state, and native biological function—an essential prerequisite for studying cell-state-sensitive non-growth phenotypes (e.g., specific protein expression, immune cell activation).
3. Lowering the technical barrier for high-throughput cell research: Magnetic bead-based sorting systems eliminate the need for expensive, complex FACS equipment (laser systems, photomultiplier tubes) and professional operational expertise, simplifying experimental workflows and reducing per-cell sorting costs, making high-throughput cell sorting accessible to academic laboratories, biotech companies, and research institutions of all scales.
4. Enabling integrative multi-omics research: High-purity, high-viability cell populations isolated by cell sorting magnetic beads provide high-quality starting materials for downstream genomics, transcriptomics, proteomics, and metabolomics analyses, enabling the systematic integration of cell phenotypic data and molecular profiling data to decipher complex biological regulatory networks.
5. Accelerating translational medical research and drug development: Rapid and reliable isolation of disease-relevant cell subpopulations (e.g., tumor-infiltrating lymphocytes, immune checkpoint-positive cells) accelerates the discovery of novel therapeutic targets and the development of immunotherapies, cell therapies, and small-molecule drugs, bridging the critical gap between basic life science research and clinical application.
6. Supporting large-scale and high-throughput experimental design: The ultra-high throughput and scalability of MICS technology enable large-scale parallel experiments and high-throughput screening, significantly shortening experimental cycles and improving research efficiency—catering to the trend of high-throughput and systematic research in modern life science.

Related Mechanisms & Research Methods

1. The Core Mechanism of Microfluidic Immunomagnetic Cell Sorting (MICS) Technology

MICS technology, the key application platform for cell sorting magnetic beads, achieves high-throughput, high-specificity cell sorting through the synergy of immunomagnetic bead labeling and microfluidic chip-mediated magnetic separation. Its core working process consists of two highly optimized steps:

Step 1: Specific Immunomagnetic Labeling of Target Cells

Superparamagnetic cell sorting magnetic beads conjugated with target antigen-specific monoclonal antibodies are incubated with complex cell suspensions under mild conditions. The antibodies on the bead surface specifically recognize and bind to the target antigens expressed on the surface of interest cells, achieving precise and non-toxic labeling of the target cell subpopulation. The number of magnetic beads bound to the surface of a single cell is directly proportional to the expression level of the target antigen, laying the foundation for subsequent sorting based on antigen expression intensity.

Step 2: High-Throughput Magnetic Separation via Microfluidic Chip

The bead-labeled cell suspension is precisely injected into a custom-engineered microfluidic chip, which integrates high-precision magnetic field generators (permanent magnets or electromagnets) and optimized hydrodynamic microchannels. As the cell suspension flows through the microchannels at a controlled speed, bead-labeled target cells are subjected to a directional magnetic force that deviates their flow trajectory, while unlabeled cells continue to follow the original hydrodynamic path. The deflection degree of target cells is determined by the magnetic field strength (i.e., the number of bound magnetic beads/antigen expression level). Through precise hydrodynamic design and magnetic field control, the MICS chip can simultaneously sort millions of cells in real time, efficiently separating the cell population into different subpopulations (high/ low/ baseline antigen expression) based on preset magnetic force thresholds.

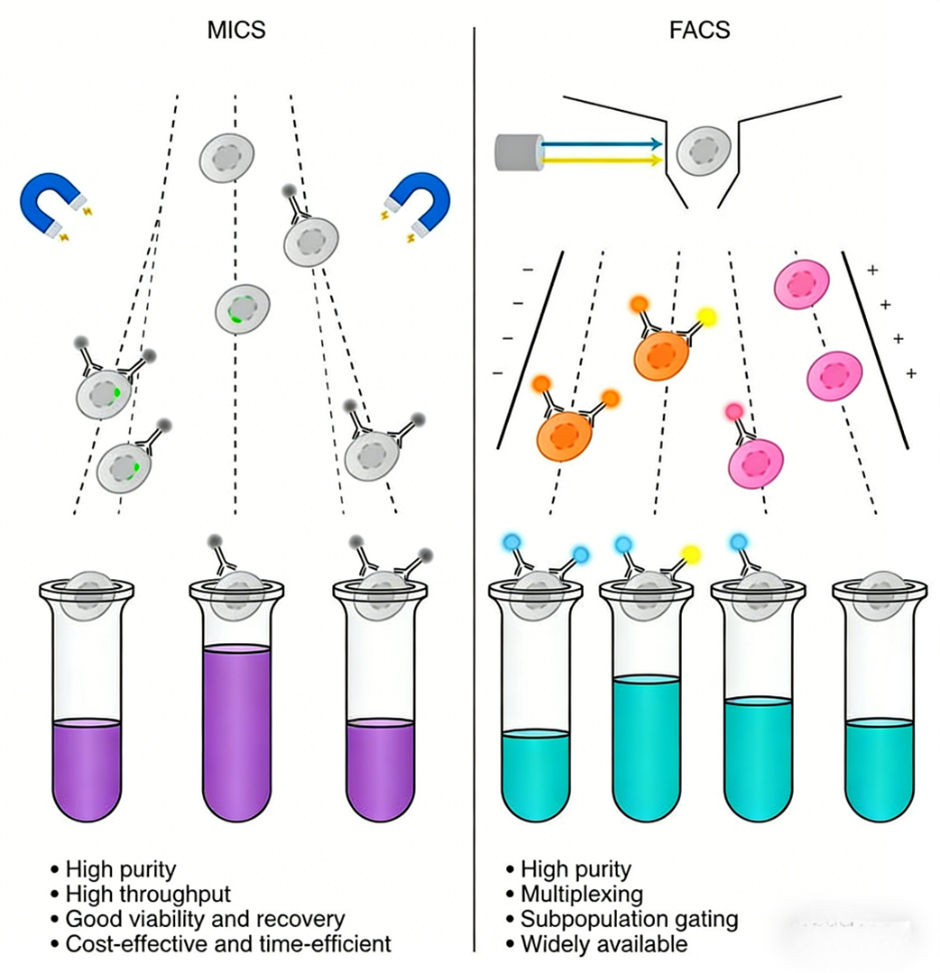

2. MICS vs. Traditional FACS: Comparative Advantages and Current Limitations

Cell sorting magnetic bead-based MICS technology has unique and irreplaceable advantages for large-scale, high-throughput cell sorting applications, while it also has clear technical limitations compared to fluorescence-activated cell sorting (FACS). A comprehensive comparative analysis is as follows:

Core Advantages of MICS

1. Ultra-high throughput: MICS technology can process up to billions of cells per hour, and its throughput can be further scaled by 5-10 times via multi-chip parallel operation, fully meeting the massive cell processing requirements of genome-wide CRISPR-Cas9 screening and large-scale immunology research.
2. Superior cell viability and recovery: Sorting is performed in enclosed, low-shear microchannels with no harsh physical or chemical stress, effectively preserving cell vitality, native phenotype, and biological function; the technology delivers a cell recovery rate of over 90%, significantly higher than traditional FACS.
3. Simplified operation and cost efficiency: MICS systems eliminate the need for complex, high-cost FACS equipment and professional technical training for operators; the high-throughput nature shortens experimental cycles by more than 50%, drastically reducing both time and financial costs per cell sorting experiment.

Current Limitations of MICS

1. Single-dimensional sorting capability: MICS is typically limited to sorting based on a single cell surface marker (one antibody-bead conjugate), lacking the multi-parameter, high-dimensional sorting capability of FACS which uses multiple fluorescence channels for simultaneous analysis of multiple cell surface markers.
2. Fixed sorting thresholds: The sorting gates (magnetic force thresholds) of MICS are determined by the chip’s physical design and pre-set magnetic field parameters, making real-time, flexible adjustment of sorting boundaries or cell subpopulation ratios impossible—unlike FACS software with dynamic and customizable gating functions.
3. Lack of pre-sorting morphological screening: MICS cannot exclude dead cells, cell aggregates, or perform pre-sorting selection based on cell size/granularity via forward scatter (FSC) and side scatter (SSC) signals, requiring pre-processing and quality control of cell suspensions to ensure sample purity.

3. Application of MICS Technology in Genome-Wide CRISPR-Cas9 Screening

Cell sorting magnetic bead-based MICS technology has been successfully integrated into the standard workflow of genome-wide CRISPR-Cas9 screening, becoming a key enabling technology for accelerating gene function research and novel therapeutic target discovery. The standardized and optimized application process is as follows:

1. CRISPR library transduction: A genome-wide guide RNA (gRNA) knockout library is efficiently transduced into a homogeneous target cell pool to achieve systematic and random gene knockout across the entire cell population.
2. Phenotype induction and culture: The CRISPR-edited cell pool is cultured or stimulated under disease-specific, drug-treated, or physiological experimental conditions to induce significant phenotypic differences (e.g., immune checkpoint CD47 protein expression changes, drug resistance) in cells with different gene knockouts.
3. High-throughput MICS sorting: Cell sorting magnetic beads targeting the phenotype-specific surface marker are used to label the cell pool, which is then sorted via the MICS system into high-, low-, or baseline-expression cell subpopulations based on the expression level of the phenotypic marker.
4. Omics analysis and target identification: Genomic DNA is extracted from each sorted cell subpopulation, followed by deep sequencing of gRNA sequences and bioinformatics analysis to identify the genes whose knockout is significantly associated with the target phenotype—uncovering key regulatory genes and potential novel therapeutic targets.

A landmark study using this workflow successfully identified QPCTL (glutaminyl-peptide cyclotransferase-like protein) as a core regulatory enzyme of the immune checkpoint molecule CD47. Experimental validation confirmed that QPCTL is essential for the post-translational modification of CD47, and its knockout directly modulates the binding affinity of CD47 to its ligand SIRPα. This discovery not only revealed a novel molecular regulatory mechanism of CD47 expression but also provided a promising target for developing combination immunotherapies to enhance the efficacy of CD47-targeted cancer treatment—fully validating the high efficiency, reliability, and practical value of MICS technology in functional genomics research and therapeutic target discovery.

Brand Mission of ANT BIO PTE. LTD.

At ANT BIO PTE. LTD., our core mission is to empower breakthroughs in functional genomics, immunology, cell biology, and translational medical research by developing and delivering innovative, high-performance cell sorting tools and comprehensive life science reagent solutions. As a leading global provider of life science research reagents, we have built three specialized and complementary sub-brands that cover the full spectrum of life science research needs, creating a seamless one-stop procurement experience for academic researchers, biotech companies, pharmaceutical institutions, and research laboratories worldwide:

• Absin: Specializes in general life science reagents and kits, including cell culture media, cell lysis buffers, sample preparation reagents, and subcellular fractionation kits—providing reliable technical support for every step of cell sorting, CRISPR screening, and cell biology research.
• Starter: Our flagship sub-brand for antibodies and affinity purification tools, offering cutting-edge cell sorting magnetic beads, Anti-GFP nanobody beads, high-specificity monoclonal antibodies, and immunoprecipitation reagents—with core expertise in high-purity cell isolation, native protein purification, and affinity-based research applications.
• UA: Dedicates to high-purity, high-activity recombinant proteins and expression vectors, including immune cell growth factors, CRISPR screening vectors, and recombinant antigen proteins—enabling seamless experimental design, gene editing, and protein expression for functional genomics and cell therapy research.

We are committed to addressing the most pressing technical challenges in modern high-throughput life science research, from rapid and gentle cell sorting to high-purity immune cell isolation and native protein purification. By combining innovative nanotechnology, antibody engineering, and microfluidic technology with rigorous quality control, standardized production, and customer-centric scientific support, we strive to translate basic scientific discoveries into novel therapeutic strategies and clinical solutions for human diseases. Our ultimate goal is to be the trusted global partner of researchers worldwide, empowering them to push the boundaries of life science research and drive unprecedented progress in medical science and human health.

Related Product List: Cell Sorting Magnetic Beads (Starter Sub-brand, ANT BIO PTE. LTD.)

All cell sorting magnetic beads from ANT BIO PTE. LTD. are rigorously validated for antigen specificity, sorting purity, cell viability preservation, and batch-to-batch consistency. Each product is accompanied by comprehensive technical documentation, optimized experimental protocols, and professional one-on-one scientific support to ensure experimental success for every researcher.

Note: RUO = For Research Use Only. For detailed product specifications, bulk pricing, custom conjugation services for specific cell surface antigens, or free sample testing requests, please visit the official website of ANT BIO PTE. LTD. or contact our global sales team for a personalized quote and professional technical consultation. Our experienced technical team also provides customized experimental design support and one-on-one troubleshooting for complex cell sorting and CRISPR screening applications.
