| Host | Rabbit |
| Antigen | alpha-actinin-2 |
| Synonyms | ACTN2 |
| Immunogen | Synthetic Peptide |
| Location | Cytoplasm |
| Accession | P35609 |
| Clone Number | SDT-032-79 |
| Antibody Type | Rabbit mAb |
| Application | WB, IHC-P, IP |
| Reactivity | Hu, Ms, Rt |
| Predicted Reactivity | Bv |
| Purification | Protein A |
| Concentration | 0.25 mg/ml |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 40% Glycerol, 0.05%BSA, 0.03% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, -20 °C as supplied |
| application | dilution | species |
| WB | 1:500 | |
| IHC-P | 1:1000 | |
| IP | 1:25 |
Alpha-actinin-2 is a protein which in humans is encoded by the ACTN2 gene. This gene encodes an alpha-actinin isoform that is expressed in both skeletal and cardiac muscles and functions to anchor myofibrillar actin thin filaments and titin to Z-discs. The primary function of alpha-actinin-2 is to crosslink filamentous actin molecules and titin molecules from adjoining sarcomeres at Z-discs, a function that is modulated by phospholipids. Mutations in ACTN2 are associated with hypertrophic cardiomyopathy, as well as dilated cardiomyopathy and endocardial fibroelastosis. The diverse functions of alpha-actinin-2 are reflected in the diverse clinical presentation of patients carrying ACTN2 mutations.

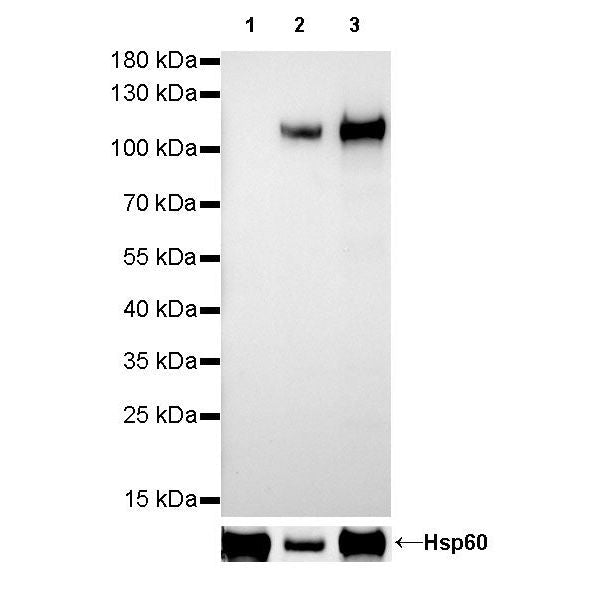

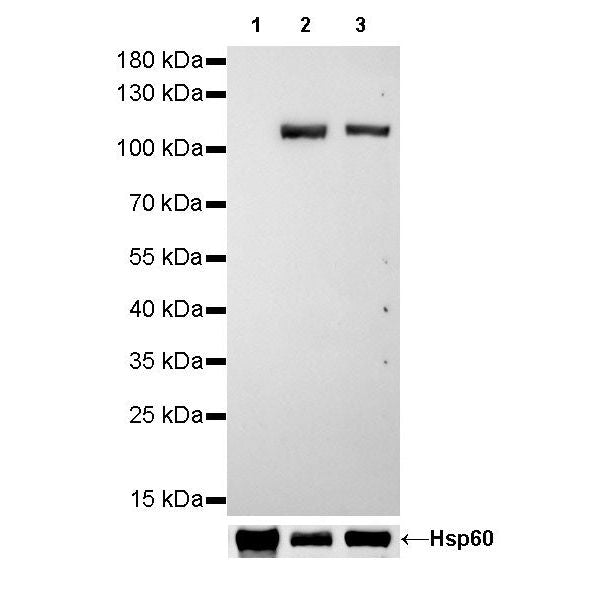

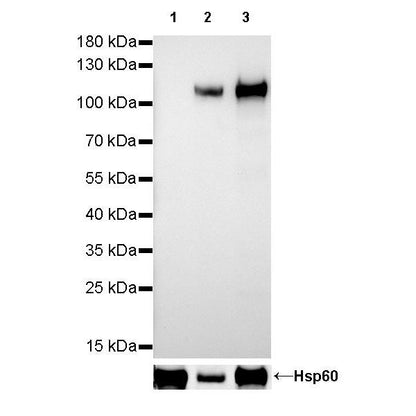

WB result of alpha-actinin-2 Rabbit mAb
Primary antibody: alpha-actinin-2 Rabbit mAb at 1/500 dilution
Lane 1: mouse kidney lysate 20 µg
Lane 2: mouse skeletal muscle lysate 20 µg
Lane 3: mouse heart lysate 20 µg
Negative control: mouse kidney lysate
Secondary antibody: Goat Anti-Rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 103 kDa
Observed MW: 103 kDa
Exposure time: 150s

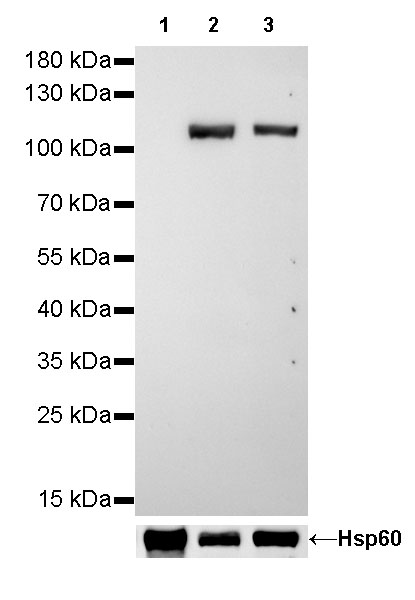

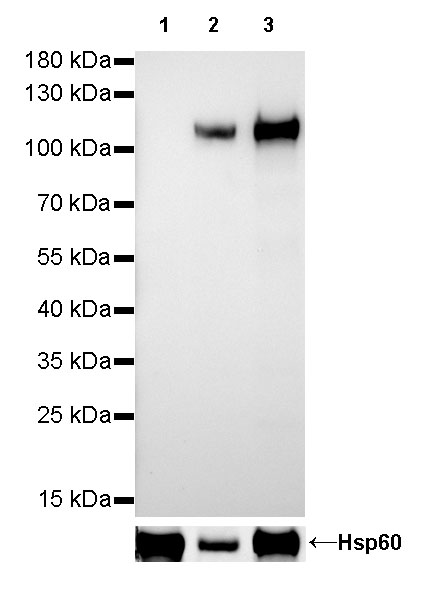

WB result of alpha-actinin-2 Rabbit mAb
Primary antibody: alpha-actinin-2 Rabbit mAb at 1/500 dilution
Lane 1: rat kidney lysate 20 µg
Lane 2: rat skeletal muscle lysate 20 µg
Lane 3: rat heart lysate 20 µg
Negative control: mouse kidney lysate
Secondary antibody: Goat Anti-Rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 103 kDa
Observed MW: 103 kDa
Exposure time: 150s

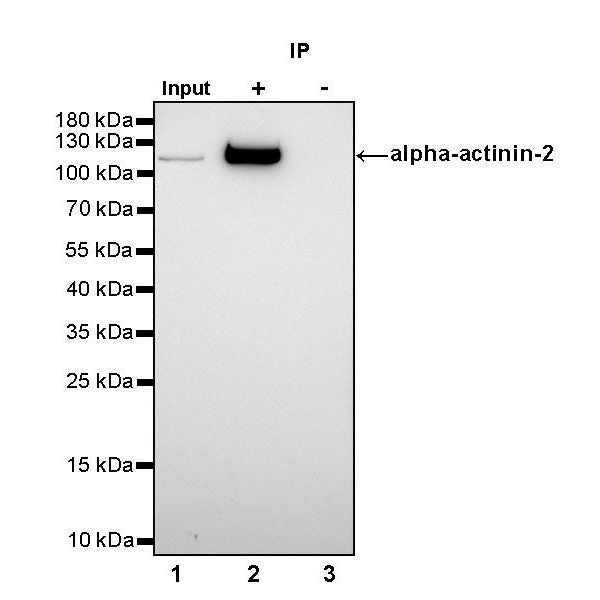

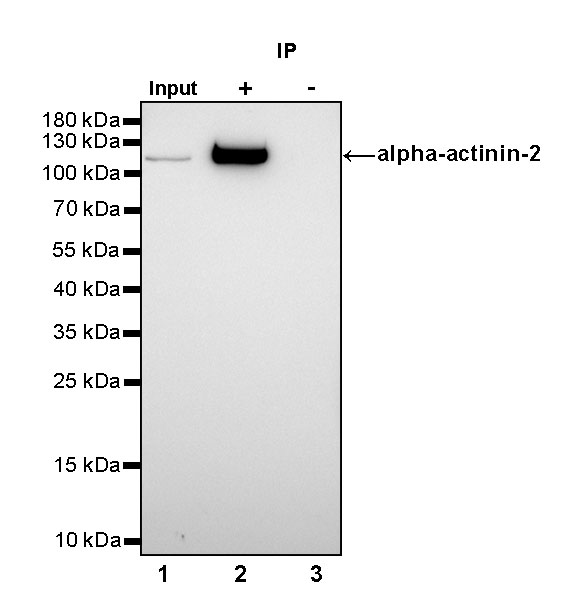

alpha-actinin-2 Rabbit mAb at 1/25 dilution (1 µg) immunoprecipitating alpha-actinin-2 in 0.4 mg mouse skeletal muscle lysate.
Western blot was performed on the immunoprecipitate using alpha-actinin-2 Rabbit mAb at 1/1000 dilution.
Secondary antibody (HRP) for IP was used at 1/400 dilution.
Lane 1: mouse skeletal muscle lysate 10 µg (Input)
Lane 2: alpha-actinin-2 Rabbit mAb IP in mouse skeletal muscle lysate
Lane 3: Rabbit monoclonal IgG IP in mouse skeletal muscle lysate
Predicted MW: 103 kDa
Observed MW: 103 kDa
Exposure time: 40 s
IHC shows positive staining in paraffin-embedded human cardiac muscle. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded human skeletal muscle. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
Negative control: IHC shows negative staining in paraffin-embedded human prostate. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
Negative control: IHC shows negative staining in paraffin-embedded human cervix cancer. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded mouse cardiac muscle. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded mouse skeletal muscle. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
Negative control: IHC shows negative staining in paraffin-embedded mouse kidney. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded rat cardiac muscle. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded rat skeletal muscle. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
Negative control: IHC shows negative staining in paraffin-embedded rat colon. Anti-alpha-actinin-2 antibody was used at 1/1000 dilution, followed by a Goat Anti-Rabbit IgG H&L (HRP) ready to use. Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
