Systematic Analysis of the AMPK Signaling Pathway: Advanced Research Tools for Metabolic Biology

Concept

AMP-activated protein kinase (AMPK), a conserved serine/threonine kinase and the primary cellular energy sensor in eukaryotes, acts as a master regulator of intracellular energy homeostasis. Functioning as a heterotrimeric complex composed of a catalytic α subunit, a scaffolding β subunit, and a regulatory γ subunit, AMPK dynamically responds to fluctuations in the cellular AMP/ATP ratio—an indicator of energy stress—by orchestrating the balance between catabolic (ATP-producing) and anabolic (ATP-consuming) metabolic pathways. By phosphorylating a diverse array of downstream target proteins, AMPK inhibits energy-intensive biosynthetic processes (e.g., lipid, protein, and glycogen synthesis) while activating energy-generating pathways (e.g., fatty acid oxidation, glucose uptake, and autophagy), rapidly restoring cellular energy balance. As a central node in metabolic regulation, AMPK is intimately linked to the pathogenesis of metabolic disorders (type 2 diabetes, obesity), cancer, and aging, making it a pivotal target for basic metabolic research and therapeutic drug development. Specialized research tools, including pathway-specific antibody kits, enable the systematic dissection of AMPK signaling dynamics, activation mechanisms, and downstream regulatory networks—unlocking critical insights into its biological and pathological functions.

Research Frontier

AMPK signaling pathway research is a rapidly evolving hotspot in metabolic biology, cell physiology, and translational medicine, with current frontiers focusing on multidimensional dissection of AMPK regulation, pathway crosstalk with other cellular signaling networks, and the development of precision research tools for translational applications. Cutting-edge studies are unraveling the structural basis of AMPK heterotrimer assembly and allosteric regulation, including the dynamic conformational changes induced by adenylate binding and upstream kinase phosphorylation. Researchers are also exploring the context-dependent crosstalk between AMPK and other key signaling pathways (e.g., mTOR, PI3K/Akt, and MAPK) and how this crosstalk modulates metabolic reprogramming in different cell types and disease states. Concurrently, the development of comprehensive, ready-to-use AMPK signaling research tools is advancing—with a focus on highly specific phosphorylation-site antibodies, multi-target detection kits, and optimized assay systems that enable the rapid, systematic analysis of AMPK pathway activation across diverse experimental models. These tools are critical for translating basic AMPK research into clinical applications, including the development of novel therapeutics for metabolic diseases and cancer.

Research Significance

Systematic analysis of the AMPK signaling pathway using advanced research tools holds profound scientific and translational significance, spanning basic metabolic biology, disease mechanism exploration, and drug development.

In basic research, these tools enable the precise characterization of AMPK’s structural and functional regulation—including the molecular mechanisms of allosteric activation, upstream kinase signaling, and downstream substrate phosphorylation. They facilitate the mapping of AMPK’s extensive metabolic regulatory network and the identification of novel AMPK substrates and interaction partners, expanding our understanding of how eukaryotic cells sense and adapt to energy stress at the molecular level. This knowledge also clarifies the tissue-specific and cell-type-specific functions of AMPK, uncovering its diverse roles beyond metabolic regulation (e.g., in cell proliferation, differentiation, and stress response).

In disease mechanism research, AMPK signaling dysregulation is a hallmark of numerous human pathologies. Research tools for systematic AMPK analysis enable the detection of aberrant AMPK activation in preclinical models and clinical samples of type 2 diabetes, obesity, non-alcoholic fatty liver disease, and cancer, elucidating the role of AMPK in disease initiation and progression. They also uncover the crosstalk between AMPK and disease-driving signaling pathways, providing a mechanistic basis for understanding how metabolic dysfunction contributes to pathological phenotypes.

In translational drug development, AMPK is a well-validated therapeutic target for metabolic diseases and a promising target for cancer therapy (via modulation of tumor metabolic reprogramming). Systematic AMPK research tools enable the high-throughput screening and functional evaluation of AMPK activators (e.g., metformin derivatives, novel small molecules) and the assessment of target engagement and pathway modulation in preclinical models. They also support the identification of patient subpopulations that may benefit from AMPK-targeted therapy, laying the foundation for personalized metabolic disease and cancer treatment.

Related Mechanism and Product Application

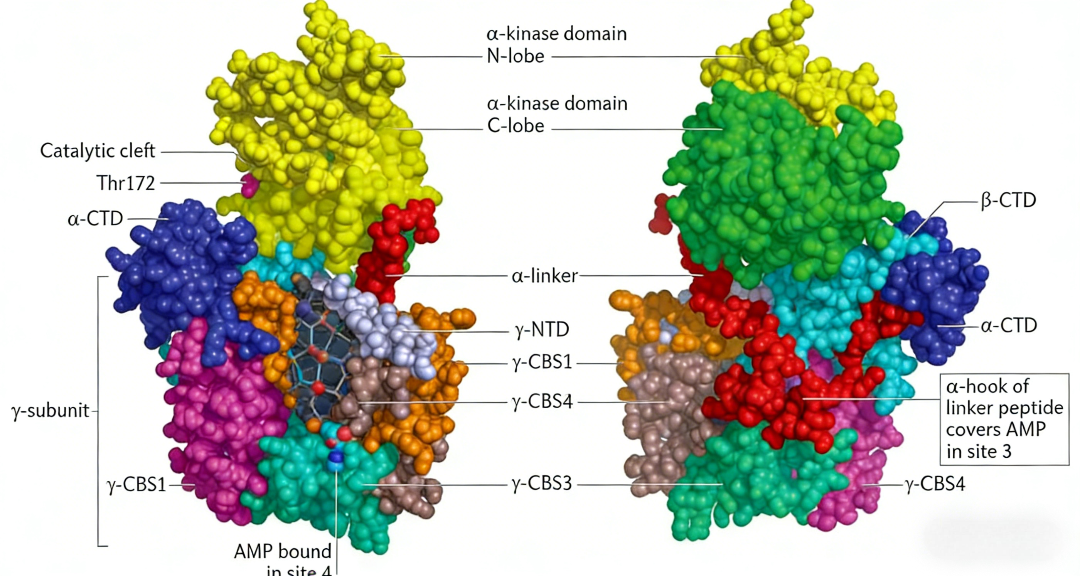

Structural and Functional Organization of the AMPK Heterotrimeric Complex

AMPK exerts its regulatory functions as a heterotrimeric complex (α/β/γ), with each subunit contributing unique structural and functional features that are critical for complex assembly, regulation, and catalytic activity. While the full atomic structure of the intact trimer remains to be fully resolved, structural biology studies have defined the key functional domains of each subunit and their intermolecular interactions:

1. α subunit (catalytic core): The N-terminus contains a conserved serine/threonine kinase domain responsible for phosphorylating downstream substrates. An adjacent autoinhibitory domain (AID) suppresses kinase activity in the resting state via intramolecular interactions with the kinase domain. The C-terminal domain (α-CTD) mediates binding to the β and γ subunits, playing a key role in heterotrimer assembly and stability. Phosphorylation of Thr172 in the kinase domain is the rate-limiting step for AMPK activation.
2. β subunit (scaffold and regulatory): Contains a central carbohydrate-binding module (CBM) that may interact with glycogen and other carbohydrates (its physiological function remains under investigation). The C-terminal domain (β-CTD) is critical for stabilizing the AMPK heterotrimer by mediating direct interactions with both the α and γ subunits.
3. γ subunit (adenylate sensor): The core regulatory subunit, containing four tandem cystathionine β-synthase (CBS) repeats that form two Bateman domains with four conserved adenylate (AMP/ADP/ATP) binding sites. Fluctuations in the cellular AMP/ATP ratio alter the occupancy of these sites, inducing conformational changes in the AMPK complex that modulate kinase activity and susceptibility to upstream phosphorylation.

Multilayered Regulation of AMPK Kinase Activity

AMPK activity is tightly and dynamically regulated through two core mechanisms—allosteric modulation by adenylates and covalent modification via phosphorylation—with additional regulation by physiological and pharmacological activators. This multilayered control ensures precise AMPK activation in response to energy stress and other cellular signals:

1. Allosteric activation by AMP/ADP binding: Elevated intracellular AMP (or ADP) levels (caused by glucose deprivation, hypoxia, or exercise) bind to the γ subunit’s Bateman domains, inducing a conformational shift in the AMPK complex that triggers three key effects: direct allosteric activation of kinase activity; increased accessibility of the α subunit’s Thr172 residue to upstream kinases; and protection of Thr172 phosphorylation from dephosphorylation by cellular phosphatases.
2. Upstream kinase-mediated phosphorylation of Thr172: The primary mechanism of AMPK activation, mediated by two major upstream kinase complexes with distinct stimulus specificities:
• LKB1 complex (LKB1/STRAD/MO25): The primary upstream kinase responding to energy stress (e.g., glucose/nutrient deprivation), responsible for basal and stress-induced AMPK phosphorylation.
• CaMKKβ: Responds to intracellular calcium signals, coupling AMPK activation to calcium-dependent signaling pathways independent of the AMP/ATP ratio.
3. Physiological and pharmacological activators: Diverse physiological stressors (hypoxia, exercise, nutrient starvation) and small-molecule compounds (metformin, AICAR, A-769662) activate AMPK via the above mechanisms, inducing downstream metabolic reprogramming. These activators are widely used in research to probe AMPK function and as lead compounds for drug development.

AMPK-Mediated Regulation of the Downstream Metabolic Network

Upon activation, AMPK phosphorylates a vast repertoire of cytoplasmic and nuclear substrates, orchestrating a comprehensive metabolic response that restores cellular energy balance by promoting ATP production and inhibiting ATP consumption. This downstream regulatory network encompasses all major metabolic pathways, with key effects including:

1. Activation of catabolic (ATP-producing) pathways:
• Increased glucose uptake: Phosphorylation of TBC1D1/4 triggers the translocation of the glucose transporter GLUT4 to the plasma membrane, enhancing cellular glucose uptake.
• Enhanced fatty acid oxidation: Phosphorylation and inhibition of acetyl-CoA carboxylase (ACC) reduce malonyl-CoA levels, relieving the inhibition of carnitine palmitoyltransferase (CPT1) and promoting fatty acid entry into mitochondria for β-oxidation.
• Induced autophagy: Phosphorylation of autophagy initiators (ULK1, beclin-1) drives autophagosome formation, recycling damaged cellular components and generating ATP via macromolecule breakdown.
• Mitochondrial biogenesis: Phosphorylation and activation of PGC-1α upregulates the expression of mitochondrial genes, increasing mitochondrial mass and oxidative capacity.
2. Inhibition of anabolic (ATP-consuming) pathways:
• Suppressed protein synthesis: Phosphorylation of mTORC1 components (e.g., Raptor) and downstream ribosomal protein S6 kinase inhibits the mTOR pathway, reducing global protein translation.
• Reduced lipid and cholesterol synthesis: Phosphorylation and inhibition of ACC (fatty acid synthesis) and HMG-CoA reductase (cholesterol synthesis) block de novo lipogenesis.
• Inhibited glycogen synthesis: Modulation of glycogen synthase activity reduces glycogen biosynthesis, conserving glucose for energy production.

Systematic AMPK Signaling Analysis with Specialized Research Tools

Dissecting the complexity of the AMPK signaling pathway requires comprehensive, highly specific research tools that enable the simultaneous detection of AMPK activation and downstream pathway modulation. AMPK signaling antibody kits are the gold standard for this systematic analysis, as they integrate validated, phosphorylation-specific antibodies targeting key nodes of the AMPK pathway—from the activated form of AMPK itself to its critical downstream substrates and interacting signaling molecules (e.g., mTOR). These kits enable researchers to:

• Quantify AMPK activation: Precisely detect phosphorylation of AMPKα at Thr172 (the definitive marker of AMPK activation) across diverse experimental conditions.
• Analyze downstream substrate phosphorylation: Measure phosphorylation of key AMPK substrates (e.g., ACC at Ser79) to assess the functional output of AMPK signaling.
• Map pathway crosstalk: Evaluate the interaction between AMPK and other metabolic signaling pathways (e.g., mTOR) to uncover context-dependent regulatory mechanisms.
• Monitor signaling dynamics: Track the kinetic changes of AMPK pathway activation in real time in response to energy stress, physiological stimuli, or pharmacological treatment.
• Enable high-throughput screening: Rapidly assess the effect of small-molecule compounds (e.g., novel AMPK activators) on AMPK signaling for drug discovery and development.

AMPK Signaling Tools in ANT BIO PTE. LTD.’s Research Ecosystem

As a leading provider of life science research reagents, ANT BIO PTE. LTD. offers a portfolio of high-performance AMPK signaling MiniAb Kits (developed under the Absin sub-brand, specializing in general reagents and kits) designed for the systematic analysis of AMPK signaling pathway function. Our flagship AMPK Signaling MiniAb Kit (S0M1061) is a ready-to-use, multi-target detection toolset optimized for metabolic biology research, disease mechanism exploration, and drug screening, with core advantages that address the key needs of AMPK research:

• Comprehensive AMPK pathway coverage: The kit includes highly specific phosphorylation-site antibodies targeting the core nodes of the AMPK signaling pathway, including p-AMPKα (Thr172) (AMPK activation marker), p-ACC (Ser79) (key downstream substrate), and mTOR pathway-related molecules. This enables the one-step, systematic assessment of AMPK activation and its downstream metabolic regulation, from upstream kinase signaling to effector response.
• Superior phosphorylation specificity and sensitivity: Each antibody in the kit undergoes rigorous validation (phospho/non-phospho peptide competition, point mutation testing) to ensure exclusive recognition of the phosphorylated form of the target protein at the specific residue. High binding affinity enables the sensitive detection of low-abundance phosphorylation signals even under physiological energy stress conditions.
• Ready-to-use convenience for accelerated research: The kit is provided in a pre-optimized, ready-to-use format with pre-determined antibody dilutions, eliminating the need for tedious antibody screening and titration. This allows researchers to quickly establish multi-target Western Blot or immunofluorescence assays, significantly improving experimental efficiency for studies of AMPK dynamics under energy stimuli, metabolic disease models, or drug treatment.
• Broad application compatibility: The kit is validated for use in key research applications, including cellular energy metabolism/stress response research, metabolic disease mechanism exploration, AMPK-targeted drug development/evaluation, and aging/cancer metabolic reprogramming research—supporting the full spectrum of AMPK signaling studies.

ANT BIO PTE. LTD. further supports AMPK research with comprehensive technical resources for our AMPK Signaling MiniAb Kits, including detailed component lists, antibody specificity validation data, optimized multi-target detection protocols (multi-lane Western Blot, multi-color immunofluorescence), and data analysis guidelines. Our professional technical team provides expert consultation for experimental design, metabolic signaling pathway analysis, and drug screening applications—empowering researchers to unlock the full complexity of the AMPK signaling pathway and accelerate breakthroughs in metabolic biology and translational medicine.
