1. What false-positive signals exist in multi-color flow cytometry?

Multi-color flow cytometry is a standard quantitative analytical technology widely applied in immunophenotyping, cell death detection, cell cycle analysis and other life science research fields. Multiple interfering factors can induce false-positive signals in flow dot plots, which distort the classification of cell subpopulations and cause biased quantitative statistics. Common sources of false positives include:

• Non-specific binding of fluorescent-conjugated antibodies: Fluorescent antibodies bind to cells non-specifically and generate background signals
• Cellular intrinsic autofluorescence: Intracellular endogenous substances produce spontaneous fluorescence under excitation light
• Fragmented cell debris: Broken cell fragments bring irregular fluorescent interference
• Improper PMT voltage configuration: Excessive detector voltage raises overall background noise level
• Fluorescence spectral spillover between different fluorochromes: Overlapping emission spectra lead to cross-channel signal leakage

Among all these interference factors, only false-positive signals generated by fluorescence spillover can be fully eliminated through mathematical fluorescence compensation calibration. Other artifacts require optimization of sample pretreatment, antibody titration, instrument voltage setting or gating strategies instead of compensation adjustment. Without compensation correction, cross-channel spillover will separate genuine positive cell populations into false double-positive events, leading to misjudgment of cell phenotypes and unrepeatable experimental data.

ANT BIO PTE. LTD. provides a complete product portfolio for multi-color flow cytometry analysis, including sample processing reagents, magnetic cell isolation kits, fluorochrome-conjugated antibodies, viability dyes and multi-color flow mini panels. All products are formulated to reduce non-specific background signals and simplify subsequent compensation calibration, supporting stable, publication-standard experimental data output.

2. What optical mechanism leads to spillover-derived false-positive signals?

Fluorescent dyes do not emit monochromatic light at a single fixed wavelength; each fluorochrome produces a continuous broad emission spectrum with a characteristic peak wavelength and long trailing tail signals. Flow cytometers adopt bandpass optical filters to capture wavelength bands matching the target fluorochrome for independent detector channels, yet partial overlap between the emission spectra of two distinct fluorophores is an unavoidable physical phenomenon.

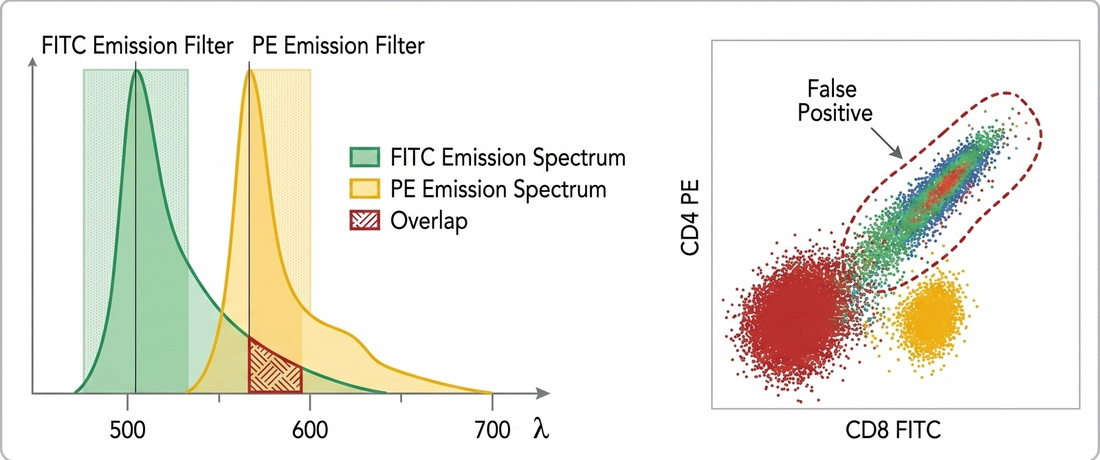

Take the classic FITC & PE dual-color panel for apoptosis assay as a typical example: the tail segment of FITC’s emission spectrum extends into the wavelength detection window assigned to the PE channel. The PE detector will mistakenly capture FITC-derived photons as target signals, artificially elevating fluorescence intensity on the PE axis and generating false-positive double-positive cell events on two-dimensional dot plots. Fluorescence compensation operates via linear algebra subtraction algorithms to deduct the proportional spillover signal contributed by off-target fluorochromes, ensuring each detector only retains specific signals originating from its designated fluorochrome.

3. How to eliminate spectral spillover artifacts via standardized fluorescence compensation workflow?

Fluorescence compensation matrices can be generated either on-board the flow cytometer during sample acquisition, or post-acquisition using professional analytical software such as FlowJo v10.6.2. This standardized protocol uses 293 suspension cells treated with 12 μM camptothecin for 4 hours (Annexin V-PE/7-AAD apoptosis detection panel) as a practical demonstration case, covering pre-analysis uniform gating setup, automated compensation calculation and manual fine-tuning workflows, all consistent with standard flow cytometry compensation specifications published by FlowJo and Cytometry core protocols.

3.1 Pre-Acquisition Data Import & Uniform Intact Cell Gating

Four FCS files are mandatory for full compensation calibration: unstained blank control (KB), PE single-stain control, 7-AAD single-stain control, dual-stain experimental sample (PE + 7-AAD).

1. Drag all FCS raw data files directly into the FlowJo workspace for batch import.

2. Double-click the unstained blank control file to open the raw FSC-SSC dot plot; draw an elliptical gate to isolate intact target cells, strictly exclude low FSC/SSC cellular debris from downstream analysis. Square or freehand polygon gates are also acceptable per user operation habits.

3. Double-click the gated intact cell population to generate dual-parameter fluorescence dot plots; match horizontal and vertical axes to corresponding detection channels (PerCP channel for 7-AAD, PE channel for PE fluorochrome). Adjust axis scaling to ensure all cellular events fall within the visible plotting range; axis scaling modification will not alter final compensation values.

4. Right-click the gated intact cell population, select Copy analysis to group to synchronize identical gating logic across all control and experimental samples.

3.2 Automated Compensation Generation (Primary Recommended Standard Method)

1. Inspect pre-compensation dot plots of two single-stain controls: the PE single-stain sample displays obvious vertical spillover signal into the PerCP channel, confirming the necessity of compensation correction; the 7-AAD single-stain control shows well-aligned positive and negative populations with negligible spillover interference.

2. Drag gated intact cell populations of unstained blank control and two single-stain controls into the dedicated Compensation folder within the workspace, then click the compensation matrix calculation icon on the top FlowJo toolbar.

3. Purge unused detector parameters from the compensation configuration panel; assign matched single-stain samples to each target fluorochrome parameter, and set the unstained blank control as the universal negative reference for all channels. After parameter matching, click Apply To Group to generate a unified compensation matrix applicable to all samples.

4. Switch dot plot axes to parameters prefixed with “Comp-” (mathematically compensated channels) and re-examine single-stain controls; spectral spillover signals will be automatically subtracted by the built-in algorithm.

3.3 Manual Compensation Fine-Tuning (For Suboptimal Automated Compensation Results)

If automated compensation fails to achieve ideal horizontal alignment of positive and negative cell populations, manual matrix adjustment is available for precise optimization:

1. Click the matrix icon preceding any sample group to display raw spillover compensation matrix values; yellow highlighted numbers represent baseline spillover coefficients calculated by automated compensation, serving as reference values for manual adjustment.

2. Open the Edit panel and incrementally modify the numerical spillover coefficients row-by-row to horizontally align positive and negative cell populations. After modification, the matrix icon will turn orange, indicating the custom manual compensation matrix has been applied to the entire sample group.

3.4 Standard Qualification Criterion for Valid Compensation

The universal gold standard for calibrated compensation is complete horizontal alignment of the median fluorescence intensity (MFI) of positive and negative cell populations on the orthogonal spillover channel axis. When this alignment is achieved, all cross-channel spillover signals are fully subtracted, and dual-color dot plots will generate distinct, non-overlapping quadrants consistent with peer-reviewed literature figures.
