Evaluating the Impact of Genetic Variations on CTLA-4 Function Using Flow Cytometry and CTLA-4 Antibodies

1. Concept

Cytotoxic T-lymphocyte-associated protein 4 (CTLA-4, CD152) is a key immune checkpoint molecule expressed on regulatory T cells (Tregs) and activated T cells, serving as a critical negative regulator of immune responses to maintain peripheral immune tolerance. Its core function involves competitively binding to B7 ligands (CD80/CD86) on antigen-presenting cells (APCs) with the co-stimulatory molecule CD28, and internalizing B7 molecules via a unique "transendocytosis" mechanism—limiting co-stimulatory signals and preventing excessive immune activation. Germline heterozygous mutations in the CTLA4 gene cause CTLA-4 insufficiency syndrome, an autosomal dominant immune dysregulation disorder. However, clinical diagnosis is hindered by heterogeneous manifestations and ambiguous interpretation of variants of uncertain significance (VUS). Flow cytometry combined with high-specificity CTLA-4 antibodies has emerged as a powerful tool to directly assess CTLA-4 functional defects, enabling accurate variant classification and clinical guidance.

2. Research Frontiers

2.1 Biological Functions of CTLA-4 and Clinical Challenges of Insufficiency Syndrome

CTLA-4 maintains immune homeostasis through two key mechanisms: competitive binding to B7 ligands (blocking CD28-mediated co-stimulation) and transendocytosis of B7 molecules (reducing ligand availability for T cell activation). Germline CTLA4 mutations lead to impaired immune tolerance, manifesting as autoimmune cytopenia, lymphoproliferation, abnormal immunoglobulin levels, and increased tumor susceptibility. Clinical challenges include:

• Significant heterogeneity in clinical phenotypes, complicating diagnosis based on symptoms alone.
• Genetic variants (especially VUS) identified by sequencing do not always correlate with functional defects, requiring direct functional validation to distinguish pathogenic from benign variants.

2.2 Limitations of Traditional Methods for Evaluating CTLA-4 Gene Variants

Traditional functional validation approaches for CTLA-4 VUS have notable drawbacks:

• Protein expression analysis: Flow cytometry with CTLA-4 antibodies detects surface/intracellular expression, but many missense mutations do not affect protein trafficking or stability—normal expression does not rule out functional defects.
• Treg suppression assays: Assessing patient-derived Treg ability to inhibit effector T cell proliferation is limited by reduced Treg numbers and functionality in patients, making it difficult to obtain sufficient cells for testing.
• Transendocytosis assays: Traditional reporter systems (e.g., CD80-GFP) have weak, unstable fluorescence signals, high background interference, and batch-to-batch variability, limiting the ability to resolve subtle functional differences between variants.

2.3 Technological Breakthroughs of the Optimized Flow Cytometry-Based Transendocytosis Assay

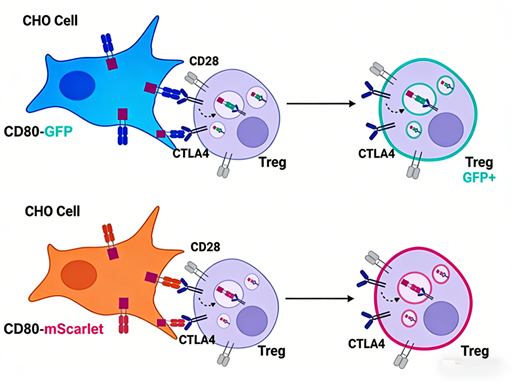

To overcome traditional limitations, researchers developed an optimized assay using CHO cell lines expressing high-brightness, photostable red fluorescent protein mScarlet-labeled CD80 (CD80-mScarlet) as artificial APCs. Key advantages include:

• Higher sensitivity and signal-to-noise ratio: mScarlet’s strong, stable fluorescence enhances detection of internalized CD80 in T cells, reducing background interference.
• Improved reproducibility: Lower coefficient of variation across batches ensures reliable, comparable results.
• Freeze-thaw tolerance: Patient peripheral blood mononuclear cells (PBMCs) can be frozen and thawed without affecting assay results, enabling centralized storage and batch testing of clinical samples.

2.4 The Key Role of CTLA-4 Antibodies in Flow Cytometry Functional Assays

High-specificity CTLA-4 antibodies are indispensable for precise functional evaluation in the optimized assay:

• Target cell population gating: Multicolor flow cytometry combines CTLA-4 antibodies with surface markers (e.g., anti-CD4, CD45RO) and intracellular markers (e.g., anti-FOXP3) to precisely gate CD4+ memory (CD45RO+) Tregs (FOXP3+)—the primary executors of CTLA-4 function.
• Concurrent expression analysis: While expression alone does not define function, CTLA-4 antibody staining (surface/intracellular) alongside functional assays provides comprehensive data. For example, variants may cause normal expression with complete loss of function or reduced expression with partial impairment, aiding mutation mechanism analysis.
• Functional quantification and correlation: By analyzing CD80-mScarlet-positive proportions and mean fluorescence intensity in gated Tregs, transendocytosis efficiency is quantified. Comparing VUS-carrying samples with healthy controls or known pathogenic/benign variants enables functional classification of variants.

2.5 Functional Testing for Clinical Interpretation of CTLA-4 Variants

The optimized assay reliably reveals variant-specific functional effects:

• Function-preserving variants: Some variants (e.g., R70Q) selectively impair CD86 internalization while maintaining CD80 transendocytosis, explaining mild or atypical clinical phenotypes.
• Function-impaired variants: Variants like R70W significantly reduce CD80 transendocytosis, correlating with severe clinical manifestations.
• Controversial variant clarification: High-sensitivity detection resolves ambiguous VUS (e.g., G109E), providing clear functional evidence to reevaluate pathogenic potential.

3. Research Significance

Evaluating CTLA-4 genetic variants via flow cytometry and CTLA-4 antibodies holds profound clinical and scientific significance:

• Clinical value: Enables accurate diagnosis of CTLA-4 insufficiency syndrome by distinguishing pathogenic variants from benign VUS, guiding personalized treatment and genetic counseling.
• Scientific value: Enhances understanding of CTLA-4 structure-function relationships, clarifying how specific mutations disrupt immune tolerance. It also establishes a robust platform for functional validation of immune checkpoint gene variants, advancing precision immunology.

4. Related Mechanisms, Research Methods, and Product Applications

4.1 Core Mechanisms of CTLA-4-Mediated Immune Regulation

CTLA-4 maintains immune tolerance through two interconnected mechanisms:

1. Competitive binding: CTLA-4 binds B7 ligands (CD80/CD86) with higher affinity than CD28, blocking co-stimulatory signals for T cell activation.
2. Transendocytosis: CTLA-4 internalizes B7 ligands from APCs, reducing ligand availability and limiting T cell activation—this is the core functional readout for variant evaluation.

4.2 Key Research Methods

The optimized workflow integrates flow cytometry and CTLA-4 antibodies for functional testing:

• Reporter cell line preparation: Generating CD80-mScarlet-expressing CHO cells as artificial APCs.
• Sample preparation: Isolating PBMCs from patients or controls, with optional freeze-thaw for batch testing.
• Cell co-culture: Incubating Tregs (or PBMCs) with CD80-mScarlet CHO cells to induce transendocytosis.
• Multicolor flow cytometry: Using CTLA-4 antibodies, surface markers (CD4, CD45RO), and intracellular markers (FOXP3) to gate target Tregs and quantify CD80-mScarlet internalization.
• Data analysis: Comparing transendocytosis efficiency between samples to classify variant function.

4.3 Product Applications: ANT BIO PTE. LTD.’s CTLA-4 Antibodies

ANT BIO PTE. LTD.’s STARTER brand offers high-performance CTLA-4 antibodies designed for flow cytometry and in vivo functional studies, supporting variant evaluation and immunology research:

Core Products

Core Product Advantages

• High specificity and functional blocking: Specifically recognize mouse CTLA-4, effectively blocking interactions with B7 ligands (CD80/CD86) to relieve T cell inhibition—validated in in vitro and in vivo assays.
• Optimized for flow cytometry and in vivo use: Suitable for surface/intracellular staining in flow cytometry and in vivo functional studies (e.g., tumor immunotherapy, autoimmune models).
• Superior purity and safety: Low endotoxin levels (<1.0 EU/mg) and sterility testing ensure minimal nonspecific immune reactions, supporting reliable experimental results.
• Batch consistency: Strict quality control guarantees stable activity and affinity across batches, enabling reproducible long-term research.

Key Application Areas

• Variant functional evaluation: Flow cytometry staining to gate Tregs and analyze CTLA-4 expression/transendocytosis efficiency for variant classification.
• Tumor immunotherapy research: In vivo blocking of CTLA-4 in mouse models (alone or with PD-1 inhibitors) to evaluate anti-tumor efficacy and immune mechanisms.
• Autoimmune disease studies: Investigating CTLA-4’s role in experimental autoimmune encephalomyelitis (EAE), collagen-induced arthritis (CIA), and other models.
• T cell function research: Studying CTLA-4’s regulatory role in T cell activation, proliferation, and exhaustion in vivo.

ANT BIO PTE. LTD. provides comprehensive technical support, including recommended staining protocols, in vivo dosing guidelines, and expert consultation for experimental design and data analysis.
