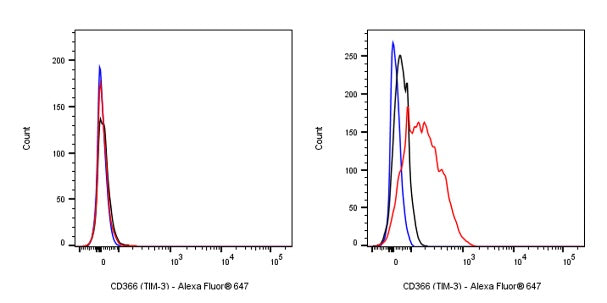

Flow cytometric analysis of Neuro-2a (Mouse neuroblastoma neuroblast, left) / RAW 264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage, right) labelling Mouse CD366 (TIM-3) antibody at 1/200 dilution (1 μg) / (Red) compared with a Rat monoclonal IgG (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat Anti – Rat IgG Alexa Fluor® 647 was used as the secondary antibody.
Negative control: Neuro-2a
Weak expression: RAW 264.7
Product Details
Product Details
Product Specification
Host | Rat |
Antigen | CD366 |
Synonyms | Hepatitis A virus cellular receptor 2 homolog, HAVcr-2, T-cell immunoglobulin and mucin domain-containing protein 3 (TIMD-3), T-cell immunoglobulin mucin receptor 3 (TIM-3), T-cell membrane protein 3, Timd3 |
Location | Membrane |
Accession | Q8VIM0 |
Clone Number | S-R478 |
Antibody Type | Rat mAb |
Isotype | Rat IgG2a,k |
Application | FCM |
Reactivity | Ms |
Purification | Protein G |
Concentration | 2 mg/ml |
Conjugation | Unconjugated |
Physical Appearance | Liquid |
Storage Buffer | PBS, 40% Glycerol, 0.05% BSA, 0.03% Proclin 300 |
Stability & Storage | 12 months from date of receipt / reconstitution, -20 °C as supplied. |
Dilution
application | dilution | species |
FCM | 1:200 | null |
Background
TIM-3 (T cell immunoglobulin and mucin domain-containing protein 3), also known as HAVCR2, is a crucial immune checkpoint molecule that is extensively expressed on various immune cells, including Th1, Th17, Treg, dendritic cells, monocytes, macrophages, and NK cells. The role of TIM-3 in the tumor immune microenvironment is particularly significant, as it is highly expressed on tumor-infiltrating CD8+ T cells and regulatory T cells (Tregs), and is co-expressed with PD-1, participating in the regulation of tumor immune evasion and T cell exhaustion. TIM-3 exerts its immune suppressive function by binding to its ligands, which include galectin-9 (Gal-9), phosphatidylserine (PtdSer), carcinoembryonic antigen-related cell adhesion molecule 1 (CEACAM-1), and high mobility group box 1 (HMGB1). These interactions lead to Th1 cell apoptosis, T cell exhaustion, and immune suppression, thereby facilitating tumor cells to evade immune surveillance. In cancer treatment strategies, TIM-3 has emerged as a promising target. Furthermore, the expression level of TIM-3 correlates with poor prognosis in certain types of cancer, making it a potential prognostic biomarker.
FC
