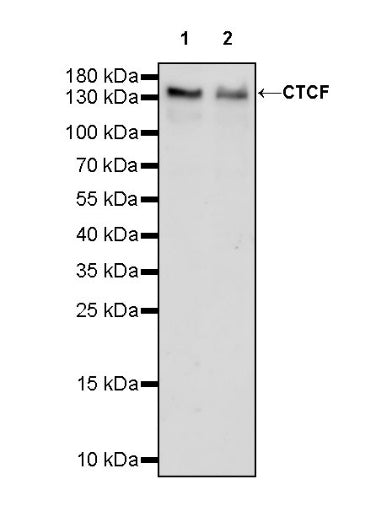

WB result of CTCF Recombinant Rabbit mAb
Primary antibody: CTCF Recombinant mAb at 1/1000 dilution
Lane 1: HCT 116 whole cell lysate 20 µg
Lane 2: HeLa whole cell lysate 20 µg
Secondary antibody: Goat Anti-rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 83 kDa
Observed MW: 140 kDa
This blot was developed with high sensitivity substrate
CTCF Recombinant Rabbit mAb (S-924-14)
CTCF Recombinant Rabbit mAb (S-924-14)
Price:
Regular price
$130.00 SGD
Regular price
Sale price
$130.00 SGD
Unit price
per
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details
Product Details
Product Details
Product Specification
| Host | Rabbit |
| Antigen | CTCF |
| Synonyms | Transcriptional repressor CTCF; 11-zinc finger protein; CCCTC-binding factor; CTCFL paralog |
| Immunogen | Synthetic Peptide |
| Location | Nucleus |
| Accession | P49711 |
| Clone Number | S-924-14 |
| Antibody Type | Recombinant mAb |
| Isotype | IgG |
| Application | WB, ICC, ICFCM, IP, ChIP |
| Reactivity | Hu, Ms, Rt |
| Purification | Protein A |
| Concentration | 0.5 mg/ml |
| Conjugation | Unconjugated |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 40% Glycerol, 0.05% BSA, 0.03% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, -20 °C as supplied |
Dilution
| application | dilution | species |
| WB | 1:1000 | |
| IP | 1:50 | |
| ICC | 1:500 | |
| ICFCM | 1:50 | |
| ChIP | 1:20-1:50 |
Background
CTCF is a zinc finger protein that binds to specific DNA sequences known as CTCF-binding sites. It functions as a transcriptional regulator, chromatin organizer, and enhancer blocker. CTCF can either activate or repress gene expression, depending on the context and interacting proteins. It can bind to promoters, enhancers, and silencers to regulate transcription. CTCF is involved in the formation of chromatin loops and topologically associating domains (TADs). These loops and domains help organize the genome into functional units and regulate gene expression. CTCF can block the interaction between enhancers and promoters, preventing enhancer-mediated gene activation. This function is important for maintaining tissue-specific gene expression patterns. Mutations or abnormal expression of CTCF have been linked to various diseases, including cancer, developmental disorders, and neurological diseases.
Western Blot

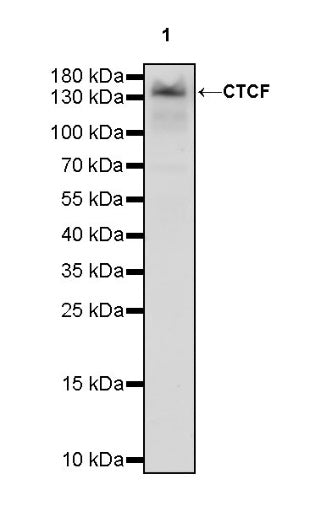

WB result of CTCF Recombinant Rabbit mAb
Primary antibody: CTCF Recombinant mAb at 1/1000 dilution
Lane 1: NIH/3T3 whole cell lysate 20 µg
Secondary antibody: Goat Anti-rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 83 kDa
Observed MW: 140 kDa
This blot was developed with high sensitivity substrate

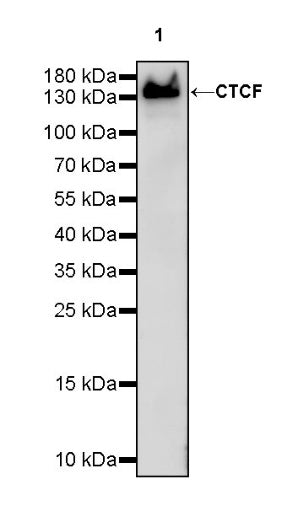

WB result of CTCF Recombinant Rabbit mAb
Primary antibody: CTCF Recombinant mAb at 1/1000 dilution
Lane 1: C6 whole cell lysate 20 µg
Secondary antibody: Goat Anti-rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 83 kDa
Observed MW: 140 kDa
This blot was developed with high sensitivity substrate
FC

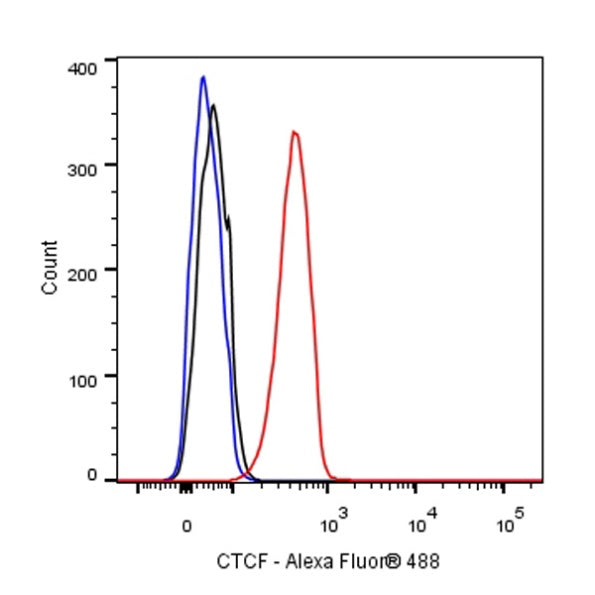

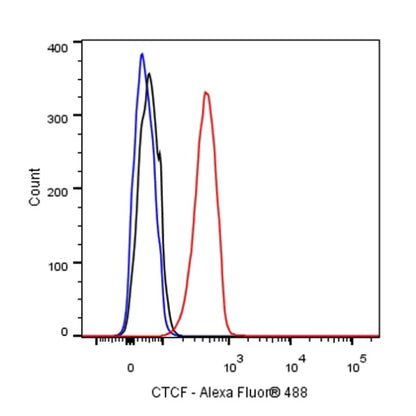

Flow cytometric analysis of 4% PFA fixed 90% methanol permeabilized HeLa (Human cervix adenocarcinoma epithelial cell) labelling CTCF antibody at 1/50 dilution (1 μg)/ (Red) compared with a Rabbit monoclonal IgG (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). Goat Anti - Rabbit IgG Alexa Fluor® 488 was used as the secondary antibody.
IP

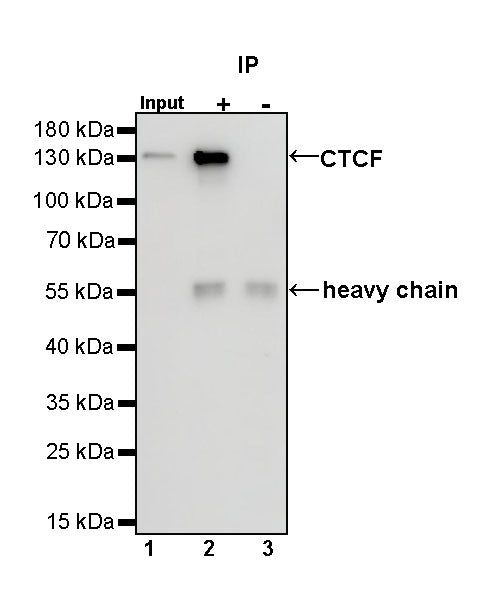

CTCF Rabbit mAb at 1/50 dilution (1 µg) immunoprecipitating CTCF in 0.4 mg HeLa whole cell lysate.
Western blot was performed on the immunoprecipitate using CTCF Rabbit mAb at 1/1000 dilution.
Secondary antibody (HRP) for IP was used at 1/1000 dilution.
Lane 1: HeLa whole cell lysate 20 µg (Input)
Lane 2: CTCF Rabbit mAb IP in HeLa whole cell lysate
Lane 3: Rabbit monoclonal IgG IP in HeLa whole cell lysate
Predicted MW: 83 kDa
Observed MW: 140 kDa
Immunocytochemistry
ICC shows positive staining in HeLa cells. Anti-CTCF antibody was used at 1/500 dilution (Green) and incubated overnight at 4°C. Goat polyclonal Antibody to Rabbit IgG - H&L (Alexa Fluor® 488) was used as secondary antibody at 1/1000 dilution. The cells were fixed with 100% ice-cold methanol and permeabilized with 0.1% PBS-Triton X-100. Nuclei were counterstained with DAPI (Blue). Counterstain with tubulin (Red).
ICC shows positive staining in NIH/3T3 cells. Anti-CTCF antibody was used at 1/500 dilution (Green) and incubated overnight at 4°C. Goat polyclonal Antibody to Rabbit IgG - H&L (Alexa Fluor® 488) was used as secondary antibody at 1/1000 dilution. The cells were fixed with 4% PFA and permeabilized with 0.1% PBS-Triton X-100. Nuclei were counterstained with DAPI (Blue). Counterstain with tubulin (Red).
ChIP
Chromatin immunoprecipitation (ChIP) was performed on HeLa cells cross - linked with 1% formaldehyde for 10 min, then chromatin was fragmented by sonication. Parallel reactionsused CTCF Recombinant Rabbit mAb (S-924-14) and IgG Isotype Control (SDT-R173) at 1:50 for immunoprecipitation.
Post - immunoprecipitation, both samples were washed, eluted, and cross - links reversed. Purified DNA was analyzed by qPCR.

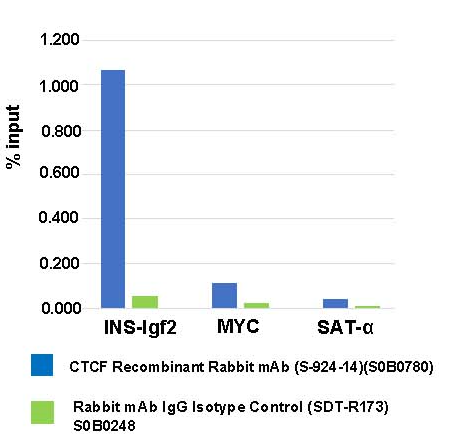

qPCR (%input: immunoprecipitated DNA/input DNA)
showed the enrichment of INS-Igf2, MYC and SAT-α in
CTCF Recombinant Rabbit mAb (S-924-14)-
immunoprecipitated sample.
