How to use FLAG agarose gel for target protein purification?

1. What is the difference between agar and agarose?

Agar and agarose are two common polysaccharide reagents in the laboratory. Although their names are similar and they may be misused or temporarily substituted in specific situations, they have essential differences in composition, purity, and application.

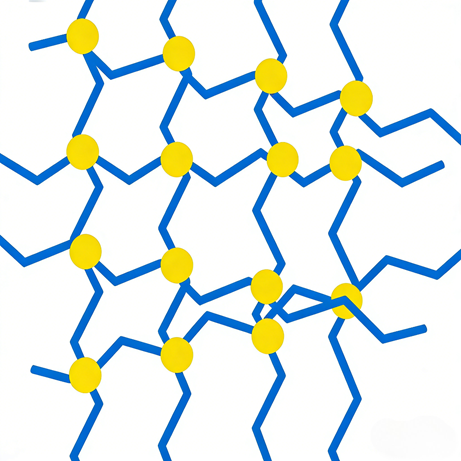

1. Compositional differences: Agar is a natural mixture composed mainly of agarose and agaropectin. Agarose is a linear neutral polysaccharide polymer whose basic repeating unit consists of alternating 1,3-linked β-D-galactopyranose and 1,4-linked 3,6-anhydro-α-L-galactopyranose, forming a regular three-dimensional gel network structure. Agaropectin, on the other hand, is a complex polysaccharide mixture containing charged groups such as sulfate esters, pyruvate, and sugar uronic acids, with many impurity components.

2. Purity and property differences: Agar is a naturally extracted product that has not been highly purified, while agarose is a refined product obtained by removing impurities such as agaropectin. Therefore, agarose has higher purity, better electrical neutrality, and almost no charged groups, resulting in minimal nonspecific adsorption and denaturation of biomacromolecules, making it an ideal inert carrier matrix. Agar, due to its charged impurities, can easily introduce background interference in applications.

Due to these differences, their conventional uses are distinctly different. Agar is mainly used for solidifying microbial culture media as a solid matrix carrier. Agarose, due to its high purity and excellent gel properties, is widely used in nucleic acid gel electrophoresis, protein purification chromatography, and the production of microsphere carriers.

2. Why is agarose chosen as the matrix for the FLAG purification system?

In affinity chromatography purification technology, the FLAG® peptide tag system is widely used due to its high specificity and mild elution conditions (using EDTA or low-pH buffers instead of denaturing conditions). The core of this system is coupling the corresponding antibody of the FLAG peptide (such as anti-FLAG M2 antibody) to a solid-phase matrix to capture target proteins fused with the FLAG tag. Agarose is chosen as the matrix for this purification system primarily based on the following key advantages:

1. Excellent inertness and low nonspecific adsorption: High-purity agarose is almost uncharged, and its surface hydroxyl groups are hydrophilic. This chemical property ensures minimal nonspecific binding of agarose microspheres to most biomolecules such as proteins and nucleic acids. During purification, this maximizes the reduction of co-purification of contaminating proteins, ensuring high-purity target proteins with clean backgrounds.

2. Good physicochemical stability: Agarose gel has excellent mechanical strength and chemical stability. It remains stable over a wide pH range (commonly 4–10) and in various buffers, and can tolerate low concentrations of denaturants or detergents (used for lysis or washing). Its cross-linked structure (e.g., 4% or 6% agarose) provides a porous network, allowing free diffusion and binding of larger protein complexes.

3. Abundant activation groups for coupling: Agarose beads (such as the Sepharose series) are rich in surface hydroxyl groups, which can be activated by methods such as cyanogen bromide (CNBr) or epichlorohydrin, facilitating covalent coupling with antibodies, lectins, or other ligands to prepare stable affinity media. Anti-FLAG antibodies are firmly immobilized on agarose beads through such chemical methods.

4. Controllable pore size and flow rate: Agarose gels of different concentrations have different pore sizes, which can be selected based on the molecular weight of the target protein. Their bead morphology ensures uniform packing in chromatography columns, providing good flow rates and resolution, suitable for purification processes from small-scale laboratory to production-scale applications.

Therefore, FLAG affinity gels with agarose as the matrix (such as Anti-FLAG M2 Affinity Gel) have become the preferred tool for efficient and specific purification of FLAG-tagged proteins.

3. What is the specific application process of FLAG agarose gel?

The purification of proteins using FLAG agarose gel is a standardized process, mainly including the following steps:

1. Sample preparation: Lyse cells expressing FLAG-tagged proteins and centrifuge to obtain clarified supernatant as the sample for purification. The lysis buffer usually contains protease inhibitors and maintains neutral pH and a certain salt concentration to reduce nonspecific binding.

2. Binding: Incubate the sample with pre-equilibrated FLAG agarose gel at 4°C (or on ice) with gentle mixing for a period (e.g., 1–2 hours). During this time, FLAG-tagged proteins specifically bind to the anti-FLAG antibodies coupled to the gel, while contaminating proteins are excluded.

3. Washing: Transfer the gel-sample mixture to a chromatography column or collect the gel by centrifugation. Wash with several column volumes of washing buffer (usually TBS or PBS, pH 7.4) to remove unbound and nonspecifically bound contaminating proteins until the OD280 of the flow-through approaches baseline.

4. Elution: Use competitive or conditional elution to obtain the target protein. The most common method is competitive elution using a buffer containing FLAG short peptides (e.g., 3×FLAG peptide), which compete with the FLAG tag of the fusion protein for antibody binding, thereby gently releasing the target protein into the solution. Another method is elution with low-pH (e.g., glycine-HCl buffer, pH 3.0) or high-salt buffers, followed by immediate neutralization to maintain protein activity.

5. Gel regeneration and storage: After elution, FLAG agarose gel can be regenerated by low-pH treatment or high-salt washing to remove residual peptides or proteins. The regenerated gel can be stored in a storage buffer containing antimicrobial agents at 4°C and reused multiple times.

4. Which manufacturers provide FLAG agarose?

Hangzhou Start Biotech Co., Ltd. has independently developed "Anti-FLAG (DYKDDDDK) Tag Agarose Beads" (Product No.: S0B1559), a high-specificity, high-binding-capacity, and easy-to-use core tool for affinity purification and immunoprecipitation (IP). This product couples high-affinity anti-FLAG monoclonal antibodies to high-flow agarose microspheres, enabling efficient and specific capture, purification, or removal of FLAG-tagged fusion proteins from complex samples. It is suitable for various applications such as recombinant protein purification, protein complex enrichment, interaction studies, and tagged protein clearance.

Professional technical support: We provide detailed usage guidelines for this product, including recommended binding/washing/elution conditions, protocol suggestions for different sample types, and methods for microsphere regeneration and storage. Our technical team offers professional consulting services to help optimize your purification process.

Hangzhou Start Biotech Co., Ltd. is committed to providing efficient and reliable separation and purification tools for proteomics, cell biology, and recombinant protein production. For more information about "Anti-FLAG (DYKDDDDK) Tag Agarose Beads" (Product No. S0B1559), technical documentation, or trial applications, please feel free to contact us.
