Siglec-2/CD22 Fc Chimera Protein, Human

Siglec-2/CD22 Fc Chimera Protein, Human

Catalog Number: UA010025 Reactivity: Human Conjugation: Unconjugated Brand: UA BIOSCIENCE
Price:
Regular price $600 USD
Regular price Sale price $600 USD
Size:
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details

Product Details

Product Specification


Species Human
Synonyms Siglec-2, CD22, BL-CAM,Siglec2
Accession P20273-1
Amino Acid Sequence

Asp20-Arg687, with C-terminal Human IgG Fc

Expression System HEK293
Molecular Weight

125-130 kDa (Reducing)

Purity >95%, by SDS-PAGE under reducing conditions
Endotoxin <0.1EU/μg
Conjugation Unconjugated
Tag Human Fc Tag
Physical Appearance Lyophilized Powder
Storage Buffer

PBS, pH7.4

Reconstitution

Reconstitute at less than 1 mg/mL according to the size in ultrapure water after rapid centrifugation .

Stability & Storage

· 12 months from date of receipt, lyophilized powder stored at -20 to -80℃.

· 3 months, -20 to -80℃ under sterile conditions after reconstitution.

· 1 week, 2 to 8℃ under sterile conditions after reconstitution.

· Please avoid repeated freeze-thaw cycles.

Background

Sialic acid-binding immunoglobulin-like lectins (Siglecs) are type I immunoglobulin-like transmembrane proteins consisting of an extracellular structural domain, a transmembrane structural domain, and an intracellular structural domain. The intracellular domain is divided into a short lysine-containing tail and an extracellular structural domain consisting of an N-terminal binding Ig domain and a variable number of C2-type structural domains. Siglec-2 (CD22) belongs to a family of immune inhibitory Siglecs, which bears ITIM to deliver immunosuppressive signals such as reduced phagocytosis, dampened inflammation, and inhibited danger-associated molecular pattern/ pathogen-associated molecular pattern (DAMP/PAMP)-mediated inflammation. Siglec-2 is a cell surface receptor expressed mostly on B cells that regulates B-cell proliferation, survival, signaling, and antibody production. The structure of Siglec-2 contains six tyrosines in its cytoplasmic tail, four of which are in ITIM motifs: Y783, Y843, Y863, and Y828. Following cross-linking of B-cell receptors (BCRs), these tyrosine residues are phosphorylated and recruit Src homology region 2 (SH2) domain-containing protein tyrosine phosphatase-1 (SHP-1), which dephosphorylates BCR-proximal signaling complexes. Siglec-2 is an attractive therapeutic target considering its unique presence in B lymphocytes. Currently, many ongoing trials evaluating CD22-directed chimeric antigen receptors (CARs), particularly in children with relapsed or refractory B-cell leukemia, are showing safety and efficacy. Some novel CARs, such as bispecific CD20/CD22 CARs and CD19/CD22 CARs, are also in development.


FC

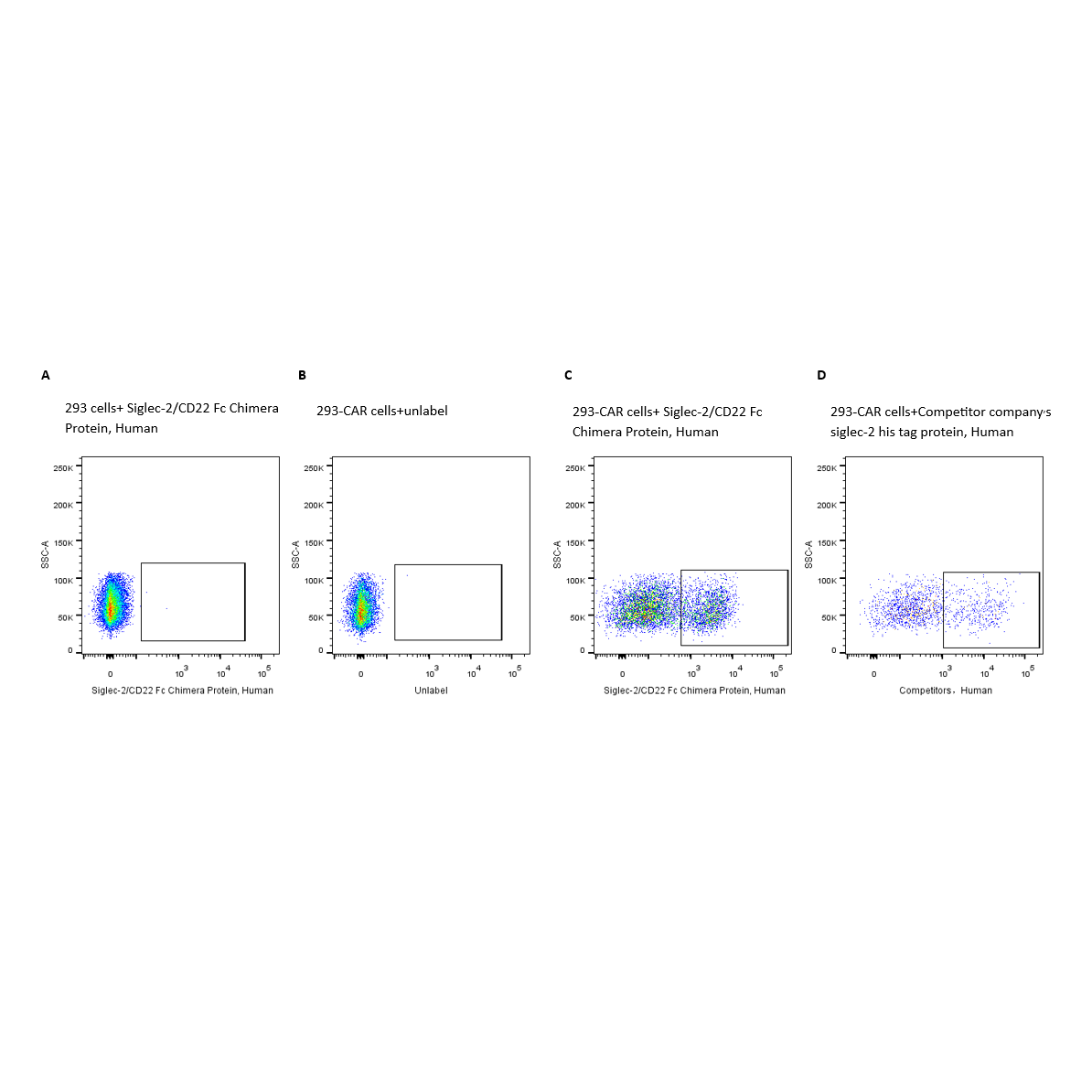

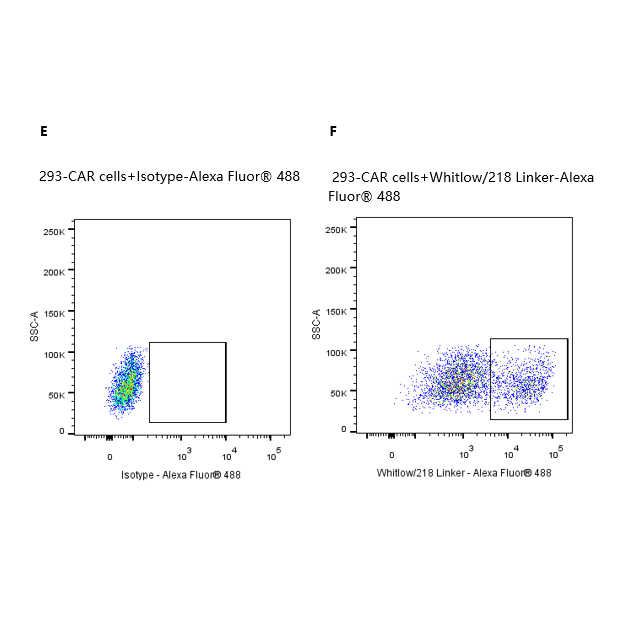

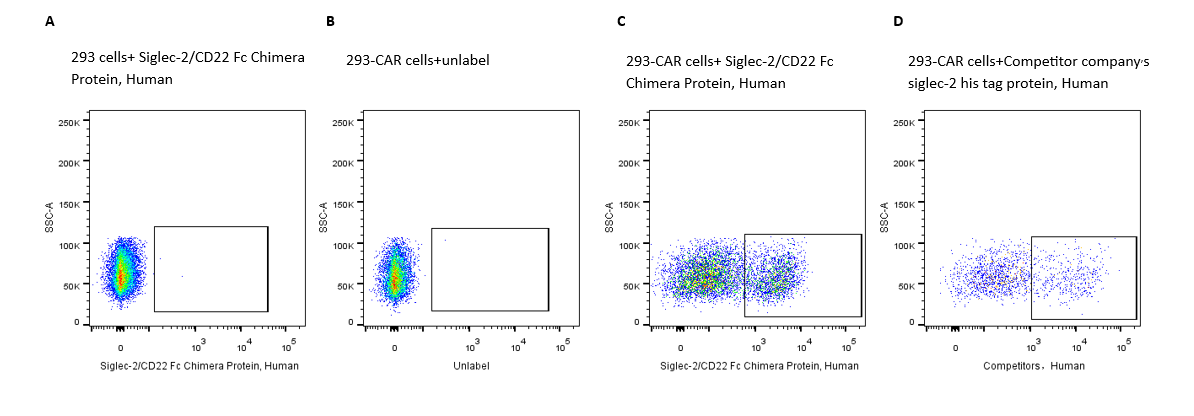

2e5 of transient transfected anti-Siglec-2 ScFv CAR-293 cells were stained with 0.1ug Siglec-2/CD22 Fc Chimera Protein, Human, (Cat. No. UA010025) and unlabel respectively (Fig. C and B), and non-transfected 293 cells were used as a control (Fig. A). Alexa Fluor® 647 signal was used to evaluate the binding activity. 2e5 of transient transfected anti-Siglec-2 ScFv CAR-293 cells were stained with competitor respectively (Fig. D). APC signal was used to evaluate the binding activity. 2e5 of transient transfected anti-Siglec-2 ScFv CAR-293 cells were stained with isotype and Whitlow/218 Linker-Alexa Fluor® 488 (Fig. E and F). Alexa Fluor® 488 signal was used to evaluate the binding activity.

SDS-PAGE

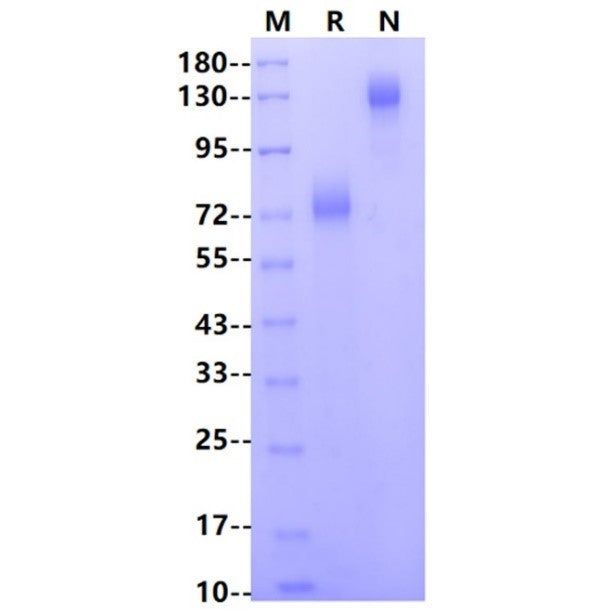

Siglec-2/CD22 Fc Chimera, Human,2μg,on SDS-PAGE under reducing and Non-reducing condition. The purity is greater than 95%.

ELISA

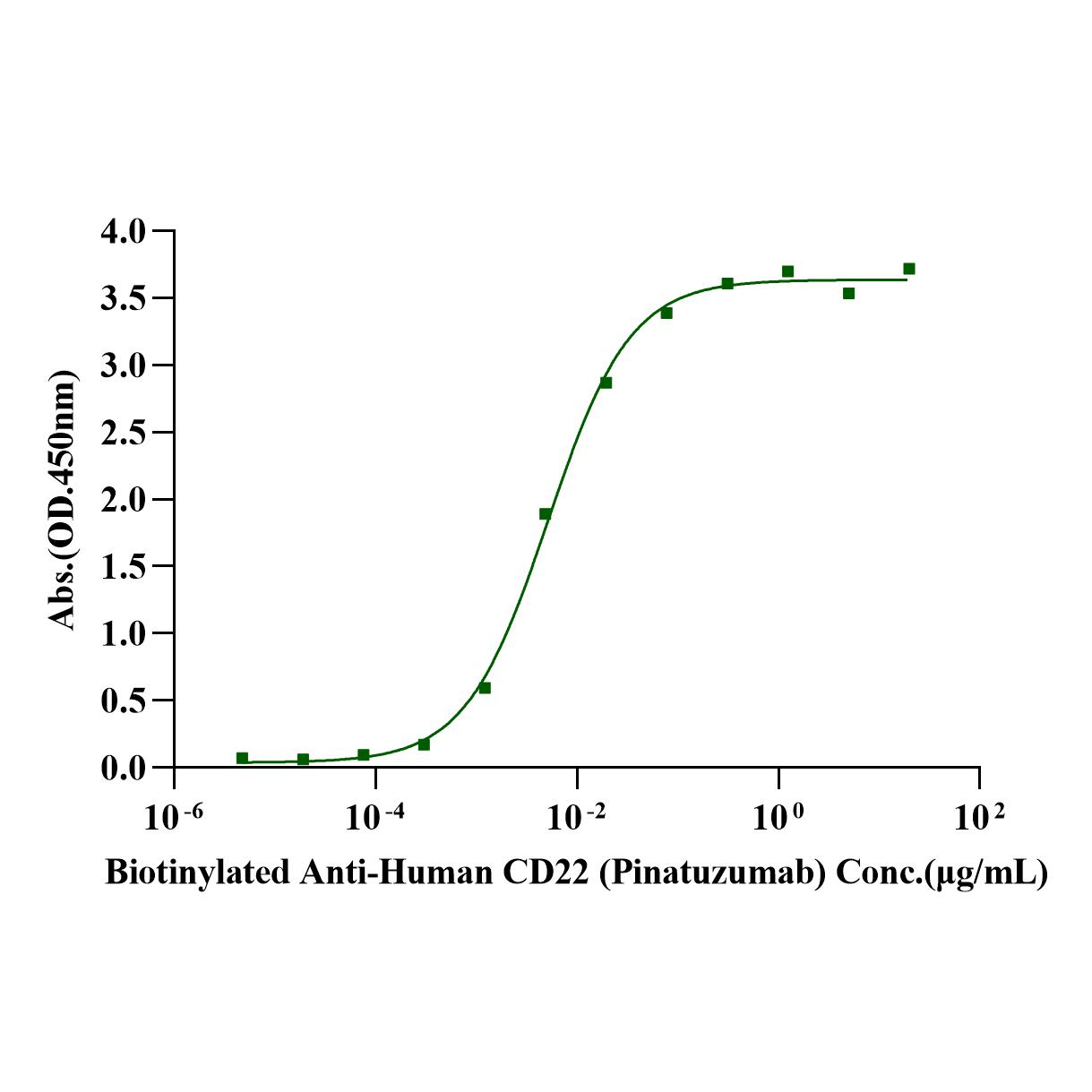

Immobilized Siglec-2/CD22 Fc Chimera, Human (Cat. No. UA010025) at 2.0μg/mL (100μL/well) can bind Biotinylated Anti-Human CD22 (Pinatuzumab)  with EC50 of 4.32-6.15ng/mL.
