SP-D Paired Antibodies: Structure, Immune Function and Sandwich Assay Design

Surfactant protein D is a collagenous lectin secreted by alveolar type II epithelial cells. It recognises carbohydrate patterns on microbes, aggregates them and hands them to alveolar macrophages, while also helping to maintain the surfactant film itself. Because its level shifts in lung injury and infection, SP-D has become a candidate biomarker, and reliable measurement depends on well-matched antibody pairs.

Domain Architecture of a Collectin

SP-D belongs to the collectin subgroup of the collagenous lectin family, together with SP-A. Its monomer carries four functional regions. The cysteine-rich N-terminal domain forms disulfide bonds between subunits and provides the structural base for oligomer assembly. A collagen-like region built from repeating Gly-X-Y triplets supplies rigidity and sets the spacing between subunits.

A short neck domain links the collagen region to the C-terminal carbohydrate recognition domain. That globular head binds sugar ligands in a calcium-dependent manner, which is the basis of pattern recognition. The neck also allows the heads to sit at a fixed angle, and small changes there alter ligand geometry without touching the binding site itself.

Oligomerisation and Why Valency Matters

SP-A assembles into a cross-shaped hexamer. SP-D follows a different route: trimers form first, then associate into dodecamers and larger oligomers. The result is a multivalent molecule with several heads pointing in different directions.

Valency is what turns weak monovalent sugar binding into useful avidity. A single carbohydrate recognition domain binds monosaccharides with low affinity, while a dodecamer engages multiple glycans on one particle surface at once. This is why oligomeric status, not only protein concentration, determines biological activity, and why assays that detect a single epitope may not report functional protein.

Ligand Range and the Two Arms of Its Function

The carbohydrate recognition domain binds bacterial lipopolysaccharide, fungal mannan and envelope glycoproteins on viruses. Recognition is calcium dependent and shows selectivity for particular glycan arrangements rather than for one defined sequence.

Binding leads to aggregation. Cross-linking several particles reduces their dispersal and makes them easier for alveolar macrophages to engulf, and phagocytosis is further enhanced by receptor engagement on the macrophage surface. Alongside this antimicrobial role, SP-D modulates inflammation in both directions, supporting responses that clear infection and restraining those that would damage the lung.

Surfactant Homeostasis and Lipid Handling

SP-D is a component of pulmonary surfactant, the film that lowers alveolar surface tension and prevents collapse at end expiration. It contributes to the formation and secretion of tubular myelin, the storage form of surfactant in the alveolar space. It also supports the arrangement and renewal of surfactant phospholipids at the air-liquid interface, and it participates in the turnover and recycling of lipid and protein components.

That places SP-D between lipid metabolism and inflammation in the lung. A change in its level can therefore reflect injury to the alveolar epithelium, altered surfactant processing, or an inflammatory shift, and interpretation depends on which compartment was sampled.

Disease Associations That Drive Measurement

Low or dysfunctional SP-D is associated with increased susceptibility to respiratory infection, consistent with its clearance role. In acute respiratory distress syndrome, uncontrolled inflammation consumes and damages the protein, and the loss of function aggravates the underlying injury. Chronic obstructive pulmonary disease shows both quantitative and functional changes that track with chronic inflammation and airway remodelling.

Several interstitial lung diseases are linked to genetic variants in the gene or to altered circulating levels, which points to a role in fibrotic progression. Preterm infants, whose lungs are developmentally immature, lack adequate surfactant including SP-D, and alveolar collapse follows. Serum and bronchoalveolar lavage fluid are the usual matrices, and the two give different pictures of the same process.

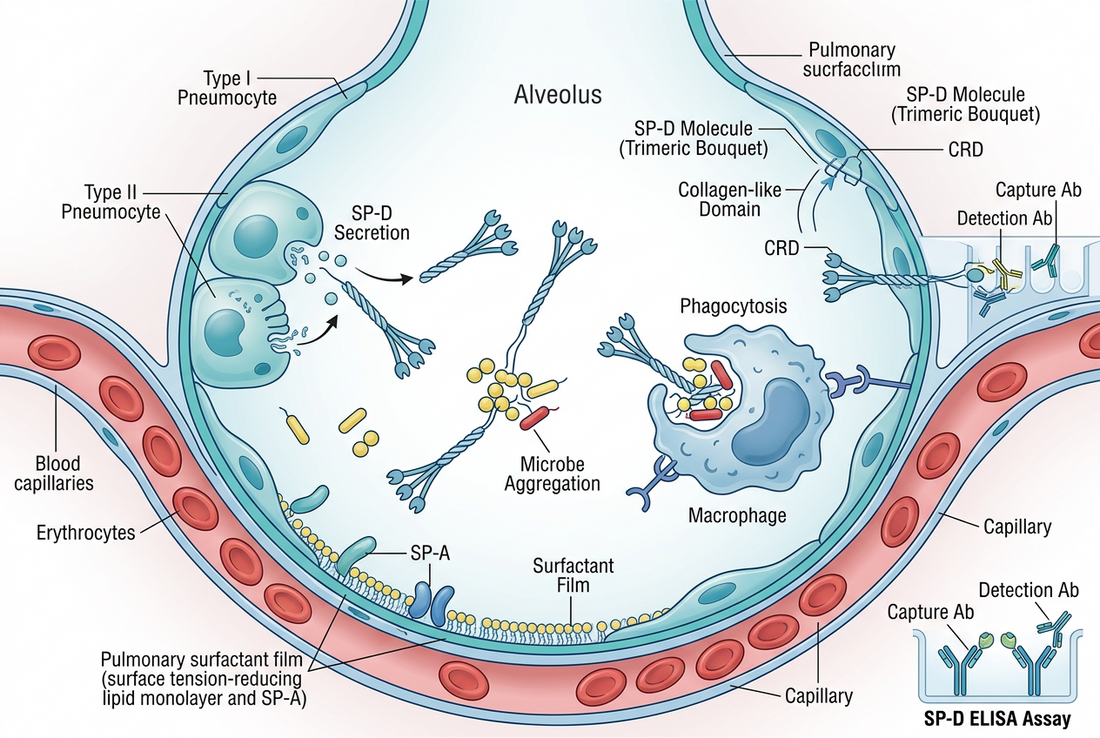

SP-D in alveolar immune defence, from pathogen aggregation to surfactant homeostasis and inflammatory control

What a Matched Pair Buys in an Immunoassay

A sandwich format needs two antibodies that bind the analyte at the same time without competing for the same epitope. Screening candidate pairs against each other is the only way to confirm compatibility. A generic anti-IgG reagent cannot show whether two antibodies bind the same molecule in solution rather than merely on a blot.

Pairing also sets the dynamic range. Capture on the solid phase and detection in solution can shift the working range by an order of magnitude. That shift often decides whether a serum assay or a lavage assay is feasible. For chemiluminescent formats the same pair usually transfers, although buffer composition and bead chemistry need re-optimisation.

Specificity against the closest paralogue is the other half of the problem. SP-A shares domain architecture and some ligand preferences with SP-D, and an antibody that cross-reacts will report a mixed signal in lung samples where both proteins are abundant. The two reagents below are documented as showing no cross-reactivity with SP-A.

Calibrating Against a Defined Standard

Quantification needs a standard, and the choice of standard sets the units. Recombinant SP-D expressed in a mammalian system behaves differently from protein purified from lavage, because glycosylation and oligomeric state differ. A calibration curve built on one form will not necessarily transfer to the other, and the discrepancy is largest at the low end of the range.

Matrix-matched calibration is the safer approach. Diluting the standard into pooled lavage fluid or into serum that has been stripped of SP-D keeps the background proteins constant between standards and samples. Without that step, a change in matrix can be read as a change in analyte, particularly when samples are compared across collection sites.

Practical Notes on Sample Handling

Surfactant protein D in lavage fluid sits partly in large aggregates, so a brief spin and a consistent dilution scheme matter more than the detection chemistry. Serum levels are lower and more stable, which makes serum the better choice for longitudinal comparison and lavage the better choice for local biology. Freeze-thaw cycles should be limited, because oligomeric rearrangement changes epitope accessibility.

Both antibodies in the table are recombinant rabbit monoclonals purified by protein A. Purity is above 95 percent by HPLC, and both are validated for sandwich ELISA and chemiluminescent immunoassay development. Neither is conjugated, so each can be labelled in house to suit the detection system in use.
