IgD Flow Cytometry: Using a State Marker to Resolve Naive B Cell Populations in Gating

Two surface markers usually decide whether a B cell counts as naive: IgD and IgM. IgD is almost invisible in serum, yet on the membrane of a naive B cell it forms the second half of the antigen receptor complex. That duality is the source of most gating errors. A reagent that works well on serum will not necessarily resolve a membrane population, and a membrane stain tells you about developmental stage rather than cell identity. This article covers the molecule, its disease associations, a three-step gating hierarchy, and the validation data for one PE-conjugated reagent.

What the IgD Molecule Actually Is

Structure and Genomic Origin

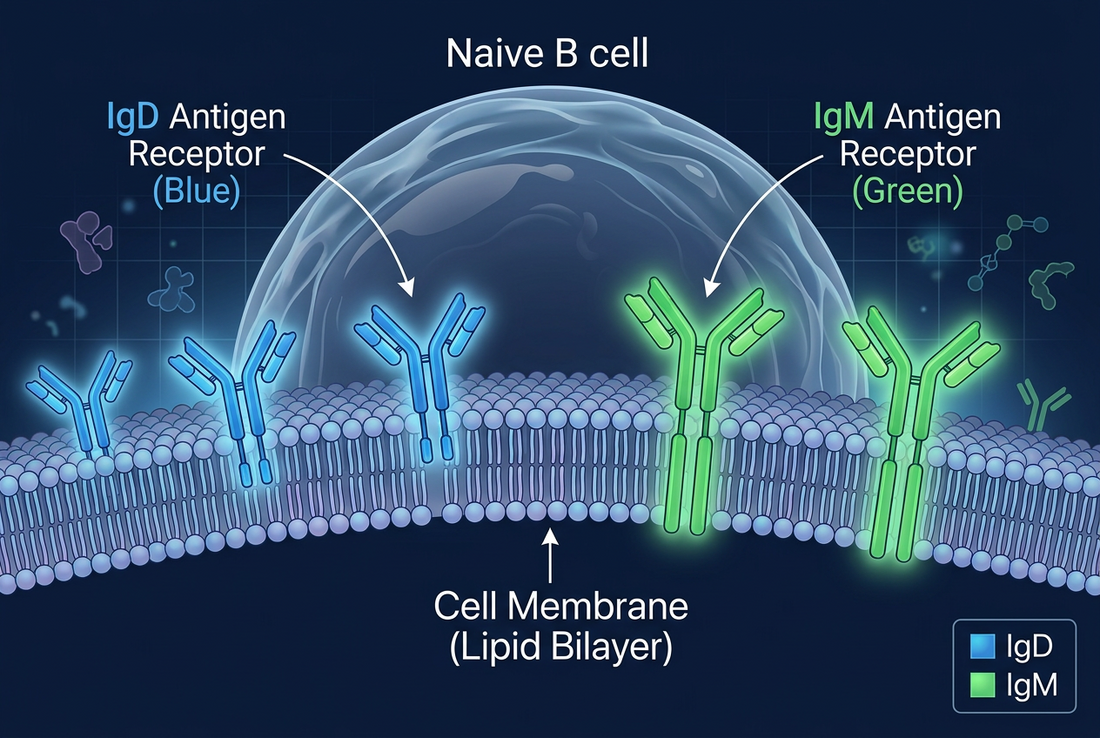

Membrane IgD is a heavily glycosylated monomeric receptor expressed mainly on naive B cells. On the surface it assembles with membrane IgM to form the B cell antigen receptor complex. The documented cellular localization covers both secreted and cell membrane fractions, and the human sequence maps to UniProt accession P0DOX3.

The gene sits in the IGH@ locus on chromosome 14. IgD is produced by alternative splicing of the transcript that also yields IgM, so the same primary transcript branches into two different heavy chains. That shared origin explains why the two markers so often appear on the same cell, and why a double-negative IgD⁻IgM⁻ result deserves a second look.

The Hinge Region Sets the Behaviour

The hinge region is IgD's defining structural feature. It is unusually long and carries O-glycosylation, which increases antigen recognition flexibility. The same extension reduces protease resistance, so the molecule degrades readily in complex matrices.

Secreted IgD reaches roughly 30 µg/mL in serum with a half-life near 2.8 days. That concentration is low enough that many assays overlook it, and short enough that a delayed sample handling step changes the result.

There is a practical consequence for method choice. Because of the long hinge and heavy glycosylation, IgD and IgM are difficult to separate by molecular weight in gel filtration or immunoblotting. Flow cytometry sidesteps the problem: membrane IgD is intact on the cell surface and is recognised through epitopes in the heavy chain constant region.

Disease and Research Associations

Mucosal Immunity and the Commensal Interface

Current interest centres on mucosal immunity and the interaction with commensal bacteria. IgD participates in mucosal defence through that interaction, and it contributes to the development and homeostasis of marginal zone B cells and B-1 cells. Both subsets sit at the boundary between innate-like and adaptive responses.

Allergy Through a Non-Classical Route

In allergy research the clue lies in receptor binding. IgD binds lectin-like receptors such as CD44 on basophils and mast cells, triggering antimicrobial and anti-allergic responses. This route diverges from the classical IgE pathway, which makes IgD a useful contrast line in studies of allergic mechanism.

A Three-Step Gating Hierarchy

The combinatorial logic is straightforward and should be fixed before acquisition. Single-label IgD identifies cells carrying membrane IgD. Adding CD19 confirms that those cells are B cells. Adding CD27 then separates the naive compartment from the memory compartment.

The published validation figure used APC-conjugated anti-human CD19 alongside the PE conjugate. That pairing confirms the parent gate was set on the B cell lineage, not on total leukocytes. Reproducing that order matters: gate on CD19 first, then read IgD within the B cell gate. Reversing the order inflates the apparent IgD fraction with non-B cells.

Three Variables That Move the Result

Co-Expression and Compensation

Membrane IgD and IgM are frequently co-expressed on the same cell. When their fluorophores fall into adjacent channels and compensation is set poorly, a strong and a weak signal merge into one peak. During analysis it becomes impossible to tell whether the left shoulder is negative cells or unstained cells. Choose fluorophores with well-separated spectra and verify compensation with single-stained controls.

Downregulation After Activation

Once a B cell encounters antigen, membrane IgD is internalised or shed within hours. A sample held at room temperature before staining will report a lower positive fraction than a fresh aliquot from the same donor. Record the interval from collection to acquisition, and keep it constant across groups.

Hinge Sensitivity During Processing

The O-glycosylated hinge is cleaved easily. Enzyme activity and storage temperature during processing affect epitope integrity, and whole-blood lysis and PBMC isolation do not give identical results. Pick one workflow and apply it to every sample in the study.

Reference Parameters for the PE Conjugate

At 0.2 mg/ml, a 5 µl aliquot delivers approximately 1 µg of antibody. Both 25T and 100T sizes are available.

Reading the Validation Panel

Quadrant flow cytometry plots of human peripheral blood leukocytes co-stained with APC anti-human CD19 and either a PE IgG2a isotype control or PE anti-human IgD

The figure presents two quadrant plots with CD19-APC on the vertical axis and PE on the horizontal axis. The left panel is the isotype control; the right panel is the anti-IgD conjugate. Acquisition used a benchtop flow cytometer and analysis used standard cytometry software.

The informative feature is not a dramatic shift. It is the small cluster that extends into the upper-right quadrant in the right panel and is nearly empty in the left panel. That cluster represents CD19-positive cells carrying membrane IgD, and it is modest in size. A reader expecting a clean bimodal distribution will misread this figure.

Two limits should be noted. The isotype control is the only negative reference, so there is no separate unstained tube. The predicted reactive species field is not listed, and the documented reactivity is human only.

Why This Marker Rewards Careful Panel Design

IgD labels a developmental state rather than a lineage. It reports where a B cell sits in its journey, not which family it belongs to. That is why the same fluorophore can look disappointing in one panel and decisive in another: the answer depends entirely on which marker it is read alongside.

CD19 supplies the lineage anchor. CD27 supplies the maturity axis. IgD supplies the position between them. A panel built on those three markers resolves naive, unswitched memory and switched memory compartments in a single tube. That is a better use of a channel than adding a fourth surface marker of uncertain specificity.

No reference list accompanies this product. Sequence information traces to UniProt P0DOX3, and lot-specific performance data are held in the datasheet and certificate of analysis.
