Deciphering the "Black Box" of Early Development: ANT BIO PTE. LTD. Empowers 3D Reconstruction of Human Carnegie Stage 9 Embryos

1. Literature Information

Title: 3D reconstruction of a human Carnegie stage 9 embryo provides a snapshot of early body plan formation

Journal: Cell Stem Cell (Impact Factor: 20.4)

DOI: https://doi.org/10.1016/j.stem.2025.04.007

Core Reagents from ANT BIO PTE. LTD.: 7-Color Multiplex Immunofluorescence IHC Staining Kit (Catalog No.: abs50015), Antibody Elution Buffer (Catalog No.: abs994)

2. Research Background

The Carnegie Stage 9 (CS9) embryo, corresponding to 19-21 days post-fertilization, represents a critical transitional period from the late gastrulation to early organogenesis. It serves as the "golden window" for the initiation of development of vital organs such as the heart, neural tube, and intestine. However, due to ethical constraints and the extreme scarcity of samples, this stage has long remained a "black box" in human developmental research. Unraveling the molecular and structural mechanisms underlying early body plan formation during CS9 is of profound significance for understanding developmental biology, regenerative medicine, and the pathogenesis of congenital diseases.

3. Research Strategy

The research team adopted a closed-loop research strategy of "section sequencing - data integration - 3D reconstruction - functional validation" to progressively decipher the mysteries of early embryonic development. The detailed workflow is as follows:

•         Sample Preparation: A CS9 embryo with a normal karyotype was obtained, embedded in OCT, and sectioned into 10 μm consecutive transverse slices, yielding a total of 75 sections.

•         Spatial Transcriptomic Analysis: Stereo-seq technology was employed to capture the gene expression information of the sections, and unsupervised clustering was performed to identify cell types.

•         3D Model Construction: All sections were aligned using the PASTE algorithm, and spatial coordinates were integrated with gene expression data to generate a visualized 3D embryonic model.

•         Functional Validation: Multiplex immunofluorescence (mIF) staining was utilized to validate the localization and marker expression of key cell populations (e.g., hematopoietic endothelial cells, primordial germ cells, PGCs), providing morphological evidence for the transcriptomic data. Core reagents for this step were sourced from ANT BIO PTE. LTD.

•         Cross-Species and In Vitro Model Comparison: The CS9 embryo data were compared with those from mouse embryos, monkey embryos, and human pluripotent stem cell-derived models to verify the reliability of the constructed model.

4. Research Results

This study achieved several landmark breakthroughs, shedding light on the previously uncharted territory of early human embryonic development:

•         First Construction of 3D Spatial Transcriptomic Atlas of CS9 Embryos: A total of 27 major cell populations were identified, covering critical structures such as the brain, spinal cord, primitive gut, and somites.

•         Dual Origin of the Hindbrain Revealed: The hindbrain was found to originate from both the neuroectoderm and neural mesodermal progenitors (NMPs). The study also uncovered the bilayer structure of NMPs and their differentiation regulatory mechanisms.

•         Localization of Key Organizers: The midbrain-hindbrain organizer (IsO) and anterior intestinal portal (AIP) were precisely localized. The study confirmed the "organizer" function of AIP in cardiac development.

•         Early Aorta Formation and PGC Existence in AGM Region: Early aorta formation and the presence of primordial germ cells (PGCs) were observed in the aorta-gonad-mesonephros (AGM) region, providing new clues for the research on the origin of hematopoietic stem cells.

5. Product Empowerment: The Core Role of ANT BIO PTE. LTD. Products in Functional Validation

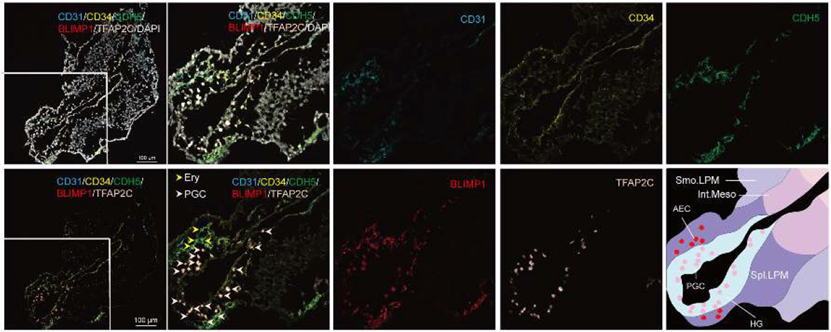

In the crucial functional validation phase, the research team selected three core products from ANT BIO PTE. LTD., which successfully enabled the precise localization and visualization of cell markers. The application results were presented in Figure 6F of the original paper (immunofluorescence validation results).

5.1 Product List and Core Functions

5.2 Product Application Details and Value in the Study

Staining Objective: Validation of hematopoietic endothelial cells (CD31⁺, CD34⁺, CDH5⁺) and primordial germ cells (BLIMP1⁺, TFAP2C⁺) in the AGM region.

Product Application Process: The OCT-embedded embryo block was sectioned into 10 μm slices and mounted on slides. All staining procedures were performed on the slides using the TSA 7-color kit (ANT BIO PTE. LTD., abs50015-100T). All primary antibodies were diluted in 5% BSA. After blocking, the slides were incubated with primary antibodies at room temperature for 2 hours, followed by incubation with anti-rabbit/mouse horseradish peroxidase (HRP)-conjugated secondary antibody (ANT BIO PTE. LTD., #A10011-60) for 20 minutes. Labeling was developed with TSA fluorescent labels (ANT BIO PTE. LTD., #A10011-60) for a strictly controlled 20 minutes. Subsequently, the slides were transferred to the eluent (ANT BIO PTE. LTD., #abs994) for 15 minutes to enable subsequent rounds of staining.

Product Value: The TSA multi-color kit from ANT BIO PTE. LTD. ensured the clear distinction of 5 markers, while the elution buffer supported the multi-round staining process. The HRP secondary antibody guaranteed signal intensity and specificity. Ultimately, the key characteristics were clarified: hematopoietic endothelial cells are distributed around the hindgut region, and PGCs are localized in the transition zone between the allantois (AT) and AGM. These results directly validated the cell typing results of spatial transcriptomics, laying a solid morphological foundation for the reliability of the research conclusions.

5.3 Core Advantages of the Products

•         High Specificity: The TSA staining technology effectively reduces background signals, ensuring the accurate detection of low-expression markers, and is suitable for complex sample types such as embryonic tissues.

•         Multi-Color Compatibility: The 7-color kit meets the needs of multi-marker co-localization without worrying about fluorescence overlap, perfectly matching the scenario of cell typing validation.

•         Process Compatibility: The elution buffer works synergistically with the staining kit, supporting multi-round labeling processes, improving experimental efficiency, and reducing sample loss (especially suitable for scarce human embryonic samples).

•         6. Brand Mission

As a professional supplier of life science reagents, ANT BIO PTE. LTD. is dedicated to providing high-quality, reliable products and comprehensive solutions to empower global life science research. The company's three specialized sub-brands—Absin focusing on general reagents and kits, Starter on antibodies, and UA on recombinant proteins—cover the full spectrum of research needs in the life science field. Our core mission is to bridge the gap between cutting-edge scientific research and practical applications, accelerate the pace of scientific discovery, and contribute to the advancement of human health and regenerative medicine.

7. Related Product List

Products Used in This Study

More Multiplex Immunofluorescence IHC Kits

8. Disclaimer

This article is AI-compiled and interpreted based on the original work in DOI: 10.1002/advs.202413562. All intellectual property (e.g., images, data) of the original publication shall belong to the journal and the research team. For any infringement, please contact us promptly and we will take immediate action.
