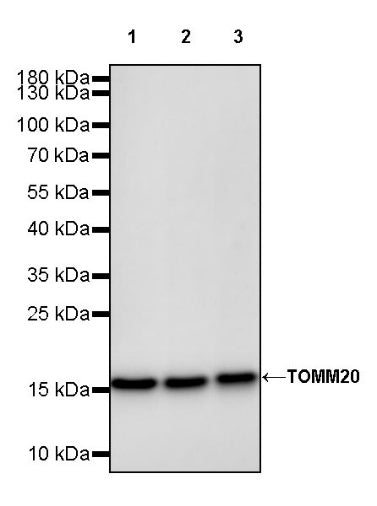

WB result of TOMM20 Recombinant Rabbit mAb
Primary antibody: TOMM20 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: HepG2 whole cell lysate 20 µg
Lane 2: HeLa whole cell lysate 20 µg
Lane 3: SH-SY5Y whole cell lysate 20 µg
Secondary antibody: Goat Anti-rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 16 kDa
Observed MW: 16 kDa
TOMM20 Recombinant Rabbit mAb (SDT-2553-11)
TOMM20 Recombinant Rabbit mAb (SDT-2553-11)
Price:
Regular price
$45 USD
Regular price
Sale price
$45 USD
Unit price
per
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details
Product Details
Product Details
Product Specification
| Host | Rabbit |
| Antigen | TOMM20 |
| Synonyms | Mitochondrial import receptor subunit TOM20 homolog; Mitochondrial 20 kDa outer membrane protein; Outer mitochondrial membrane receptor Tom20; KIAA0016 |
| Immunogen | Recombinant Protein |
| Location | Mitochondrion |
| Accession | Q15388 |
| Clone Number | SDT-2553-11 |
| Antibody Type | Recombinant mAb |
| Isotype | IgG |
| Application | WB, IHC-P, ICC |
| Reactivity | Hu, Ms, Rt |
| Positive Sample | HepG2, HeLa, SH-SY5Y, NIH/3T3, PC-12, mouse kidney, mouse heart, mouse skeletal muscle, PC-12, rat kidney, rat heart, rat skeletal muscle |
| Predicted Reactivity | Bv |
| Purification | Protein A |
| Concentration | 0.5 mg/ml |
| Conjugation | Unconjugated |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 40% Glycerol, 0.05% BSA, 0.03% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, -20 °C as supplied |
Dilution
| application | dilution | species |
| WB | 1:1000-1:5000 | Hu, Ms, Rt |
| IHC-P | 1:1000 | Hu, Ms, Rt |
| ICC | 1:500 | Hu, Ms, Rt |
Background
TOMM20 (Translocase of Outer Mitochondrial Membrane 20) is a ~20 kDa receptor subunit of the TOM complex embedded in the outer mitochondrial membrane; together with TOMM22 it forms the initial binding site that recognizes N-terminal matrix-targeting sequences on cytosol-synthesized pre-proteins and threads them through the TOMM40 channel into mitochondria, thereby governing mitochondrial biogenesis and bioenergetics, while also moonlighting as a mitophagy adaptor via PINK1, a regulator of apoptosis through BCL2/BAX, and a chaperone-like stabilizer of the androgen receptor in prostate cancer, making it a widely used marker for mitochondrial mass and a potential biomarker for diseases such as Parkinson’s and cancer .
Western Blot

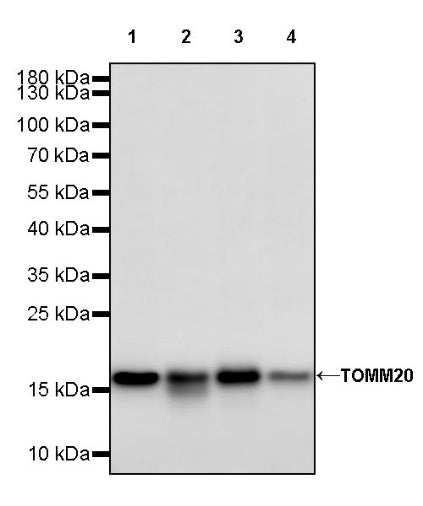

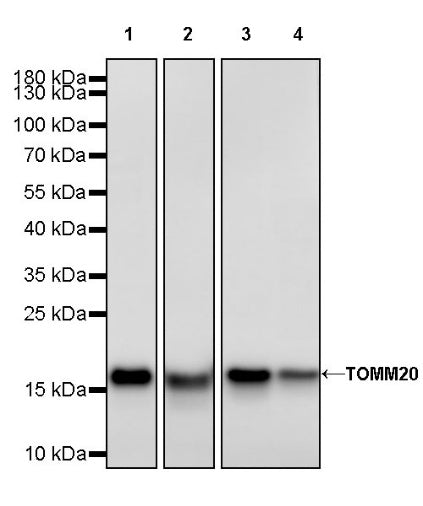

WB result of TOMM20 Recombinant Rabbit mAb
Primary antibody: TOMM20 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: NIH/3T3 whole cell lysate 20 µg
Lane 2: mouse kidney lysate 20 µg
Lane 3: mouse heart lysate 20 µg
Lane 4: mouse skeletal muscle lysate 20 µg
Secondary antibody: Goat Anti-rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 16 kDa
Observed MW: 16 kDa
WB result of TOMM20 Recombinant Rabbit mAb
Primary antibody: TOMM20 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: PC-12 whole cell lysate 20 µg
Lane 2: rat kidney lysate 20 µg
Lane 3: rat heart lysate 20 µg
Lane 4: rat skeletal muscle lysate 20 µg
Secondary antibody: Goat Anti-rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 16 kDa
Observed MW: 16 kDa
Immunohistochemistry
IHC shows positive staining in paraffin-embedded human kidney. Anti-TOMM20 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded human skeletal muscle. Anti-TOMM20 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.

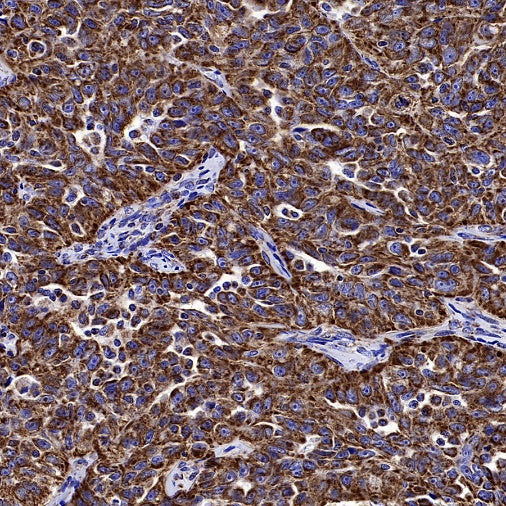

IHC shows positive staining in paraffin-embedded human endometrial cancer. Anti-TOMM20 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.

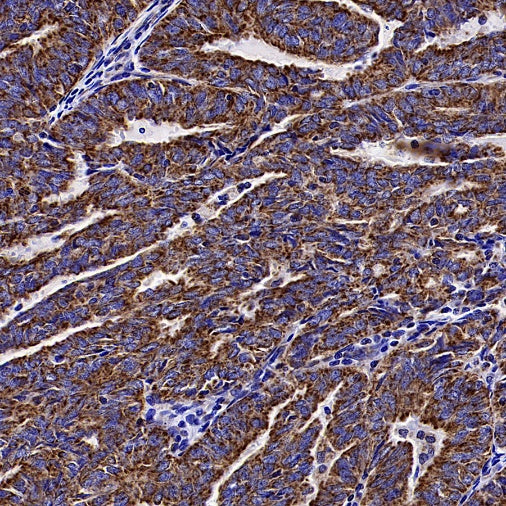

IHC shows positive staining in paraffin-embedded human ovarian cancer. Anti-TOMM20 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded mouse testis. Anti-TOMM20 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded rat cardiac muscle. Anti-TOMM20 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
Immunocytochemistry

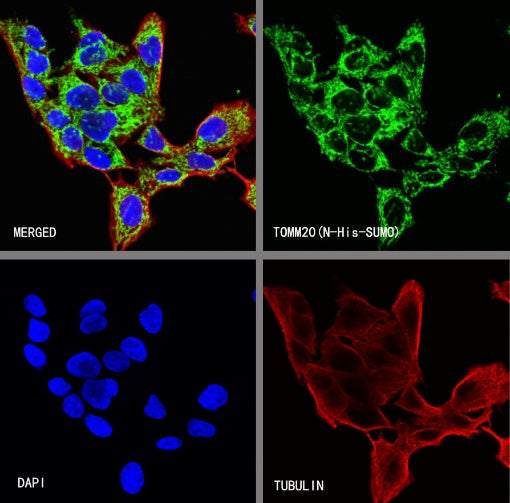

ICC shows positive staining in HepG2 cells. Anti-TOMM20 antibody was used at 1/500 dilution (Green) and incubated overnight at 4°C. Goat polyclonal Antibody to Rabbit IgG - H&L (Alexa Fluor® 488) was used as secondary antibody at 1/1000 dilution. The cells were fixed with 4% PFA and permeabilized with 0.1% PBS-Triton X-100. Nuclei were counterstained with DAPI (Blue). Counterstain with tubulin (Red).
ICC shows positive staining in RAW264.7 cells. Anti-TOMM20 antibody was used at 1/500 dilution (Green) and incubated overnight at 4°C. Goat polyclonal Antibody to Rabbit IgG - H&L (Alexa Fluor® 488) was used as secondary antibody at 1/1000 dilution. The cells were fixed with 4% PFA and permeabilized with 0.1% PBS-Triton X-100. Nuclei were counterstained with DAPI (Blue). Counterstain with tubulin (Red).
ICC shows positive staining in PC-12 cells. Anti-TOMM20 antibody was used at 1/500 dilution (Green) and incubated overnight at 4°C. Goat polyclonal Antibody to Rabbit IgG - H&L (Alexa Fluor® 488) was used as secondary antibody at 1/1000 dilution. The cells were fixed with 4% PFA and permeabilized with 0.1% PBS-Triton X-100. Nuclei were counterstained with DAPI (Blue). Counterstain with tubulin (Red).
