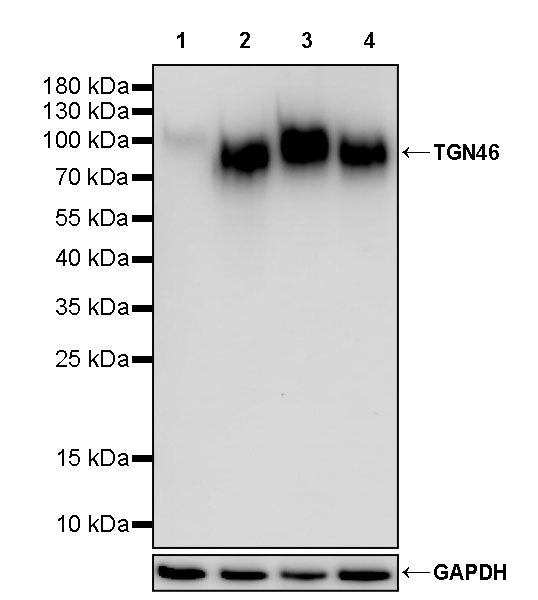

WB result of TGN46 Recombinant Rabbit mAb
Primary antibody: TGN46 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: HeLa whole cell lysate 20 µg
Lane 2: HepG2 whole cell lysate 20 µg
Lane 3: A549 whole cell lysate 20 µg
Lane 4: A172 whole cell lysate 20 µg
Low expression control: HeLa whole cell lysate
Secondary antibody: Goat Anti- rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 46 kDa
Observed MW: 75-100 kDa
TGN46 Recombinant Rabbit mAb (S-3514-47)
TGN46 Recombinant Rabbit mAb (S-3514-47)
Price:
Regular price
$100 USD
Regular price
Sale price
$100 USD
Unit price
per
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details
Product Details
Product Details
Product Specification
| Host | Rabbit |
| Antigen | TGN46 |
| Synonyms | Trans-Golgi network integral membrane protein 2; Trans-Golgi network glycoprotein 46 (TGN38 homolog; hTGN46); Trans-Golgi network glycoprotein 48 (hTGN48); Trans-Golgi network glycoprotein 51 (hTGN51); Trans-Golgi network protein 2Imported; TGN51; TGOLN2 |
| Immunogen | Recombinant Protein |
| Location | Endosome, Cell membrane |
| Accession | O43493 |
| Clone Number | S-3514-47 |
| Antibody Type | Recombinant mAb |
| Isotype | IgG |
| Application | WB, IHC-P, ICC |
| Reactivity | Hu |
| Positive Sample | HepG2, A549, A172 |
| Purification | Protein A |
| Concentration | 0.5 mg/ml |
| Conjugation | Unconjugated |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 40% Glycerol, 0.05% BSA, 0.03% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, -20 °C as supplied |
Dilution
| application | dilution | species |
| WB | 1:1000 | Hu |
| IHC-P | 1:1000 | Hu |
| ICC | 1:500 | Hu |
Background
TGN46 (Trans-Golgi Network protein 46 kDa) is a type I integral membrane protein predominantly localized to the trans-Golgi network (TGN), where it functions as a critical component of the protein sorting and vesicular trafficking machinery. This 46-kilodalton protein features a large N-terminal lumenal domain containing multiple N-glycosylation sites, a single transmembrane helix, and a short C-terminal cytoplasmic tail harboring sorting signals—including tyrosine-based motifs (YXXΦ)—that facilitate its interaction with adaptor protein complexes (AP-1 and AP-2) to regulate cargo selection and vesicle formation. TGN46 serves as a widely used marker for the TGN in immunofluorescence and cell biology studies, and plays essential roles in maintaining TGN structure, recycling mannose-6-phosphate receptors (MPRs) between endosomes and the Golgi, and sorting lysosomal enzymes into clathrin-coated vesicles destined for late endosomes. Its dynamic cycling between the TGN, endosomes, and the plasma membrane—mediated by phosphorylation-dependent conformational changes and interactions with various coat proteins—underscores its significance in secretory and endocytic pathway regulation, making it indispensable for proper cellular homeostasis and protein trafficking fidelity.
Western Blot
Immunohistochemistry

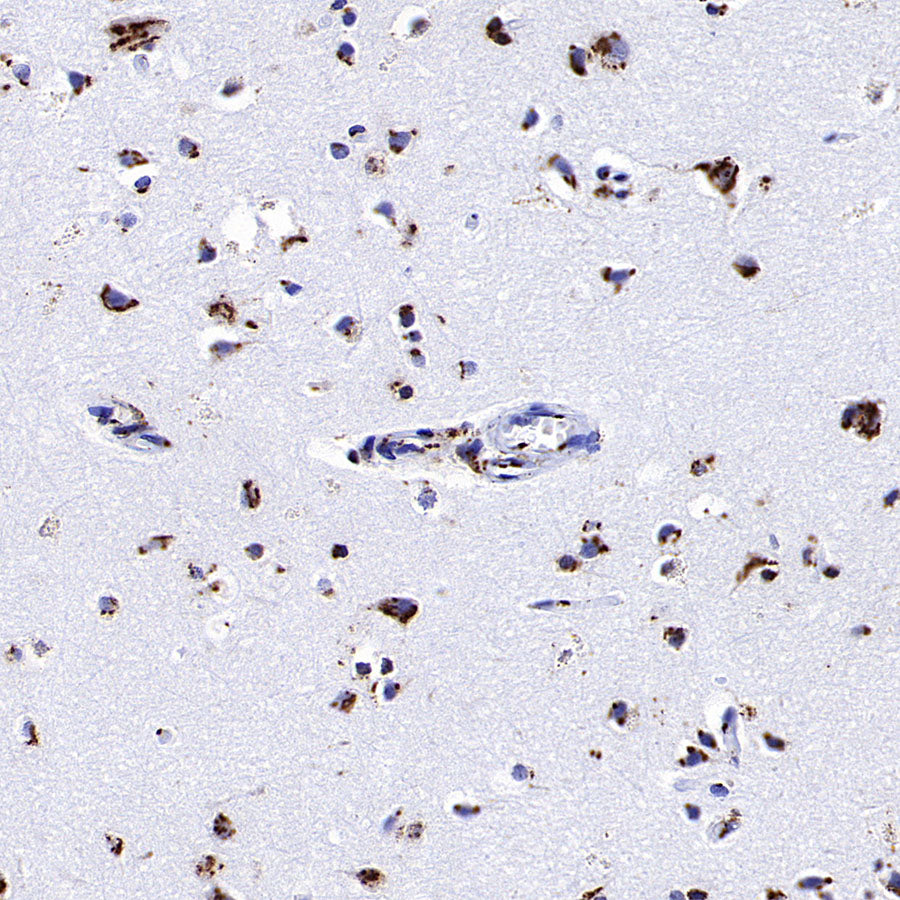

IHC shows positive staining in paraffin-embedded human cerebral cortex. Anti-TGN46 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded human colon. Anti-TGN46 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded human kidney. Anti-TGN46 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.

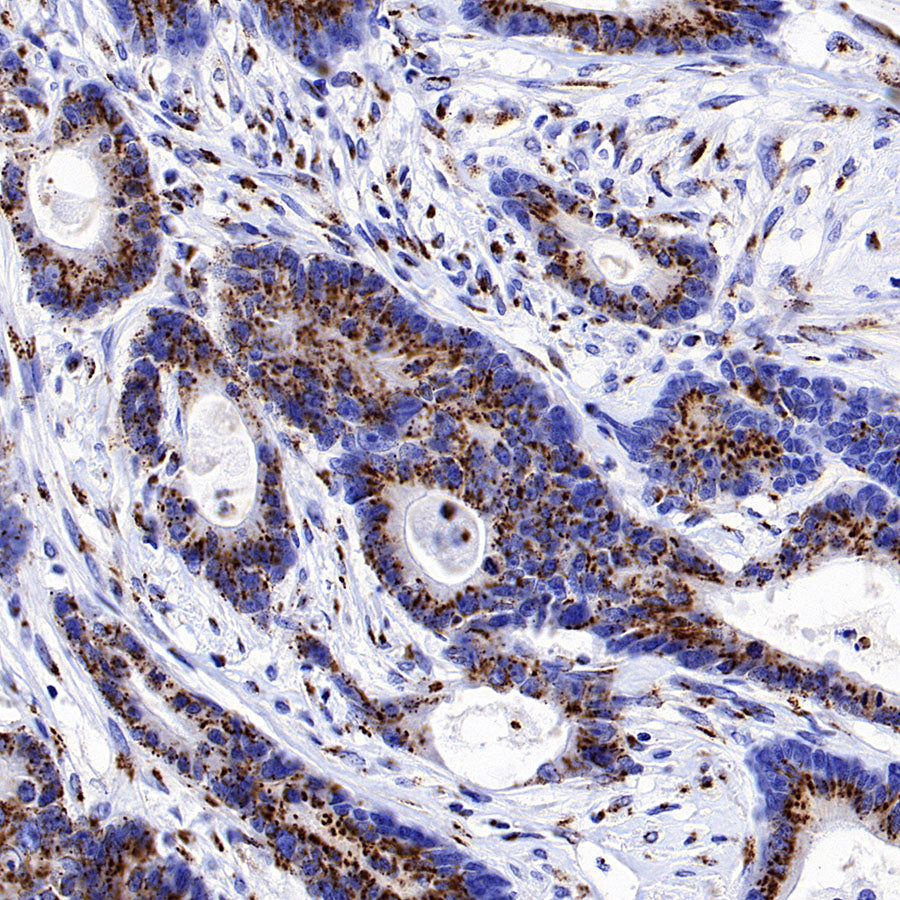

IHC shows positive staining in paraffin-embedded human colon cancer. Anti-TGN46 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded human lung cancer. Anti-TGN46 antibody was used at 1/1000 dilution, followed by a HRP Polymer for Mouse & Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
Immunocytochemistry

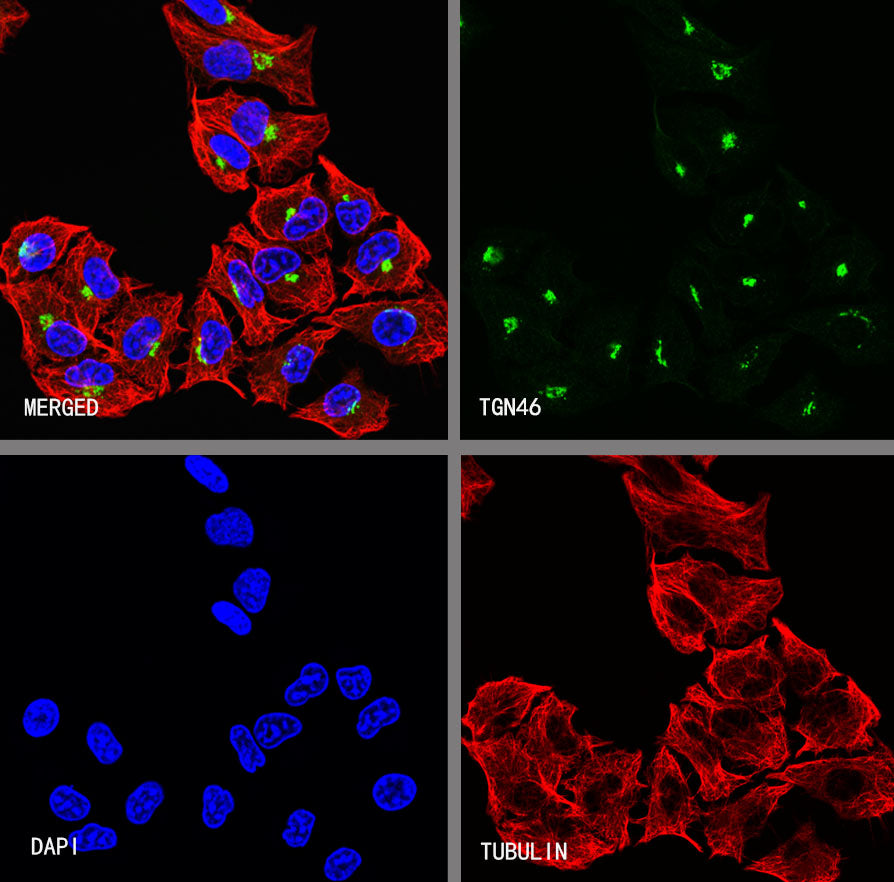

ICC shows positive staining in A549 cells. Anti-TGN46 antibody was used at 1/500 dilution (Green) and incubated overnight at 4°C. Goat polyclonal Antibody to Rabbit IgG - H&L (Alexa Fluor® 488) was used as secondary antibody at 1/1000 dilution. The cells were fixed with 100% ice-cold methanol and permeabilized with 0.1% PBS-Triton X-100. Nuclei were counterstained with DAPI (Blue). Counterstain with tubulin (Red).
