WB result of ROBO2 Recombinant Rabbit mAb
Primary antibody: ROBO2 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: mouse adipose lysate 20 μg
Lane 2: mouse brain lysate 20 μg
Negative control: mouse adipose lysate
Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 160 kDa
Observed MW: 160, 200 kDa
Product Details
Product Details
Product Specification
| Host | Rabbit |
| Antigen | ROBO2 |
| Immunogen | Synthetic Peptide |
| Location | Membrane |
| Accession | Q7TPD3 |
| Clone Number | S-4563-43 |
| Antibody Type | Recombinant mAb |
| Isotype | IgG |
| Application | WB, IHC-P |
| Reactivity | Ms, Rt |
| Positive Sample | Mouse brain, rat brain |
| Predicted Reactivity | Hu |
| Purification | Protein A |
| Concentration | 2 mg/ml |
| Conjugation | Unconjugated |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 40% Glycerol, 0.05% BSA, 0.02% sodium azide |
| Stability & Storage | 12 months from date of receipt / reconstitution, -20 °C as supplied |
Dilution
| application | dilution | species |
| WB | 1:1000 | Ms, Rt |
| IHC-P | 1:800 | Ms |
Background
ROBO2 (Roundabout homolog 2) is a single-pass type I transmembrane protein encoded by the ROBO2 gene located on human chromosome 3, containing approximately 1,420 amino acids with a molecular weight of about 155.8 kDa. As an important member of the Roundabout family of axon guidance receptors, ROBO2 has a typical extracellular domain organization comprising five immunoglobulin-like domains (D1-D5) and three fibronectin type III domains (D6-D8), followed by a single transmembrane region and a largely unstructured intracellular segment. The function of ROBO2 is tightly controlled by an autoinhibitory mechanism: its extracellular D4 domain mediates cis-dimerization, but in the inactive state the dimerization interface of D4 is blocked intramolecularly in cis, while trans interactions further reinforce this blocked conformation. When the secreted ligand Slit binds ROBO2, this autoinhibition is relieved, D4-mediated dimerization occurs, and this in turn triggers conformational changes in the intracellular segment and recruits downstream effector molecules (such as SRGAP, Abl, and SOS) to transduce signals. Functionally, ROBO2 primarily acts as a repulsive receptor for axon guidance, responsible for the guidance of dorsal funiculus axons and for preventing neuronal cell bodies from migrating away from the floor plate region. In addition, ROBO2 participates in regulating the proliferation and differentiation of neural progenitor cells through crosstalk with the Notch pathway, and plays roles in the development of organs such as the lung, kidney, and heart.
Western Blot

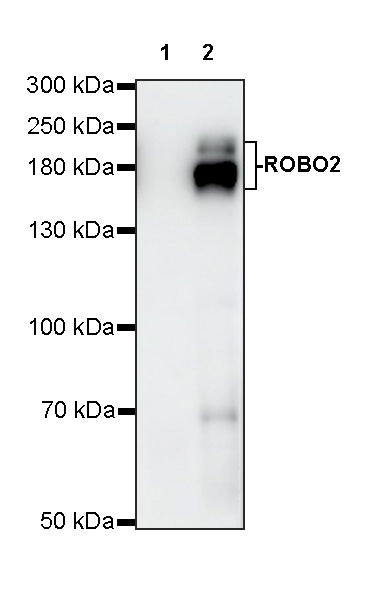

WB result of ROBO2 Recombinant Rabbit mAb
Primary antibody: ROBO2 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: rat adipose lysate 20 μg
Lane 2: rat brain lysate 20 μg
Negative control: rat adipose lysate
Secondary antibody: Goat Anti-Rabbit IgG (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 160 kDa
Observed MW: 160, 200 kDa
Immunohistochemistry
IHC shows positive staining in paraffin-embedded mouse brain. Anti-ROBO2 antibody was used at 1/800 dilution, followed by a HRP Polymer for Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded mouse kidney. Anti-ROBO2 antibody was used at 1/800 dilution, followed by a HRP Polymer for Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
