PE-Cy7 Mouse Anti-Human CD223 Antibody (S-R661)

PE-Cy7 Mouse Anti-Human CD223 Antibody (S-R661)

Catalog Number: S0B80982 Application: FCM Reactivity: Hu Conjugation: PE-Cy7 Brand: Starter
Price:
Regular price $205 USD
Regular price Sale price $205 USD
Size:

For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details

Product Details

Product Specification


Host Mouse
Antigen CD223
Location Cell membrane
Accession P18627
Clone Number S-R661
Antibody Type Mouse mAb
Isotype Control S0B80046
Application FCM
Reactivity Hu
Positive Sample human CD3, CD28 Antibody treated human PBMC
Purification Protein G
Concentration 0.2 mg/ml
Conjugation PE-Cy7
Physical Appearance Liquid
Storage Buffer

PBS, 1% BSA, 0.09% sodium azide

Stability & Storage

12 months from date of receipt / reconstitution, 2 to 8 °C as supplied

Dilution


application dilution species
FCM 5μl per million cells in 100μl volume Hu

Background

CD223, also known as LAG-3 (lymphocyte-activation gene 3), is a 70 kDa type I transmembrane glycoprotein expressed on activated CD4 and CD8 T cells, regulatory T cells, NK cells and plasmacytoid dendritic cells; it contains four extracellular Ig-like domains that bind MHC class II with roughly 1 000-fold higher affinity than CD4, a connecting peptide cleaved by ADAM10/17 to release soluble LAG-3, and a cytoplasmic tail with an EP repeat and an ITIM-like motif that delivers inhibitory signals by displacing LCK from the CD4/CD8 coreceptor, thereby attenuating TCR signaling, limiting T-cell proliferation, promoting exhaustion in chronic viral infections and tumors, and enhancing the suppressive function of Tregs, making it the third clinically targeted immune checkpoint receptor after CTLA-4 and PD-1.


FC

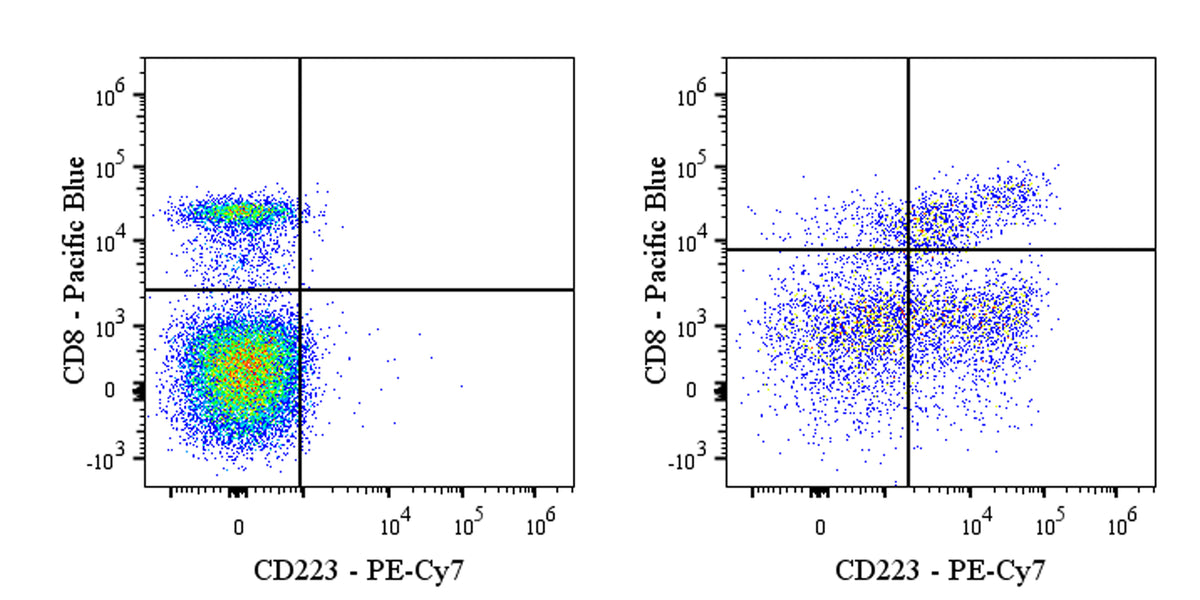

Flow cytometric analysis of Human CD223 expression on human CD3/CD28 Antibody treated Human PBMCs. Human PBMCs treated 72 hours with anti-human CD3/CD28 Antibody then stained with Pacific Blue Mouse Anti-Human CD8 (S0B8156) and and either PE-Cy7 Mouse IgG1, κ Isotype Control (left panel) or SDT PE-Cy7 Mouse Anti-Human CD223 Antibody (right panel) at 5 μl/test treated with True-Stain Monocyte Blocker™. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.
