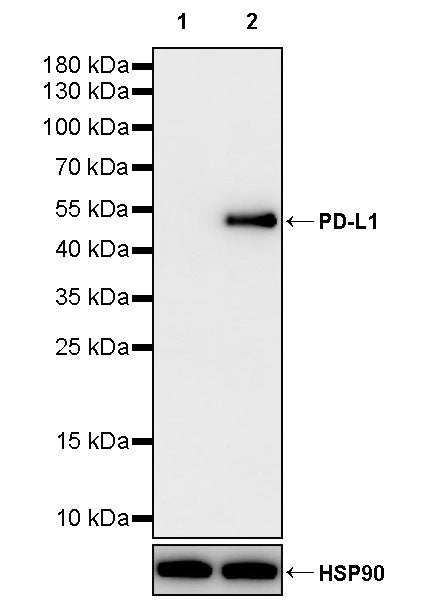

WB result of PD-L1 Recombinant Rabbit mAb
Primary antibody: PD-L1 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: untreated B16-F0 whole cell lysate 20 µg
Lane 2: B16-F0 treated with 100 ng/ml mouse Interferon-γ for 24 hours whole cell lysate 20 µg
Secondary antibody: Goat Anti- rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 33 kDa
Observed MW: 52 kDa
This blot was developed with high sensitivity substrate
Product Details
Product Details
Product Specification
| Host | Rabbit |
| Antigen | PD-L1 |
| Synonyms | Programmed cell death 1 ligand 1; PDCD1 ligand 1; Programmed death ligand 1; B7 homolog 1 (B7-H1); B7h1; Pdcd1l1; Pdcd1lg1; Pdl1; Cd274 |
| Immunogen | Synthetic Peptide |
| Location | Cell membrane, Endosome |
| Accession | Q9EP73 |
| Clone Number | S-3933-78 |
| Antibody Type | Recombinant mAb |
| Isotype | IgG |
| Application | WB, IHC-P |
| Reactivity | Ms |
| Positive Sample | B16-F0 treated with 100 ng/ml mouse Interferon-γ for 24 hours |
| Purification | Protein A |
| Concentration | 0.5 mg/ml |
| Conjugation | Unconjugated |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 40% Glycerol, 0.05% BSA, 0.02% sodium azide |
| Stability & Storage | 12 months from date of receipt / reconstitution, -20 °C as supplied |
Dilution
| application | dilution | species |
| WB | 1:1000 | Ms |
| IHC-P | 1:250 | Ms |
Background
PD-L1 (Programmed Death-Ligand 1, CD274, B7-H1) is a ~33 kDa type I trans-membrane glycoprotein that belongs to the B7 family of immune co-signaling molecules; it is expressed constitutively at low levels on resting T, B, and myeloid-lineage cells and is strongly up-regulated by pro-inflammatory cytokines such as IFN-γ, TNF-α, IL-4, GM-CSF and by oncogenic signaling pathways (EGFR, ALK, KRAS, PI3K-AKT, STAT3, HIF-1α, NF-κB) in a wide spectrum of epithelial, hematopoietic, and mesenchymal tumors. Upon engagement with its cognate inhibitory receptor PD-1 (CD279) expressed on activated T, B, and NK cells, PD-L1 delivers a negative signal that recruits SHP-1/2 phosphatases to the immunological synapse, thereby blocking PI3K-AKT and ZAP70 signaling, suppressing T-cell proliferation, cytokine production (IL-2, IFN-γ, TNF-α, granzyme B), and survival while promoting the induction and maintenance of peripheral tolerance, tissue-resident T-cell exhaustion, and Treg expansion. Clinically, PD-L1 protein expression—detected by FDA-approved 22C3, 28-8, SP142, or SP263 IHC assays—is a predictive biomarker for anti-PD-1/PD-L1 checkpoint inhibitors used across more than 20 cancer types, with high membranous tumor and/or immune cell staining (≥1–50 % cutoff depending on tumor type) correlating with improved objective response rates and progression-free survival; conversely, PD-L1 overexpression is itself an independent adverse prognostic factor in untreated solid tumors, reflecting immune evasion and aggressive biology.
Western Blot
Immunohistochemistry
IHC shows positive staining in paraffin-embedded mouse spleen. Anti-PD-L1 antibody was used at 1/250 dilution, followed by a HRP Polymer for Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
IHC shows positive staining in paraffin-embedded mouse thymus. Anti-PD-L1 antibody was used at 1/250 dilution, followed by a HRP Polymer for Rabbit IgG (ready to use). Counterstained with hematoxylin. Heat mediated antigen retrieval with Tris/EDTA buffer pH9.0 was performed before commencing with IHC staining protocol.
