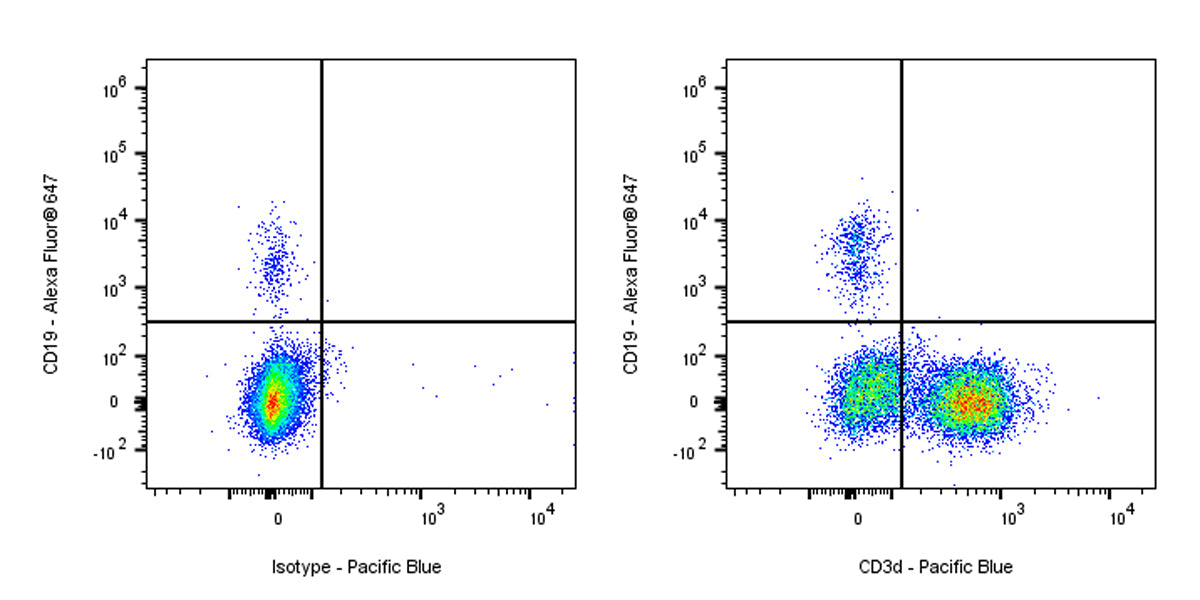

Flow cytometric analysis of Human CD3d expression on human peripheral blood leukocytes. Human peripheral blood leukocytes were stained with Alexa Fluor® 647 Mouse Anti-Human CD19 antibody and either Pacific Blue Mouse IgG2a Isotype Control (Left panel) or SDT Pacific Blue Mouse Anti-Human CD3d Antibody (Right panel) at 5 μl/test. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.
Product Details
Product Details
Product Specification
| Host | Mouse |
| Antigen | CD3d |
| Synonyms | T-cell surface glycoprotein CD3 delta chain; T-cell receptor T3 delta chain; T3D; CD3D |
| Location | Cell membrane |
| Accession | P04234 |
| Clone Number | S-R565 |
| Antibody Type | Mouse mAb |
| Isotype | IgG2a |
| Application | FCM |
| Reactivity | Hu |
| Positive Sample | Human peripheral blood leukocytes |
| Purification | Protein A |
| Concentration | 0.2 mg/ml |
| Conjugation | Pacific Blue |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 1% BSA, 0.3% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied |
Dilution
| application | dilution | species |
| FCM | 5μl per million cells in 100μl volume | Hu |
Background
CD3d (CD3-delta) is a 19 kDa transmembrane glycoprotein that together with CD3ε, CD3γ and CD3ζ forms the CD3 signaling complex, which is tightly associated with the T-cell receptor (TCR) on thymocytes and mature T lymphocytes; upon antigen/MHC engagement the CD3 chains become phosphorylated on their cytoplasmic ITAMs by Lck and Fyn, initiating the cascade that leads to T-cell activation, proliferation and differentiation, while during thymic development CD3d is indispensable for correct assembly and surface expression of the pre-TCR/TCR complex and thus for positive selection of CD4⁺ and CD8⁺ T cells.
FC
