KCNH2 Recombinant Rabbit mAb (S-3727-63)

KCNH2 Recombinant Rabbit mAb (S-3727-63)

Catalog Number: S0B60057 Application: WB Reactivity: Hu, Ms Conjugation: Unconjugated Brand: Starter
Price:
Regular price $100 USD
Regular price Sale price $100 USD
Size:

For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details

Product Details

Product Specification


Host Rabbit
Antigen KCNH2
Synonyms Voltage-gated inwardly rectifying potassium channel KCNH2; Eag homolog; Ether-a-go-go-related gene potassium channel 1 (ERG-1; Eag-related protein 1; Ether-a-go-go-related protein 1; H-ERG; hERG-1; hERG1); Potassium voltage-gated channel subfamily H member 2; Voltage-gated potassium channel subunit Kv11.1; ERG; ERG1; HERG
Immunogen Synthetic Peptide
Location Cell membrane
Accession Q12809
Clone Number S-3727-63
Antibody Type Recombinant mAb
Isotype IgG
Application WB
Reactivity Hu, Ms
Positive Sample K562, Jurkat, RAW264.7
Purification Protein A
Concentration 0.5 mg/ml
Conjugation Unconjugated
Physical Appearance Liquid
Storage Buffer

PBS, 40% Glycerol, 0.05% BSA, 0.02% sodium azide

Stability & Storage

12 months from date of receipt / reconstitution, -20 °C as supplied

Dilution


application dilution species
WB 1:1000 Hu, Ms

Background

KCNH2 is an important member of the voltage-gated potassium channel superfamily. It consists of six transmembrane domains (S1-S6) and a pore loop located between S5 and S6, with four subunits assembling to form a functional ion channel. This channel mediates the rapid delayed rectifier potassium current (IKr) in cardiomyocytes and is characterized by high sensitivity to drug blockade and a unique "inverted rectification" property—enhanced channel opening during the late phase of action potential repolarization and under resting conditions—thereby precisely regulating the duration of the cardiac action potential and the QT interval. Dysfunction of the KCNH2 channel is the core cause of hereditary long QT syndrome type 2 (LQT2), where mutations lead to impaired channel protein maturation, reduced membrane expression, or altered gating properties, resulting in decreased IKr current density and a significantly increased risk of torsade de pointes and sudden cardiac death. Beyond cardiac function, KCNH2 is also expressed in neural stem cells and various tumor cells, influencing cell proliferation and migration through regulation of the cell cycle, apoptosis, and calcium signaling. In clinical pharmacology, due to its lack of a selective drug-binding pocket, the KCNH2 channel is a primary target for drug-induced QT interval prolongation; unintended blockade of this channel by non-cardiovascular drugs (such as antihistamines and antibiotics) is a major reason for drug withdrawal from the market. Recent studies have revealed that the N-terminal eag domain of the KCNH2 channel contains a calmodulin binding site, and the Ca²⁺/calmodulin complex can directly regulate channel deactivation kinetics, uncovering its potential regulatory role in excitation-contraction coupling. Additionally, KCNH2 channel expression is downregulated in diabetic cardiomyopathy, closely associated with hyperglycemia-induced QT prolongation. In summary, as a key regulator of cardiac repolarization, the study of KCNH2 protein not only deepens our understanding of cardiac electrophysiology but also provides a core target for drug safety assessment and arrhythmia treatment.


Western Blot

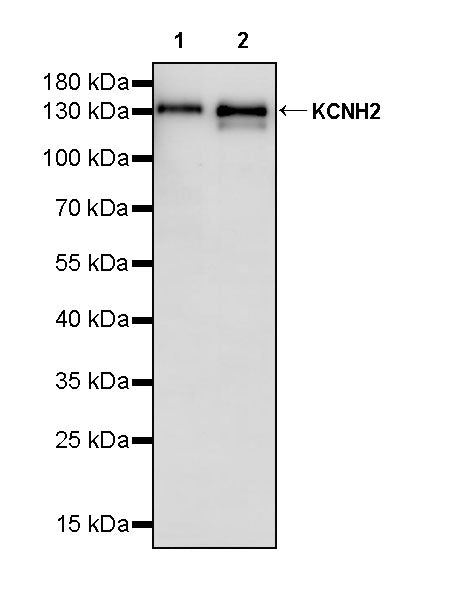

WB result of KCNH2 Recombinant Rabbit mAb
Primary antibody: KCNH2 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: 293F transfected with empty vector whole unboiled cell lysate 20 µg
Lane 2: 293F transfected with KCNH2-Myc-His fusion protein whole unboiled cell lysate 20 µg
Secondary antibody: Goat Anti- rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 127 kDa
Observed MW: 140 kDa

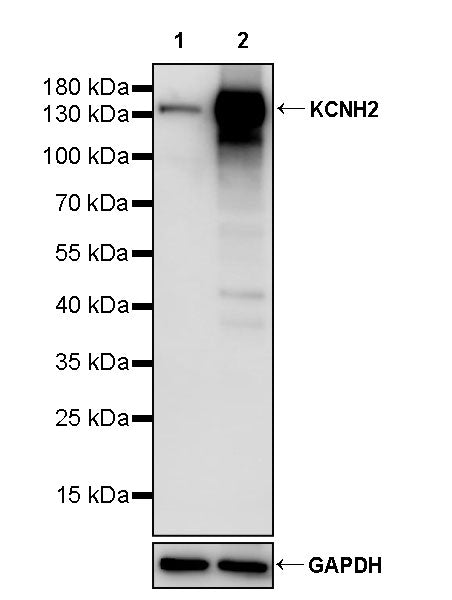

WB result of KCNH2 Recombinant Rabbit mAb
Primary antibody: KCNH2 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: K562 whole unboiled cell lysate 20 µg
Lane 2: Jurkat whole unboiled cell lysate 20 µg
Secondary antibody: Goat Anti- rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 127 kDa
Observed MW: 140 kDa

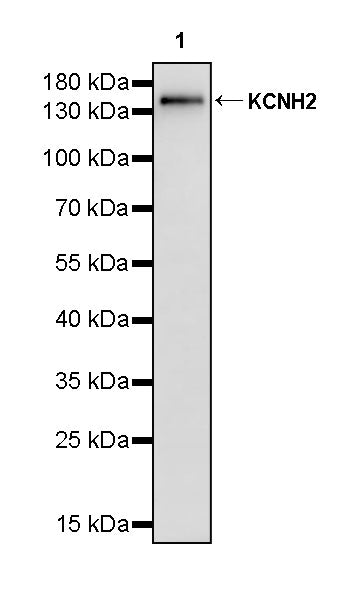

WB result of KCNH2 Recombinant Rabbit mAb
Primary antibody: KCNH2 Recombinant Rabbit mAb at 1/1000 dilution
Lane 1: RAW264.7 whole unboiled cell lysate 20 µg
Secondary antibody: Goat Anti- rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 127 kDa
Observed MW: 140 kDa
