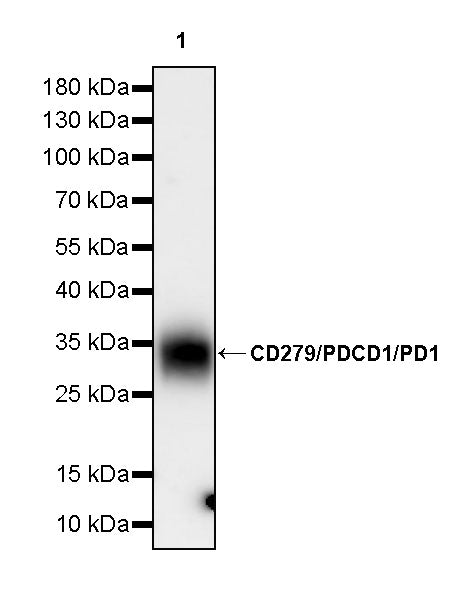

WB result of Invivo anti-Human CD279/PDCD1/PD1 Recombinant mAb (D12)
Primary antibody: Invivo anti-Human CD279/PDCD1/PD1 Recombinant mAb (D12) at 1/1000 dilution
Lane 1: PD-1 His Tag Protein, Human 1ug
Secondary antibody: Goat Anti- Human IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 31 kDa
Observed MW: 33 kDa
This blot was developed with high sensitivity substrate
Product Details
Product Details
Product Specification
| Host | Human |
| Antigen | CD279 (PD-1) |
| Synonyms | Programmed cell death protein 1; Protein PD-1; hPD-1 |
| Location | Cell membrane |
| Accession | Q15116 |
| Clone Number | D12 |
| Antibody Type | Recombinant mAb |
| Isotype | Human IgG1, κ |
| Isotype Control | S0B1261 |
| Application | ELISA, in vivo neutralization |
| Reactivity | Hu |
| Purification | Protein A |
| Concentration | 5 mg/ml |
| Purity | >95% (Determined by SDS-PAGE) |
| Endotoxin | <1EU/mg |
| Conjugation | Unconjugated |
| Physical Appearance | Liquid |
| Storage Buffer | PBS pH7.4, containing no preservative |
| Stability & Storage | 2 to 8 °C for 2 weeks under sterile conditions; |
Background
Programmed cell death protein 1 (PD-1), also known as CD279, is a type I transmembrane protein belonging to the CD28 immunoglobulin superfamily. It is encoded by the Pdcd1 gene and consists of 288 amino acids, including an extracellular IgV-like domain, a transmembrane region, and a cytoplasmic tail. PD-1 is expressed on activated T cells, B cells, macrophages, dendritic cells, and natural killer cells. Its cytoplasmic domain contains two tyrosine residues that form an immunoreceptor tyrosine-based inhibitory motif (ITIM) and an immunoreceptor tyrosine-based switch motif (ITSM), which play key roles in inhibiting T cell receptor signaling. PD-1 interacts with its ligands PD-L1 and PD-L2 to negatively regulate immune responses, contributing to peripheral tolerance and preventing autoimmune diseases. However, this inhibitory function can also suppress anti-tumor immunity, making PD-1 a promising target for cancer immunotherapy.
Western Blot
