G4S Linker Recombinant Rabbit mAb (Alexa Fluor® 555 Conjugate) (S-711-23)

G4S Linker Recombinant Rabbit mAb (Alexa Fluor® 555 Conjugate) (S-711-23)

Catalog Number: S0B1711 Application: FCM Reactivity: Other Conjugation: Alexa Fluor 555 Brand: Starter
Price:
Regular price $420.00 USD
Regular price Sale price $420.00 USD
Size:
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details

Product Details

Product Specification


Host Rabbit
Immunogen Synthetic Peptide
Clone Number S-711-23
Isotype lgG/Rabbit F(c)
Application FCM
Reactivity Species Independent
Research Area CAR-T
Concentration 20μg/ml
Conjugation Alexa Fluor® 555
Physical Appearance Liquid
Storage Buffer

PBS, 25% Glycerol, 1% BSA, 0.3% Proclin 300

Stability & Storage 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied.

Dilution


application dilution species
FCM 5 μl per million cells in 100μl volume Species independent

Background

G4S Linker is a commonly used flexible amino acid linker that plays a significant role in antibody expression and design. The sequence of this linker is (Gly-Gly-Gly-Gly-Ser)n, where "n" represents the number of repetitions. By altering the value of "n," the length of the GS amino acid chain can be optimized to achieve appropriate separation of antibody or protein domain functions or to maintain necessary inter-domain interactions. G4S Linker is typically used in single-chain variable fragments (scFv) and chimeric antigen receptors (CARs) to connect the variable heavy (VH) and variable light (VL) domains for the recognition of target antigens. The length of this linker is crucial for controlling the stability of scFv and the non-covalent association between the VH and VL domains. In CAR structures, the G4S Linker is located in the extracellular domain of the scFv, helping to maintain the structure and function of the CAR. Additionally, G4S Linker is used to detect CAR cells designed with G4S Linker, which offers high specificity and sensitivity.


FC

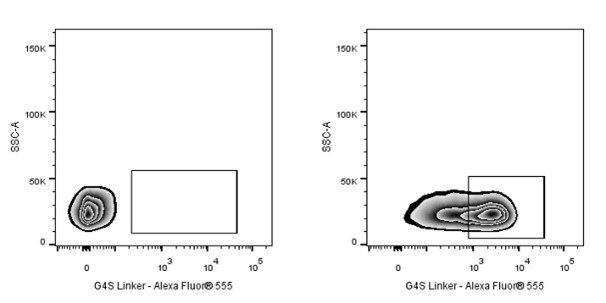

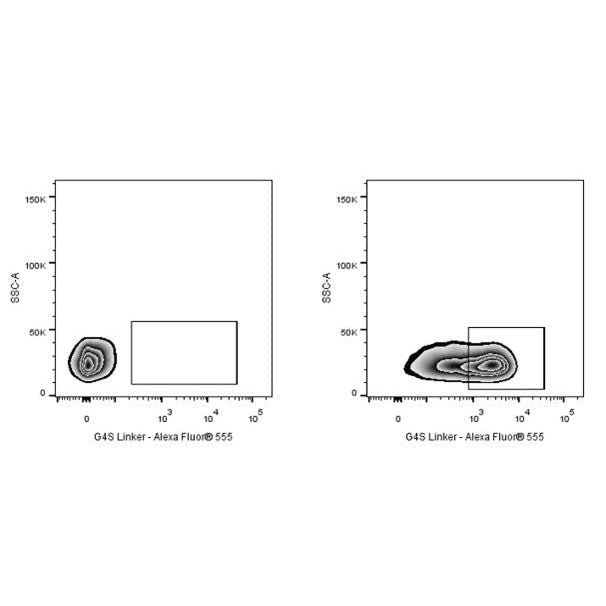

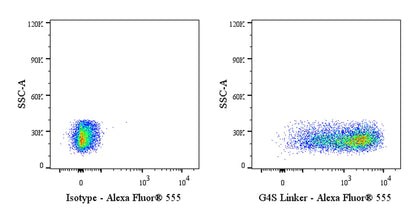

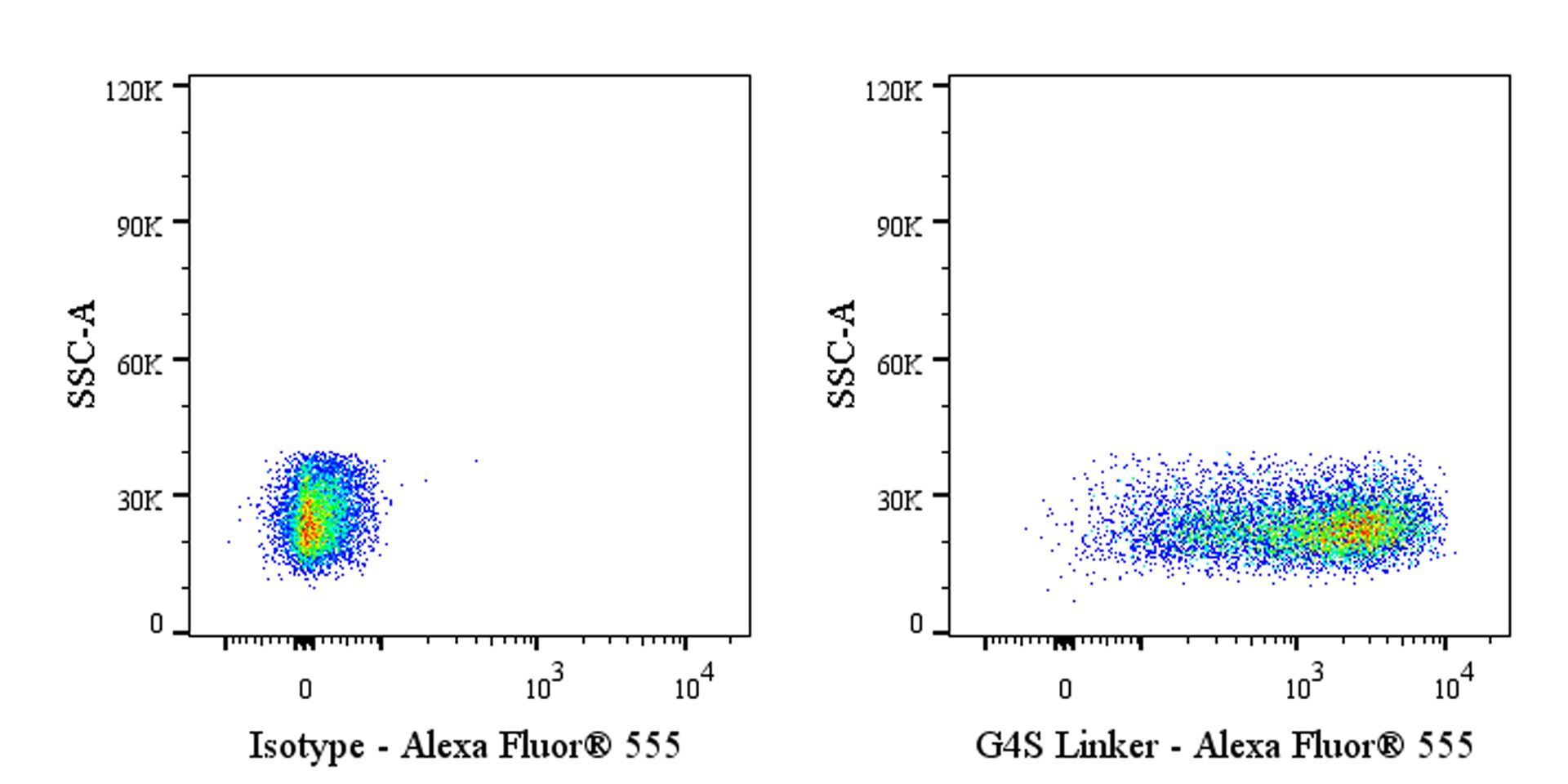

Flow cytometric analysis ScFv based CAR containing a G4S linker transfected 293T (Human embryonic kidney epithelial cell) (Right panel) or 293T (Left panel) was stained with SDT G4S Linker Recombinant Rabbit mAb (Alexa Fluor® 555 Conjugate) at 5 μl/test. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.

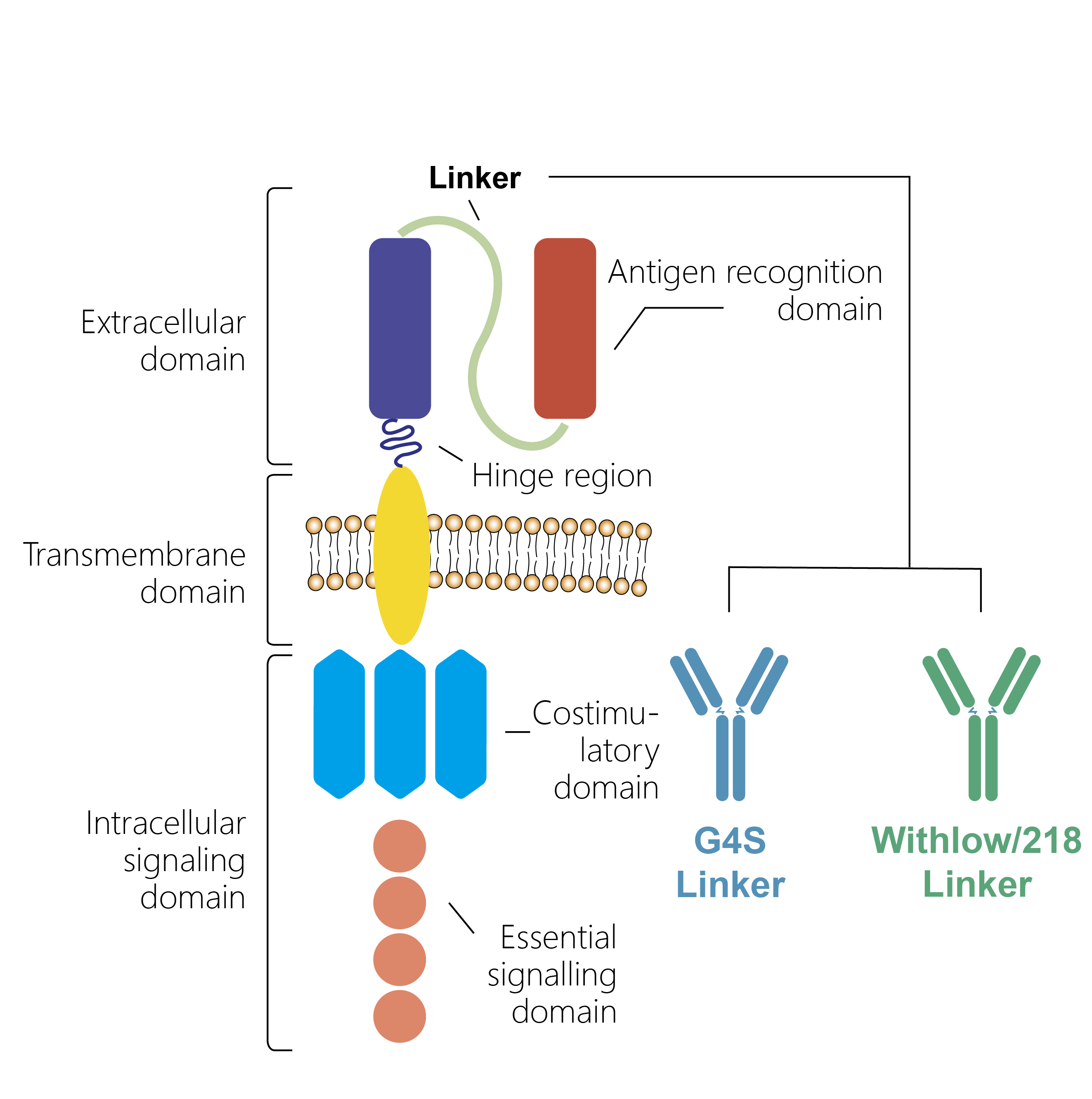

Schematic Diagram
