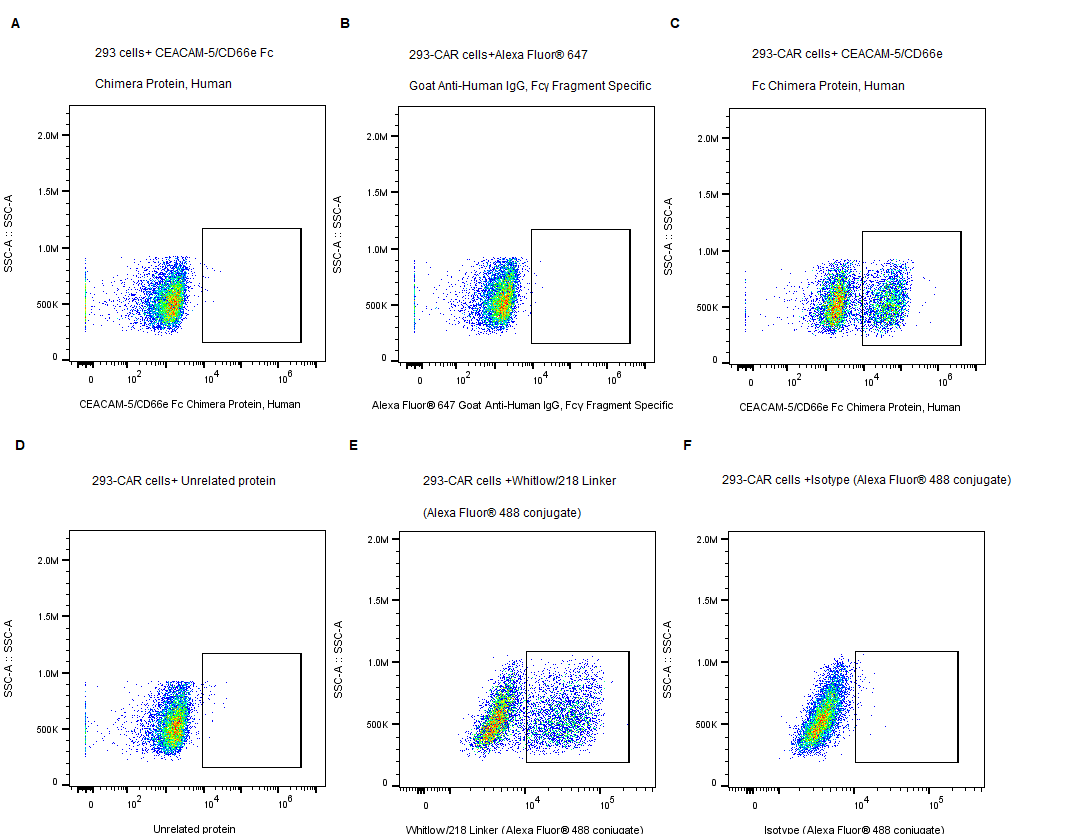

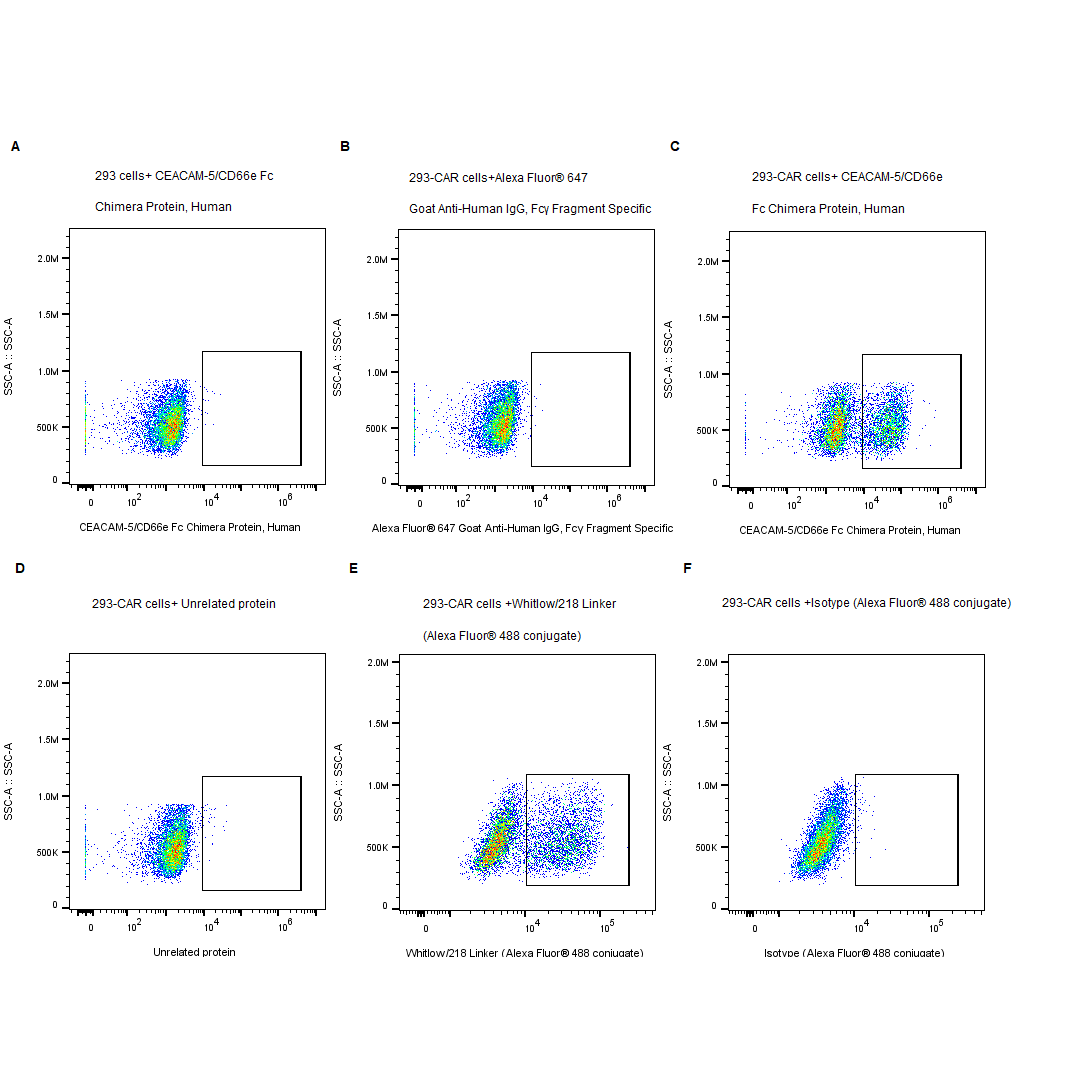

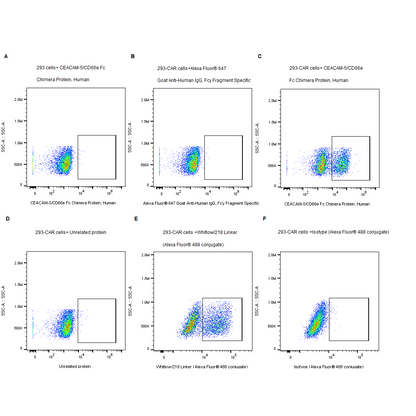

2e5 of transient transfected anti-CEACAM-5 ScFv CAR-293 cells were stained with 0.1ug CEACAM-5/CD66e Fc Chimera Protein, Human, (Cat. No. UA010368) and Goat Anti-Human IgG, Fcγ Fragment Specific and unrelated protein (Fig. C and B and D), and non-transfected 293 cells were used as a control (Fig. A). Alexa Fluor® 647 signal was used to evaluate the binding activity.
2e5 of transient transfected anti-CEACAM-5 ScFv CAR-293 cells were stained with isotype and Whitlow/218 Linker-Alexa Fluor® 488 (Fig. F and E). Alexa Fluor® 488 signal was used to evaluate the binding activity.
CEACAM-5/CD66e Fc Chimera Protein, Human
CEACAM-5/CD66e Fc Chimera Protein, Human
Price:
Regular price
$520.00 USD
Regular price
Sale price
$520.00 USD
Unit price
per
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details
Product Details
Product Details
Product Specification
| Species | Human |
| Synonyms | CEACAM-5, CD66e, CEA, Meconium antigen 100 |
| Accession | P06731 |
| Amino Acid Sequence | Lys35-Ala685, with C-terminal Human IgG1 Fc KLTIESTPFNVAEGKEVLLLVHNLPQHLFGYSWYKGERVDGNRQIIGYVIGTQQATPGPAYSGREIIYPNASLLIQNIIQNDTGFYTLHVIKSDLVNEEATGQFRVYPELPKPSISSNNSKPVEDKDAVAFTCEPETQDATYLWWVNNQSLPVSPRLQLSNGNRTLTLFNVTRNDTASYKCETQNPVSARRSDSVILNVLYGPDAPTISPLNTSYRSGENLNLSCHAASNPPAQYSWFVNGTFQQSTQELFIPNITVNNSGSYTCQAHNSDTGLNRTTVTTITVYAEPPKPFITSNNSNPVEDEDAVALTCEPEIQNTTYLWWVNNQSLPVSPRLQLSNDNRTLTLLSVTRNDVGPYECGIQNELSVDHSDPVILNVLYGPDDPTISPSYTYYRPGVNLSLSCHAASNPPAQYSWLIDGNIQQHTQELFISNITEKNSGLYTCQANNSASGHSRTTVKTITVSAELPKPSISSNNSKPVEDKDAVAFTCEPEAQNTTYLWWVNGQSLPVSPRLQLSNGNRTLTLFNVTRNDARAYVCGIQNSVSANRSDPVTLDVLYGPDTPIISPPDSSYLSGANLNLSCHSASNPSPQYSWRINGIPQQHTQVLFIAKITPNNNGTYACFVSNLATGRNNSIVKSITVSASGTSPGLSAIEGRMDPKSSDKTHTCPPCPAPELLGGPSVFLFPPKPKDTLMISRTPEVTCVVVDVSHEDPEVKFNWYVDGVEVHNAKTKPREEQYNSTYRVVSVLTVLHQDWLNGKEYKCKVSNKALPAPIEKTISKAKGQPREPQVYTLPPSRDELTKNQVSLTCLVKGFYPSDIAVEWESNGQPENNYKTTPPVLDSDGSFFLYSKLTVDKSRWQQGNVFSCSVMHEALHNHYTQKSLSLSPGK |
| Expression System | HEK293 |
| Molecular Weight | 125-150kDa |
| Purity | >95% by SDS-PAGE |
| Endotoxin | <0.1EU/μg |
| Conjugation | Unconjugated |
| Physical Appearance | Lyophilized Powder |
| Storage Buffer | PBS, pH7.4 |
| Reconstitution | Reconstitute at 0.1-1 mg/ml according to the size in ultrapure water after rapid centrifugation. |
| Stability & Storage |
· 12 months from date of receipt, lyophilized powder stored at -20 to -80℃. · 3 months, -20 to -80℃ under sterile conditions after reconstitution. · 1 week, 2 to 8℃ under sterile conditions after reconstitution. · Please avoid repeated freeze-thaw cycles. |
| Reference | 1、Hammarstrom S. (1999). The carcinoembryonic antigen (CEA) family: structures, suggested functions and expression in normal and malignant tissues. Seminars in Cancer Biology. 9(2): 67-81. |
Background
The human CEA family has been fully characterized. It comprises 29 genes of which 18 are expressed; 7 belonging to the CEA subgroup and 11 to the pregnancy specific glycoprotein subgroup. CEA is an important tumor marker for colorectal and some other carcinomas. The CEA subgroup members are cell membrane associated and show a complex expression pattern in normal and cancerous tissues with notably CEA showing a selective epithelial expression. Several CEA subgroup members possess cell adhesion properties and the primordial member, biliary glycoprotein, seems to function in signal transduction or regulation of signal transduction possibly in association with other CEA sub-family members.
FC

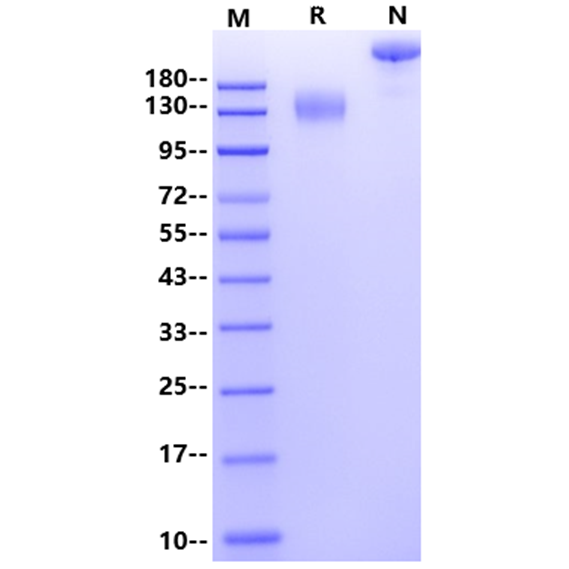

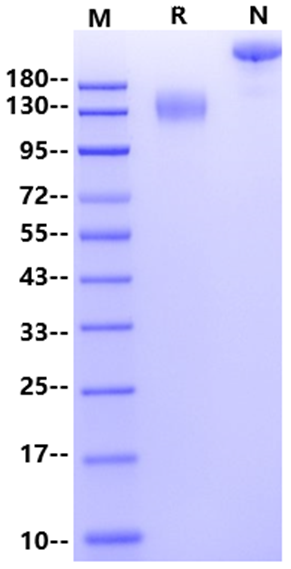

SDS-PAGE
1μg (R: reducing conditions, N: non-reducing conditions).
ELISA

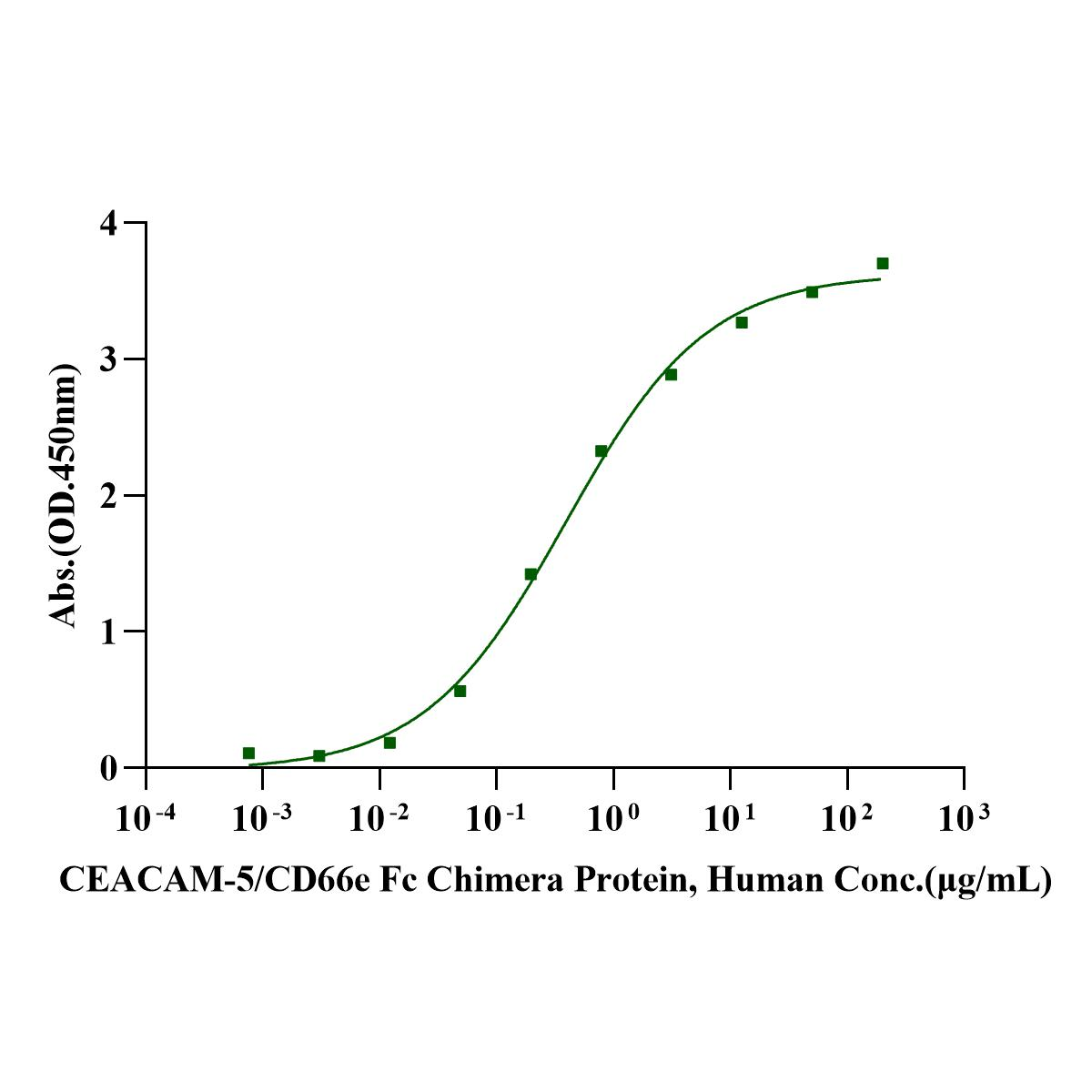

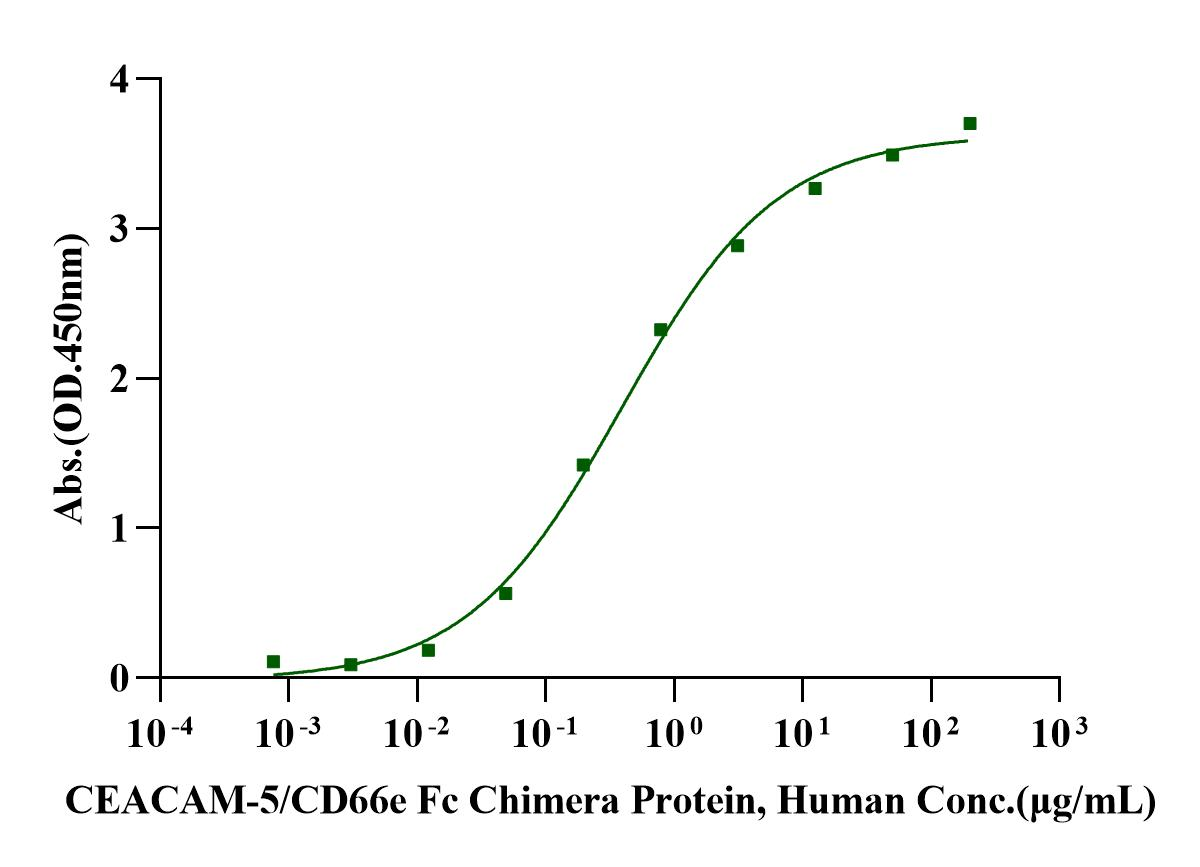

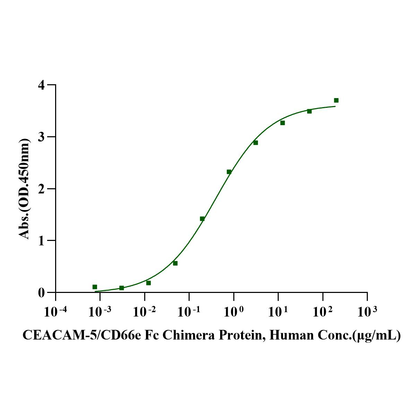

Immobilized CEACAM-1/CD66a His Tag, Human (Cat. No. UA010389) at 2.0μg/mL (100μL/well) can bind CEACAM-5/CD66e Fc Chimera, Human (Cat. No. UA010368) with EC50 of 0.21-0.29μg/mL .

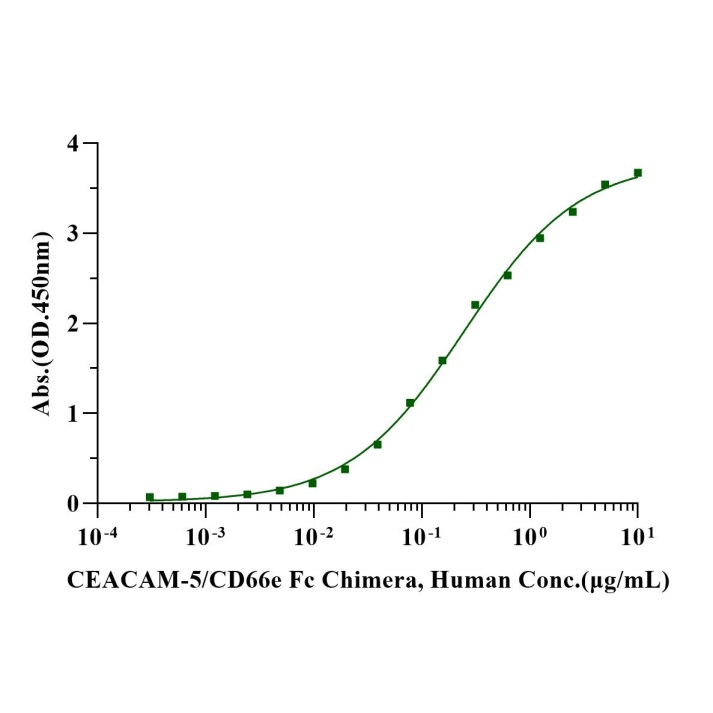

Immobilized Biotinylated CEACAM-1/CD66a His&Avi Tag Protein, Human (Cat. No. UA010836) at 2.0μg/mL (100μL/well) on Streptavidin precoated (0.5μg/well) plate, can bind CEACAM-5/CD66e Fc Chimera Protein, Human (Cat. No. UA010368) with EC50 of 27.82-55.73ng/mL.
