CD3E&CD3G Heterodimer, Fc, His Tag&Fc, Flag Tag Protein, Mouse

CD3E&CD3G Heterodimer, Fc, His Tag&Fc, Flag Tag Protein, Mouse

Catalog Number: UA016047 Brand: UA BIOSCIENCE
Price:
Regular price $215 USD
Regular price Sale price $215 USD
Size:

For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details

Product Details

Product Specification


Species Mouse
Synonyms CD3E&CD3G Heterodimer
Accession P22646(CD3E)、P11942(CD3G)
Amino Acid Sequence

Asp 23 - Asp 108 (CD3E) with hIgG1 Fc Tag at the C-Terminus, followed by His Tag
Gln 23 - Ser 116 (CD3G) with hIgG1 Fc Tag at the C-Terminus, followed by Flag Tag

Expression System HEK293
Molecular Weight

55-70kDa (Reducing)

Purity >90% by SDS-PAGE & HPLC
Conjugation Unconjugated
Tag His Tag, Human IgG1 Fc
Physical Appearance Lyophilized powder
Storage Buffer

PBS, pH7.4, 5% trehalose

Reconstitution

Reconstitute at 0.1-1 mg/ml according to the size in ultrapure water after rapid centrifugation.

Stability & Storage

· 12 months from date of receipt, lyophilized powder stored at -20 to -80℃.
· 3 months, -20 to -80℃ under sterile conditions after reconstitution.
· 1 week, 2 to 8℃ under sterile conditions after reconstitution.
· Please avoid repeated freeze-thaw cycles.

Reference

1. Sun, Z. J., et al. (2001). Mechanisms contributing to T cell receptor signaling and assembly revealed by the solution structure of a heterodimeric complex of the T cell receptor ζ and ε subunits. Nature Immunology, 2(3), 245-251.
2. Kuhns, M. S., Davis, M. M., & Garcia, K. C. (2006). Deconstructing the form and function of the TCR/CD3 complex. Immunity, 24(2), 133-139.
3. Call, M. E., Pyrdol, J., Wiedmann, M., & Wucherpfennig, K. W. (2002). The organizing principle in the formation of the T cell receptor-CD3 complex. Cell, 111(7), 967-979.

Background

CD3ε and CD3γ are two essential and homologous subunits of the T cell receptor (TCR) complex. They are type I transmembrane glycoproteins belonging to the immunoglobulin superfamily. Unlike the variable TCRαβ or TCRγδ chains that recognize antigens, CD3ε and CD3γ, along with CD3δ and the ζ-chain homodimer, form the invariant CD3 signaling module.

These subunits exist primarily as a CD3εγ heterodimer on the cell surface. Their primary function is to mediate signal transduction from the engaged TCR to the T cell interior. Each subunit contains three immunoreceptor tyrosine-based activation motifs (ITAMs) in their cytoplasmic tails. Upon TCR-pMHC engagement, these ITAMs are phosphorylated by Src-family kinases, initiating a downstream cascade that leads to T cell activation, proliferation, and differentiation.

Structurally, the CD3εγ heterodimer plays a critical role in the assembly, surface expression, and conformational stability of the TCR complex. Their extracellular immunoglobulin domains interact with the TCRαβ constant regions, while their unique transmembrane charged residues are crucial for interactions within the complete TCR-CD3 assembly. CD3γ is particularly notable for having a conserved di-leucine-based motif in its cytoplasmic tail that can mediate TCR-CD3 complex internalization and downregulation, a key mechanism for modulating T cell responses. Defects in CD3γ are a known cause of severe combined immunodeficiency (SCID). The CD3εγ pair is also a stable surface marker for T cells.

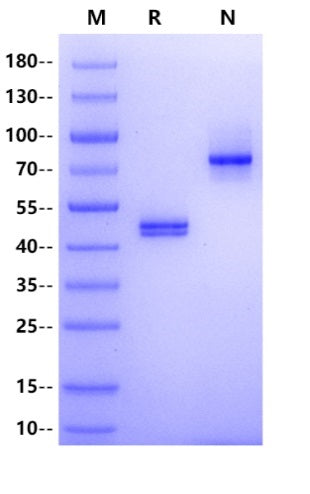

SDS-PAGE

2μg (R: reducing condition, N: non-reducing condition).

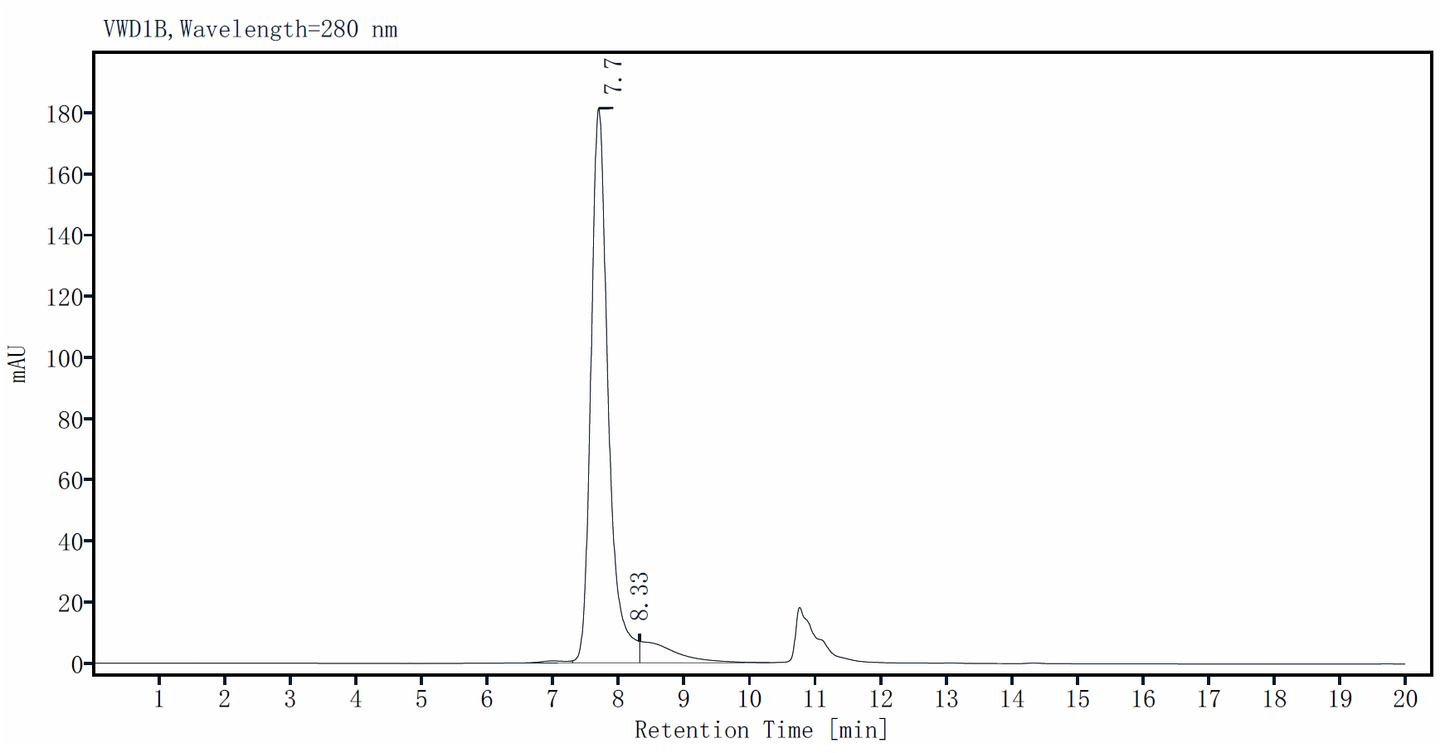

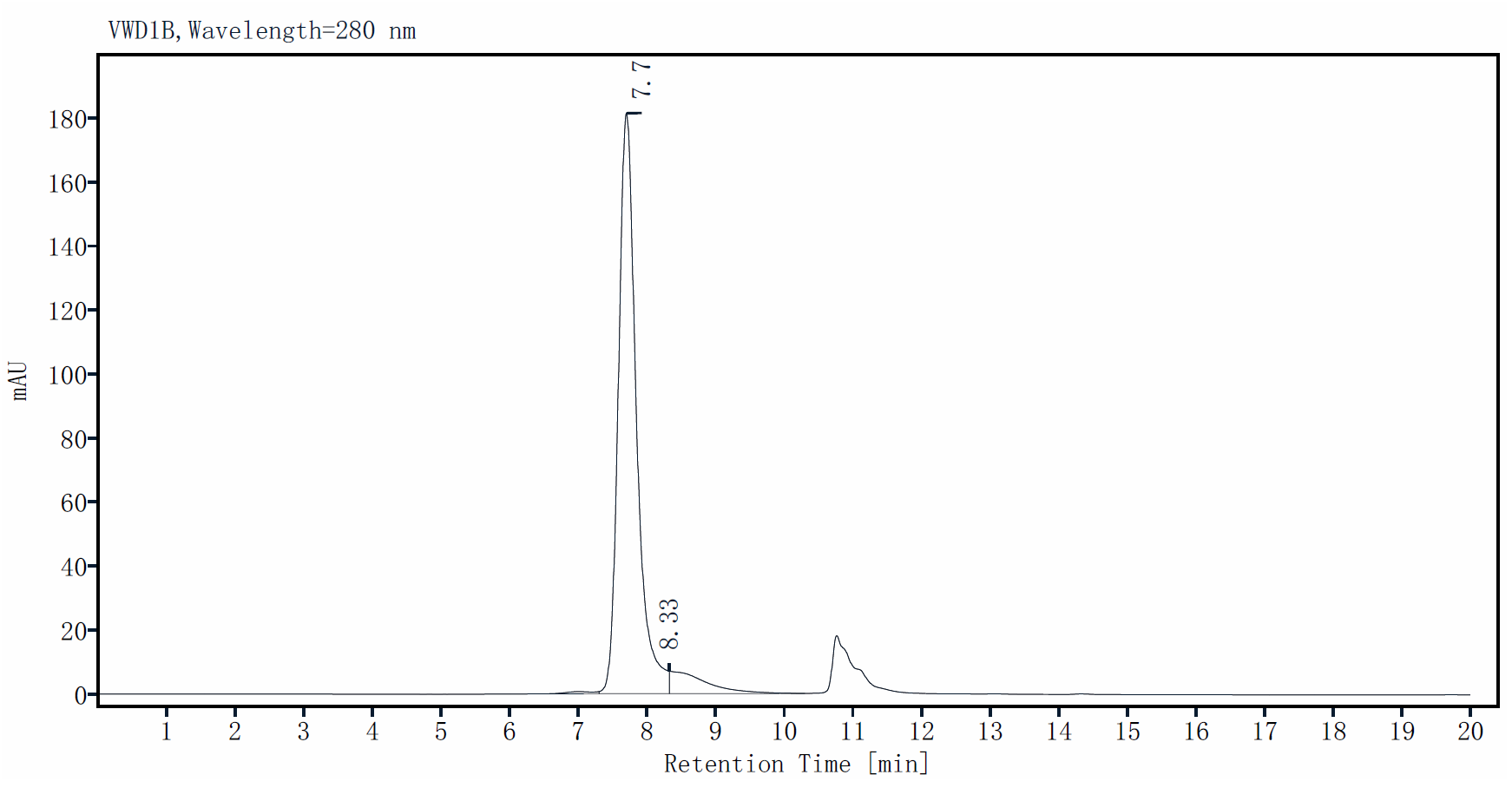

SEC-HPLC

The purity of CD3E&CD3G Heterodimer, Fc, His Tag&Fc, Flag Tag Protein, Mouse is more than 90% determined by SEC-HPLC.

ELISA

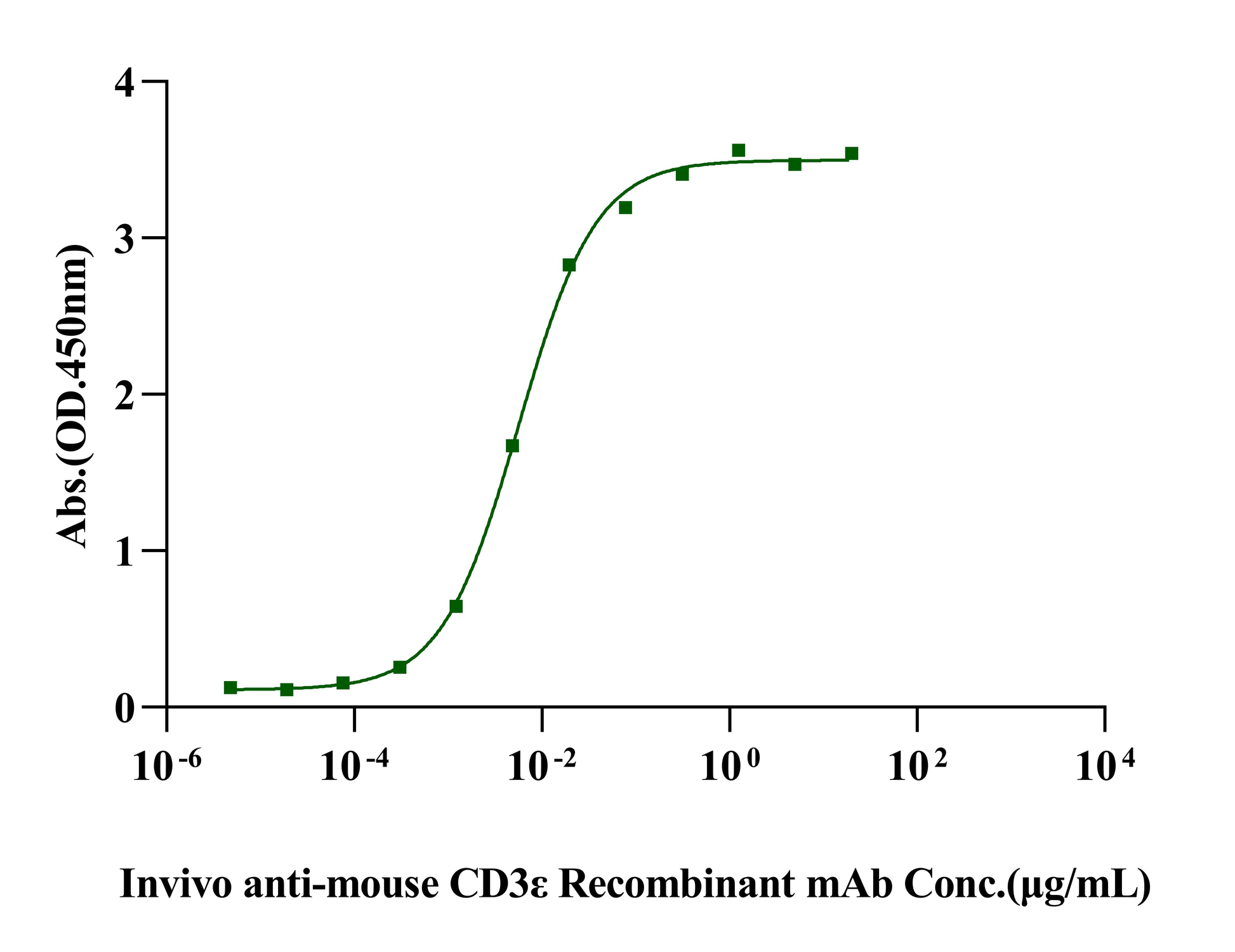

Immobilized CD3E&CD3G Heterodimer, Fc, His Tag&Fc, Flag Tag Protein, Mouse (Cat. No. UA016047) at 2.0μg/mL (100μL/well) can bind In vivo anti-mouse CD3ε Recombinant mAb (145-2C11) with EC50 of 5.00-6.47 ng/mL.

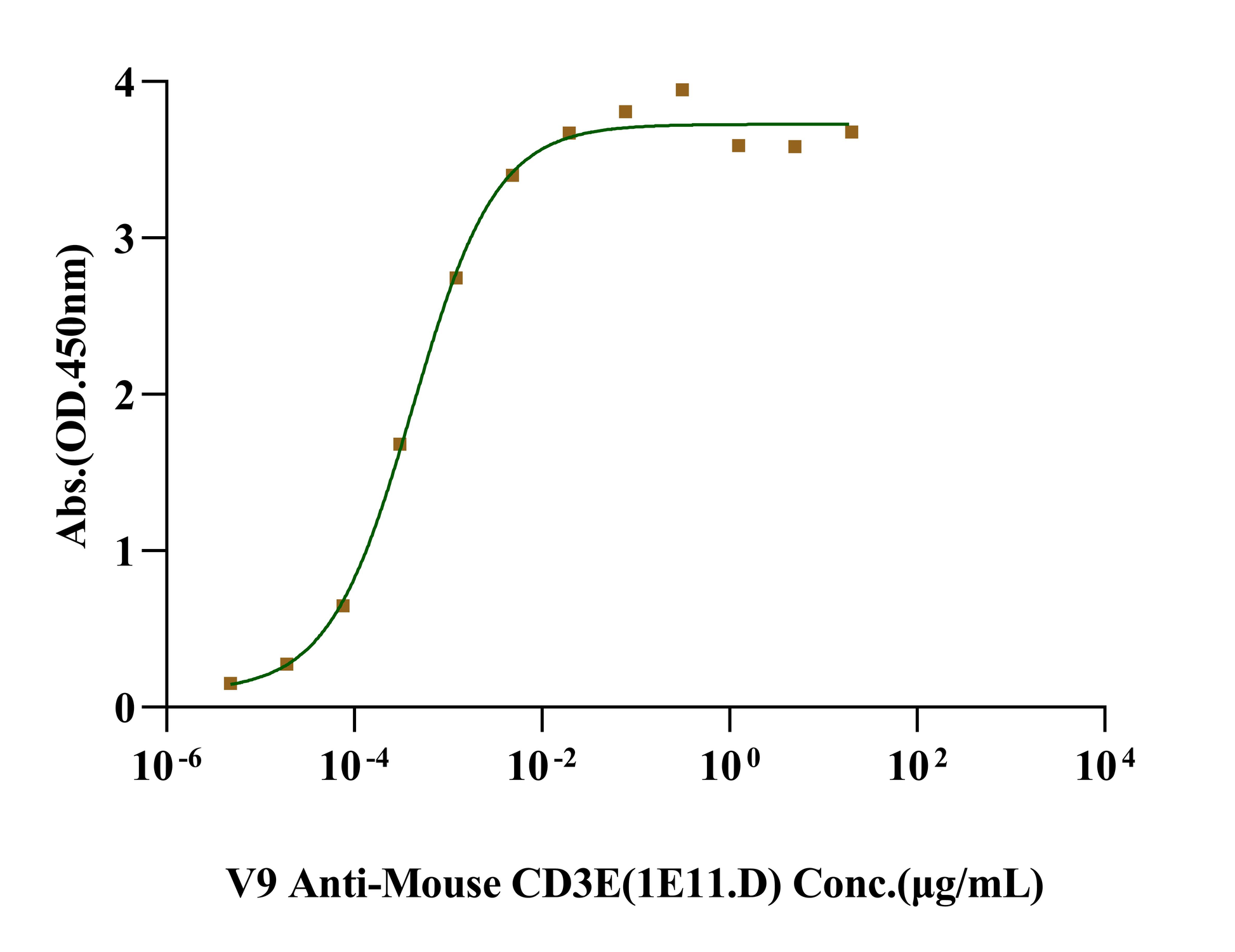

Immobilized CD3E&CD3G Heterodimer, Fc, His Tag&Fc, Flag Tag Protein, Mouse (Cat. No. UA016047) at 2.0μg/mL (100μL/well) can bind In vivo V9 Anti-Mouse CD3E(1E11.D) with EC50 of 0.30-0.57 ng/mL.
