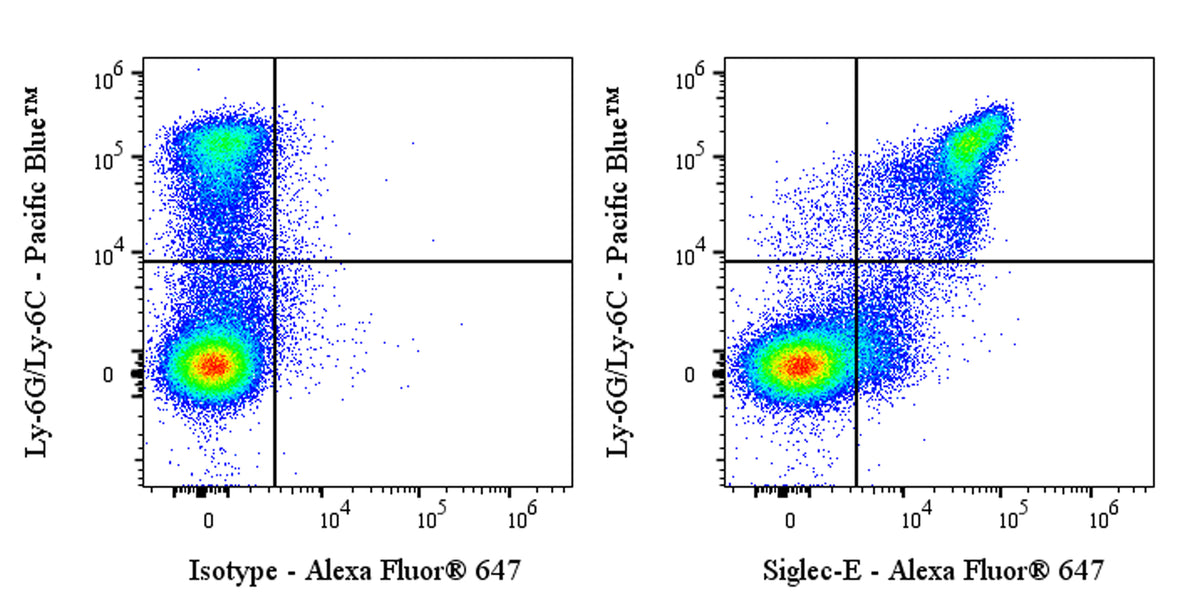

Flow cytometric analysis of Mouse Siglec-E expression on fresh C57BL/6 mouse bone marrow. Fresh C57BL/6 mouse bone marrow were stained with Pacific Blue™ Rat Anti-Mouse Ly-6G/Ly-6C Antibody and either Alexa Fluor® 647 Rat IgG2b Isotype Control (left panel) or SDT Alexa Fluor® 647 Rat Anti-Mouse Siglec-E Antibody (right panel) at 0.5 μl/test. Flow cytometry and data analysis were performed using Agilent NovoCyte Quanteon and FlowJo™ software.
Product Details
Product Details
Product Specification
| Host | Rat |
| Antigen | Siglec-E |
| Location | Membrane |
| Accession | Q91Y57 |
| Clone Number | S-3881 |
| Antibody Type | Rat mAb |
| Isotype Control | S0B8039 |
| Application | FCM |
| Reactivity | Ms |
| Positive Sample | Fresh C57BL/6 mouse bone marrow |
| Purification | Protein G |
| Concentration | 0.5 mg/ml |
| Conjugation | Alexa Fluor® 647 |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 1% BSA, 0.09% sodium azide |
| Stability & Storage | 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied |
Dilution
| application | dilution | species |
| FCM | 0.25μg per million cells in 100μl volume | Ms |
Background
Siglec-E, the murine orthologue of human Siglec-9, is a sialic acid-binding immunoglobulin-like lectin expressed predominantly on myeloid cells (macrophages, neutrophils, dendritic cells) that functions as a critical immunosuppressive checkpoint by recruiting SHP-1/2 phosphatases upon engagement of sialoglycan ligands, thereby attenuating TLR4- and TRIF-dependent signaling, dampening NF-κB activation and pro-inflammatory cytokine production, and exerting neuroprotective and anti-atherogenic effects through inhibition of microglial activation and CD36-mediated oxidized LDL uptake.
