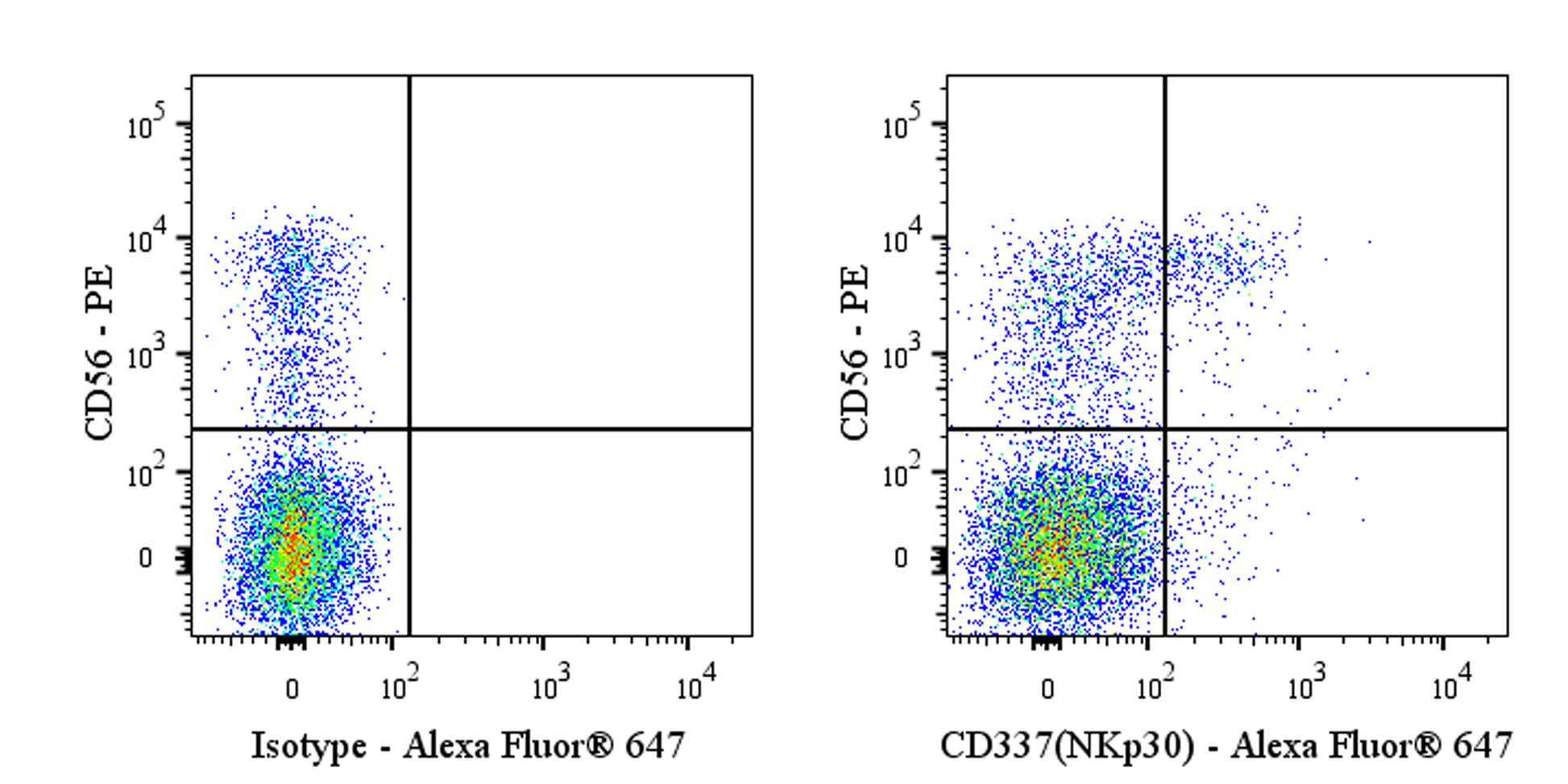

Flow cytometric analysis of human CD337 expression on human PBMC. Human PBMC were stained with PE Mouse Anti-Human CD56 Antibody and either Alexa Fluor® 647 Mouse IgG1, κ Isotype Control (left panel) or Alexa Fluor® 647 Mouse Anti-Human CD337 Antibody (right panel) at 5 μl/test. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.
Product Details
Product Details
Product Specification
| Host | Mouse |
| Antigen | CD337 (NKp30) |
| Synonyms | Natural cytotoxicity triggering receptor 3; Activating natural killer receptor p30; Natural killer cell p30-related protein (NK-p30; NKp30); 1C7; LY117; NCR3 |
| Location | Cell membrane |
| Accession | O14931 |
| Clone Number | S-3172 |
| Antibody Type | Mouse mAb |
| Isotype | IgG1,k |
| Application | FCM |
| Reactivity | Hu |
| Positive Sample | Human PBMC |
| Purification | Protein G |
| Concentration | 0.2 mg/ml |
| Conjugation | Alexa Fluor® 647 |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 1% BSA, 0.3% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied |
Dilution
| application | dilution | species |
| FCM | 5μl per million cells in 100μl volume | Hu |
Background
CD337, also known as NKp30 or NCR3, is a 30 kDa type-I transmembrane glycoprotein expressed almost exclusively by resting and activated natural killer (NK) cells; it contains a single V-type immunoglobulin-like extracellular domain, a positively charged transmembrane arginine that couples to the ITAM-bearing adaptors CD3ζ and FcεRγ, and exists as six alternatively spliced isoforms that differ in signalling potency. Acting as a major activating receptor within the natural cytotoxicity receptor (NCR) family, NKp30 triggers NK-cell cytotoxicity and cytokine release against tumour, virus-infected or immature dendritic cells that have down-regulated MHC-I, by recognising ligands such as the tumour-derived nuclear chaperone B7-H6 and BAT3; however, soluble forms of these ligands can down-regulate NKp30 and foster immune evasion.
FC
