Alexa Fluor® 647 Armenian hamster Anti-Mouse CD272 Antibody (S-R709)

Alexa Fluor® 647 Armenian hamster Anti-Mouse CD272 Antibody (S-R709)

Catalog Number: S0B5115 Application: FCM Reactivity: Mouse Conjugation: Alexa Fluor 647 Brand: Starter
Price:
Regular price $100 USD
Regular price Sale price $100 USD
Size:
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details

Product Details

Product Specification


Host Armenian hamster
Antigen CD272
Synonyms B- and T-lymphocyte attenuator; B- and T-lymphocyte-associated protein; Btla
Location Cell membrane
Accession Q7TSA3
Clone Number S-R709
Antibody Type Recombinant mAb
Isotype IgG
Application FCM
Reactivity Ms
Positive Sample C57BL/6 mouse splenocytes
Purification Protein G
Concentration 0.05mg/ml
Conjugation Alexa Fluor® 647
Physical Appearance Liquid
Storage Buffer

PBS, 25% Glycerol, 1% BSA, 0.3% Proclin 300

Stability & Storage 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied.

Dilution


application dilution species
FCM 5μl per million cells in 100μl volume Ms

Background

CD272, also known as B- and T-lymphocyte attenuator (BTLA), is an inhibitory receptor belonging to the CD28 immunoglobulin superfamily. It is encoded by the BTLA gene and primarily expressed on B cells, T cells, macrophages, and dendritic cells. BTLA plays a crucial role in regulating immune responses by acting as a negative regulator of antigen receptor signaling. Its ligand is HVEM (herpesvirus entry mediator, also known as CD270), and their interaction inhibits T cell and B cell activation, proliferation, and cytokine production. Structurally, BTLA is similar to other immune checkpoint proteins like PD-1 and CTLA-4, containing an extracellular IgV-like domain and intracellular immunoreceptor tyrosine-based inhibitory motifs (ITIMs) that mediate its inhibitory functions. BTLA's signaling involves the recruitment of tyrosine phosphatases SHP-1 and SHP-2, which dampen immune activation. Due to its role in immune regulation, the BTLA-HVEM axis is considered a promising target for cancer immunotherapy.


FC

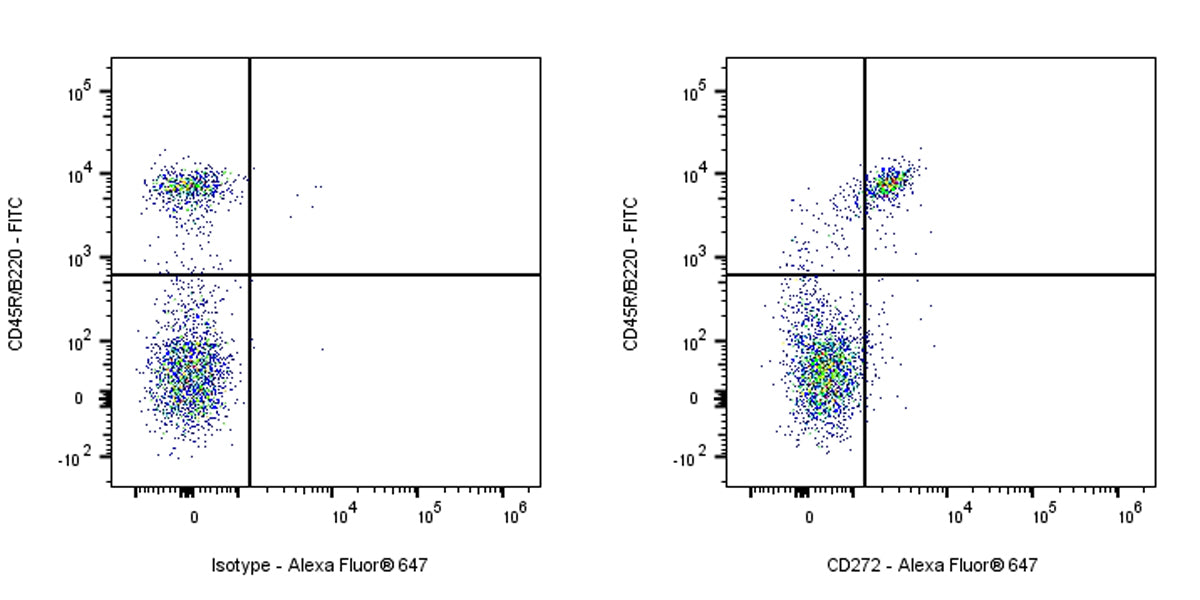

Flow cytometric analysis of Mouse CD272 expression on C57BL/6 mouse splenocytes. C57BL/6 mouse splenocytes were stained with FITC Rat Anti-Mouse CD45R/B220 Antibody (S0B5035) at 5μl/test and either Alexa Fluor® 647 Armenian hamster IgG Isotype Control (Left panel) or SDT Alexa Fluor® 647 Armenian Hamster Anti-Mouse CD272 Antibody (Right panel) at 5μl/test. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.
