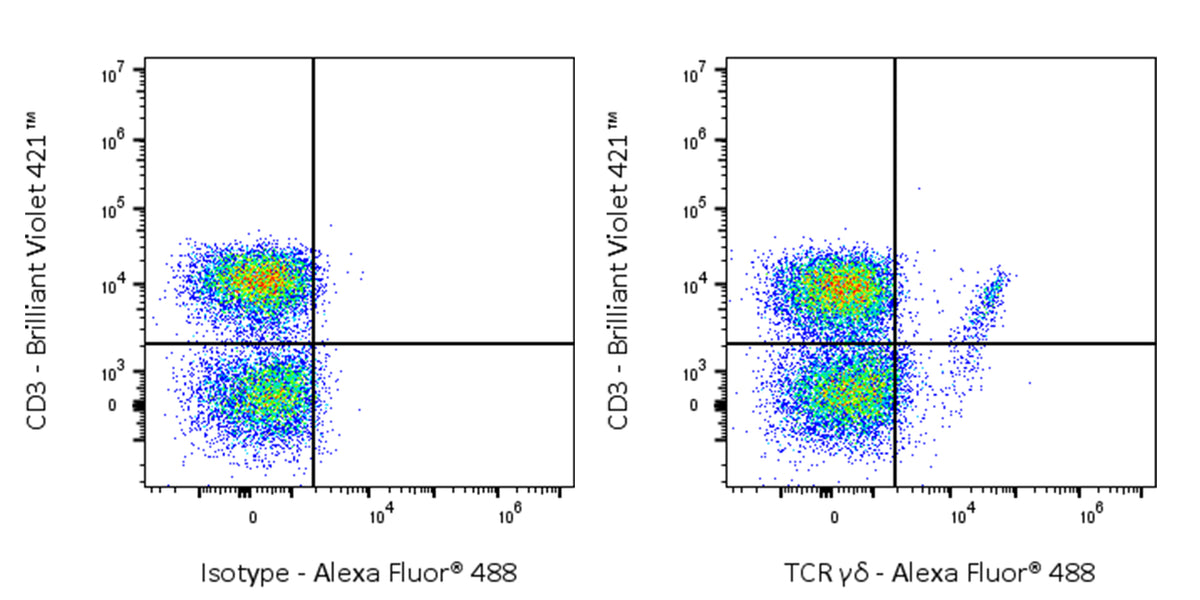

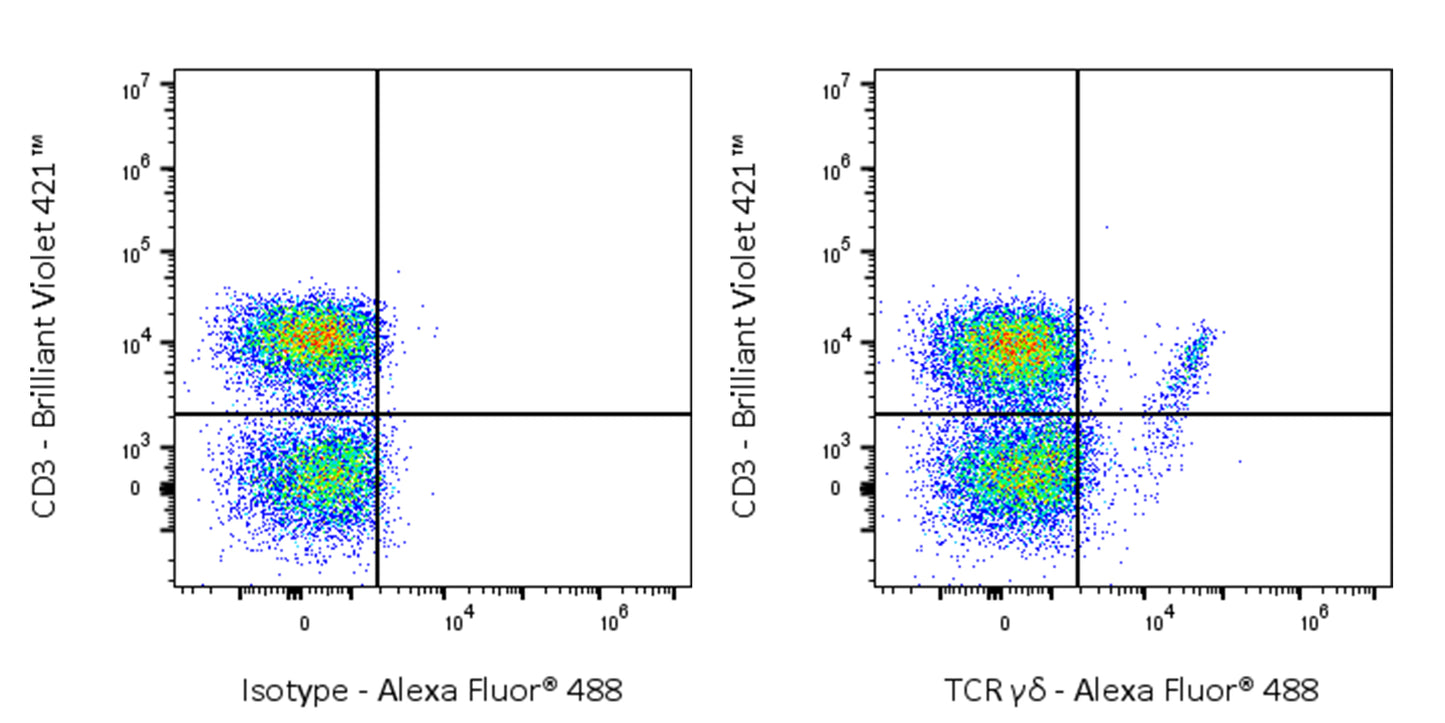

Flow cytometric analysis of Human TCR γ/δ expression on human PBMC. Human PBMC were stained with Brilliant Violet 421™ Mouse Anti-Human CD3 Antibody and either Alexa Fluor® 488 Mouse IgG1, k Isotype Control (left panel) or SDT Alexa Fluor® 488 Mouse Anti Human TCR y/ð Antibody (right panel) at 5μl/test. Total viable cells, as determined by Fixable Viability Dye 662 (S0D0016), were used for analysis. Flow cytometry and data analysis were performed using Agilent NovoCyte Quanteon and FlowJo™ software.
Product Details
Product Details
Product Specification
| Host | Mouse |
| Antigen | TCR γ/δ |
| Synonyms | T cell receptor γ/δ; γ/δ TCR; TCR-γ/δ |
| Location | Cell membrane |
| Accession | P03986、B7Z8K6 |
| Clone Number | S-R637 |
| Antibody Type | Mouse mAb |
| Isotype | IgG1,k |
| Application | FCM |
| Reactivity | Hu |
| Positive Sample | Human PBMC |
| Purification | Protein G |
| Concentration | 0.2 mg/ml |
| Conjugation | Alexa Fluor® 488 |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 1% BSA, 0.3% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied |
Dilution
| application | dilution | species |
| FCM | 5μl per million cells in 100μl volume | Hu |
Background
TCR γδ protein is a transmembrane disulfide-linked heterodimer composed of a γ and a δ chain, each containing a membrane-distal immunoglobulin-like variable (V) domain, a membrane-proximal constant (C) domain, a short stalk, a hydrophobic transmembrane anchor and a cytoplasmic tail that associates with CD3 and ζ signaling subunits; unlike conventional αβ T-cell receptors it recognizes native antigens—small pyrophosphate metabolites, lipids presented on MHC-like butyrophilin molecules, stress-induced MIC-A/B or even unprocessed surface proteins—without requiring peptide-MHC, triggering rapid innate-like cytokine and cytotoxic responses that bridge innate and adaptive immunity.
