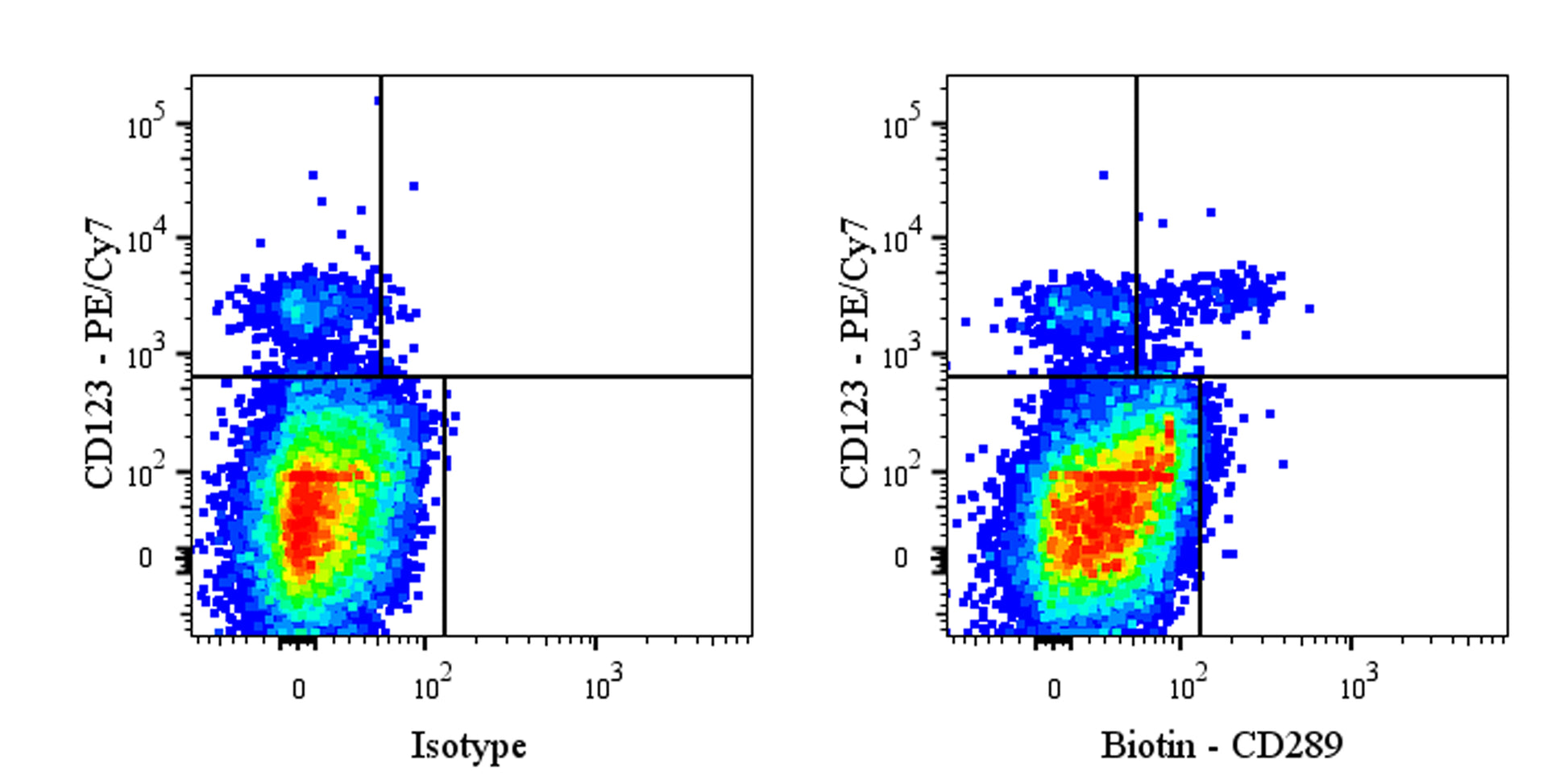

Flow cytometric analysis of 4% paraformaldehyde fixed 0.1% Tween permeabilized Human PBMCs (peripheral blood mononuclear cells) labelling PE-Cy7 Mouse Anti-Human CD123 Antibody and either Biotin Rat IgG2a, κ Isotype Control (left panel) or SDT Biotin Rat Anti-Human CD289 Antibody (right panel) at 5 μl/test followed by Sav-iFluor 488. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.
Product Details
Product Details
Product Specification
| Host | Rat |
| Antigen | CD289 |
| Synonyms | Toll-like receptor 9; TLR9 |
| Location | Endoplasmic reticulum |
| Accession | Q9NR96 |
| Clone Number | S-3019 |
| Antibody Type | Rat mAb |
| Isotype | IgG2a,k |
| Application | ICFCM |
| Reactivity | Hu |
| Positive Sample | Human PBMC |
| Purification | Protein G |
| Concentration | 0.2 mg/ml |
| Conjugation | Biotin |
| Physical Appearance | Liquid |
| Storage Buffer | PBS pH7.4, 0.09% sodium azide |
| Stability & Storage | 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied |
Dilution
| application | dilution | species |
| ICFCM | 5μl per million cells in 100μl volume | Hu |
Background
CD289, also known as Toll-like receptor 9 (TLR9), is a ~115-120 kDa intracellular pattern-recognition receptor of the Toll-like receptor family that is preferentially expressed in immune-cell-rich tissues such as spleen, lymph node, bone marrow, and peripheral blood leukocytes; it senses unmethylated CpG dinucleotides in bacterial DNA and, upon activation via the adaptor protein MyD88, triggers NF-κB signaling and subsequent production of inflammatory cytokines, thereby orchestrating a T-helper-1-like innate immune response, as evidenced by impaired splenocyte proliferation, macrophage cytokine release, and dendritic-cell maturation in TLR9-deficient mice.
FC
