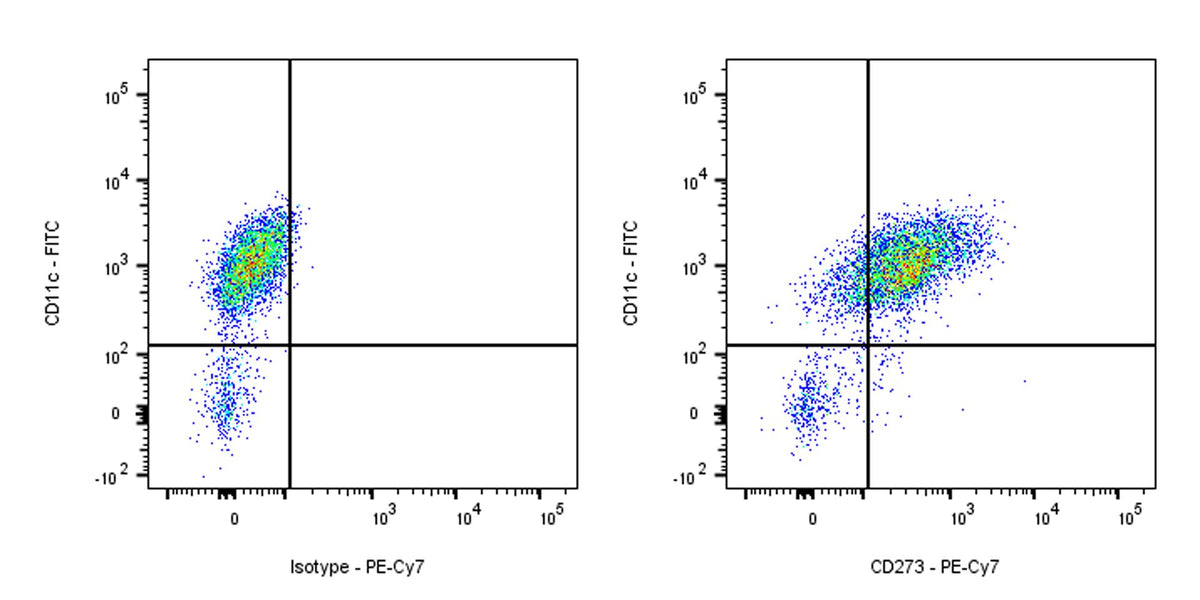

Flow cytometric analysis of Human CD273 expression on Human monocyte-derived mature dendritic cells. Human monocyte-derived mature dendritic cells were stained with FITC Mouse Anti-Human CD11c Antibody and either PE-Cy7 Mouse IgG1, κ Isotype Control (Left panel) or PE-Cy7 Mouse Anti-Human CD273 Antibody (Right panel) at 5 μl/test treated with True-Stain Monocyte Blocker™. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.
Product Details
Product Details
Product Specification
Host | Mouse |
Antigen | CD273 |
Synonyms | Programmed cell death 1 ligand 2; PD-1 ligand 2; PD-L2; PDCD1 ligand 2; Programmed death ligand 2; Butyrophilin B7-DC (B7-DC); B7DC; PDCD1L2; PDL2; PDCD1LG2 |
Location | Cell membrane |
Accession | Q9BQ51 |
Clone Number | S-R590 |
Antibody Type | Mouse mAb |
Isotype | IgG1,k |
Application | FCM |
Reactivity | Hu |
Positive Sample | Human monocyte-derived mature dendritic cells |
Purification | Protein G |
Concentration | 0.2 mg/ml |
Conjugation | PE-Cy7 |
Physical Appearance | Liquid |
Storage Buffer | PBS, 1% BSA, 0.3% Proclin 300 |
Stability & Storage | 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied |
Dilution
application | dilution | species |
FCM | 5μl per million cells in 100μl volume | Hu |
Background
CD273, also known as B7-DC or PD-L2, is a 42 kDa type I transmembrane glycoprotein belonging to the B7 family of the immunoglobulin superfamily. It is primarily expressed in dendritic cells, liver, and a few transformed cell lines. CD273 acts as a ligand for the coinhibitory receptor PD-1 (CD279), playing a crucial role in immune regulation by inhibiting T cell activation, proliferation, and cytokine production. Unlike PD-L1, CD273 has a higher affinity for PD-1 and is particularly upregulated in the presence of Th2 cytokines such as IL-4. Additionally, CD273 can also bind to repulsive guidance molecule b (RGMb), which is involved in regulating immune responses through BMP and neogenin signaling pathways.
