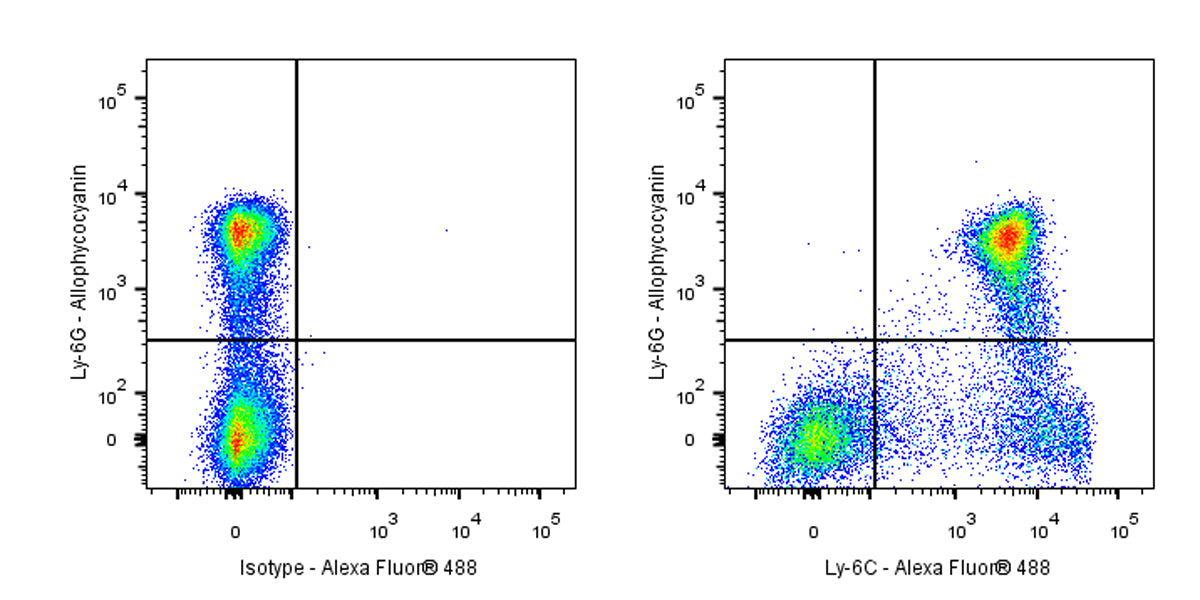

Flow cytometric analysis of Mouse Ly-6C expression on C57BL/6 mouse bone marrow. C57BL/6 mouse bone marrow cells were stained with APC Rat Anti-Mouse Ly6G Antibody (S0B5168) and either Alexa Fluor® 488 Rat IgG2c, κ Isotype Control (Left panel) or SDT Alexa Fluor® 488 Rat Anti-Mouse Ly-6C Antibody (Right panel) at 5 μl/test. Flow cytometry and data analysis were performed using BD FACSymphony™ A1 and FlowJo™ software.
Product Details
Product Details
Product Specification
| Host | Rat |
| Antigen | Ly-6C |
| Synonyms | Lymphocyte antigen 6C1; Ly-6C1; Ly6c1 |
| Location | Cell membrane |
| Accession | P0CW02 |
| Clone Number | S-R523 |
| Antibody Type | Rat mAb |
| Isotype | IgG2c,k |
| Application | FCM |
| Reactivity | Ms |
| Positive Sample | C57BL/6 mouse bone marrow |
| Purification | Protein G |
| Concentration | 0.2 mg/ml |
| Conjugation | Alexa Fluor® 488 |
| Physical Appearance | Liquid |
| Storage Buffer | PBS, 1% BSA, 0.3% Proclin 300 |
| Stability & Storage | 12 months from date of receipt / reconstitution, 2 to 8 °C as supplied |
Dilution
| application | dilution | species |
| FCM | 5μl per million cells in 100μl volume | Ms |
Background
Ly-6C is a glycosylphosphatidylinositol-anchored cell-surface protein belonging to the Ly-6/uPAR/α-neurotoxin superfamily, selectively expressed on murine monocyte and T-cell subsets where it serves as a dynamic lineage and activation marker—its high level on pro-inflammatory “classical” monocytes (CD11b⁺Ly-6C^hi) enables their recruitment via CCR2 to inflamed tissues, whereas Ly-6C^lo monocytes patrol vasculature and replenish resident macrophages, and transient up-regulation on CD8⁺ T cells correlates with effector differentiation; structurally it forms a three-finger α-helical bundle that can laterally associate with lipid rafts and signaling partners such as T-cell receptor or integrin complexes to modulate calcium flux, cytokine release, and adhesion, thereby critically steering innate–adaptive immune crosstalk in infections, autoimmunity, and cardiovascular disease.
