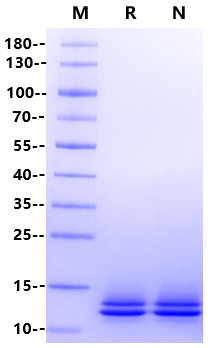

2μg (R: reducing condition, N:non-reducing condition).
Product Details
Product Details
Product Specification
| Species | Cynomolgus |
| Synonyms | KIAA1754L, D1B |
| Accession | XP_005575041.3 |
| Amino Acid Sequence | His25-Gly103 with His Tag at the C-Terminus |
| Expression System | HEK293 |
| Molecular Weight | 10-15kDa (Reducing) |
| Purity | >95% by SDS-PAGE&HPLC |
| Conjugation | Unconjugated |
| Tag | His Tag |
| Physical Appearance | Lyophilized powder |
| Storage Buffer | PBS, pH7.4, 5% trehalose |
| Reconstitution | Reconstitute at 0.1-1 mg/ml according to the size in ultrapure water after rapid centrifugation. |
| Stability & Storage |
· 12 months from date of receipt, lyophilized powder stored at -20 to -80℃. · 3 months, -20 to -80℃ under sterile conditions after reconstitution. · 1 week, 2 to 8℃ under sterile conditions after reconstitution. · Please avoid repeated freeze-thaw cycles. |
| Reference | 1. Deng S Y, Zhang Y B, Wang H B, et al. ITPRIPL1 binds CD3ε to impede T cell activation and enable tumor immune evasion[J]. Cell, 2024, 187(9): 2305-2323.e33. |
Background
ITPRIPL1 (inositol 1,4,5-trisphosphate receptor‑interacting protein-like 1), also known as CD3L1 (CD3ε ligand 1), is a type I single-pass transmembrane protein. It lacks the immunoglobulin-like domain commonly found in conventional immune checkpoints; its extracellular domain (ECD) contains three functional regions, among which the RBD1 region exhibits the ability to inhibit T-cell cytotoxicity, while RBD2 and RBD3 show relatively weaker functions. Functionally, ITPRIPL1 directly binds to CD3ε on the T‑cell surface via its ECD, leading to sustained binding of Nck to the intracellular domain of CD3ε, which competitively inhibits the recruitment and phosphorylation of ZAP70, thereby blocking the TCR-CD3 signaling pathway and reducing calcium influx. This exerts immunosuppressive effects at the critical "signal one" stage of T-cell activation. ITPRIPL1 is highly expressed in normal testicular tissues to maintain immune privilege, and it is also broadly overexpressed in multiple human tumors, particularly in tumors with low or no PD-L1 expression. Based on this mechanism, neutralizing antibodies targeting ITPRIPL1 have demonstrated T-cell activation and tumor growth inhibition in various mouse tumor models, and have also achieved significant therapeutic effects in spontaneous tumors in companion animals.
SDS-PAGE

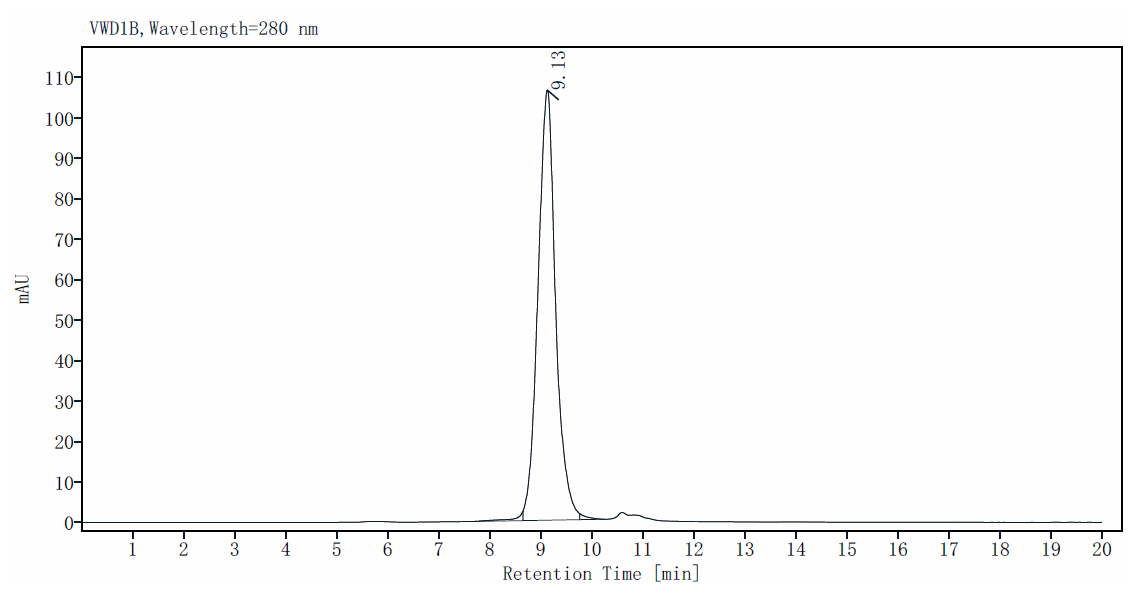

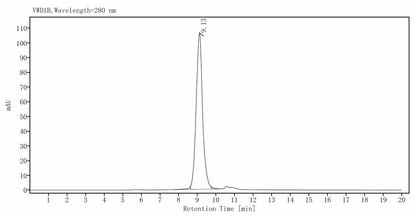

SEC-HPLC
The purity of ITPRIPL1/CD3L1 His Tag Protein, Cynomolgus is more than 95% determined by SEC-HPLC.

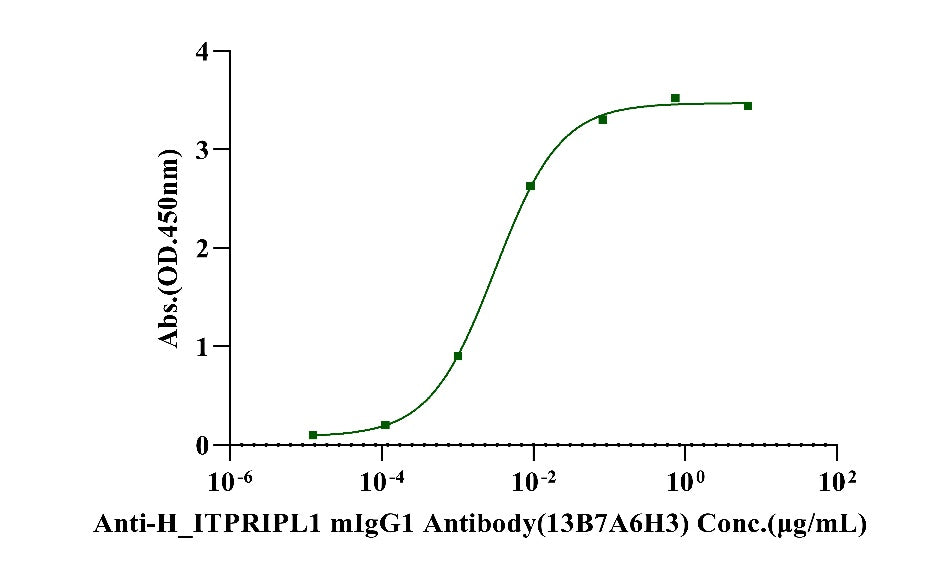

ELISA
Immobilized ITPRIPL1/CD3L1 His Tag Protein, Cynomolgus(Cat. No.UA016133) at 1.0μg/mL (100μL/well) can bind Anti-H_ITPRIPL1 mIgG1 Antibody(13B7A6H3) with EC50 of 2.50-3.90 ng/mL.
