Tryptic Peptide Mapping: A Cornerstone Tool for Biopharmaceutical Characterization

Concept

Tryptic peptide mapping is a gold-standard analytical workflow that uses trypsin—a highly specific serine protease—to cleave proteins at the C-termini of arginine and lysine residues. The resulting peptides (6–25 amino acids) are analyzed by mass spectrometry (MS), enabling comprehensive characterization of protein primary structure, post-translational modifications (PTMs), disulfide bonds, and sequence variants. Indispensable for biopharmaceutical quality control, it ensures drug safety, efficacy, and regulatory compliance.

Research Frontier

Biopharmaceutical development demands rigorous protein characterization. Tryptic peptide mapping is the foundation of primary structure verification, PTM profiling, and biosimilar comparability. Current frontiers focus on:

· High-coverage mapping for monoclonal antibodies (mAbs), ADCs, and bispecifics

· Ultra-sensitive detection of low-level impurities and variants

· AI-driven data analysis for high-throughput, reproducible results

· Regulatory-compliant method validation and standardization

Research Significance

Tryptic peptide mapping addresses critical biopharmaceutical challenges:

· Primary structure confirmation: Verifies >95% amino acid sequence accuracy

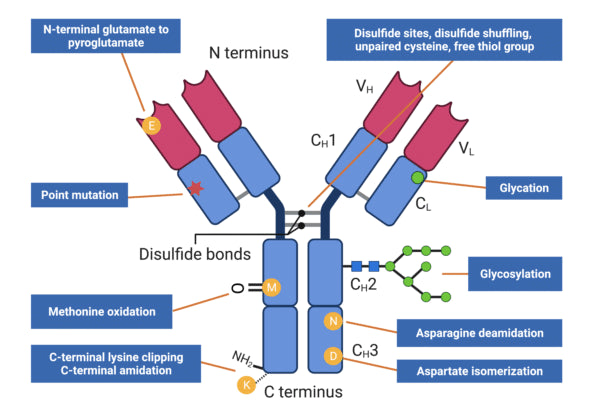

· PTM quantification: Detects deamidation, oxidation, and glycosylation

· Disulfide bond validation: Confirms correct pairing for stability

· Variant detection: Identifies single-amino-acid substitutions

· Impurity monitoring: Tracks host cell proteins (HCPs) and fragments

It ensures drug consistency, safety, and efficacy, meeting FDA/EMA regulatory requirements.

Mechanisms and Product Applications

1. Principle of Trypsin Digestion

· Specificity: Cleaves after Arg/Lys; TPCK-treated sequencing-grade trypsin (>95% specificity)

· Optimal conditions: pH 7.5–8.5, 37°C; 4–6 h incubation

· Missed cleavage: 5–15% improves mAb coverage to 85–95%

· Engineered variants: Recombinant trypsin (rTrypsin) enhances stability

2. Sample Preparation Workflow

1. Denaturation: 6M guanidine/8M urea + DTT (56°C, 30 min)

2. Alkylation: IAA (100–125 mM)

3. Buffer exchange: Transfer to 50 mM ammonium bicarbonate

4. Digestion: E:S = 1:20–1:50; 37°C

5. Advanced methods: PCT (90 s digestion), on-membrane digestion

3. LC-MS Analysis

· UHPLC: C18 columns, 0.1% formic acid gradients

· Mass spec: Orbitrap, DDA/DIA; HCD/ETD fragmentation

· Data analysis: MaxQuant, PEAKS; >90% sequence coverage

4. Key Biopharmaceutical Applications

· mAb QC: Primary structure, PTMs, disulfide bonds

· Biosimilars: >98% similarity score requirement

· ADCs: Conjugation site/DAR analysis

· Gene therapy: Capsid protein integrity

· Regulatory release: Mandatory for FDA/EMA approval

5. Method Validation

· Specificity: Distinguishes target from analogs

· Precision: RSD <5%; linearity R² >0.99

· Sensitivity: LOQ ≤1 μg/mL

· Robustness: Tolerates minor parameter shifts

Brand Mission

ANT BIO PTE. LTD. delivers high-performance proteases and reagents for biopharmaceutical characterization via its UA sub-brand. Our recombinant trypsin and digestion solutions are optimized for high specificity, stability, and reproducibility, supporting robust peptide mapping workflows. Committed to quality and regulatory compliance, we empower reliable biologic development and QC.
