Precise Imaging, Multicolor Decoding: Advanced Optimization Strategies for mIHC Dye Matching by ANT BIO PTE. LTD.

In the current field of biomedical research, multiplex fluorescence immunohistochemistry (mIHC) technology has become increasingly indispensable. This cutting-edge technique enables the simultaneous detection of multiple proteins on a single tissue section, providing a powerful tool for unraveling complex biological information within cells and tissues. As mIHC technology continues to evolve, researchers are increasingly seeking to visualize more abundant target information on their sections, which necessitates the use of a greater variety of fluorescent dyes for staining. However, the signals generated by fluorescent dyes exhibit a mountain-shaped distribution rather than a simple linear pattern—while the signal is optimal at the peak, it can be captured within a range around the peak. Consequently, signal overlap is inevitable between adjacent dyes, leading to inaccurate interpretation of final results. Addressing this challenge is crucial for maximizing the utility of mIHC technology. ANT BIO PTE. LTD., through its Absin product line, offers systematic solutions for mIHC dye matching optimization, empowering researchers to achieve precise and reliable multicolor imaging results.

1. Literature/Technical Information

Theme: Advanced Optimization Strategies for Multiplex Fluorescence Immunohistochemistry (mIHC) Dye Matching

Release Date: September 19, 2024

Core Technical Content: Dye selection principles, staining sequence optimization, TSA-based mIHC technology advantages, and data analysis solutions for mIHC

Core Reagents from ANT BIO PTE. LTD.: Multiplex Fluorescence IHC Staining Kits (2-color to 7-color plus, Absin product line); supporting reagents including Antibody Elution Buffer (mIHC-specific, Catalog No.: abs994), Tissue Autofluorescence Quencher (Catalog No.: abs9860)

Related Product Link: AntBio - Fueling Research, Feeding Discovery

2. Research/Technical Background

mIHC technology has revolutionized biomedical research by enabling the simultaneous visualization of multiple molecular targets in situ, thereby revealing the spatial relationships and functional interactions between different cell populations and proteins. This capability is particularly valuable in fields such as tumor microenvironment research, immunology, and pathology. However, the widespread application of mIHC is hindered by challenges related to fluorescent dye signal overlap. Due to the non-linear, peak-shaped signal distribution of fluorescent dyes, adjacent dyes often exhibit overlapping emission spectra, which compromises the accuracy of target detection and quantification.

To overcome this limitation, there is an urgent need for systematic optimization strategies for dye matching and staining protocols. ANT BIO PTE. LTD., leveraging its expertise in life science reagents, has developed a series of optimized dye combinations and technical guidelines for mIHC, addressing the key challenges of signal overlap and ensuring high-quality imaging results. These strategies are critical for enhancing the reliability and reproducibility of mIHC experiments, facilitating the advancement of biomedical research.

3. Core Technical Strategies for mIHC Dye Matching Optimization

ANT BIO PTE. LTD. proposes a comprehensive set of optimization strategies for mIHC dye matching, covering dye selection, staining sequence arrangement, and protocol adjustment, to minimize signal overlap and maximize detection accuracy. The core strategies are as follows:

3.1 Rational Dye Selection: Key to Avoiding Signal Overlap

The primary step in optimizing mIHC dye matching is selecting appropriate dyes with distinct excitation and emission wavelengths that do not enhance fluorescent background. Choosing fluorescent dyes with sufficiently separated wavelengths is critical for avoiding signal overlap. ANT BIO PTE. LTD.'s Absin product line offers a range of multicolor kits with pre-optimized dye combinations that minimize crosstalk. For example:

•         4-color kit: TSA520, TSA570, TSA650, DAPI

•         5-color kit: TSA520, TSA570, TSA620, TSA700, DAPI

•         7-color plus kit: TSA480, TSA520, TSA570, TSA620, TSA700, TSA770, DAPI

These dye combinations exhibit minimal crosstalk, ensuring clear and distinguishable signals for each target.

3.2 Staining Sequence Optimization: Enhancing Signal Uniformity

Optimizing the staining sequence is another crucial factor in achieving high-quality mIHC results. ANT BIO PTE. LTD. recommends the following principles for staining sequence arrangement:

1.       Cellular Localization-Based Order: "From Outside to Inside" — Stain membrane-expressed targets first, followed by cytoplasmic or nuclear targets. For experiments with multiple targets, intracellular targets can be stained later; after multiple rounds of elution in early steps, cell permeabilization may not be required for subsequent intracellular staining. For experiments with few targets, permeabilization is still necessary before staining intracellular targets, and only one permeabilization step is needed for multiple intracellular targets.

2.       Antigen Retrieval-Based Order: "From Acid to Alkaline" — Alkaline retrieval is more potent than acid retrieval. Some antibodies may exhibit high non-specific staining after alkaline retrieval. Therefore, for targets with the same cellular localization, stain those requiring acid retrieval first, followed by those requiring alkaline retrieval.

3.       IHC Result-Based Order: "From Weak to Strong" — Stain targets with low abundance (as determined by IHC) first, using the brightest fluorescent dyes, and end with high-abundance targets stained with weaker dyes. Theoretically, targets stained earlier will yield results closer to single-label staining.

4.       Antigen Type-Based Order: Consider the difficulty of antibody elution (structural membrane proteins and cytoskeletal proteins > cytoplasmic proteins > nuclear proteins). For antibodies that bind tightly to antigens (e.g., E-cadherin, EpCAM, Tuj1) or have elution issues, reduce the primary antibody concentration, increase elution time, or place these antibodies in the final round of TSA labeling.

3.3 Dye Matching Principle: "Rare Targets with Strong Light, Abundant Targets with Weak Light"

A core principle for mIHC dye matching is to pair low-expression targets with high-brightness fluorescent dyes and high-expression targets with low-brightness dyes. For Absin's TSA dyes, shorter wavelengths correspond to higher fluorescence intensity. For example, when staining PD-1, CD8, and CD3 using a 4-color kit (TSA520/TSA570/TSA650), IHC results may show minimal PD-1 signal, abundant CD3 signal, and moderate CD8 signal. A rational matching strategy would be TSA520 for PD-1, TSA650 for CD3, and TSA570 for CD8.

3.4 Advantages of TSA-Based mIHC Technology

ANT BIO PTE. LTD.'s multicolor technology employs Tyramide Signal Amplification (TSA) technology, which enables co-staining of multiple target proteins on a single tissue section, with the potential to label dozens of proteins simultaneously. A key advantage of TSA technology is its ability to use multiple primary antibodies from the same species without cross-reactivity concerns, significantly simplifying the design of multiplex detection experiments.

4. mIHC Data Analysis Solutions

Successful mIHC staining is complemented by robust data analysis. A variety of data analysis software is available on the market, including free options such as ImageJ and QuPath (which require self-directed learning) and professional software such as HALO and StrataQuest (installed by ANT BIO PTE. LTD.). Professional software offers superior functionality, analytical accuracy, and operability compared to open-source software, with dedicated technical support teams to address user queries. Researchers can select the appropriate analysis software based on their specific needs. For those with limited experience, ANT BIO PTE. LTD. provides data analysis services.

4.1 HALO Analysis Software

HALO enables single-cell and spatial analysis, including:

•         Single-cell level analysis: Total single-cell counting (nuclear staining); counting, percentage calculation, and average intensity measurement of single/multiple positive cells.

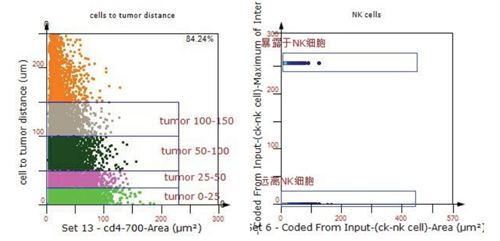

•         Spatial level analysis: Calculation of average distance between any two cells, proximity of the nearest cell, or penetration analysis. Analysis results are delivered in Excel format or as histograms.

4.2 StrataQuest Analysis Software

StrataQuest is integrated with the company's TG scanner platform and can meet almost all analytical needs in the pathological field, including generating tissue flow scatter plots and histograms.

5. Product Empowerment: The Critical Role of ANT BIO PTE. LTD.'s mIHC Reagents

The successful implementation of optimized mIHC dye matching strategies relies on high-quality reagents. ANT BIO PTE. LTD.'s Absin product line offers a comprehensive range of mIHC kits and supporting reagents, providing reliable technical support for mIHC experiments and ensuring the accuracy and reproducibility of results.

5.1 Core Products and Their Application Value

5.2 Technical Support and Promotion

ANT BIO PTE. LTD. offers additional technical support to facilitate mIHC experiments, including data analysis services using professional software (HALO, StrataQuest) and access to a multicolor technology exchange group for researchers to discuss technical issues. Currently, the company is running a back-to-school promotion: purchasing multicolor kits includes free gifts of immunohistochemistry pens and high-performance elution buffer. Researchers can contact Univar sales representatives for inquiries or scan the QR code to add the editor's WeChat for access to the technical exchange group.
