IL-34-Orchestrated TAM Reprogramming Drives Hepatocellular Carcinoma Immune Escape: ANT BIO PTE. LTD. Multiplex IHC Kits Enable Mechanistic Elucidation

Tumor-associated macrophages (TAMs), a pivotal component of the tumor microenvironment (TME), play complex and dual roles in tumorigenesis, progression, and immune escape. Deciphering the regulatory mechanisms underlying TAM polarization and function is crucial for developing novel immunotherapeutic strategies for hepatocellular carcinoma (HCC), one of the most prevalent and lethal malignancies globally. Recently, a groundbreaking study led by Professor Haiming Wei from the Key Laboratory of Immune Regulation and Immunotherapy, School of Life Sciences and Medicine, University of Science and Technology of China, was published in Immunity (Impact Factor: 43.474), a top journal in the immunology field. This study revealed the key mechanism by which p53 inactivation promotes tumor immune escape through interleukin-34 (IL-34)-mediated TAM reprogramming. Notably, multiplex fluorescence immunohistochemistry (mIHC) kits from ANT BIO PTE. LTD. (Absin product line) served as a core technical tool in this research, enabling precise identification and spatial characterization of specific TAM subsets, thereby providing critical insights into the role of TAMs in tumor immune escape.

1. Literature Information

Title: Interleukin-34-orchestrated tumor-associated macrophage reprogramming is required for tumor immune escape driven by p53 inactivation

Journal: Immunity

Publication Date: October 08, 2024 (Volume 57, Issue 10, Pages 2344-2361.E7)

Research Team: Haiming Wei's research group from the Key Laboratory of Immune Regulation and Immunotherapy, School of Life Sciences and Medicine, University of Science and Technology of China

Core Reagents from ANT BIO PTE. LTD.: Multiplex Fluorescence IHC Staining Kits (Absin product line), including 2-color, 3-color, 4-color, 5-color, 6-color, 7-color, and other multi-color kits; supporting reagents such as Antibody Elution Buffer (mIHC-specific, Catalog No.: abs994), Tissue Autofluorescence Quencher (Catalog No.: abs9860)

Related Product Link: AntBio - Fueling Research, Feeding Discovery

2. Research Background

Hepatocellular carcinoma (HCC) is characterized by high morbidity and mortality, with limited effective therapeutic options. The p53 tumor suppressor gene is one of the most frequently mutated genes in human cancers, and its inactivation is closely associated with tumor progression and immune escape. However, the specific molecular mechanisms linking p53 inactivation to the establishment of an immunosuppressive TME remain incompletely understood.

Tumor-associated macrophages (TAMs) are highly plastic and can be polarized into M1 (pro-inflammatory) or M2 (immunosuppressive) phenotypes. M2-polarized TAMs are known to promote tumor growth, angiogenesis, and immune escape by secreting immunosuppressive cytokines and growth factors. In this context, identifying the key factors that drive TAM polarization in p53-inactivated tumors is of great significance for developing targeted immunotherapies for HCC. This study aimed to fill this knowledge gap by exploring the role of IL-34 in TAM reprogramming and tumor immune escape driven by p53 inactivation.

3. Research Methodology

The research team adopted a multi-faceted experimental approach, integrating molecular biology, immunology, and advanced imaging techniques to systematically elucidate the regulatory mechanism of IL-34-orchestrated TAM reprogramming. Key methodologies included:

•         Animal Model Establishment: Construction of various genetically engineered mouse models of HCC, including Trp53/Pten double-knockout, Trp53/Kras double-mutant, Ctnnb1/Pten double-mutant, and Kras/Pten double-mutant models, to investigate the role of p53 inactivation in tumor immune escape.

•         Single-Cell RNA Sequencing (scRNA-seq): Analysis of the cellular composition and gene expression profiles of the TME in p53-inactivated HCC models, identifying specific TAM subsets and their associated molecular markers.

•         Multiplex Fluorescence IHC Staining: Utilization of ANT BIO PTE. LTD.'s multiplex fluorescence IHC kits to perform multi-color staining on HCC tissue sections. Specific markers including EPCAM (cancer stem cell marker), COL4A2, CTGF, FSTL1, and COL1A2 (F5-CAFs markers) were detected simultaneously to identify and characterize F5-CAFs (a specific TAM subset) and their spatial colocalization with cancer stem cells (CSCs).

•         Functional Assays: In vitro and in vivo experiments to verify the role of IL-34 in TAM polarization. This included IL-34 overexpression/knockdown experiments, CD36 pathway inhibition experiments, and evaluation of tumor growth and immune cell infiltration after IL-34 signaling blockade.

•         Clinical Sample Analysis: Collection of tumor tissues from 92 HCC patients, followed by mIHC analysis using ANT BIO PTE. LTD.'s kits to investigate the correlation between F5-CAFs abundance and patient prognosis.

4. Key Research Findings

Through systematic investigation, the research team uncovered the critical role of IL-34 in TAM reprogramming and tumor immune escape driven by p53 inactivation. The key findings are summarized as follows:

4.1 IL-34 Secretion by CSCs Is Upregulated in p53-Inactivated Tumors

The study demonstrated that p53 inactivation leads to the upregulated secretion of IL-34 by cancer stem cells (CSCs) in HCC. IL-34 expression was significantly higher in Trp53/Pten and Trp53/Kras HCC models compared to p53 wild-type models (Ctnnb1/Pten and Kras/Pten), indicating that IL-34 secretion is specifically induced by p53 inactivation.

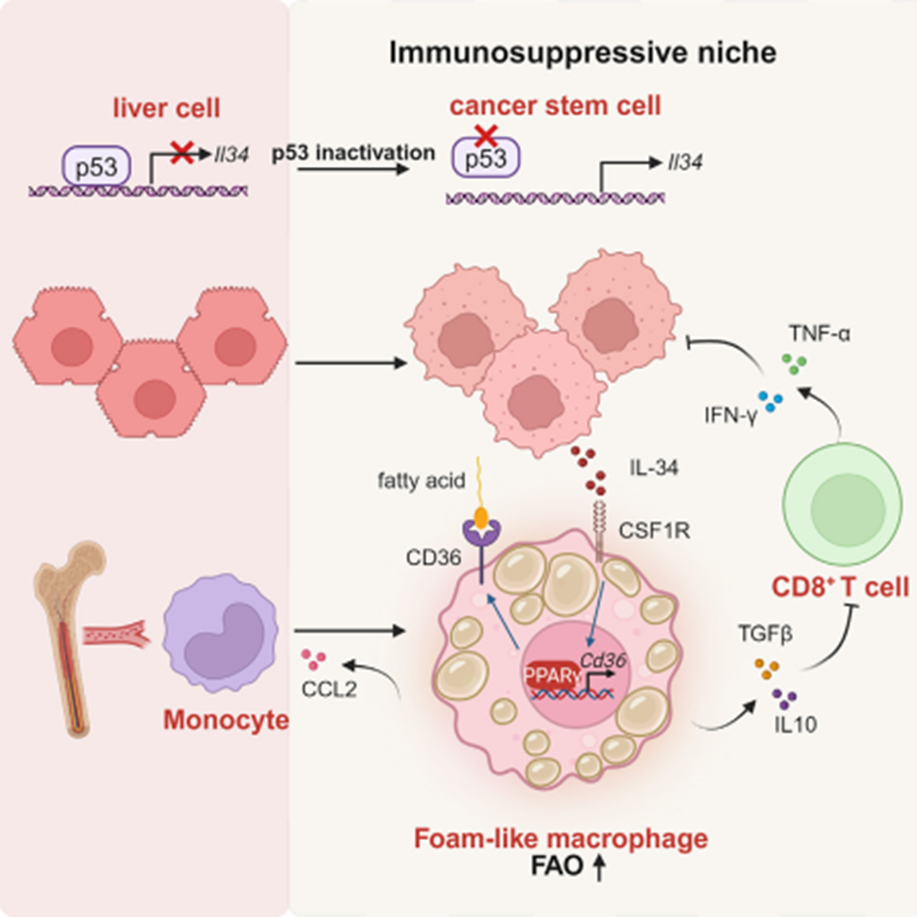

4.2 IL-34 Drives M2 Polarization of TAMs into Foam-Like Macrophages via the CD36 Axis

IL-34 secreted by CSCs binds to its receptor CSF1R on monocytes, activating the CD36-PPARγ signaling pathway, which drives the M2-type polarization of TAMs into foam-like macrophages. These foam-like macrophages accumulate in p53-inactivated tumors and secrete immunosuppressive cytokines such as TGFβ and IL-10, while inhibiting the production of pro-inflammatory cytokines (TNF-α, IFN-γ) by CD8+ T cells, thereby suppressing anti-tumor immune responses.

4.3 F5-CAFs Are a Specific TAM Subset Associated with Tumor Stemness

Using ANT BIO PTE. LTD.'s multiplex fluorescence IHC kits, the research team identified F5-CAFs, a specific TAM subset defined by the co-expression of COL4A2, CTGF, FSTL1, and COL1A2. These F5-CAFs were found to colocalize with the cancer stem cell marker EpCAM in tumor tissues, suggesting a close interaction between F5-CAFs and CSCs in promoting tumor progression.

4.4 F5-CAFs Abundance Correlates with Poor Prognosis in HCC Patients

Clinical sample analysis revealed that the abundance of F5-CAFs in the tumor stroma of HCC patients is significantly correlated with shorter overall survival time. This finding highlights the clinical significance of F5-CAFs as a potential prognostic marker and therapeutic target for HCC.

4.5 Blocking IL-34 Signaling Inhibits Tumor Growth in p53-Inactivated HCC

In vivo experiments showed that blocking IL-34 signaling (via IL-34 knockdown or anti-IL-34 neutralizing antibodies) significantly inhibits tumor growth in Trp53/Pten and Trp53/Kras HCC models. This inhibition is associated with reduced accumulation of foam-like macrophages, increased infiltration of CD8+ T cells, and enhanced anti-tumor immune responses.

5. Product Empowerment: The Critical Role of ANT BIO PTE. LTD.'s Multiplex IHC Kits

The precise identification and spatial characterization of specific cell subsets in the complex TME are essential for elucidating tumor immune escape mechanisms. ANT BIO PTE. LTD.'s multiplex fluorescence IHC kits provided indispensable technical support for this research, enabling the research team to obtain reliable and accurate experimental results.

5.1 Core Products and Their Application Value

5.2 Technical Value in TME Research

The tumor microenvironment of HCC is characterized by high cellular heterogeneity, making the identification and localization of specific cell subsets extremely challenging. ANT BIO PTE. LTD.'s multiplex fluorescence IHC kits addressed this challenge by enabling the simultaneous detection of multiple cell markers, allowing researchers to accurately distinguish F5-CAFs from other cell populations in the complex TME. The high-resolution spatial information obtained from these kits confirmed the colocalization of F5-CAFs and CSCs, providing direct evidence for their functional interaction. Additionally, the application of these kits in clinical sample analysis enabled the correlation of F5-CAFs abundance with patient prognosis, laying a solid foundation for the clinical translation of research findings.

6. Brand Mission

As a professional supplier of life science reagents, ANT BIO PTE. LTD. is dedicated to providing high-quality, reliable products and comprehensive solutions to empower global life science research. The company's three specialized sub-brands cover the full spectrum of research needs in the life science field: Absin focuses on general reagents and kits, Starter specializes in antibodies, and UA is dedicated to recombinant proteins. Our core mission is to bridge the gap between cutting-edge scientific research and practical applications, accelerate the pace of scientific discovery, and contribute to the advancement of human health and regenerative medicine.

7. Related Product List

More Multiplex Immunofluorescence IHC Kits

8. Disclaimer

This article is AI-compiled and interpreted based on the original work in DOI: 10.1016/j.immuni.2024.08.015 (corresponding to theImmunity article published on October 08, 2024). All intellectual property (e.g., images, data) of the original publication shall belong to the journal and the research team. For any infringement, please contact us promptly and we will take immediate action.
