Empowering High-Throughput Functional Genomics: The Transformative Role of Cell Sorting Magnetic Beads by ANT BIO PTE. LTD.

1. Concept

Genome-wide CRISPR-Cas9 screening is a cornerstone technology for systematically deciphering gene functions and discovering novel therapeutic targets. However, it requires processing hundreds of millions to billions of cells to ensure screening coverage and statistical power— a demand traditional fluorescence-activated cell sorting (FACS) struggles to meet due to limited throughput and potential cell damage. Cell sorting magnetic beads, integrated with Microfluidic Immunomagnetic Cell Sorting (MICS) technology, address this gap. They enable rapid, gentle, high-throughput cell sorting by labeling target cells with antibody-conjugated superparamagnetic beads, then separating them via precision magnetic fields in microfluidic chips. This technology empowers large-scale functional genomics research by efficiently isolating phenotype-specific cell populations.

2. Research Frontiers

A key research frontier focuses on expanding MICS technology to multi-parameter sorting. Current systems primarily sort by a single surface marker, but future advancements aim to integrate multiple bead labels or combine immunomagnetic sorting with other detection modalities (e.g., fluorescence) to enable high-dimensional cell phenotyping, bridging the gap with FACS.

Another active area of investigation involves optimizing magnetic bead design for enhanced specificity and compatibility with sensitive downstream applications. Researchers are developing smaller, non-toxic beads that preserve cell viability and function, supporting single-cell sequencing, CRISPR screening, and adoptive cell therapy research.

Emerging frontiers also include integrating MICS with AI-driven data analysis. By combining high-throughput sorting data with genomic and transcriptomic profiles, researchers can build predictive models to accelerate gene function discovery and therapeutic target validation.

3. Research Significance

Cell sorting magnetic beads and MICS technology hold profound significance for functional genomics and drug development. They enable efficient processing of massive cell populations required for genome-wide CRISPR screening, overcoming the throughput limitations of FACS. This accelerates the discovery of key genes involved in disease pathways, such as immune regulation and cancer progression.

Additionally, the gentle sorting process preserves cell viability and native phenotypes, ensuring the reliability of downstream functional assays. This is critical for studying sensitive cell populations (e.g., T cells, stem cells) and translating research findings to clinical applications like cell therapy. The technology also reduces experimental costs and time, making large-scale functional genomics more accessible to researchers.

4. Related Mechanisms, Research Methods, and Product Applications

Related Mechanisms

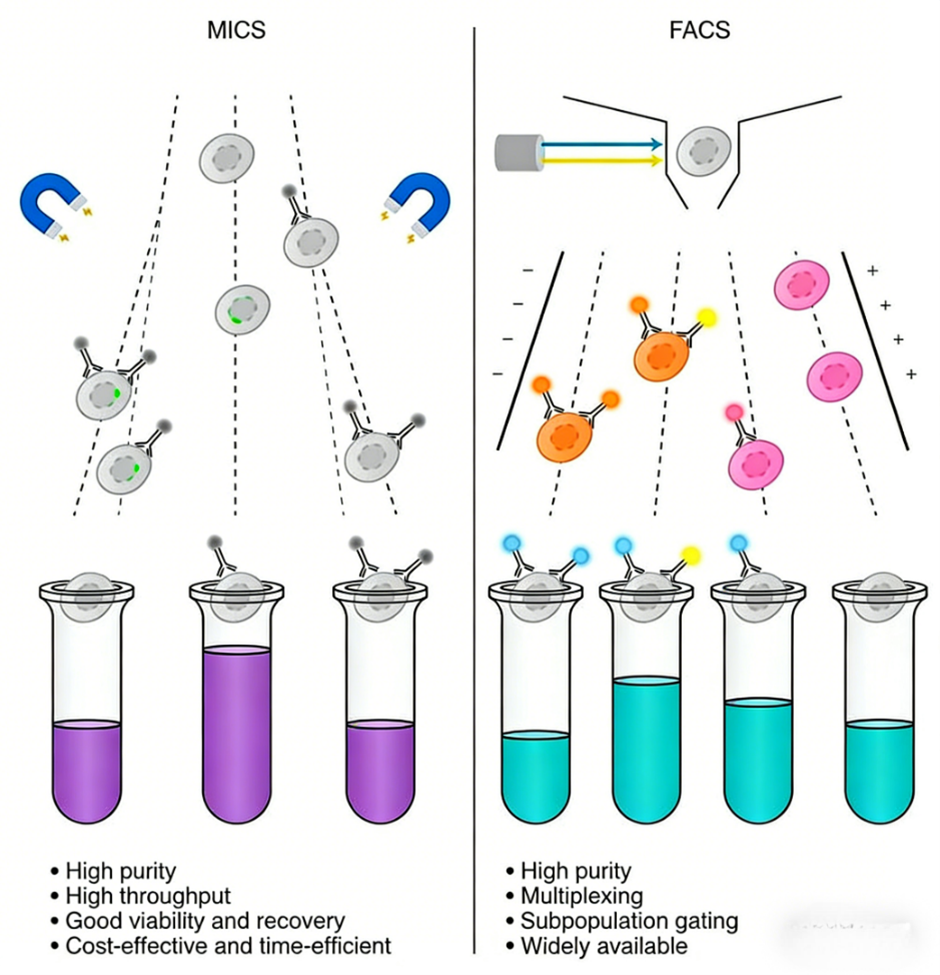

MICS technology operates through two core steps: immunomagnetic labeling and microfluidic sorting. As illustrated in the diagram, target cells are labeled with superparamagnetic beads conjugated to specific antibodies (e.g., anti-CD8). When injected into a microfluidic chip, magnetic forces deflect labeled cells based on the number of beads (proportional to target antigen expression), separating them into distinct subpopulations. Compared to FACS, MICS offers ultra-high throughput and better cell viability but is limited to single-parameter sorting.

Research Methods and Product Applications

Cell sorting magnetic beads are versatile tools supporting diverse research applications. ANT BIO PTE. LTD.’s CD8 Nanobeads, mouse (RUO) (Catalog No.: S0K0005) stands out for its high specificity, gentle sorting, and ease of use, making it essential for immunology and functional genomics research.

Key Applications of the Magnetic Beads:

• CRISPR-Cas9 Screening: The beads enable high-throughput sorting of phenotype-specific cell populations (e.g., CD47-high/low expression) from CRISPR-edited cell pools. This supports identification of genes regulating target phenotypes, as demonstrated in the discovery of QPCTL as a CD47 regulator.
• Immune Cell Isolation: They efficiently isolate high-purity CD8+ T cells from mouse spleen, lymph nodes, or tumor tissues, supporting functional studies (e.g., cytokine secretion, killing assays) and adoptive cell therapy research.
• Tumor Immunology Research: The beads prepare tumor-infiltrating lymphocytes (TILs) for downstream analysis, aiding in understanding tumor-immune interactions and developing immunotherapies.
• Infection and Genetic Model Studies: They isolate antigen-specific CD8+ T cells from infection models or genetically engineered mice, facilitating research on immune responses and gene function.

Core Advantages of the Magnetic Beads:

• High Specificity and Purity: Conjugated with high-affinity anti-mouse CD8a antibodies, the beads ensure specific targeting of CD8+ T cells, achieving post-sorting purity exceeding 95%.
• Gentle Sorting and Cell Preservation: Nanoscale beads minimize cell membrane damage, preserving viability, phenotype, and function (e.g., proliferation, cytotoxicity). Beads do not require dissociation, simplifying workflows.
• Simplicity and Versatility: The "label-magnetic separation" process is intuitive, requiring only a magnetic stand. It is compatible with multiple sample types, including solid tumors (after digestion).

Comparison of MICS and FACS for Functional Genomics:

5. Brand Mission

ANT BIO PTE. LTD. is dedicated to advancing life science research and clinical translation by providing high-performance, innovative core reagents and solutions. Leveraging advanced development platforms—including recombinant rabbit monoclonal antibody, recombinant mouse monoclonal antibody, rapid mouse monoclonal antibody, and recombinant protein development platforms (E.coli, CHO, HEK293, Insect Cells), as well as the One-Step ELISA Platform and PTM Pan-Modification Antibody Platform—the company adheres to stringent quality standards and has successfully obtained EU 98/79/EC certification, ISO9001 certification, and ISO13485 certification. ANT BIO PTE. LTD. strives to support researchers worldwide in their pursuit of scientific breakthroughs in functional genomics, immunology, and cell therapy.

6. Related Product List

7. AI Disclaimer

This article is AI-compiled and interpreted based on the original work. All intellectual property (e.g., images, data) of the original publication shall belong to the journal and the research team. For any infringement, please contact us promptly and we will take immediate action.
