Efficient Cell Sorting with Magnetic Beads: Principles, Technologies and ANT BIO PTE. LTD. Solutions

1. Concept of Magnetic Bead-Based Cell Sorting

Magnetic bead-based cell sorting (also referred to as immunomagnetic cell separation) is a highly efficient cell separation technology that combines the specificity of biochemical affinity with the convenience of magnetic manipulation. It leverages functionalized magnetic beads modified with specific ligands (e.g., antibodies, streptavidin) to specifically bind to antigens or biomarkers on the surface of target cells, and then achieves the separation and enrichment of target cells from heterogeneous cell suspensions under the action of an external magnetic field.

As a mainstream cell sorting technology, it differs fundamentally from culture characteristic-based sorting (low purity, time-consuming) and physical property-based sorting (limited specificity, poor target selectivity). Magnetic bead sorting integrates the advantages of high specificity, rapid operation, high recovery rate and good cell viability, and requires no complex and expensive large-scale instruments, making it widely used in basic cell biology research, clinical disease diagnosis, cell therapy preparation and immunology research.

2. Research Frontiers of Magnetic Bead-Based Cell Sorting

With the continuous development of nanomaterial technology, surface functional modification and immunology, magnetic bead-based cell sorting technology has achieved significant innovations in magnetic bead material design, surface functionalization, sorting strategy optimization and automation integration. The current research frontiers are focused on the development of superparamagnetic nanobeads with high biocompatibility and high binding capacity, the design of reversible ligand binding systems, the optimization of sorting strategies for rare cell enrichment, and the integration of magnetic sorting with microfluidics and automation systems, aiming to further improve the sorting purity, recovery rate and cell functional integrity, and expand its application in single-cell analysis, precision medicine and personalized cell therapy.

2.1 Key Characteristics of High-Performance Sorting Magnetic Beads

Magnetic beads are the core functional carrier of magnetic bead-based cell sorting technology, and their physicochemical and biological properties directly determine the quality and efficiency of cell sorting. An ideal cell sorting magnetic bead must possess the following six core characteristics, which are the key indicators for evaluating magnetic bead performance:

1. Superparamagnetism: The most critical magnetic property—magnetic beads only exhibit magnetism and are attracted by the magnetic field in an external magnetic field, and lose magnetism immediately with no residual magnetism after the magnetic field is removed. This avoids magnetic aggregation between beads and cells, ensuring the dispersion of sorted cells and preventing cell damage.
2. Uniform particle size distribution: The particle size of magnetic beads for cell sorting is typically in the range of 50 nm - 5 μm, with a highly uniform size distribution. This ensures consistent binding efficiency between magnetic beads and target cells, stable dispersion in the cell suspension, and uniform stress on cells during the sorting process.
3. Excellent biocompatibility: Made of non-toxic and biocompatible materials (e.g., iron oxide core coated with polystyrene or silica), with mild surface chemical modification. It does not cause cytotoxicity, does not activate cell signaling pathways, and can well preserve the viability and normal biological functions of sorted cells.
4. High ligand binding capacity: The surface of magnetic beads is modified with active functional groups (e.g., amino, carboxyl, epoxy) for efficient and stable covalent coupling with specific ligands such as antibodies, streptavidin and aptamers. The high binding capacity ensures that a small number of magnetic beads can specifically bind to target cells, reducing the dosage of magnetic beads and the impact on cells.
5. Good physicochemical stability: Maintains stable physical and chemical properties during long-term storage, transportation and cell sorting operations (e.g., different pH, temperature and ionic strength environments). No dissolution, fragmentation or ligand shedding occurs, ensuring the repeatability and reliability of sorting results.
6. Flexible labeling types: Divided into direct-labeled magnetic beads (pre-coupled with specific antibodies for direct target cell binding) and indirect-labeled magnetic beads (e.g., streptavidin-modified magnetic beads, matching with biotinylated antibodies for indirect target cell labeling). The latter has higher flexibility and can be combined with different biotinylated ligands to realize the sorting of multiple target cells, reducing the cost of reagent development.

2.2 Core Sorting Strategies of Magnetic Bead-Based Cell Sorting

According to the different labeling methods of target cells and the separation logic of magnetic beads, magnetic bead-based cell sorting is mainly divided into three core strategies: positive selection, negative selection and combined selection. Each strategy has its own characteristics, advantages and applicable scenarios, and the optimal strategy can be selected according to the research purpose, cell type and sample characteristics.

2.2.1 Positive Selection

Positive selection is the most direct and commonly used cell sorting strategy, which directly labels target cells with ligand-modified magnetic beads. The magnetic beads specifically bind to the surface antigens of target cells to form cell-magnetic bead complexes, which are retained in the magnetic field during magnetic separation, while non-target cells flow out with the supernatant. After the magnetic field is removed, the target cells bound to magnetic beads are eluted and collected to complete the sorting.

Advantages: Simple operation process, short sorting time, high sorting purity of target cells; Disadvantages: Magnetic beads remain on the surface of sorted target cells after sorting, which may affect the downstream functional analysis and experimental research of cells (e.g., cell proliferation, differentiation and signal pathway detection).

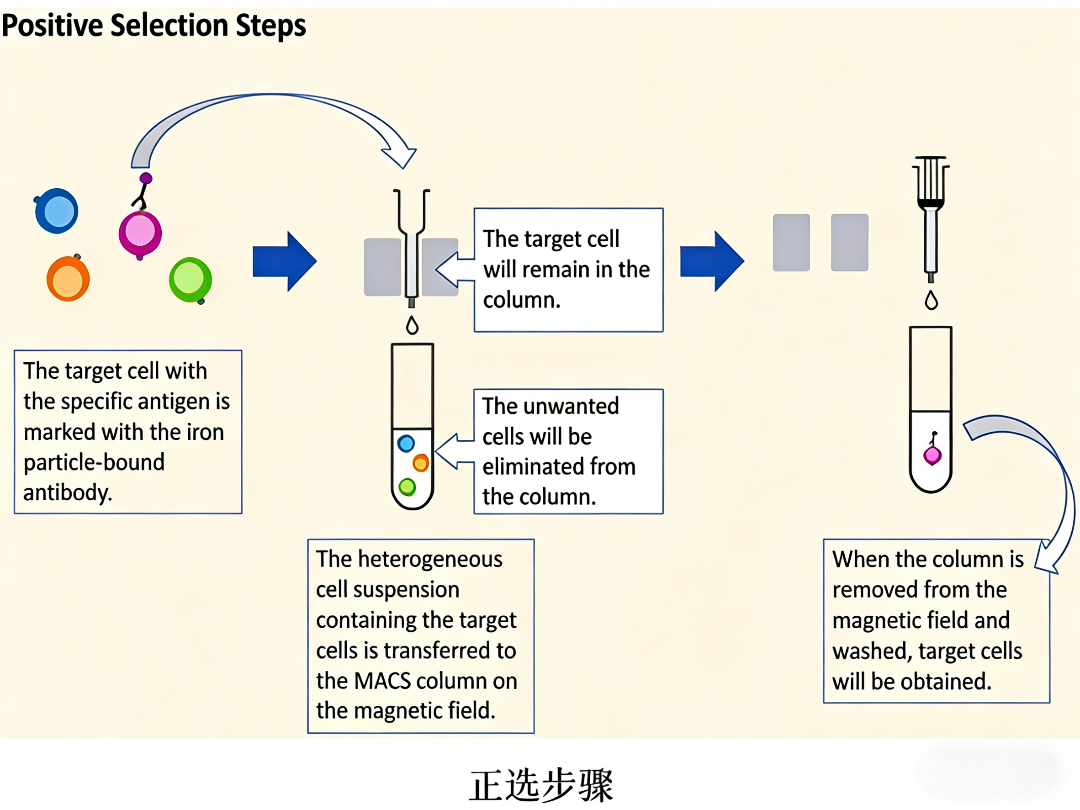

The diagram illustrates the complete workflow of magnetic bead positive selection: labeling target cells with antibody-coupled magnetic beads → loading the cell suspension into a magnetic column → retaining target cell-magnetic bead complexes in the magnetic field and removing non-target cells → eluting and collecting high-purity target cells after removing the magnetic column from the magnetic field.

2.2.2 Negative Selection

Negative selection is a sorting strategy that labels and removes non-target cells—magnetic beads are coupled with antibodies against the surface antigens of non-target cells, and bind to all non-target cells in the heterogeneous suspension to form complexes, which are retained in the magnetic field during magnetic separation. The unlabeled target cells remain in the supernatant and are collected to complete the sorting.

Advantages: Target cells are not labeled with magnetic beads during the whole process, remain in a near-native state, and their viability and biological functions are not affected, which is suitable for downstream functional research and clinical cell therapy; Disadvantages: Requires a variety of antibodies to label different types of non-target cells, with high reagent cost and relatively complex operation process.

The diagram shows the key steps of magnetic bead negative selection: labeling all non-target cells with specific magnetic beads → separating non-target cell-magnetic bead complexes via a magnetic column → directly collecting the unlabeled target cells in the supernatant, with no magnetic bead residue on the target cell surface.

2.2.3 Combined Selection

Combined selection is a hybrid sorting strategy that integrates the advantages of positive selection and negative selection, and is mainly used for the enrichment and sorting of rare target cells (e.g., circulating tumor cells, hematopoietic stem cells, rare immune cells) in complex samples. The general operation logic is: first perform negative selection to remove the majority of non-target impurity cells from the complex sample, reduce the complexity of the cell suspension; then perform positive selection on the pre-purified cell suspension to further enrich the target cells, achieving the dual goals of high recovery rate and high purity.

Advantages: Makes up for the shortcomings of single positive/negative selection, can obtain rare target cells with ultra-high purity and high recovery rate from complex samples; Disadvantages: Relatively long operation time, requiring the combination of multiple magnetic bead reagents and strict operation steps.

The diagram depicts the two-step workflow of combined selection: the first step of magnetic labeling and separation for negative selection to remove major non-target cells → the second step of magnetic labeling and separation for positive selection to enrich target cells → eluting and collecting high-purity and high-yield rare target cells.

2.3 Operational Methods of Magnetic Bead-Based Cell Sorting

According to whether a magnetic separation column is used in the sorting process, the operational methods of magnetic bead-based cell sorting are divided into column-based sorting and column-free sorting. The two methods differ in magnetic field gradient, sorting efficiency and applicable scenarios, and can be flexibly selected according to the experimental requirements.

2.3.1 Column-Based Sorting

Column-based sorting is an operational method that uses a dedicated magnetic separation column (filled with magnetic matrix) placed in a strong magnetic field. The cell suspension flows through the magnetic column, and the cell-magnetic bead complexes are captured and retained by the magnetic matrix with a high magnetic field gradient, while unlabeled cells pass through the column with the buffer.

Applicable scenarios: Enrichment and sorting of rare target cells from large-volume complex samples (e.g., peripheral blood, tissue homogenate); Advantages: High magnetic field gradient, strong capture ability for cell-magnetic bead complexes, high sorting purity and recovery rate; Disadvantages: Relatively complex operation, slightly longer sorting time.

2.3.2 Column-Free Sorting

Column-free sorting is a simple and rapid operational method that directly places the sample tube containing the cell-magnetic bead complex suspension near a magnetic stand (external magnetic field). The cell-magnetic bead complexes are attracted by the magnetic field and adhere to the tube wall close to the magnetic stand, and the supernatant containing non-target cells is poured off to complete the separation.

Applicable scenarios: Positive selection of high-abundance target cells or rapid preliminary sorting of cells; Advantages: Extremely simple operation, short sorting time, no need for special magnetic columns, suitable for routine laboratory research; Disadvantages: Low magnetic field gradient, low capture efficiency for cells with weak surface antigen expression, and slightly lower sorting purity than column-based sorting.

2.4 Key Performance Metrics for Evaluating Magnetic Bead Sorting

The effectiveness of magnetic bead-based cell sorting is evaluated by three core performance metrics, which are the key indicators to measure the quality of sorting results and the performance of magnetic bead reagents. Optimizing the experimental conditions (e.g., magnetic bead dosage, incubation time, magnetic field strength) can effectively improve these metrics:

1. Purity: The proportion of target cells in the sorted cell population, which reflects the specificity of magnetic bead sorting. Under optimized experimental conditions, magnetic bead sorting can achieve a target cell purity of 85%-99%, and the purity of nanoscale magnetic bead sorting for specific cells can even exceed 95%.
2. Recovery rate: The percentage of the number of sorted target cells relative to the number of original target cells in the sample, which reflects the capture efficiency of magnetic beads for target cells. The recovery rate of magnetic bead sorting is typically 60%-90%, and the recovery rate of rare cells can be further improved by optimizing the sorting strategy (e.g., combined selection).
3. Cell viability: The ability of sorted target cells to maintain normal viability and biological functions, which reflects the biocompatibility of magnetic beads and the mildness of the sorting process. High-performance magnetic beads with good biocompatibility can ensure that the viability of sorted cells is above 90%, and the cells can still perform normal proliferation, differentiation and functional responses.

Note: There is a certain balance between the three metrics—for example, increasing the dosage of magnetic beads can improve the recovery rate, but may reduce the purity; prolonging the incubation time can improve the binding efficiency, but may affect the cell viability. The experimental conditions need to be adjusted according to the research priority.

2.5 Current Technical Challenges and Future Development Directions

Although magnetic bead-based cell sorting technology has become a mainstream cell separation method, with the increasing demand for high-purity rare cell sorting, single-cell analysis and clinical cell therapy, this technology still faces several key technical challenges in practical application. At the same time, the integration of multidisciplinary technologies such as nanomaterials, synthetic biology and microfluidics is injecting new innovation momentum into its development, and the future development directions are clear and promising.

2.5.1 Major Technical Challenges

1. Maintenance of cell functional integrity: Non-specific binding of magnetic beads or cross-linking of cell surface antigens by antibodies may activate the intracellular signaling pathway of target cells, leading to cell activation or functional changes, which affects the downstream functional research of cells (e.g., immunological function detection, cell therapy application).
2. Efficient sorting of rare cells: For extremely low-abundance rare cells (e.g., circulating tumor cells, fetal nucleated red blood cells), it is difficult to balance high purity and high recovery rate—traditional sorting strategies often lead to low recovery rate while ensuring high purity, or low purity while improving recovery rate.
3. Reduction of non-specific adsorption in complex samples: In complex biological samples (e.g., whole blood, tissue digest), the presence of proteins, cell debris and other impurities can cause non-specific adsorption of magnetic beads, which affects the sorting specificity and purity, and requires further optimization of magnetic bead surface modification and sample pretreatment methods.
4. Elimination of magnetic bead residue on cell surface: Positive selection will lead to magnetic bead residue on the target cell surface, which may affect the cell's biological behavior and downstream experimental detection (e.g., flow cytometry, single-cell sequencing), and there is a lack of a mild and efficient magnetic bead elution method at present.

2.5.2 Future Development Directions

1. Development of reversible ligand binding systems: Design magnetic beads with reversible ligand-cell binding modes (e.g., enzymatic cleavage, temperature response, competitive ligand binding), which can realize the mild elution of magnetic beads from the target cell surface after sorting, obtaining label-free and functional intact target cells.
2. R&D of multifunctional integrated magnetic beads: Modify multiple functional groups on the surface of magnetic beads (e.g., sorting ligands, fluorescent probes, drug carriers), which can realize multi-parameter cell sorting, and can also directly carry out downstream analysis (e.g., fluorescent labeling, in vitro culture) and functional modification of sorted cells.
3. Integration with microfluidics and automation: Integrate magnetic bead sorting technology with microfluidic chips and automatic liquid handling systems to realize the miniaturization, standardization and high-throughput of the sorting process, reduce manual operation errors, and improve the repeatability and stability of sorting results.
4. Screening of novel specific recognition ligands: Develop novel non-antibody recognition ligands (e.g., aptamers, peptides, nanobodies) to replace traditional monoclonal antibodies, which can improve the specificity and stability of ligand-cell binding, reduce the production cost of magnetic beads, and expand the application range of sorting technology.
5. Design of ultra-small nanoscale magnetic beads: Develop superparamagnetic nanobeads with a particle size of less than 100 nm, which can minimize the mechanical stress on the cell membrane during binding, reduce the activation of cell signaling pathways, and improve the functional integrity of sorted cells, especially suitable for clinical cell therapy preparation.

3. Research Significance of Magnetic Bead-Based Cell Sorting

Magnetic bead-based cell sorting technology, as a core technology in the field of cell separation and enrichment, has far-reaching research and application significance in basic life science research, clinical medicine and biotechnological industry. Its development and innovation have promoted the in-depth research of cell biology and the transformation of clinical medical technology:

1. Empowering in-depth basic cell biology research: Provides a simple and efficient method for the separation and enrichment of specific cell populations (e.g., stem cells, immune cells, tumor cells), enabling researchers to carry out in-depth research on the biological characteristics, functional mechanisms and signal pathway regulation of specific cells, and deepening the understanding of cell heterogeneity and life activity rules.
2. Promoting the development of clinical diagnosis and precision medicine: Realizes the rapid and specific detection of rare disease-related cells (e.g., circulating tumor cells, leukemia cells) in clinical samples (e.g., blood, cerebrospinal fluid), providing important technical support for early disease diagnosis, prognosis evaluation and personalized treatment plan formulation.
3. Supporting the industrialization of cell therapy: As a key step in the preparation of clinical cell therapy (e.g., CAR-T, TCR-T, adoptive immune cell therapy), it can efficiently enrich and purify high-quality seed cells (e.g., CD3+ T cells, CD19+ B cells) with high purity and good viability, ensuring the safety and effectiveness of cell therapy products, and promoting the clinical transformation and industrial development of cell therapy.
4. Improving the efficiency of single-cell analysis technology: Realizes the pre-enrichment of rare single cells from complex samples, reduces the difficulty of single-cell capture and analysis, improves the success rate and data quality of single-cell sequencing, single-cell proteomics and other single-cell analysis technologies, and promotes the development of single-cell omics research.
5. Reducing the threshold of cell separation research: Compared with flow cytometry sorting (requiring expensive flow cytometers and professional operators), magnetic bead sorting has the advantages of low instrument cost, simple operation and easy popularization, which reduces the technical threshold of cell separation, making it possible for ordinary laboratories and clinical institutions to carry out specific cell sorting research and application.

4. ANT BIO PTE. LTD. Product Applications in Magnetic Bead-Based Cell Sorting

ANT BIO PTE. LTD. relies on its advanced nanomaterial modification technology, antibody development platform and rich experience in cell separation reagent R&D, and has independently developed a series of high-performance magnetic bead cell sorting products through its Starter sub-brand, which are dedicated to providing efficient, reliable and standardized cell separation solutions for immunology research, cell therapy preparation and basic cell biology research. The products take superparamagnetic nanobeads as the core, are coupled with high-specificity monoclonal antibodies, and have the advantages of high sorting purity, good cell viability and simple operation, and are matched with complete technical support and experimental protocols.

4.1 Core Advantages of ANT BIO PTE. LTD. Magnetic Bead Sorting Products

The CD series magnetic bead cell sorting products independently developed by ANT BIO PTE. LTD. (represented by CD3 Nanobeads, human (RUO)) are based on advanced superparamagnetic nanobead technology, and their core advantages ensure high-quality cell sorting results and meet the diverse needs of scientific research and clinical research:

1. High specificity and ultra-high sorting purity: Adopt rigorously screened and validated high-affinity monoclonal antibodies (e.g., anti-human CD3, anti-human CD14, anti-mouse CD8) for covalent coupling with magnetic beads, achieving precise targeting of cell surface antigens. The uniform nanobead size ensures consistent and efficient binding with target cells, and the sorting purity of target cells is typically >95%, meeting the high requirements of cell therapy preparation and single-cell sequencing research.
2. Mild nanobead design, intact cell viability and function: The ultra-small nanoscale magnetic beads minimize the mechanical stress on the cell membrane during the binding process, avoid the activation of cell intracellular signaling pathways, and well preserve the viability and normal biological functions of sorted cells. The magnetic beads do not require elution after sorting, simplifying the experimental workflow while ensuring no adverse effects on downstream cell research.
3. Simple and rapid operation, wide sample compatibility: The whole sorting process adopts the classic "label-magnetic separation" workflow, which only requires a common magnetic stand and no complex large-scale instruments, and can complete the cell sorting in a short time, suitable for standard laboratory operations. The products are compatible with a variety of biological samples, including peripheral blood mononuclear cells (PBMCs), lysed whole blood, spleen tissue suspension and lymph node tissue suspension, with strong applicability.
4. Stable product performance, good batch-to-batch consistency: The magnetic beads are prepared by standardized nanomaterial modification and antibody coupling processes, with strict quality control in the whole production process. The product has good physicochemical stability and biological activity, and the batch-to-batch consistency is excellent, ensuring the repeatability and reliability of experimental results.

4.2 Key Application Scenarios of Magnetic Bead Sorting Products

ANT BIO PTE. LTD.'s magnetic bead cell sorting products cover human and mouse immune cell sorting, and have broad application scenarios in immunology research, cell therapy preparation, functional cell research and experimental teaching, which are important research tools for biological laboratories and clinical research institutions:

表格

4.3 Professional Technical Support and Customized Services

In addition to providing high-quality magnetic bead sorting products, ANT BIO PTE. LTD. also provides a full range of professional technical support and personalized experimental solutions for customers:

• Provide detailed experimental protocols for different samples (whole blood, PBMCs, tissue suspension), including sample pretreatment methods, magnetic bead dosage optimization, incubation time and magnetic separation conditions, to help customers obtain the best sorting results;
• The professional technical team provides one-on-one expert consultation services, answering the technical problems encountered by customers in the sorting process, and optimizing the experimental workflow according to the customer's research needs;
• Provide product trial services for new customers, allowing customers to test the product performance and sorting effect in advance, and ensure the matching between the product and the customer's experimental system;
• Can provide customized magnetic bead development services according to the customer's special research needs (e.g., specific cell surface antigen targeting), developing personalized magnetic bead sorting products for non-mainstream cell populations.

.
