Invivo anti-mouse PD-L1 Recombinant mAb

Invivo anti-mouse PD-L1 Recombinant mAb

Catalog Number: S0B0038 Application: Functional/Block/Neutralize Reactivity: Mouse Conjugation: Unconjugated Brand: Starter
Price:
Regular price $160 USD
Regular price Sale price $160 USD
Size:
For shipping services or bulk orders, you may request a quotation.
Secure checkout with
View full details

Product Details

Product Specification


Host Rat
Antigen PD-L1
Synonyms Programmed cell death 1 ligand 1,CD274, B7-H1
Immunogen N/A
Location Membrane
Accession Q9EP73
Clone Number 10F.9G2
Antibody Type Rat mAb
Isotype Rat IgG2b, κ
Application in vivo PD-L1 blockade
Reactivity Ms
Purification Protein G
Concentration 5 mg/ml
Endotoxin <1EU/mg
Physical Appearance Liquid
Storage Buffer

PBS pH7.4, containing no preservative

Stability & Storage

2 to 8 °C for 2 weeks under sterile conditions;

-20 °C for 3 months under sterile conditions;

-80 °C for 24 months under sterile conditions.

Please avoid repeated freeze-thaw cycles.

Dilution


application dilution species
WB 1:300

Background

This antibody recognizes the same epitope as  clone  10F.9G2.

Programmed death-ligand 1 (PD-L1) also known as cluster of differentiation 274 (CD274) or B7 homolog 1 (B7-H1) is a protein that in humans is encoded by the CD274 gene. Programmed death-ligand 1 (PD-L1) is a 40kDa type 1 transmembrane protein that has been speculated to play a major role in suppressing the adaptive arm of immune systems during particular events such as pregnancy, tissue allografts, autoimmune disease and other disease states such as hepatitis. The binding of PD-L1 to the inhibitory checkpoint molecule PD-1 transmits an inhibitory signal based on interaction with phosphatases (SHP-1 or SHP-2) via Immunoreceptor Tyrosine-Based Switch Motif (ITSM). This reduces the proliferation of antigen-specific T-cells in lymph nodes, while simultaneously reducing apoptosis in regulatory T cells (anti-inflammatory, suppressive T cells) - further mediated by a lower regulation of the gene Bcl-2. Upregulation of PD-L1 on immune cells (especially myeloid cells) can also lead to formation of an immunosuppressive environment in a highly localized manner that also allow the cancer cells to proliferate.


Validation Data

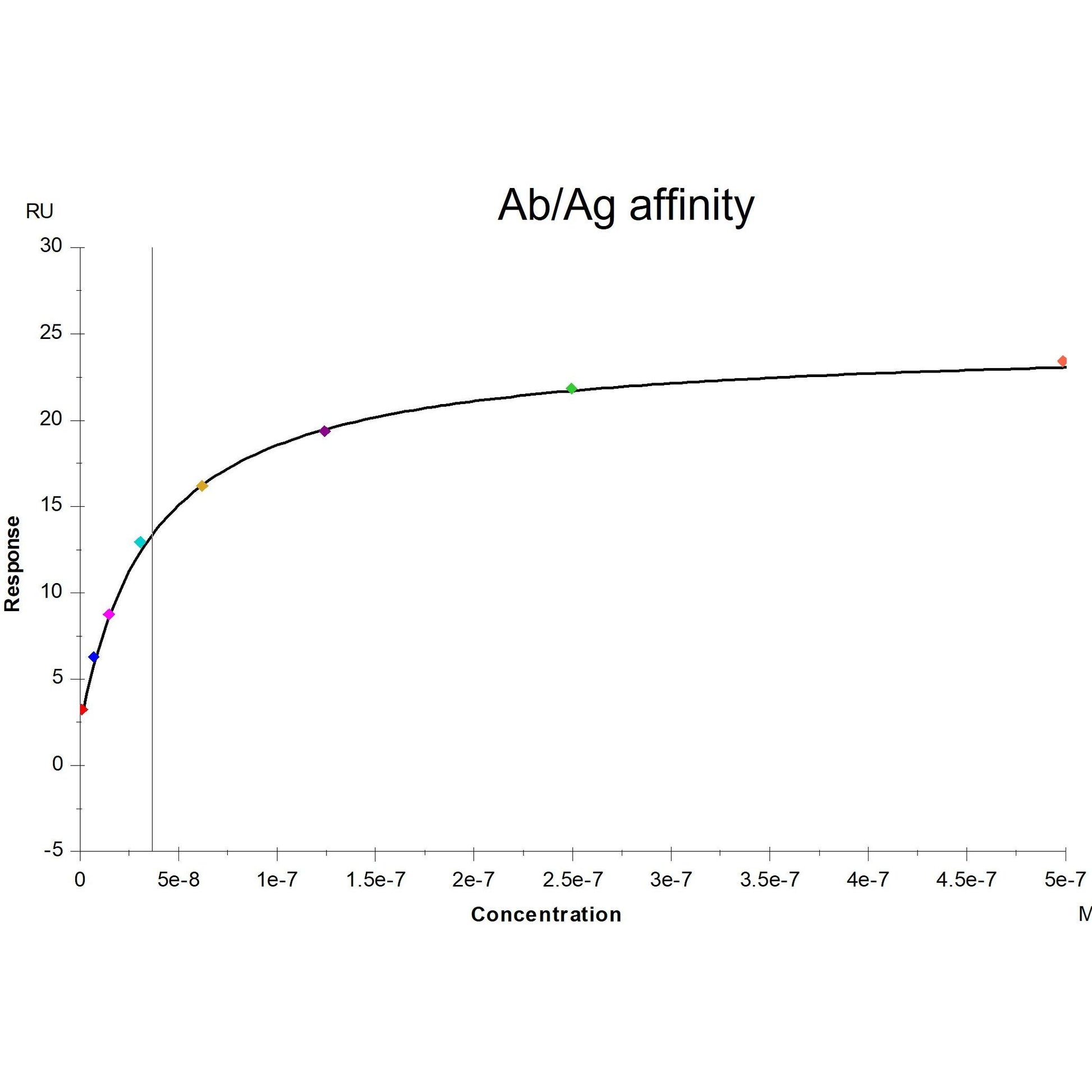

PD-L1/B7-H1 Fc Chimera (Mouse recombinant protein) at 0.25 μg/mL can bind PD-L1 Recombinant Rat mAb (10F.9G2 ) at 200 nm/L.
KD(M)=3.689*10-8

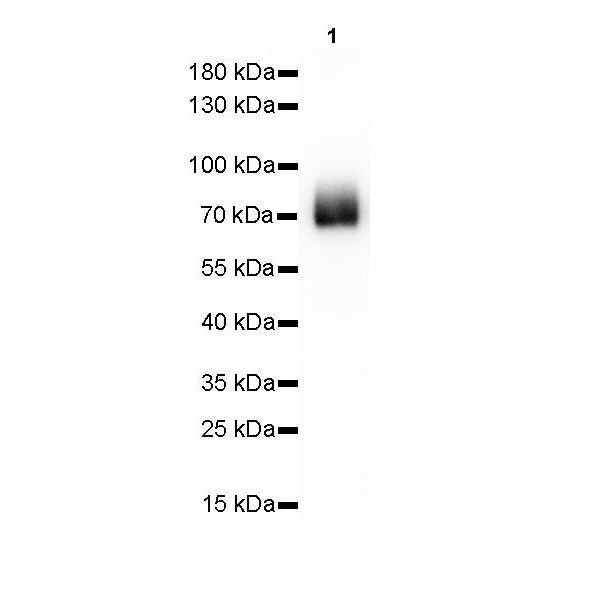

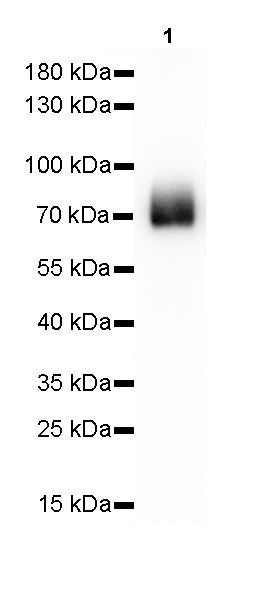

Western Blot

WB result of PD-L1 Rabbit mAb
Primary antibody: PD-L1 Rabbit mAb at 1/300 dilution
Lane 1: PD-L1/B7-H1 Fc Chimera, Mouse (recombinant protein) lysate 1μg
Secondary antibody: Goat Anti-Rabbit IgG, (H+L), HRP conjugated at 1/10000 dilution
Predicted MW: 64~78 kDa
Observed MW: 70 kDa
